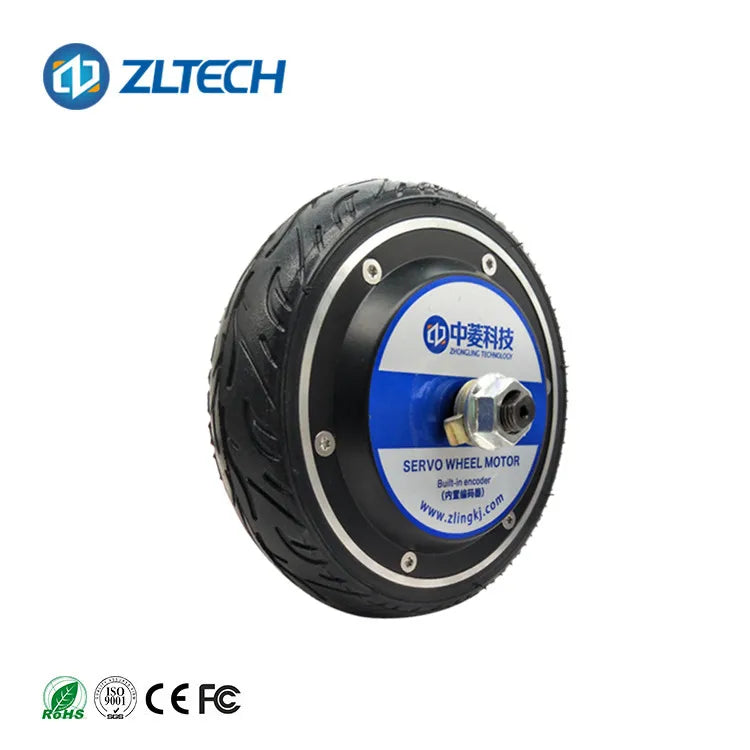

ZLTECH 6.5" 24V 150W 150kg 6.5N.m 8A 200RPM AGV load single axis double dc brushless wheel servo hub motor for transport robot
$361.71$691.71
Payment Methods
Product Description
Hub servo motor is a new Auto-navigation System integrated wheel and servo motor, which is normally used for AGV, robot, automatic forklift, and other automatic handling system.
| Hub Servo Motor | ZLLG65ASM250-L |
| Size | 6.5inch |
| Shaft | Single shaft/Double shaft |
| Rated Voltage | 24V DC |
| Rated Power | 150W |
| Rated Torque | 6.5N.m |
| Peak Torque | 10N.m |
| Rated Current | 8A |
| Peak Current | 16A |
| Rated Speed | 200RPM |
| Max Speed | 300RPM |
| Encoder | 1024-wire optical incremental encoder |
| Protection Level | IP54 |
| Load | 150kg/2sets |
| Move speed with full load | 2m/s |
Feature
* Built-in high precision encoder 12-21 bits optional, also can be customized, electric brake, high load carrying etc
* Simple structure, easy installation and high cost performance
* High precision, high power density, low noise, efficient and durable
*Creative design integrated motor and outer wheel
* 3.5-16 inch optional, power: 50-2KW optional, accept OEM/OEM for all models

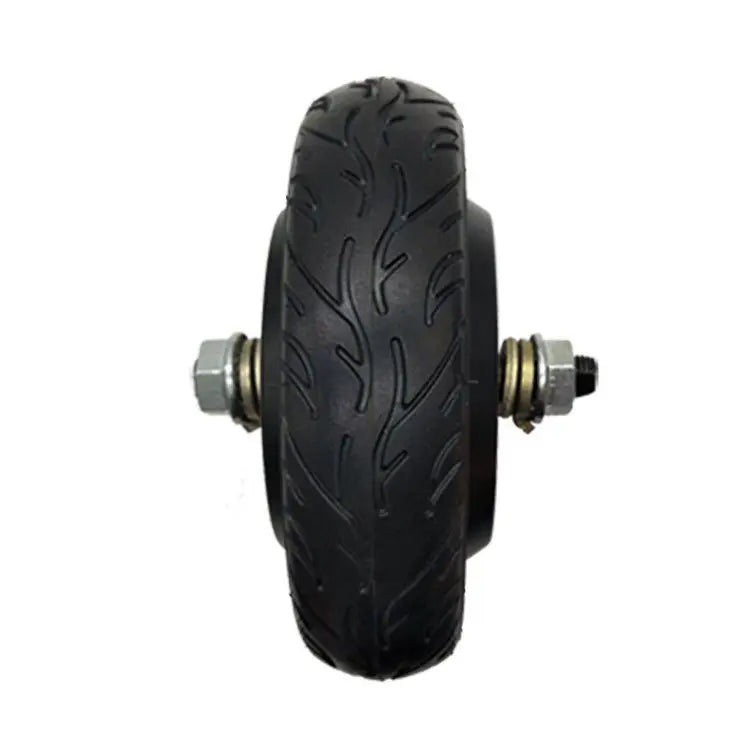

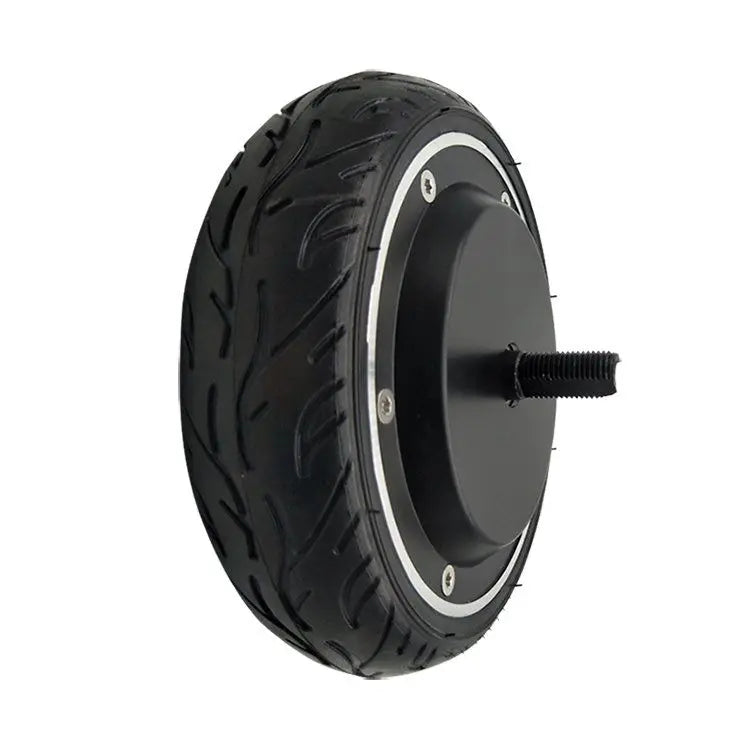

Detailed Images
Size Information

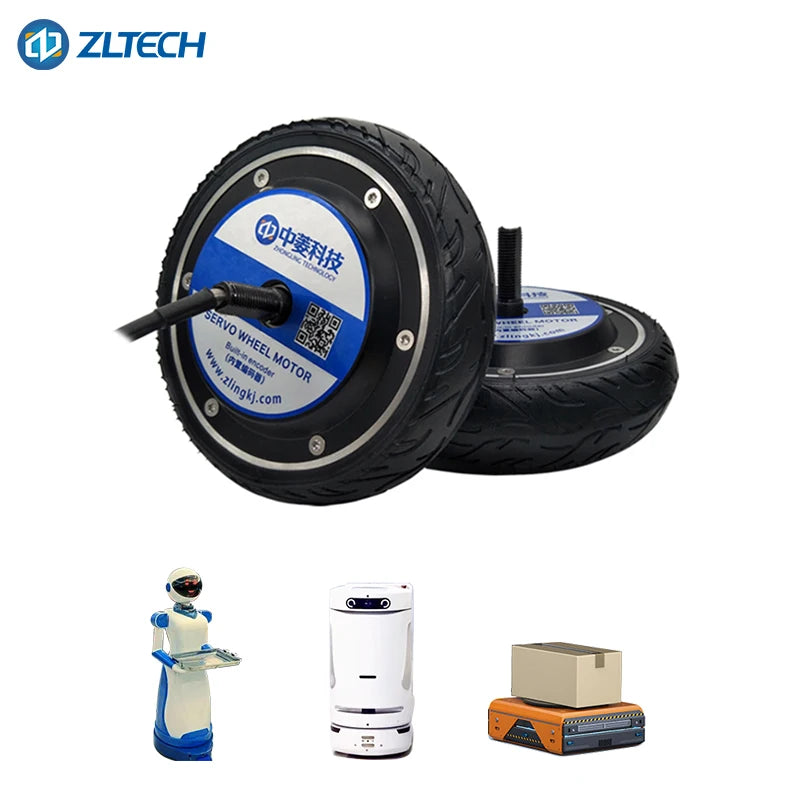

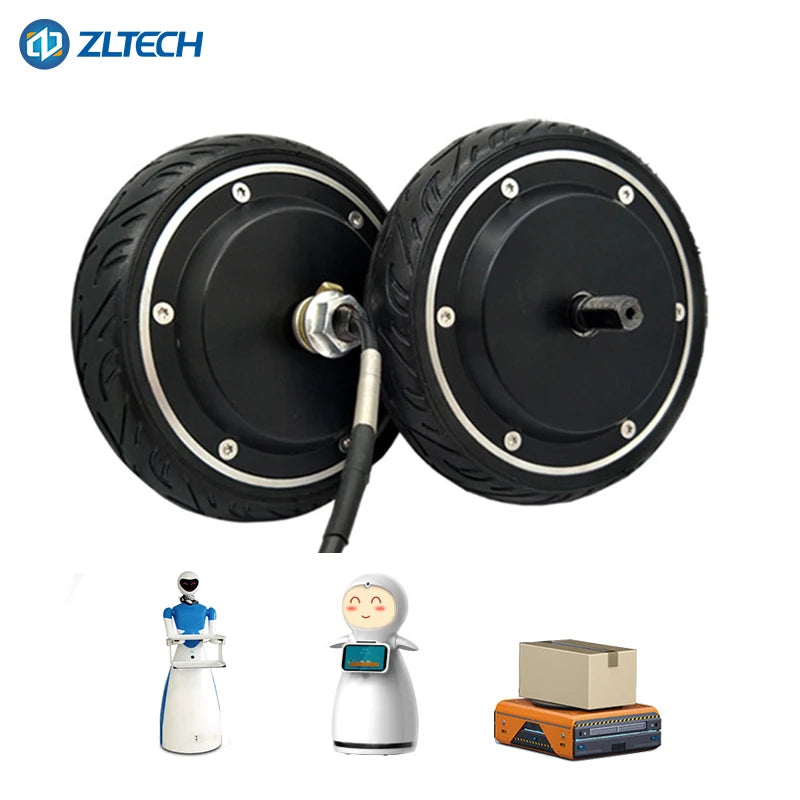

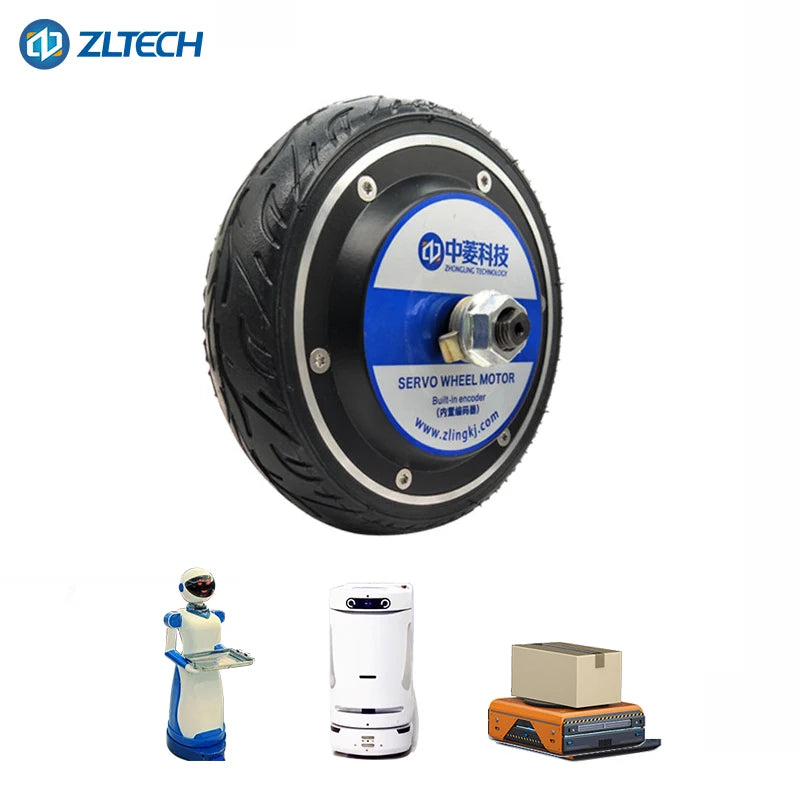

Application
