Yongli 0~200w HLP-200B Handheld 10.6um Optical co2 laser power meter
$410.78$949.78
Payment Methods

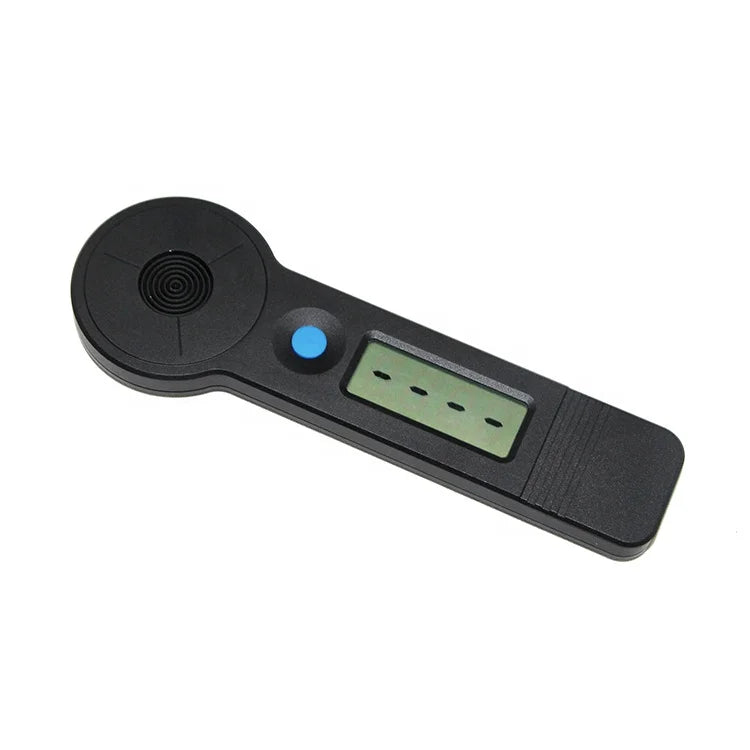

Yongli 0~200w HLP-200B Handheld 10.6um Optical co2 laser power meter
Product Description
HLP-200B is a low-power handheld power meter designed to measure carbon dioxide laser power. Small size, easy portable. Convient to use with inset button battery. Easy to read, high accuracy
Technical Parameters
|
Model
|
HLP-200B
|
|
Type
|
Hand-held
|
|
Measurement Range
|
0~2OOW
|
|
Min.Resolution
|
0.1W
|
|
Light Sensitive Area
|
(pl9mm
|
|
Wavelength
|
10.6pm
|
|
Cooling Method
|
Nature-cooled
|
|
Application
|
CO2 laser tube/RF Laser
|
|
Power Supply
|

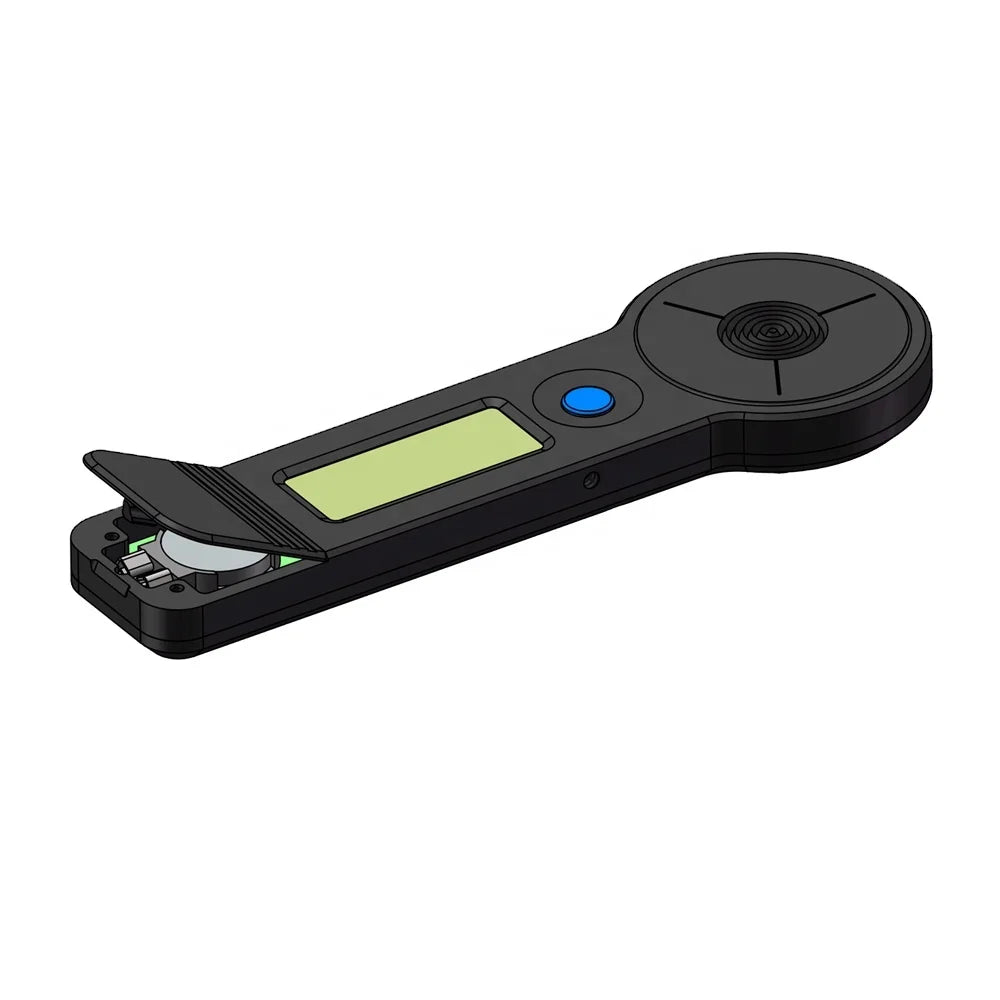

3V/3.6V 2032 Button Battery
|
|
Display
|
Four Numeric LCD Display
|
|
Warranty
|
12 months
|

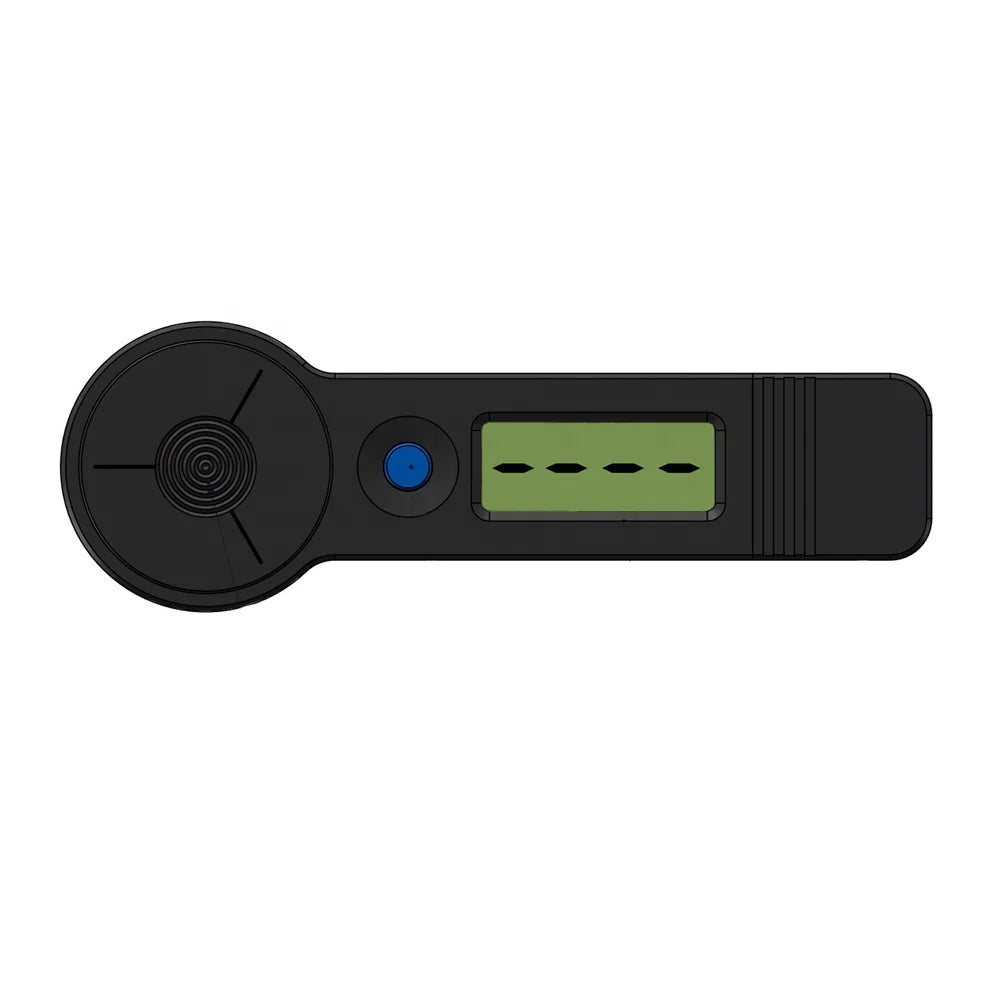

Product Structrue
A: Text Area

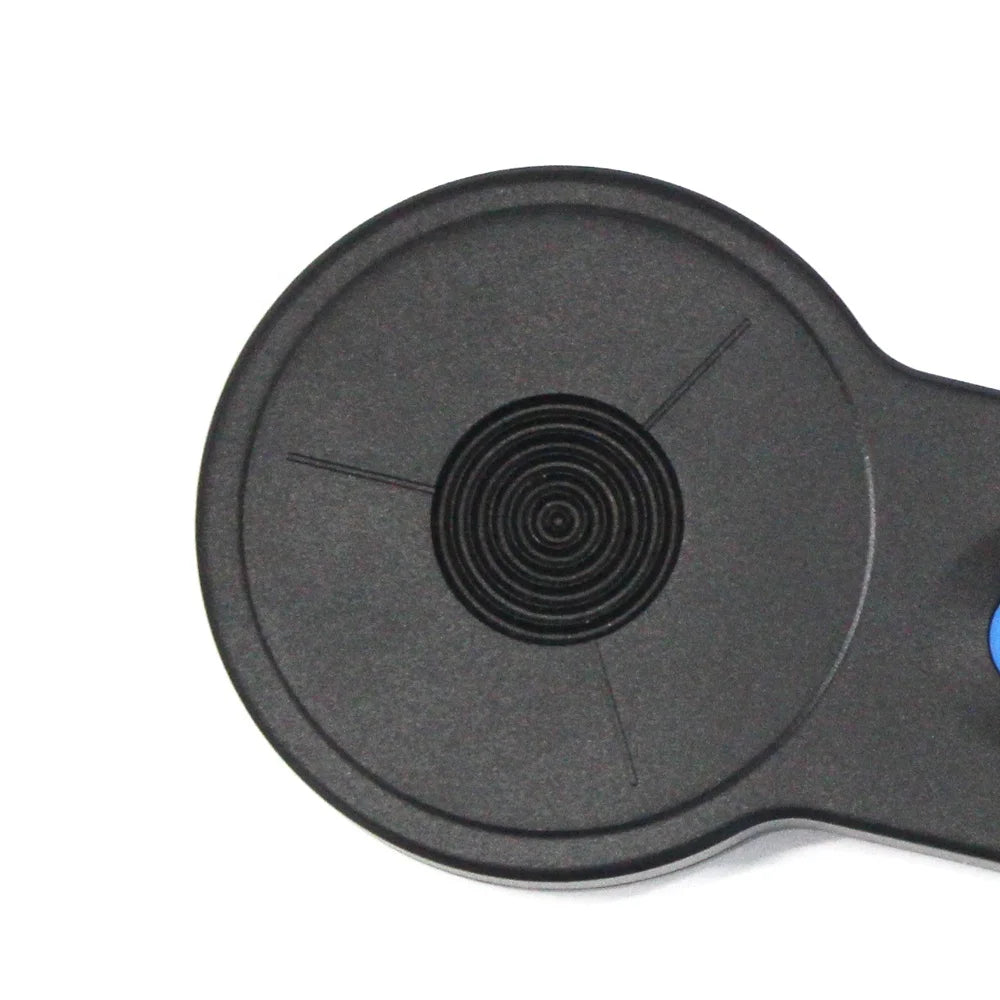

During measurement, the laser power meter’s light source to be measured should illuminate exactly at the center of the probe's target surface. After the probe senses the light, the screen "----" stops flashing and starts to measure the power.
B: Start Button
Press the blue button to start the hand-held laser power meter. With the sound prompt, the hand-held laser power meter screen enters the "----" flashing state, that is, the power meter enters the waiting state for measurement.
C:Reading Result
When the power meter screen displays “Hot” with a sound prompt, it means that the current temperature of the laser power meter probe is too high, and the laser power meter can be used again after it cools down.
When the power meterscreen displays "Err" and is accompanied by a sound prompt, it means that the current measured power of the probe has exceeded the maximum measurement value that the power meter can measure or the power meter can not work normally after the measurement is not cooled down, and the laser power meter can be used again after cooling down.
During measurement, the laser power meter’s light source to be measured should illuminate exactly at the center of the probe's target surface. After the probe senses the light, the screen "----" stops flashing and starts to measure the power.
B: Start Button
Press the blue button to start the hand-held laser power meter. With the sound prompt, the hand-held laser power meter screen enters the "----" flashing state, that is, the power meter enters the waiting state for measurement.
C:Reading Result
When the power meter screen displays “Hot” with a sound prompt, it means that the current temperature of the laser power meter probe is too high, and the laser power meter can be used again after it cools down.
When the power meterscreen displays "Err" and is accompanied by a sound prompt, it means that the current measured power of the probe has exceeded the maximum measurement value that the power meter can measure or the power meter can not work normally after the measurement is not cooled down, and the laser power meter can be used again after cooling down.
Usage
How to Use?
Step 1
Press the start button to power on
Step2
Dashed line appears on the screen
Step3
Approach the power meter to the test area
0.5 second later,there will be a prompt tone.
Then the dashed line becomes flicker. It's ready to test.
Step4
Power shows on the screen , 7 seconds later, it will be power offautoaitucally
7 Seconds later, the power meter will be powered off automatically
Application
The power meter can be used to test any kind of co2 laser, such as the glass co2 laser tubes, RF co2 laser tube etc. Only the wavelength is 10.6um,it will be ok. The measurement range is 0~200 watts.
