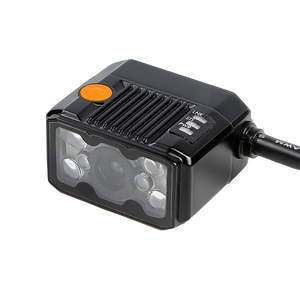

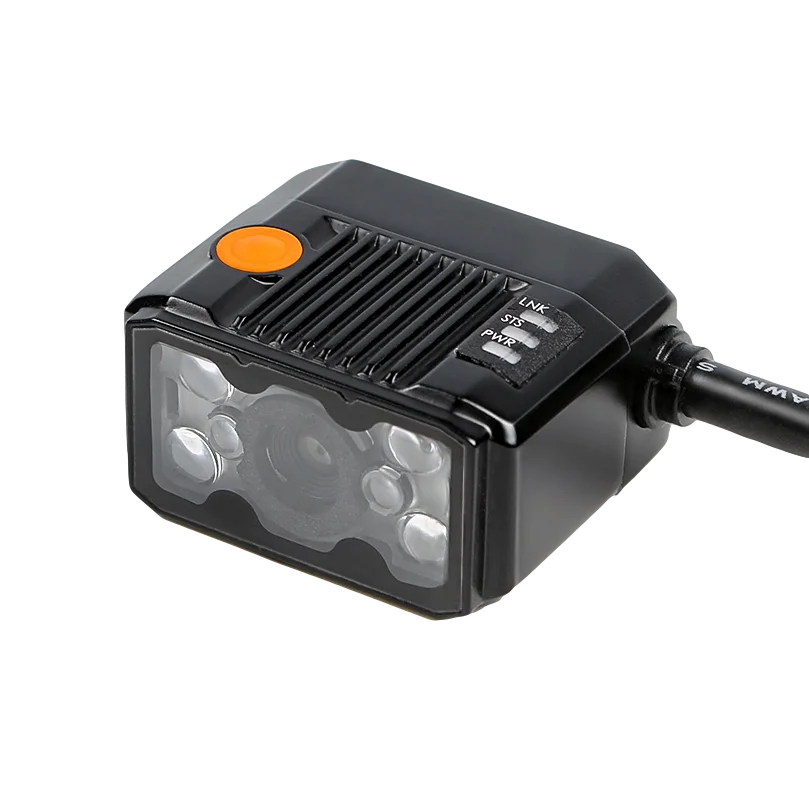

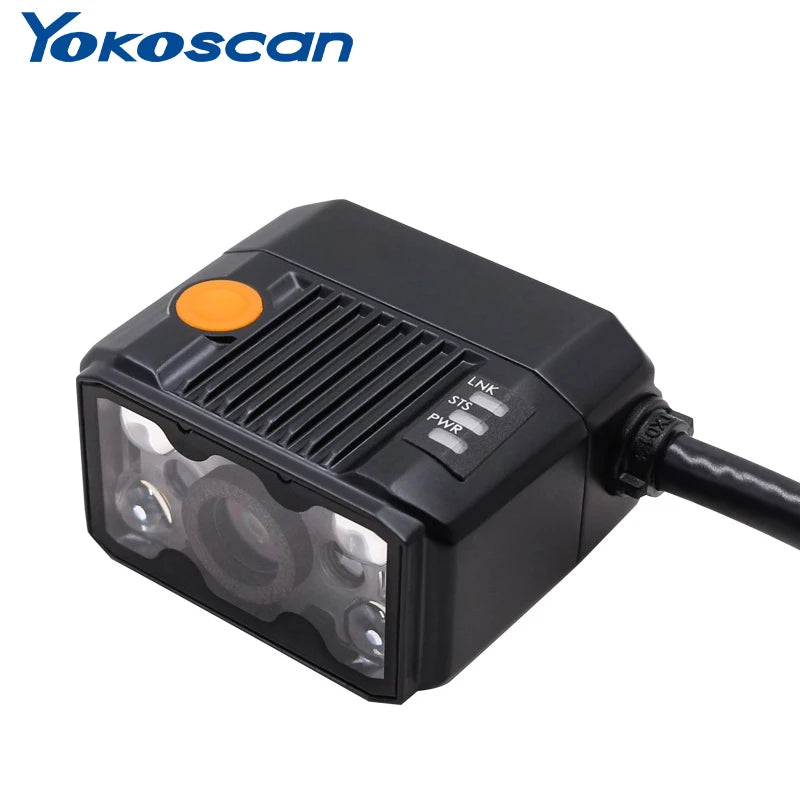

YOKO Industrial 1D 2D Smart Code scanner stationary fixed mount DPM reader module EP2904DP for auto manufacturing
$1,726.01$3,496.01
Payment Methods
Product Description
Key Features
* Built-in deep learning algorithm to read codes with good robustness.
* Compact design and small in size.
* Adopts aviation connector for single cable wiring.
* Adopts LED aiming light to help aim codes.

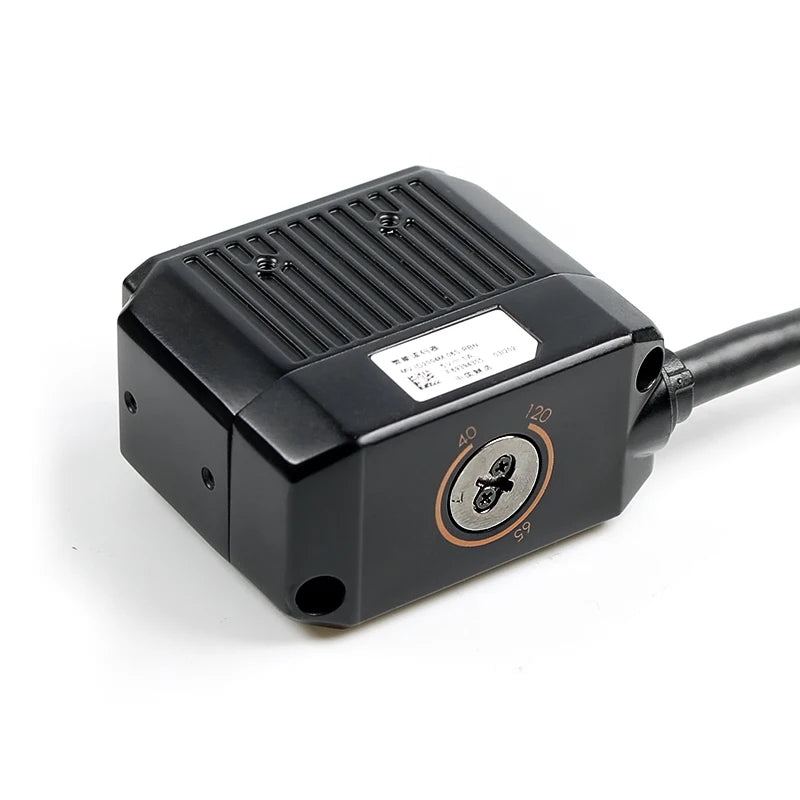

* Adopts focus knob for adjusting focusing manually.
* Adopts multiple IO interfaces and plug-in power interface.
* Supports multiple communication protocols, including TCP, Serial, FTP, Profinet, etc.
* Compact design and small in size.
* Adopts aviation connector for single cable wiring.
* Adopts LED aiming light to help aim codes.
* Adopts focus knob for adjusting focusing manually.
* Adopts multiple IO interfaces and plug-in power interface.
* Supports multiple communication protocols, including TCP, Serial, FTP, Profinet, etc.
Dimension
Specification
|
Model
|
Model
|
EP2904DP
|
|
Performance
|
Symbologies
|
1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN, UPCA,
UPCE 2-dimensional codes: QR Code, Data Matrix |
|
Max. frame rate
|
60 fps
| |
|
Max. reading speed
|
41 codes/sec
| |
|
Sensor type
|
CMOS, global shutter
| |
|
Pixel size
|
6.9 µm × 6.9 µm
| |
|
Sensor size
|
1/2.9"
| |
|
Resolution
|
704 × 540
| |
|
Exposure time
|
16 μs to 1 sec
| |
|
Gain
|
0 dB to 15 dB
| |
|
Mono/color
|
Mono
| |
|
Communication protocol
|
SmartSDK, TCP Client, Serial, FTP, HTTP, TCP Server, Profinet, MELSEC, Ethernet/IP, ModBus,
UDP, Fins, SLMP | |
|
Optics
|
Focal length
|
6 mm (0.2")
|
|
Working distance
|
40 mm to 120 mm (1.6" to 4.7"), adjusting focus manually supported
| |
|
Ambient illumination
|
0 lux to 50000 lux
| |
|
Light source
|
Red LED, blue LED, white LED
| |
|
Aiming system
|
Green LED
| |
|
Electrical features
|
Data interface
|
Fast Ethernet
|
|
Digital I/O
|

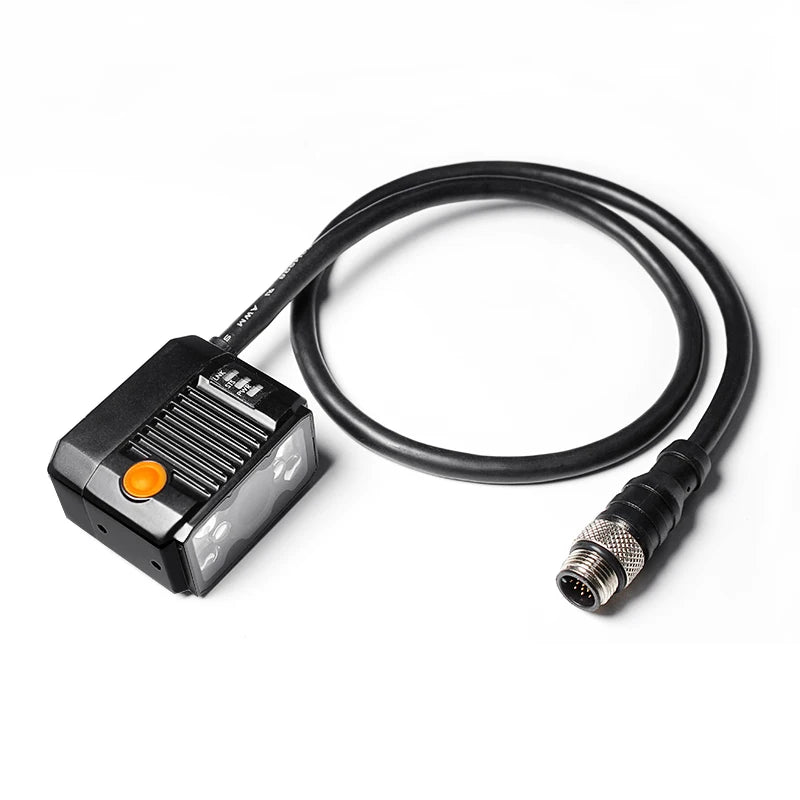

17-pin M12 connector provides power and I/O, including configurable bi-directional
none-isolated I/O × 4: input (Line 0/1) and output (Line 2/3) by default, RS-232 × 1. Device trigger via pressing button on side supported. | |
|
Power supply
|
12 VDC to 24 VDC
| |
|
Max. power consumption
|
Approx. 10.6 W@24 VDC
| |
|
Mechanical
|
Indicator
|

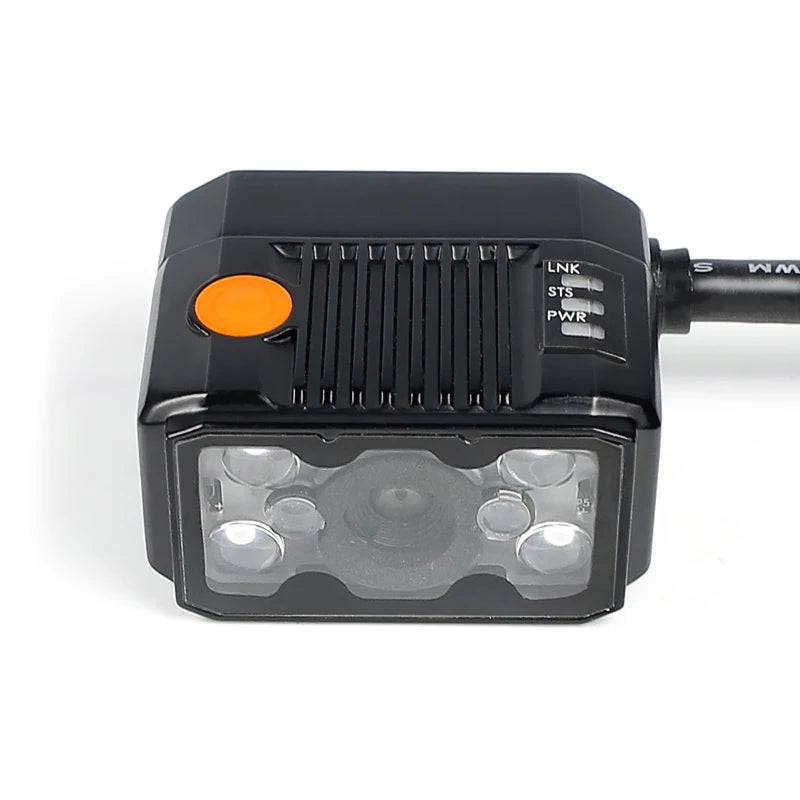

Power indicator (PWR), network indicator (LNK), and status indicator (STS).
|
|
Dimension
|
46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0")
| |
|
Weight
|
Approx. 160 g (0.35 lb.)
| |
|
Ingress protection
|
IP65
| |
|
Temperature
|
Working temperature: 0 °C to 50 °C (32 °F to 122 °F), storage temperature: -30 °C to 70 °C
(-22 °F to 158 °F) | |
|
Humidity
|
20% to 95% RH, non-condensing
| |
|
General
|
Client software
|
IDMVS
|
|
Certification
|
CE, FCC, RoHS
|
