Support output video frame rate setting, max 60fps input and output
Support output video resolution setting, max 1920x1080P input and output
Support web page or APP control dashboard

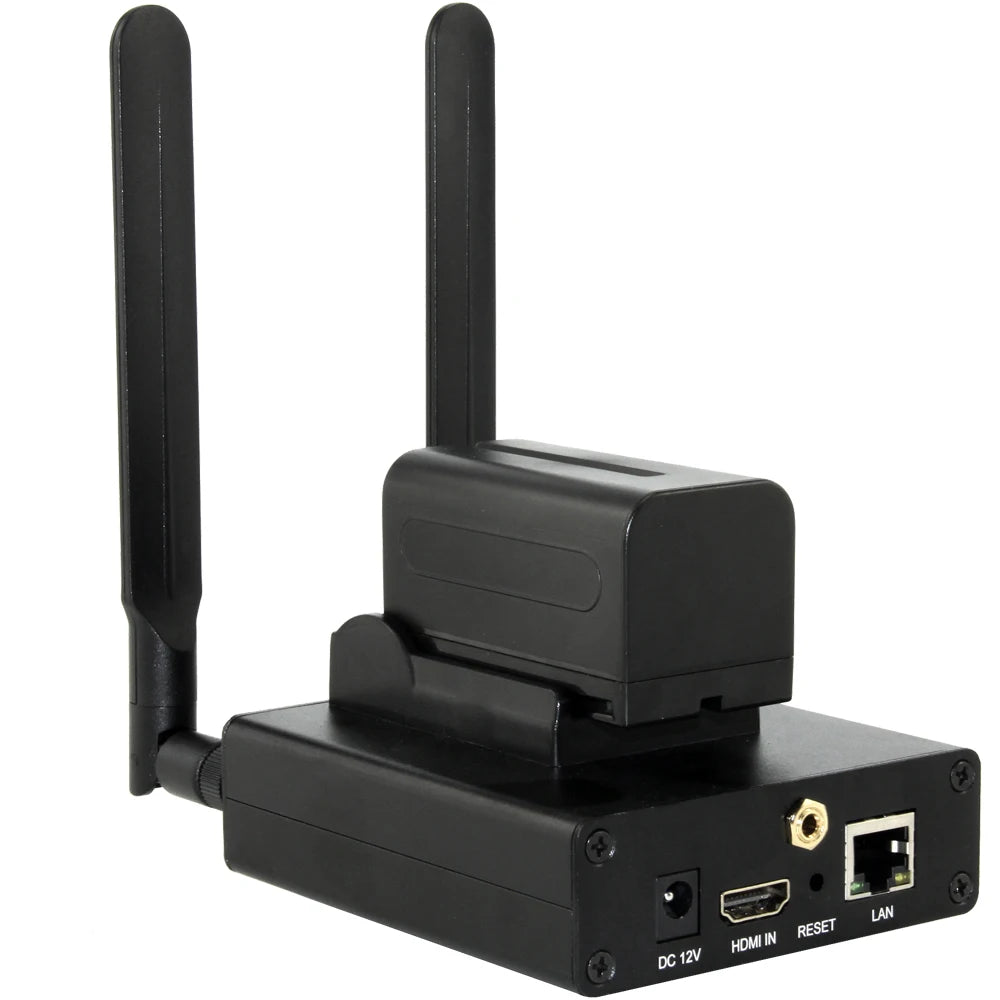

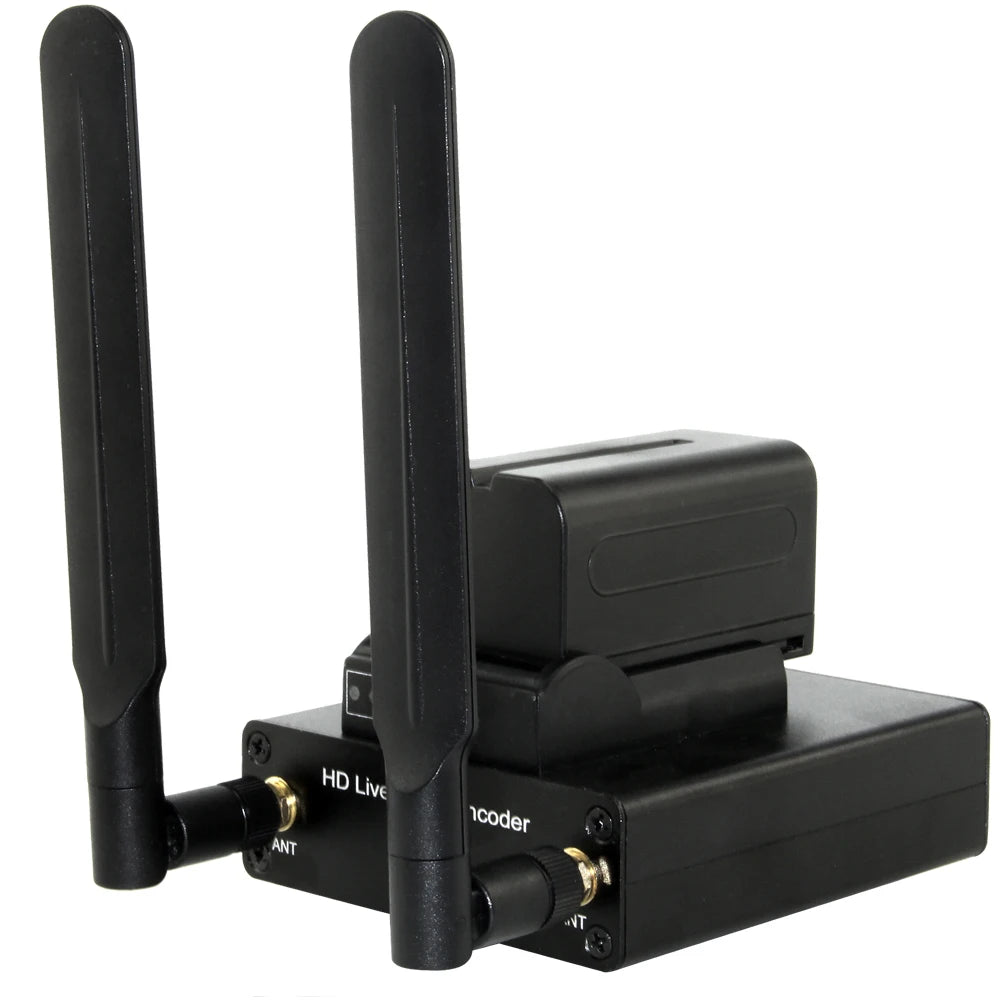

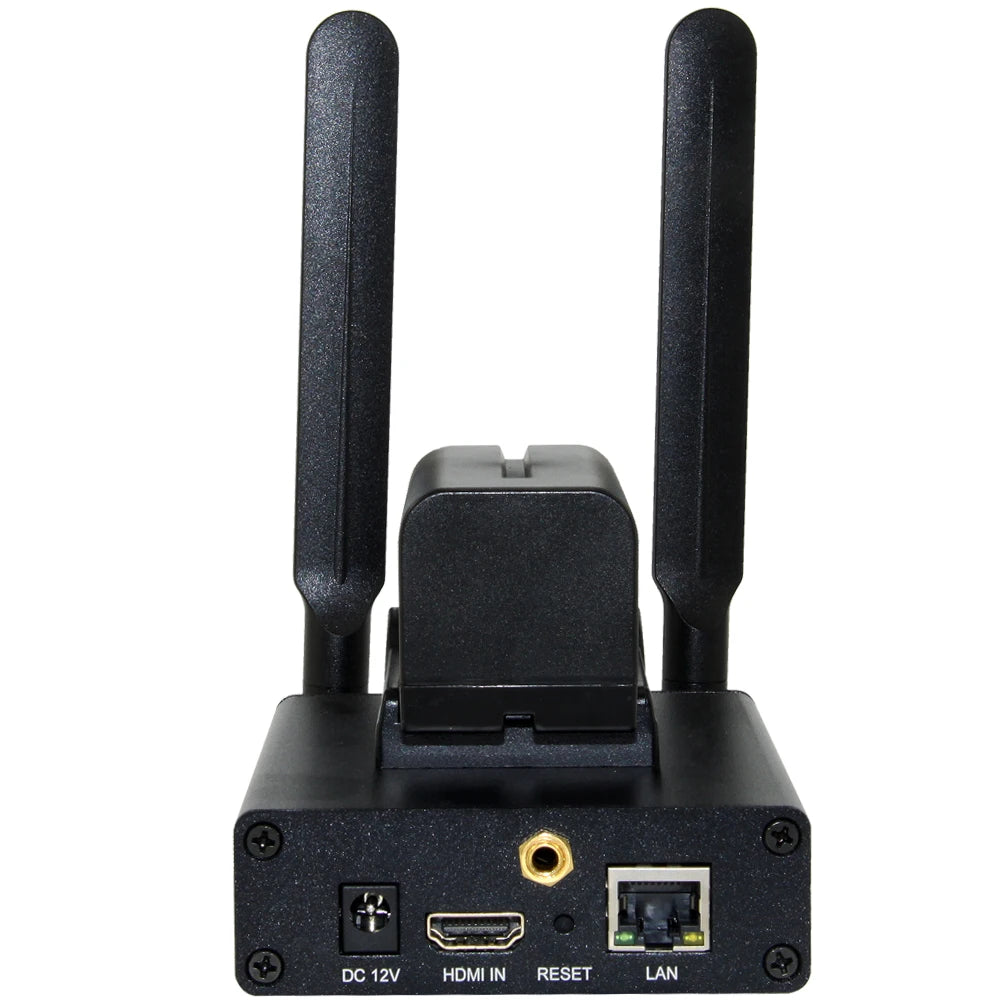

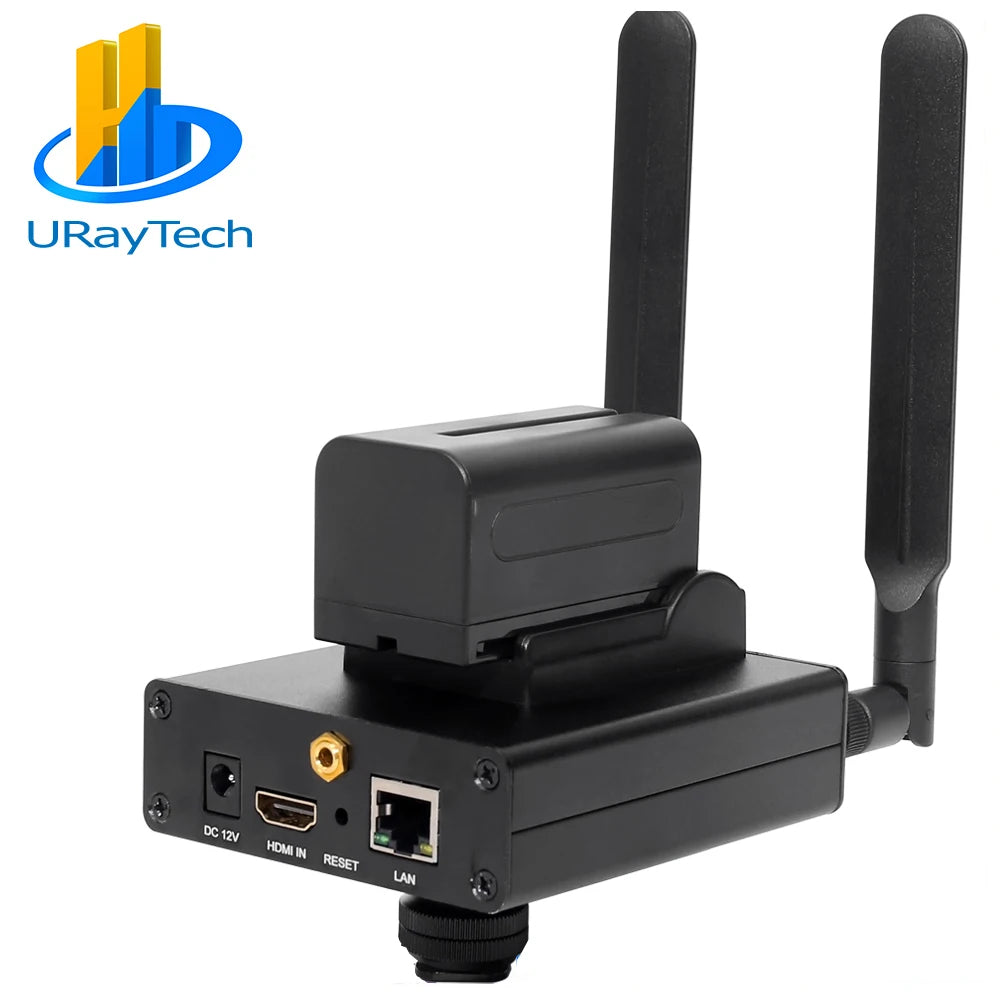

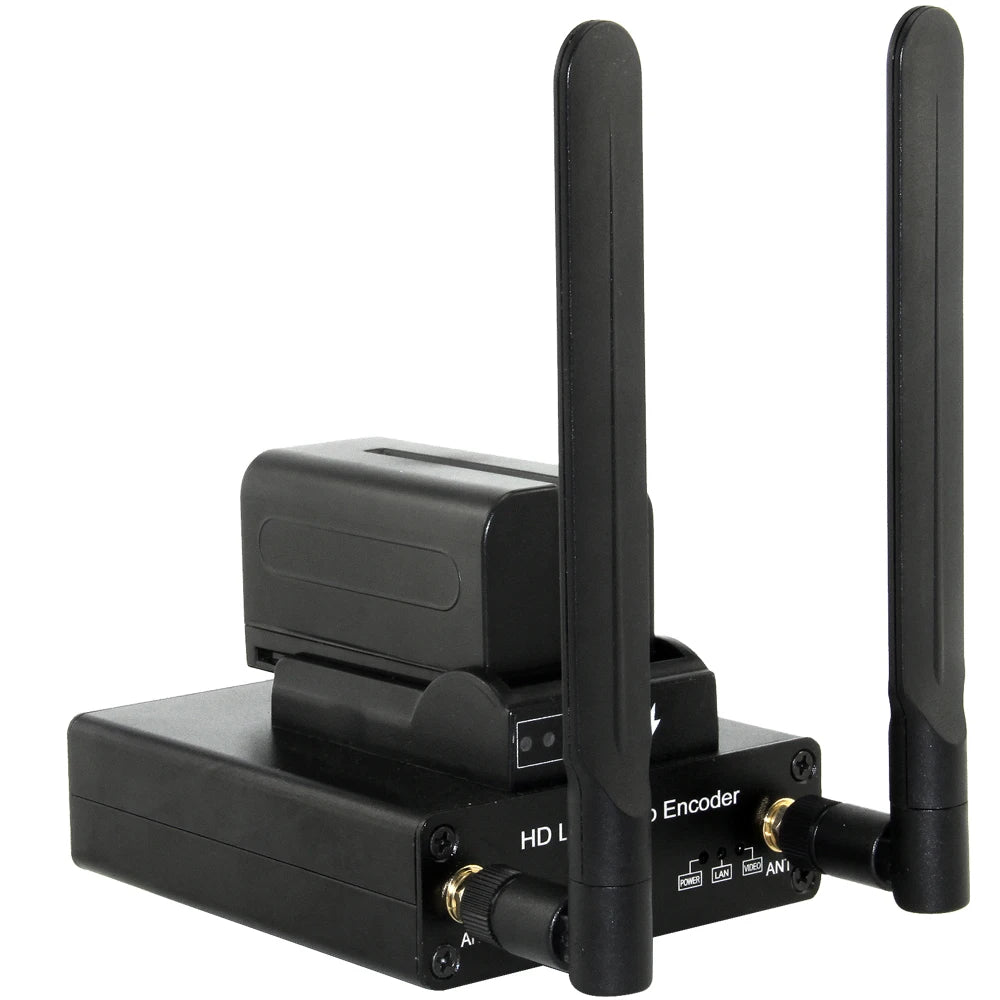

Model No. | UHE265-1WBS |
Video | |
Input Video | 1XHDMI, support HDCP |
Input Resolution | Max 1920x1080 resolution, max 60fps frame rate |
Video Encoding | HEVC/H.265, MPEG-4 /H.264 AVC, MJPEG |
Encoding Levels | H.265 main profile, H.264 high /main /baseline profile |
Video Bitrate | Adjustable From 32kbit /s to 32mbit /s |
Bitrate Control | CBR, VBR, Strong CBR |
Output Resolution | It is adjustable, max 1920x1080P /60fps |
Video Pre-processing | De-interlacing, noise reducing, sharpening etc |
Audio | |
Input Audio | HDMI embedded audio or external stereo audio(3.5mm jack) |
Output Audio | Support to switch HDMI audio or external audio at will |
Sampling Rate | 44.1KHz, 48KHz, Same as the input |
Bitrate Control | Adjustable from 48000~320000 |
Audio Encoding | AAC, AAC+, AAC++, MP3, MP2, AC3, Opus, G.711 |
Network | |
Interface | Ethernet port(1000 BASE-T) or WIFI(2.4G /5G) |
Streaming Protocol | HTTP, SRT, RTSP, RTMP(S), HLS, ONVIF, UDP, RTP, Unitcast etc |
Control Panel | Webpage UI(language customizable) Or APP |
Firmware Update | Enable by uploading files to dashboard and upgrade |
General | |
Dimension (W* L* H) | 104 x 95 x 29 /mm |
Net Weight | 260g |
Temperature | 0 to 45(For working), -20 to 80(For storing) |
Input Voltage | DC 12V /1A |
Hot Shoe | Yes, Included. |
Click here to check | Click here to check | Click here to check |
• Status Display
• Stream Setting
• OSD Setting
• Upgrade
• If you have problem of making payment, please contact us.
• If you are worried about customhouse charge, please contact us.
• If you need to print your logo on the device, please contact us.
• If you require any files regarding to the product(user manual, new firmware etc), please contact us.
• If you have questions before buying, please contact us.
• If you meet the technical problems after buying, please contact us.
• If you want to test this device before buying, please contact us.
Shenzhen URay Technology Co., Ltd is a technical enterprise with high speed and stable development. These years we are concentrating on the technical research and improvement, producing and marketing all types of video encoder and video decoder also video capture card. Our main product line is HDMI encoder and decoder, SDI encoder and decoder, VGA encoder and decoder, HDMI capture card, SDI capture card etc. Presently these products are widely used in the industrial and enterprise and school and hospital etc. Vast of video encoders and video decoders and video capture cards are exported overseas to many countries in different continent in a year. We are looking forward to the cooperation and development with the customers for creating a bright feature.
For more information about our company and product, please visit our official website www.szuray.com.
