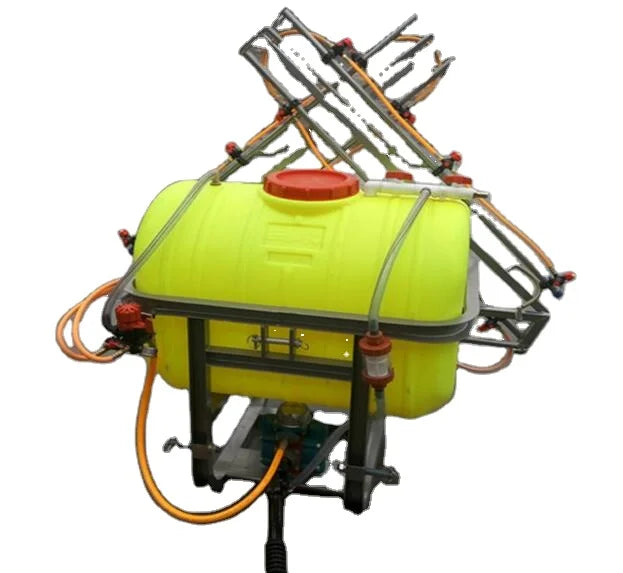

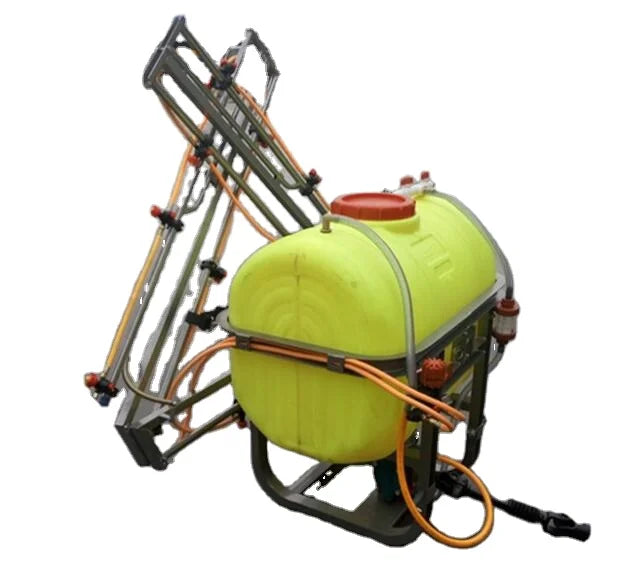

Tractor Farm Machinery Tractor Mounted Boom Sprayer
$2,862.74$5,802.74
Payment Methods
Product Description
Tractor vehicle sprayer for agricultural farm Power Tank Sales
Wide spray range, high operating efficiency, saving time and effort. Equipped with high-end combination valve, it integrates pressure regulation, reversing, segmented control, filtration, pressure display as one, easy and fast to use. The machine is a three-point suspension with hydraulic automatic lifting and folding spraying machine. Its advantages are:
1. Wide spray range and high operating efficiency 2. The boom is lifted and folded, saving time and effort 3. Equipped with high-end combination valve, which integrates pressure regulation, reversing, segmented control, filtration, pressure display as one, easy and fast to use 4. Four-stage filtration without clogging the nozzle 5. High configuration and reliable performance 6. High atomization uniformity 7. The mixing system adopts a two-way configuration of reflux and high-pressure stirring, which can fully ensure the uniformity of the liquid medicine, which makes the pest control and disease prevention effect good. 8. Boom sprayer is suitable for hilly land operations. The spring shock absorber and the four-link pendulum-type rebalance mechanism can further eliminate the impact caused by uneven ground and make the spraying machine have high balance stability.
Specification
| Main technical parameters of vehicle-mounted sprayer:
|
Main technical parameters of vehicle-mounted sprayer:
| |
|
Supporting power (kW)
|
Tractors above 20 horsepower (users own matching)
| |
|
Working width (m)
|
6-8 meters 5 sections folding (can be customized)
| |
|
Medicine box capacity (L)
|
350
| |
|
Liquid pump form
|
High pressure pump / diaphragm pump
| |
|
Boom working pressure
|
0.2-0.4Mpa
| |
|
Pump speed
|
900-1400r/min
| |
|
Working pressure
|
1.5-3.5Mpa
| |
|
Rated flow
|
34-52L/min
| |
|
Nozzle number
|
14-16 (can be installed according to actual situation)
| |
|
Pump flow (L / min)
|
40
| |
|
Spray volume
|
At 0.3 MPa, 1.18 l / min (single), 500 mm apart
| |
|
Nozzle form
|
Imported fan-shaped nozzle (fog cone angle 110 degrees)
| |
|
Anti-drip device
|
Yes
| |
|
Three-stage filtration
|
Liquid back stirring
| |
|
Boom spray
|
6m-10m
| |
|
Material
|
Steel pipe, PVC high-pressure nozzle (each nozzle can be opened and closed separately)
| |
|
Dimensions
|
1495 * 1170 * 1540mm (transport status)
| |
| Anti-drip nozzle angle
|
Fan shape 110 degrees (adjustable)
| |
Air supply car sprayer
