Swimming pool light 12V Waterproof Power Supply adapter 50W LED Pool Lamp Transformer for pool light

Name : 300W LED Pool lamp Transformer

10VA to 350VA Waterproof Toroidal Transformer for outdoor lighting

Specification :

1).WORKING AND SAFETY PROTEETION
   Electrostatic Shield           Magnetic Shield
  Temperature Protection     Over Current Protection

2).INSULATION
Insulation resistance test(type test):Pri.~sec. 500V DC 100 MΩMIN.
HI-POT TEST(100% test):Pass ourdielectric strength test, without any breakdown

Pri.~sec. AC 3.8kV for 5 seconds (leakage current 5mAMAX)

3).TEMPERATURE RISE
Ta=25ºCTest by resistance method At rated load
PRI.& SEC. WINDINGS'TEMPERATURE RISE 75ºCMAX.

4).MAJOR MEASUREMENT FACILITIES:
HI-POT TESTER: CJ2670
INSULATION-RESISTANCE METER: ZC-7
VOL TMETER: T19-V
DC-RESISTANCE METER: QJ44
AMPEREMETER: T19/1-A

5). MAIN PARAMETERS:
Input Voltage:AC 220V   230v 110v (Define the voltage)
Output voltage:AC 12V / 24V       (Define the voltage)
Power range:10VA-350VA

6) Waterproof toroidal Transformer's materials:

* Annular core: Cold rolling directional silicon steel
* Insulation protection: Mylar
* Core Insulation: Polyester 7C
* Primary/Secondary Winding: Enamelled copper wire
* Terminal cannula: PVC canula
* Termial uderlay: Polyester 19C
* Temperature Protection: Thermal Switch
* Pri.Insulation: Polyester 7C
* Insulation protection: Mylar
* Coating insulation: Polyester 5C
* Lead: UL WIRE/European standard wire
* Potted resin: Potted resin
* Body: PP+GFRP

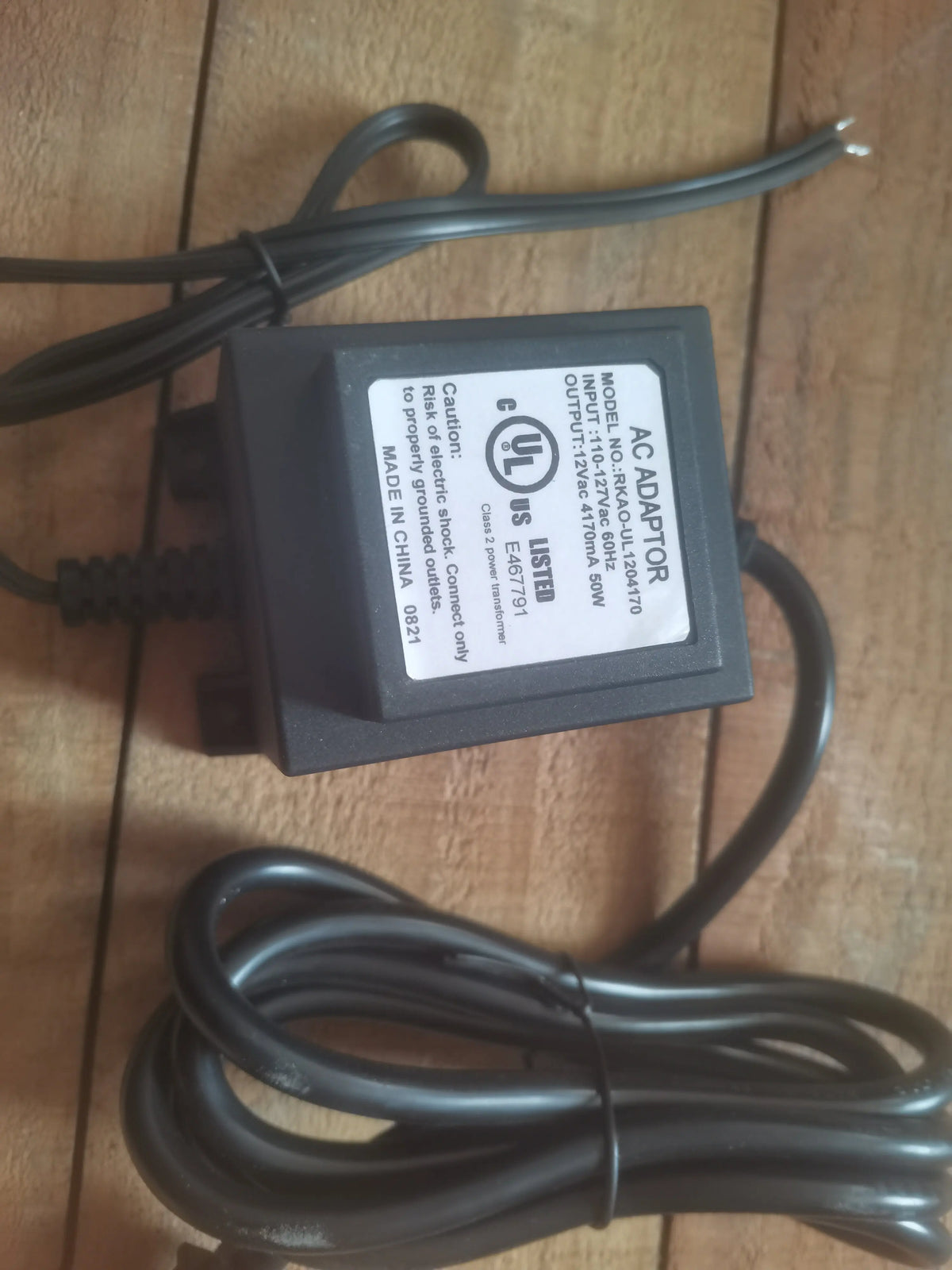

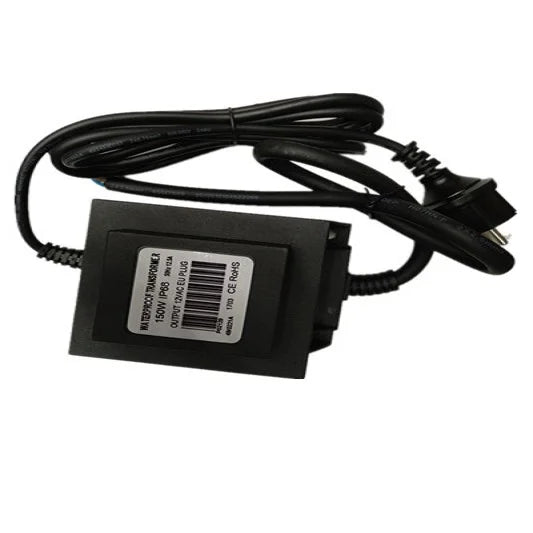

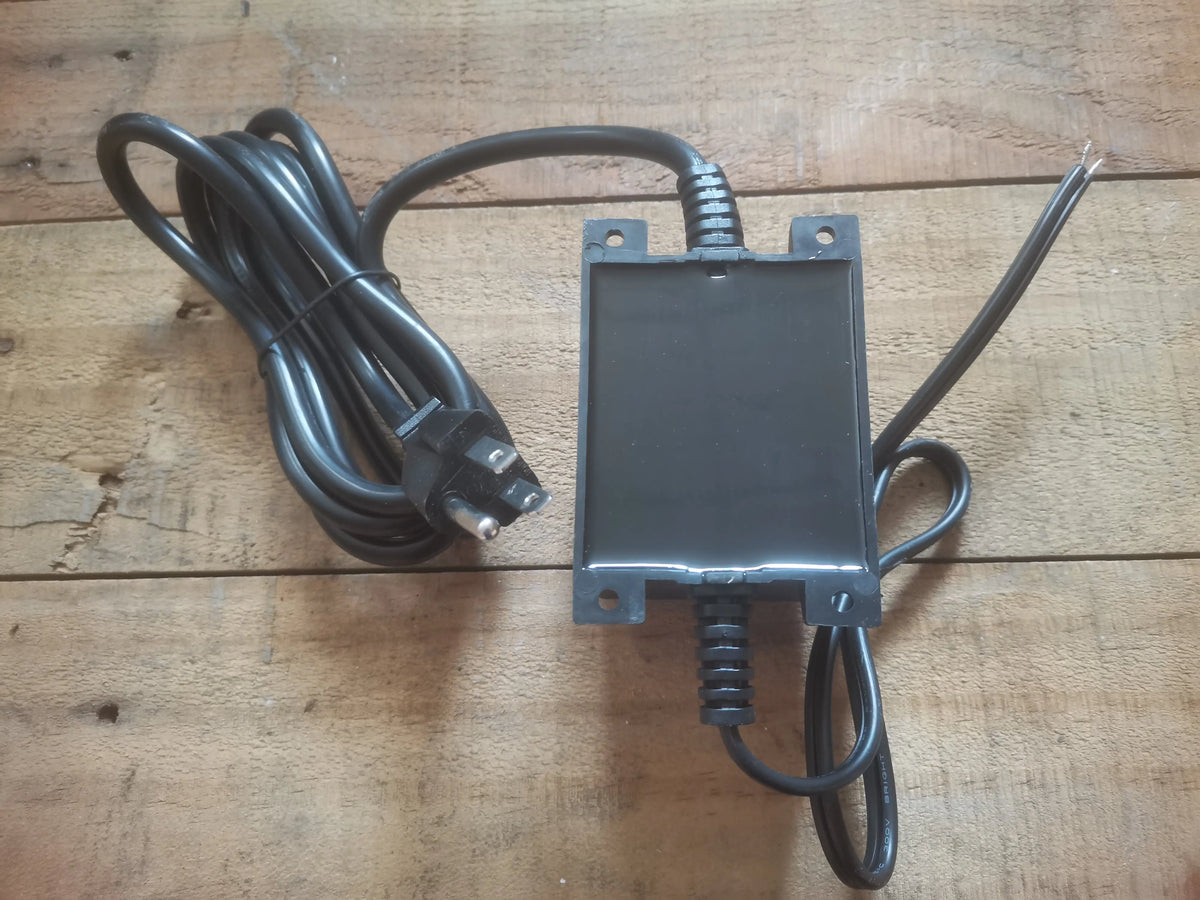

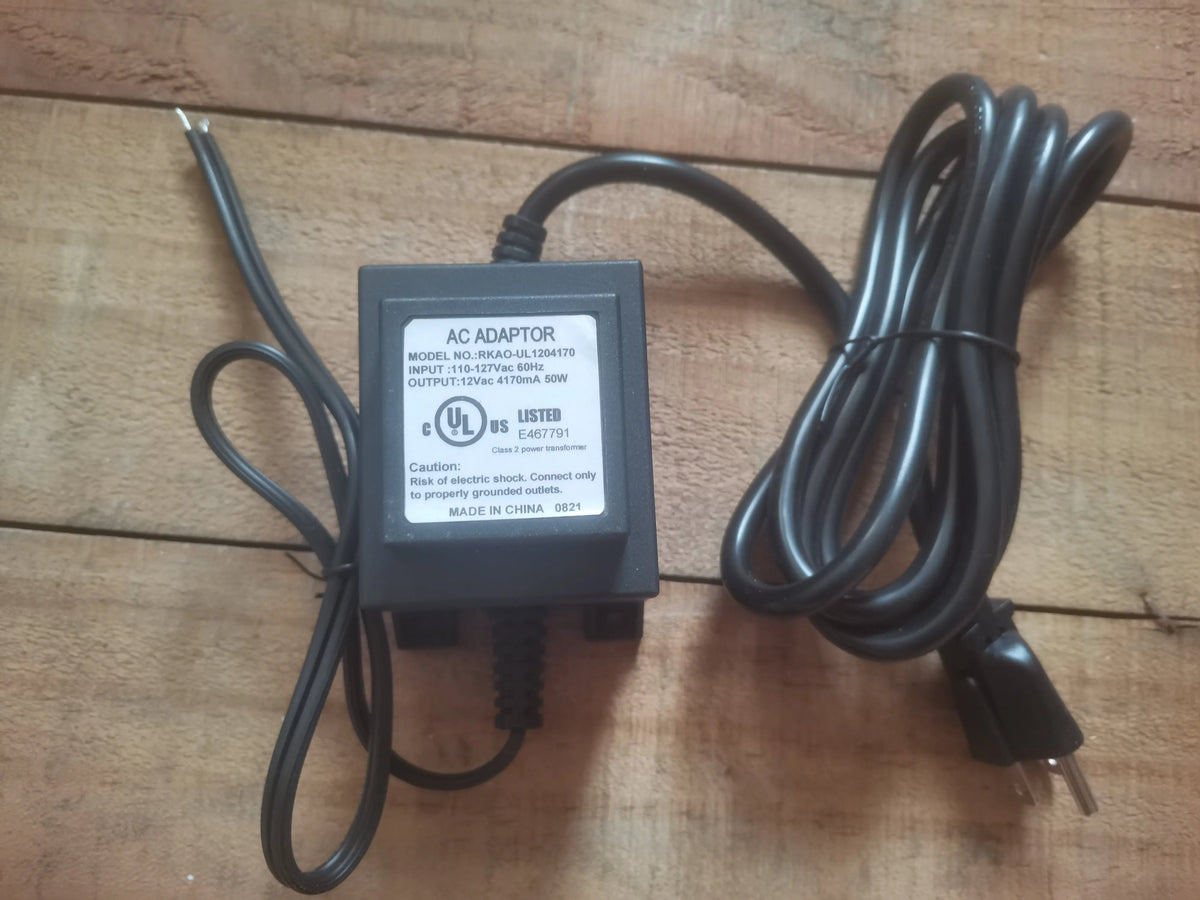

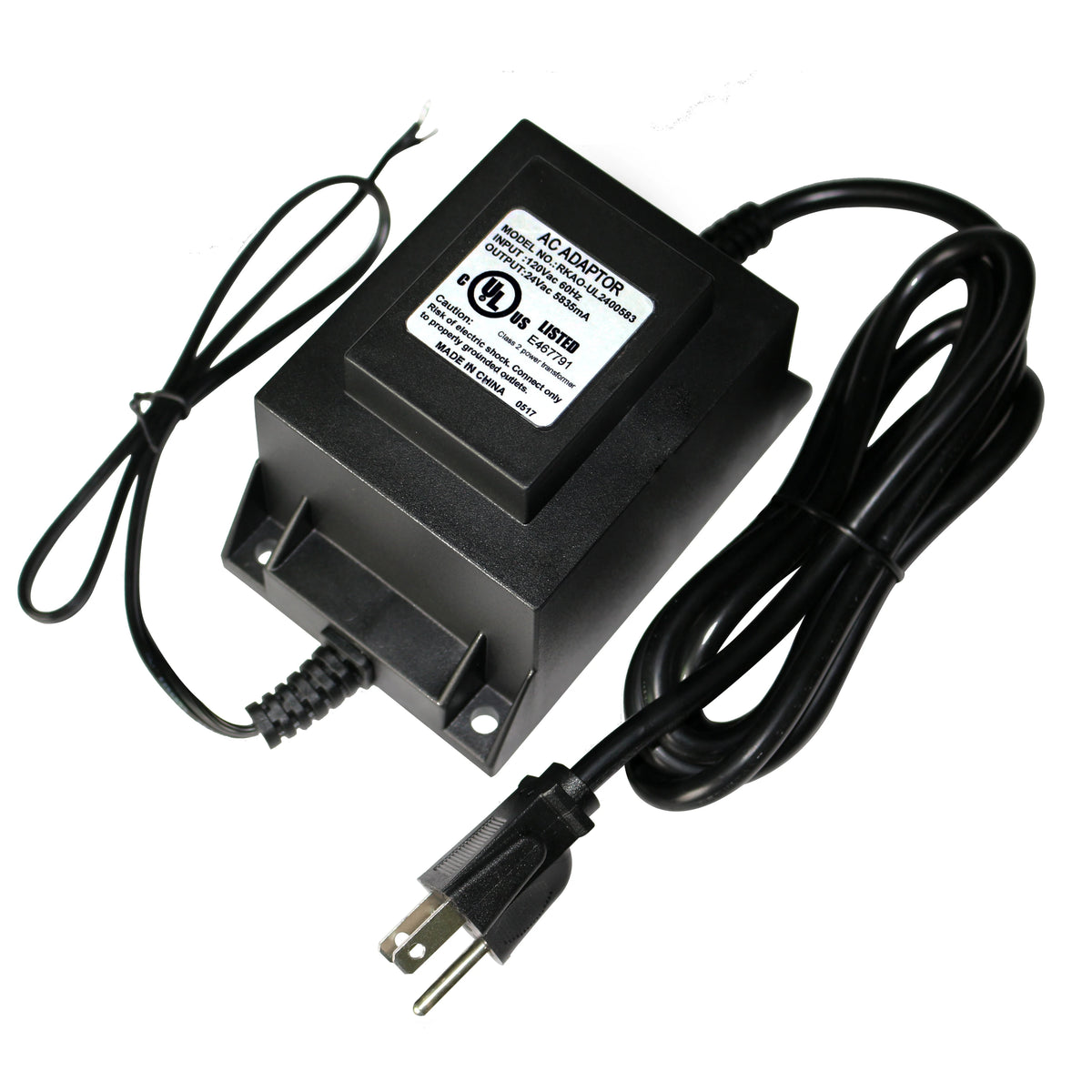

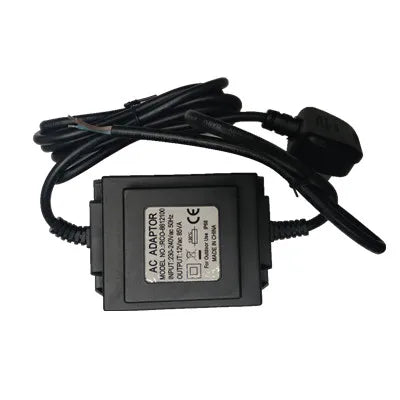

Products Photos:

Production process photo:

Advantages:
1.100% copper wire made
2.Toroidal style
3.plastic cover :ABS fire Material of withstand high temperatures
4.Epoxy resin
4.high performance insulation
5.Anti-corrosion, waterproof performance

Applications:

Garden light
Swimming pool
LED underwater lamp
LED Ground light
Outdoor power Supply
Humidifier
