Popular model 600*900 acrylic sheet laser engraving cutting machine 6090 laser cutter 100w co2 laser
Product Description
DESCRIPTION
|
Brief introduction of Best price popular model laser cutting machine 6090
1.Lift platform, high speed and high accuracy |
| Mainly used for the engraving and cutting of little artistic works.such as engraved portraits,badges,breast cards and various engraved packages.It can also engrave little artistic ,seals and crabs. |

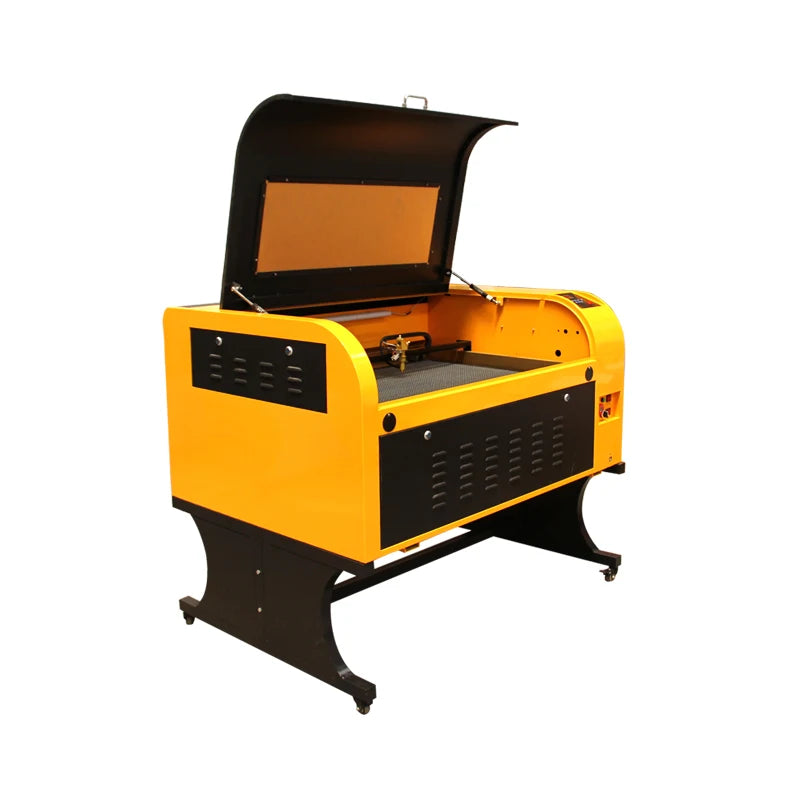

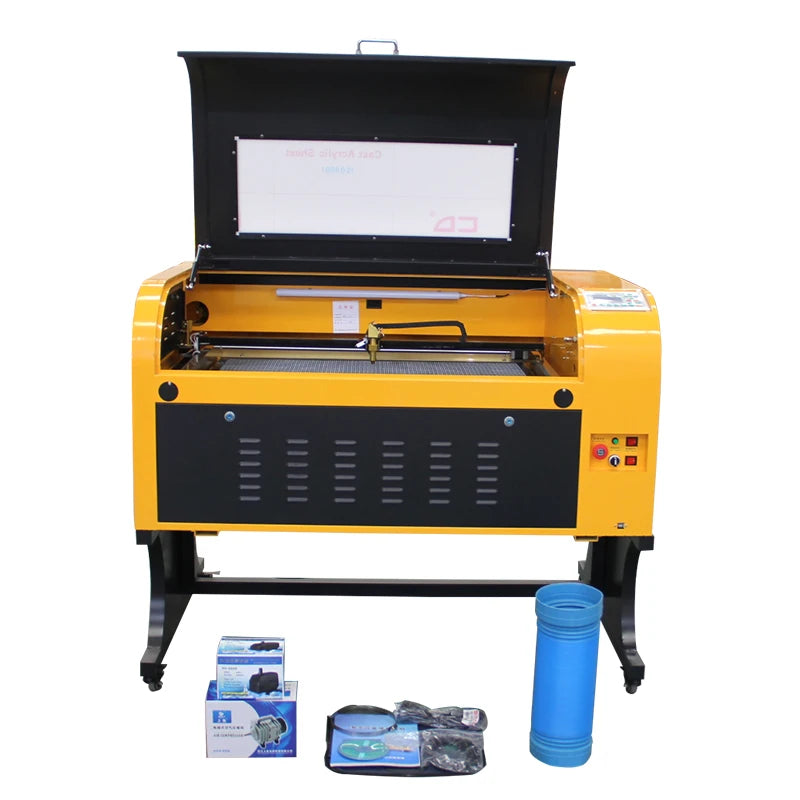

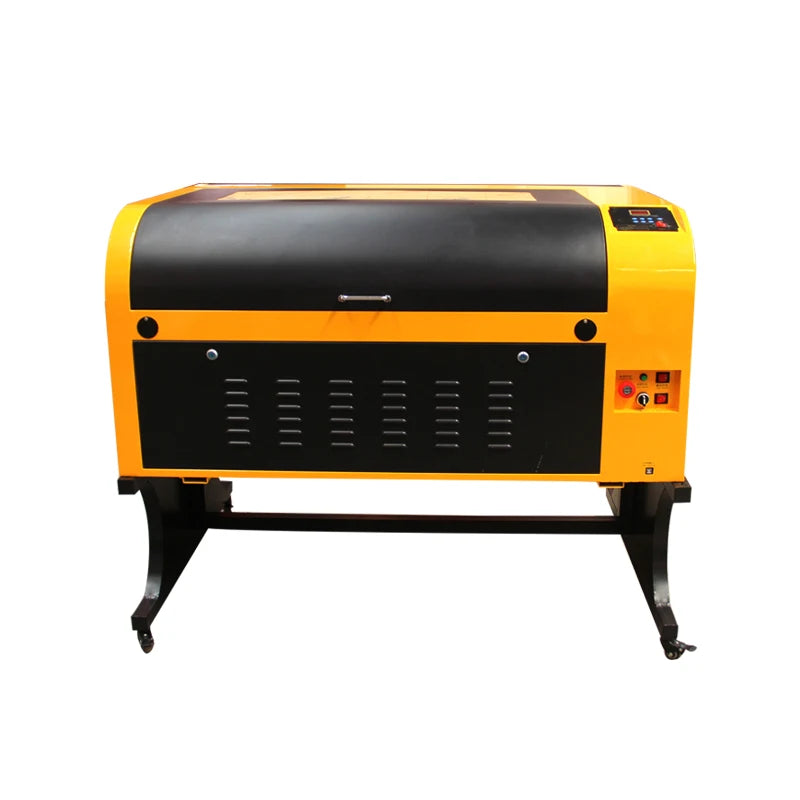

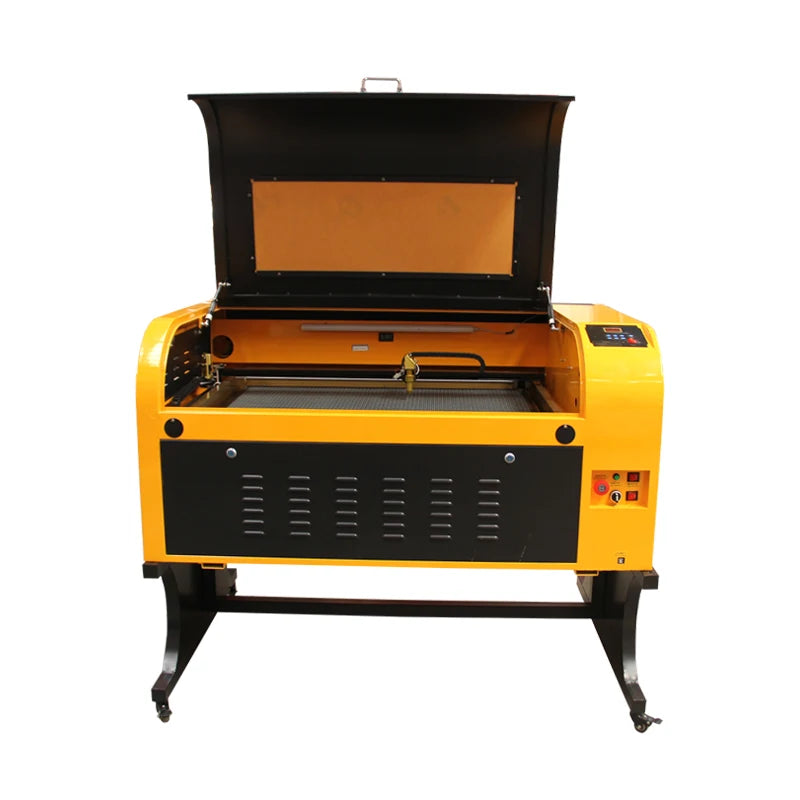

PRODUCT'S PICTURE

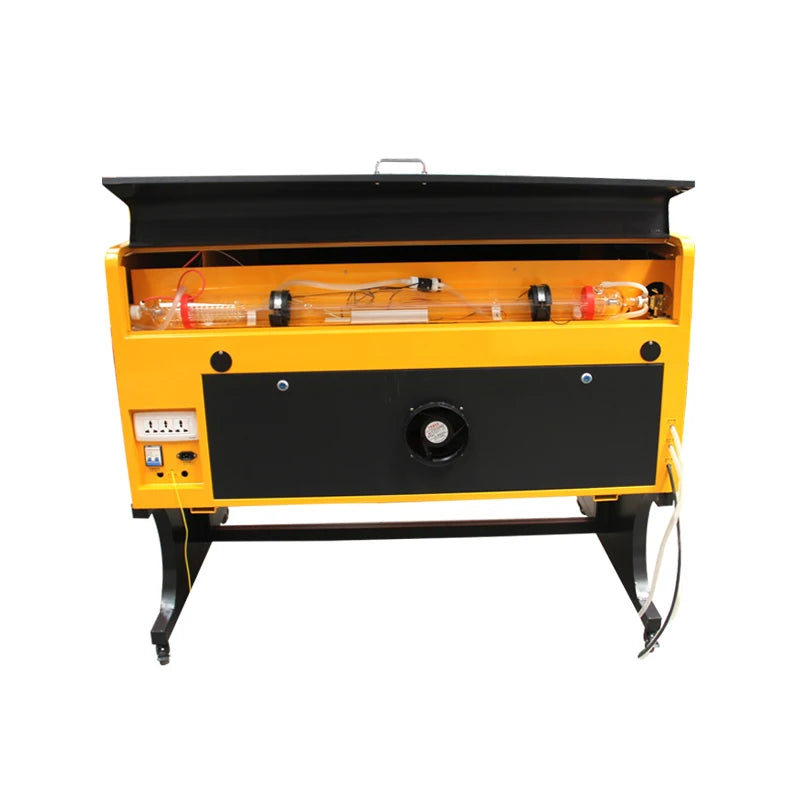

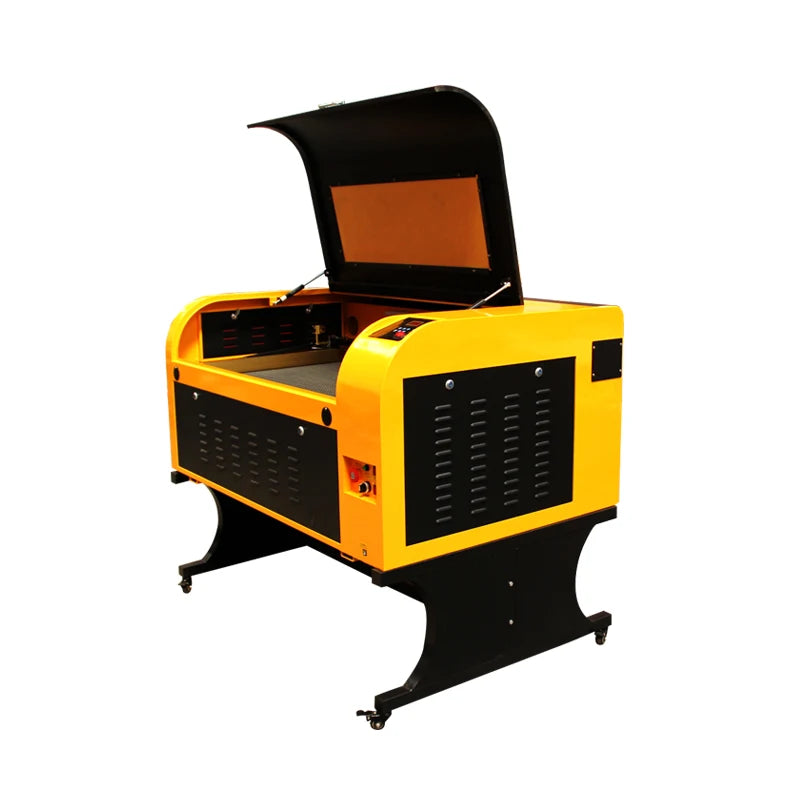

PICTURES FOR DETAILS
SPECIFICATION
| Model | GY 690/6090 laser engraving machine |
| Colour | Yellow black,Green(optional) |
| Working Table Size | 600 *900mm |
| Laser Tube | Sealed CO2 glass Tube |
| Working Table | Honeycomb/Aliuminium (optional) |
| Laser Power | 60W-150W |
| Cutting Speed | 500 mm/s |
| Engraving Speed | 1500mm/s |
| Resolution | ≤1000DPI |
| Minimum Letter | English 1×1mm (Chinese Characters 2*2mm) |
| Support Fils | BMP,HPGL,PLT,DST and AI |
| Port | USB 2.0 Plug and play |
| Software | CorelDraw (Direct Output) |
| Motor | Stepper |
| Power Voltage | AC 110-220V±10%,50-60Hz |
| Working Environment | 0-45℃(temperature) 5-95%(humidity) |
| Power consumption | <600W (Total) |
| Software compatible | CorelDraw,AutoCAD,Photoshop |
| Z-Axis Movement | Automatic (0-160mm adjustable) |
| Position system | Red-light pointer |
| Cooling way | Water cooling and protection system |
| Cutting thickness | 10mm (upon materials type) |
| Rotary device | φ10-150×300mm(optional) |
| Packing Size | 1420*1000*850mm |
| Gross Weight | 250kg |
| Material | Engraving | Cutting | Material | Engraving | Cutting | |
| Natural wood | √ | √ | Paper | √ | √ | |
| Acrylic | √ | √ | Mylar | √ | √ | |
| Glass | √ | X | Pressboard | √ | √ | |
| Double color plate | √ | √ | Rubber | √ | √ | |
| Bamboo | √ | X | Plywood | √ | √ | |
| MDF | √ | √ | Fiberglass | √ | √ | |
| Cloth | √ | √ | Painted metals | √ | √ | |
| Leather | √ | √ | Plastic | √ | √ | |
| Marble | √ | X | Ceramic | √ | X | |
| Matte boards | √ | √ | Coated metals | √ | X | |
| Stone | √ | X | Other materials | √ | √ | |
| Laser power (W) | Acrylic(mm) | Plywood(mm) | MDF(mm) | |||
| 40W | 3 | 2 | 1.5 | |||
| 60W | 8 | 5 | 3 | |||
| 80W | 12 | 8 | 6 | |||
| 100W | 15 | 12 | 9 | |||
| 130W | 20 | 15 | 12 | |||
| 150W | 25 | 20 | 15 | |||
Details for parts :
Features:
This machine can be used in which industry?
Sample
SOME OF SAMPLES SHOW
