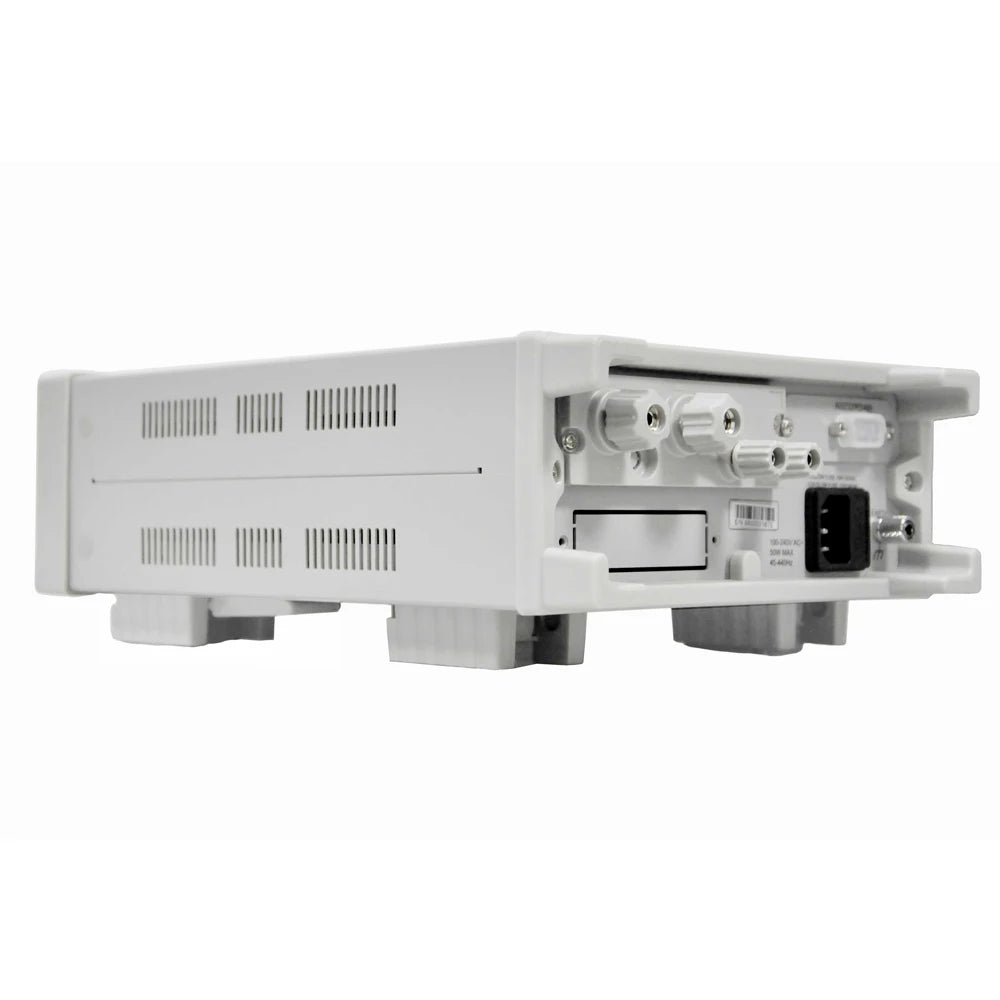

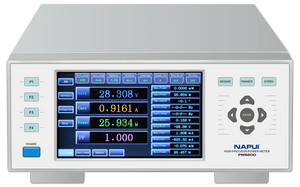

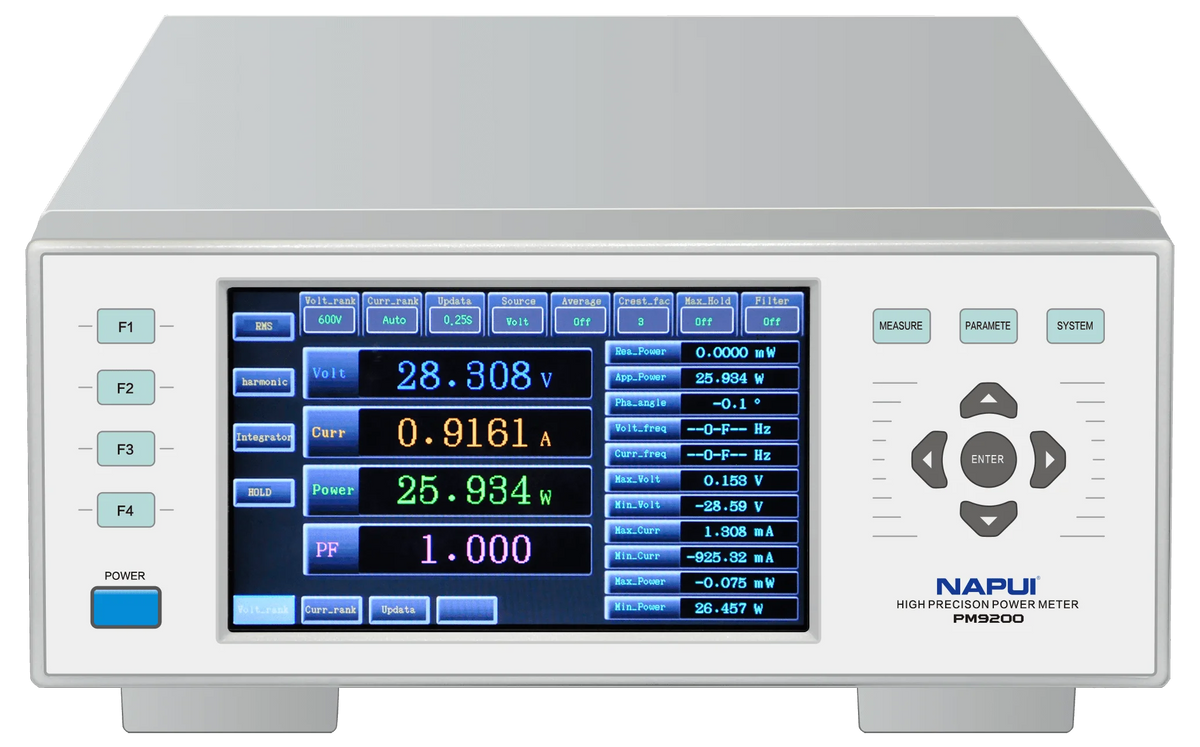

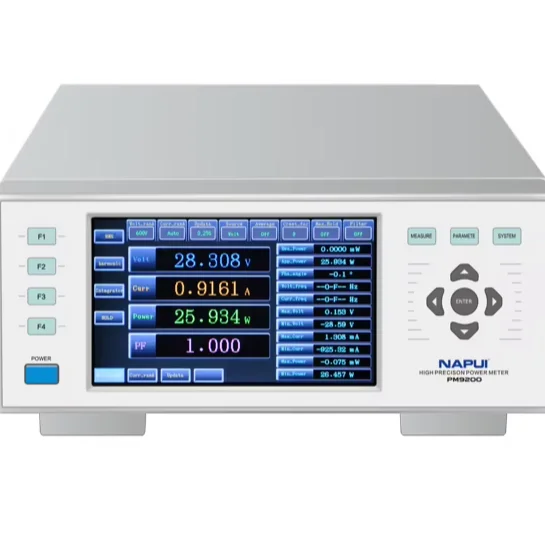

PM9200 Digital Power Meter AC and DC parameter measuring instrument 0.15 class full-function type

Parameter

Bandwidth

Input model

Accuracy

Display update

Line filtering

A/D Converter

Input Impedance

Zero mode

Measurement mode

The power consumption

Power supply of meter

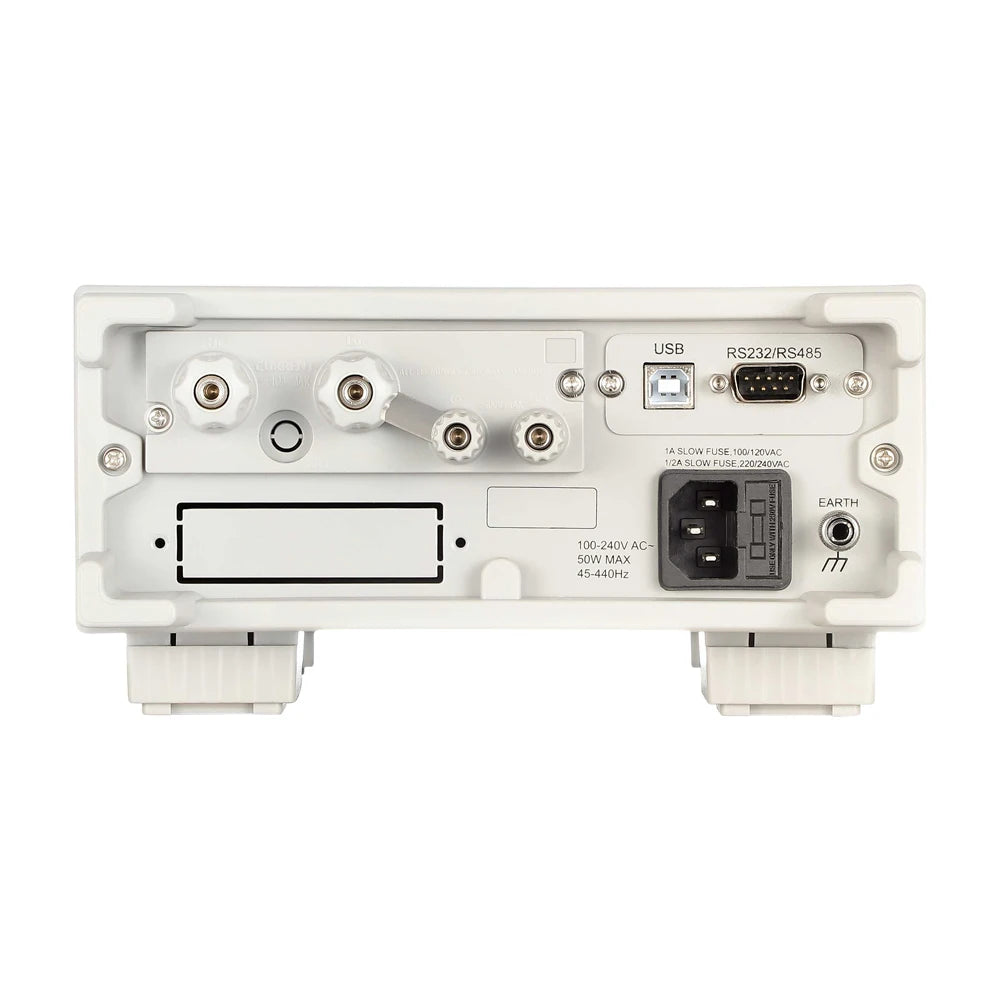

Communication Interface

Parameter

Measuring Range

Min. resolution

Voltage

(0.5～600)V

 DC ±（read 0.1% + range 0.2% )
0.5 Hz ≤ f< 45 Hz ±(read 0.1% + range 0.2% )
45 Hz ≤ f ≤ 66 Hz ±(read 0.1% + range 0.1 % )
66 Hz < f ≤ 1 kHz ±(read 0.1% + range 0.2 % )
1 k Hz < f ≤ 2 kHz ±(read 0.15% + range 0.3% )

0.001V

Current

0.05mA～45A

0.001A

Active power

U*I*PF

DC ±(read 0.1% + range 0.2% )
0.5 Hz ≤ f< 45 Hz ±(read 0.3% + range 0.2% )
45 Hz ≤ f ≤ 66 Hz ±(read 0.1% + range 0.1 % )
66 Hz < f ≤ 1 kHz ±(read 0.2% + range 0.2 % )
1 k Hz < f ≤ 2 kHz ±(read 0.2% + range 0.3 % )

0.001mW

Power factor

0.01～1

0.5 Hz ≤ f≤ 66 Hz ±0.01
66 Hz < f ≤ 1 kHz ±0.02
1 k Hz < f ≤ 2 kHz ±0.05

0.001

Frequency

0.5Hz～2KHz

0.001Hz

Electric energy accumulation

0～999999MWh
0～-99999MWh

DC ±(read 0.1% + range 0.2% )
0.5 Hz ≤ f< 45 Hz ±(read 0.3% + range 0.2% )
45 Hz ≤ f ≤ 66 Hz ±(read 0.1% + range 0.1% )
66 Hz < f ≤ 1 kHz ±(read 0.2% + range 0.2% )
1 k Hz < f ≤ 2 kHz ±(read 0.2% + range 0.3% )

0.0001mWh

Total ah

0～999999MAh
0～-99999MAh

DC ±(read 0.1% + range 0.2% )
0.5 Hz ≤ f< 45 Hz ±(read 0.1% + range 0.2% )
45 Hz ≤ f ≤ 66 Hz ±(read 0.1% + range 0.1% )
66 Hz < f ≤ 1 kHz ±(read 0.1% + range 0.2% )
1 k Hz < f ≤ 2 kHz ±(read 0.15%+ range 0.3% )

0.0001mAh

Electric energy timing

99999h

1s

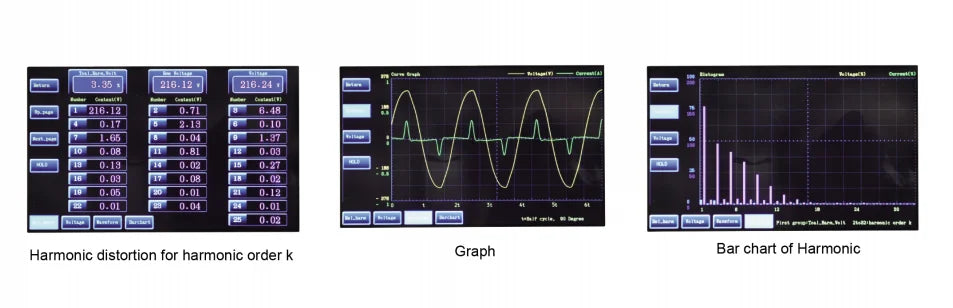

Harmonic

1～50times
Accuracy:
B class IEC61000-4-7

10Hz~65Hz 50

65Hz~100Hz 32

100Hz~200Hz 16

200Hz~400Hz 8

0.01
