Specifications:

1. Mini sized, Weather-proof IP67, Rubber handle paint, feels comfortable.

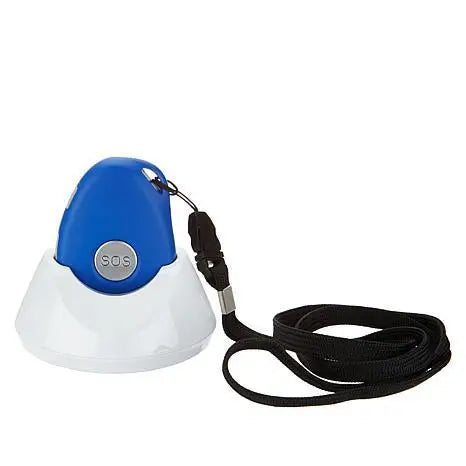

2. Device can be charged by docking station and micro USB
3. Real time tracking by GPS satellite.
4. Real time tracking by CellLocate, location based on the cellular network, users are able to track in shielded environments such as indoors and enclosed park houses.
5. AGPS, TTFF in 30 seconds (10 seconds for GPRS included).
6. Fall detection for children and elderly, patient.
7. With rechargeable 900mah Lithium battery. Standby time: 30days.
8. Built-in 3D G-sensor for motion, shock alarm and power management.
9. Voice monitoring.
10. Two way Voice communication.(high quality sounds and hands free volume sound)
11. Built in 8MB flash memory.
12. Data logging: 60000locations.
13. GPRS blind area data re-upload function
14. Firmware upgrade over the air.
15. Reply map link of current position.
16. SOS emergency button.
17. Geo-fencing alarm, Over speed alarm.
18. GPS signal lost and recovery alert.
19. Movement alarm.
20. Micro USB charger,Micro SIM Card,Docking station charger.
21. Real time tracking on a map from a computer or on the go with free mobile APP.
22. Certified with CE, Rohs and SAR Certications.

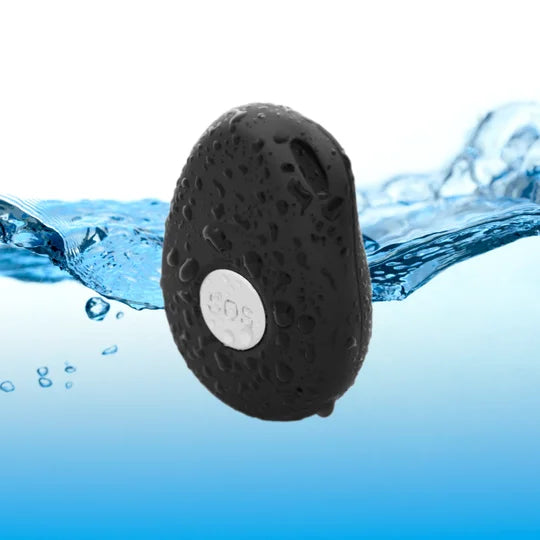

23.waterproof IPX66

3G version:

Available Frequency: 900/2100MHZ and 850/1900MHZ

WCDMA Specification:
• WCDMA Module: Telit UL865 ( 900/2100MHZ and 850/1900mhz )
Supported Bands:
EUx variants.
2 Bands GSM / GPRS / EDGE 900 / 1800 MHZ (2G)
2 Bands UMTS / HSPA 900 / 2100 MHz (3G)
North America variants:
2 Bands GSM / GPRS / EDGE 850 / 1900 MHz (2G)
2 Bands UMTS / HSPA 850 / 1900 MHz (3G)
• Communication: Embedded TCP/IP over GPRS class 10, SMS messages, Voice
• Antenna: Built in FPC antenna

GPS Specification:
• GPS chipset: uBlox 0702(AGPS Support)
• Channels: 50
• Receiver frequency: 1575.42 MHz
• Cold starts: approx 32S, typical TTFF (95%)
• Warm start: approx 32S, typical TTFF (95%)
• Hot start: approx: 1S, typical TTFF (95%)
• Antenna: Built-in ceramic antenna

Hardware Specification:
• Charging voltage: DC5V
• Backup battery: Rechargeable, 3.7V, 800mAh (Li-Poly)
• Connectors: Micro USB connectors
• SIM card: Micro SIM card
• Accelerometer: Built in 3G motion sensor
• Flash Memory: Built in 8MB memory
• Normal current consumption: 40~60mAh
• Sleep current consumption: 5~10mAh (GPS off)

Environment:
• Operating Temperature: -20°C to +80°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5%-95% non-condensing
• Mainframe Dimensions: 61mm X 44mm X 16mm
• Weight (NET): 35g

Option accessories:

* Arm bag.

* Lanyard.

* Screw Driver.
