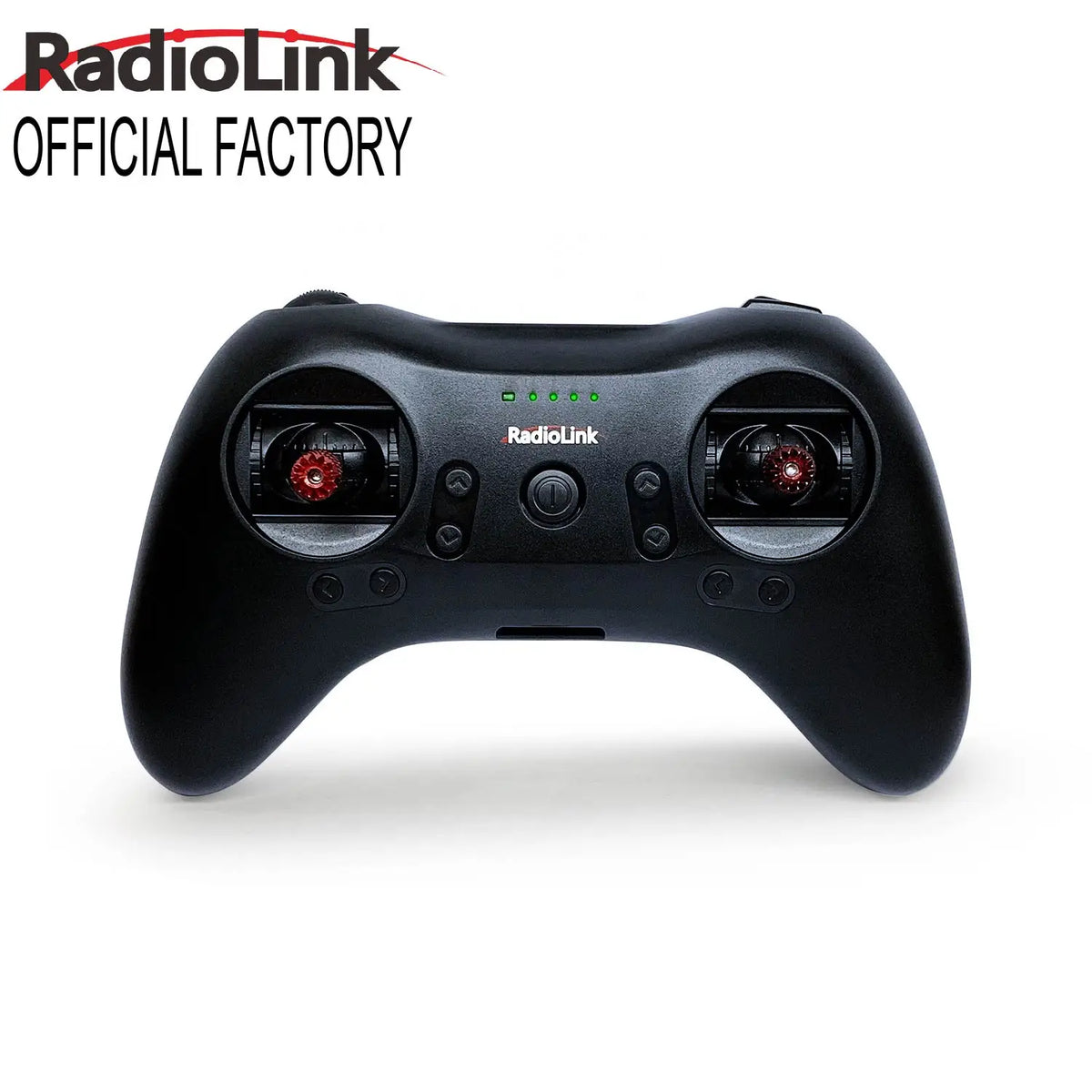

OEM Radiolink China Factory T8S 8 Channels 2.4GHz RC Transmitter and Receiver R8EF Radio Remote Controller for Lawn Mowers
$137.67$263.37
Payment Methods
T8S BT Transmitters Specifications

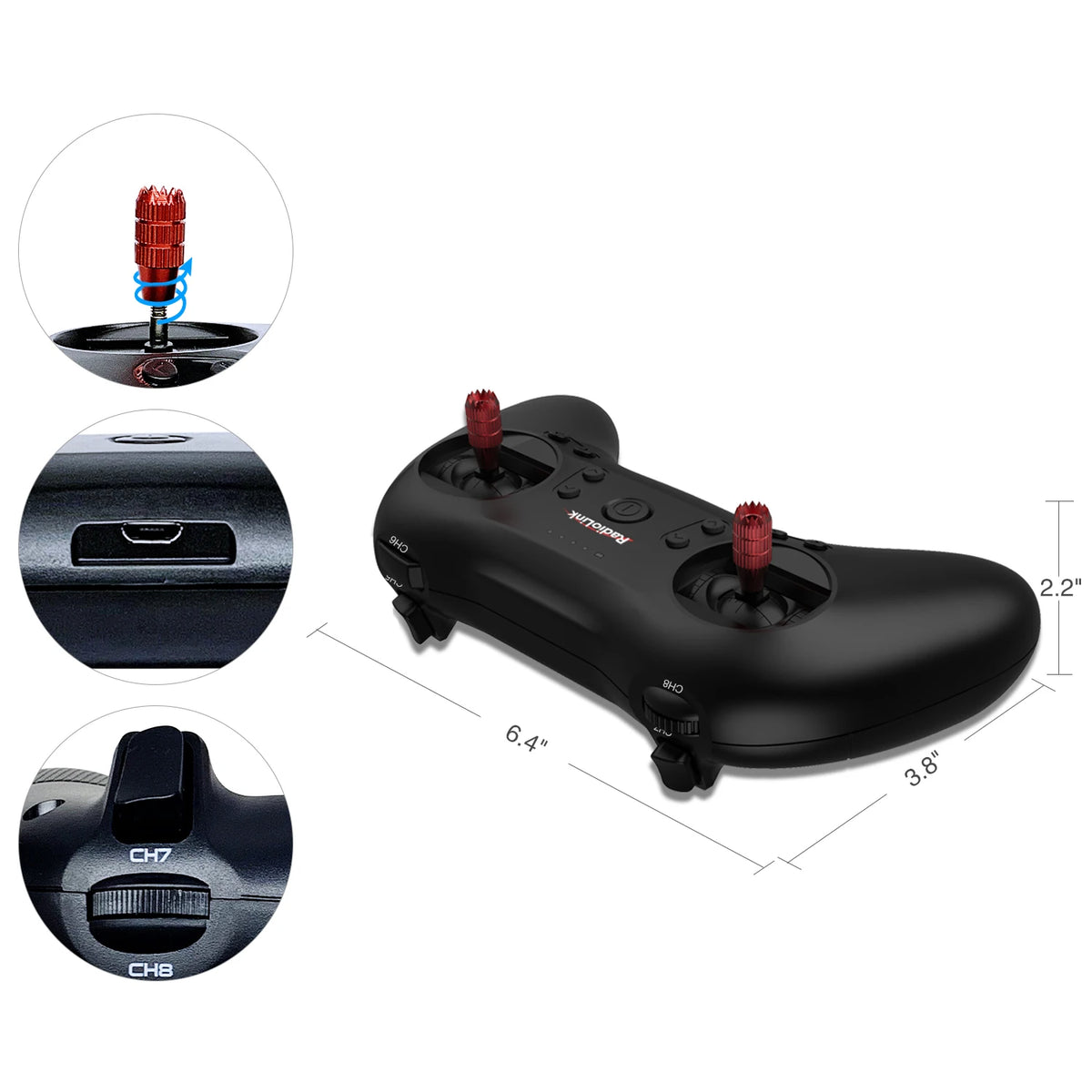

| Dimension
| 162.5*95.5*57mm(6.4 “*3.76“* 2.24”)
|
| Weight
| 142g(5.0oz)
|
| Output Frequency
| 2.4GHz ISM band(2400MHz~2483.5MHz)
|
| Modulation Mode
| GFSK
|
| Channel Band Width
| 400KHz
|
| Channel Pacing
| 1200KHz
|
| Transmitter Power
| <100mW(20dBM)
|
| Reception Sensitivity
| -104dBM
|
| Control Distance
| about 2000 meters in the air (actual distance depends on the flight environment)
|
| Spread Spectrum
| FHSS 67 channels pseudo-random frequency hopping
|
| Adjacent Channel Rejection
| >36dBM
|
| Transmission rate
| 38kbps
|
| PWM Output Range
| 1.0ms~2.0ms
|
| Section Precision
| 4096, 0.5us/section
|
| Cycle
| 15ms/ frame
|
| Operating Voltage
| 3.7- 4.2V
|
| Operating Current
| <150(±5)mA
|
| Receivers supported
| R8EF(Standard), R8SM, R8FM, R8F, R7FG, R6FG, R6F, R4FGM, R4F
|
| Simulator supported
| YES
|
*Excellent Anti-interference:Real pseudo random algorithm FHSS communication technology makes T8S with stable signal and control distance up to 1.3 miles(2000m) in the air. *Features:8 Channels/Low latency/Dual Rate/Fail-safe/Build-in Rechargeable Battery - micro USB port(come with charge cable)/Wireless Training Function/Low Consumption(5 hours of standby time)/Bluetooth connect *APP Setups:Easy to set up, wireless connect T8S with iOS/Android app and PC programs(Need cable) to parameter setting, like Fail-safe value, EPA, Dual Rate, 4 Programmable Mixing control, etc. Update firmware through PC to get the latest function. *Come with 8 channels receiver R8EF, press the side button for 1 second to bind and don't need any radio settings. Both small but versatile RC remote and receiver(Total 5.0 ozs), plus Superb Ergonomics provides you with the comfy operation feeling, handy for both teenagers and adults. *Multiple Models Storage: No limit model storage. Compatible with receivers: R8SM/R8FM/R8EF/R8F/R7FG/R6FG/R6F/R4FGM, applicable to Multirotor, Airplane, Robot, RC Tank, RC Car&Boat and more.
R8EF 8 Channels Receiver Specifications
| Size
| 41.5*21.5*11.5mm (1.63” *0.85” *0.45”)
|
| Weight
| 7g (0.25oz)
|
| Channels Qty
| 8 channels
|
| Signals
| SBUS/PPM&PWM
|
| Operating Voltage
| 3.0~15V
|
| Operating Current
| 38-45mA@5V
|
| Section Precision
| 4096, 0.25us per section
|
| Control distance
| 2000 meters (1.24Miles) in the air (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).
|
| Compatible transmitter
| T8S/T8FB/RC6GS V3/RC4GS V3/RC6GS/RC4GS
|
Excellent Anti-interference:with pseudo random FHSS algorithm, which makes R8EF with excellent anti-interference ability, long control range up to 1.2 mile(2Km). 8 Channels: with standard SBUS/PPM/PWM/signal output, ideal for most aircraft, high resolution ratio of 4096, fast Respone for all channels. Press to Bind: No need old bind plug and any radio setting, only press bind button for 1 second after power up radio and receiver. High resolution ratio of 4096, stable signal and fast response. Anti-polarity Protection: With reverse polarity protection, not damage the receiver even you insert wrong polarity. 3.0-15V DC support high voltage servo. Works with transmitter T8S T8FB RC4GS RC4GS V3 RC6GS RC6GS V3.
| AT10II
| AT9S Pro
| T8FB BT
| T8S BT
| |
| Channels
| 12 Channels
| 10/12 Channels
| 8 Channels
| 8 Channels
|
| Signal Output
| PWM/PPM/SBUS
| PWM/PPM/SBUS
| PWM/PPM/SBUS
| PWM/PPM/SBUS
|
| Control Range
| 2.5 Miles
| 2.1 Miles
| 1.2 Miles
| 1.2 Miles
|
| Dimensions(L*W*H)
| 7.1*3.7*8.7 in
| 7.2*3.9*7.6 in
| 6.8*4*8.1 in
| 6.4*3.7*2.2 in
|
| Weight
| 33.5 oz
| 31 oz
| 16.6 oz
| 5.0 oz
|
| Package
| AT10II/R12DS/PRM-01
| AT9S Pro/R9DS/Strap
| T8FB/R8EF
| T8S/R8EF
|
| Model Support
| Glider, Airplane, Multirotor, Helicopoter, Car, Boat, Robot etc
| Glider, Airplane, Multirotor, Helicopoter, Car, Boat, Robot etc
| Glider, Airplane, Multirotor, Car, Boat, Robot etc
| Glider, Airplane, Multirotor, Car, Boat, Robot etc
|

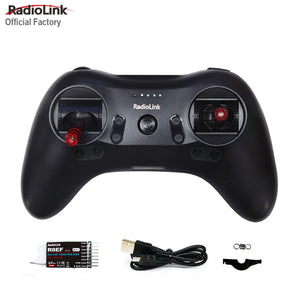

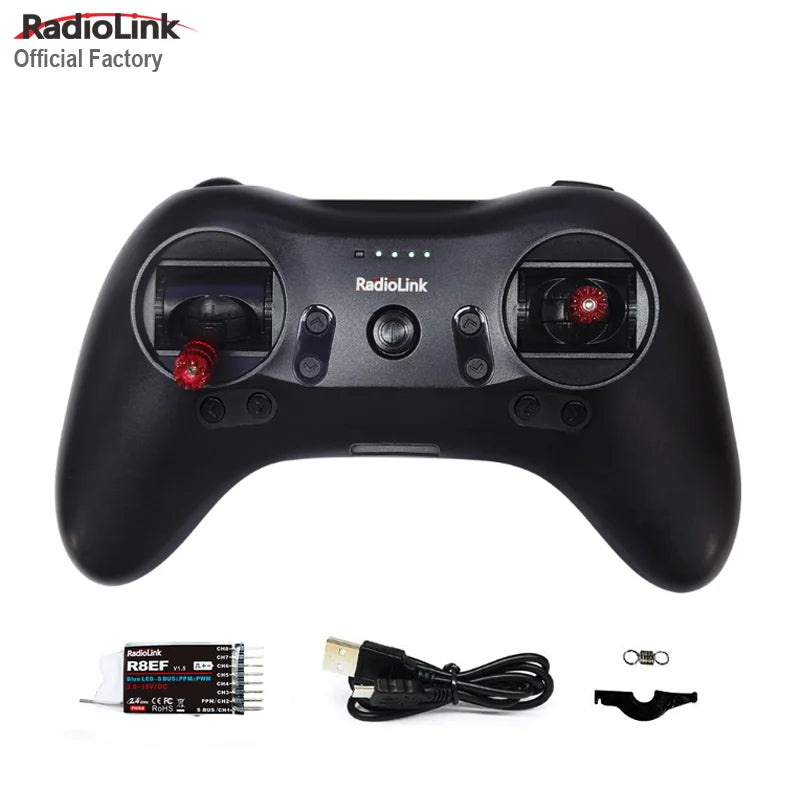

What Can You Get Out Of Each T8S BT Set?
Trademark registration
Honor&Awards
AT9 (same appearance as AT9S/AT9S Pro) won the German RedDot Design Award.
Onvels is synonymous with excellence.Onvels stands for quality.Onvels is synonymous with originality.Onvels is synonymous with effectiveness.Onvels. Excellence is our goal.Onvels committed to the best service ( Always ).
