NICE-POWER R-SPS3030 30V 30A White Lab Testing Adjustable Voltage Dc Power Supply Mobile Repair Variable DC Voltage Regulator
$301.02$640.98
Payment Methods
Specification

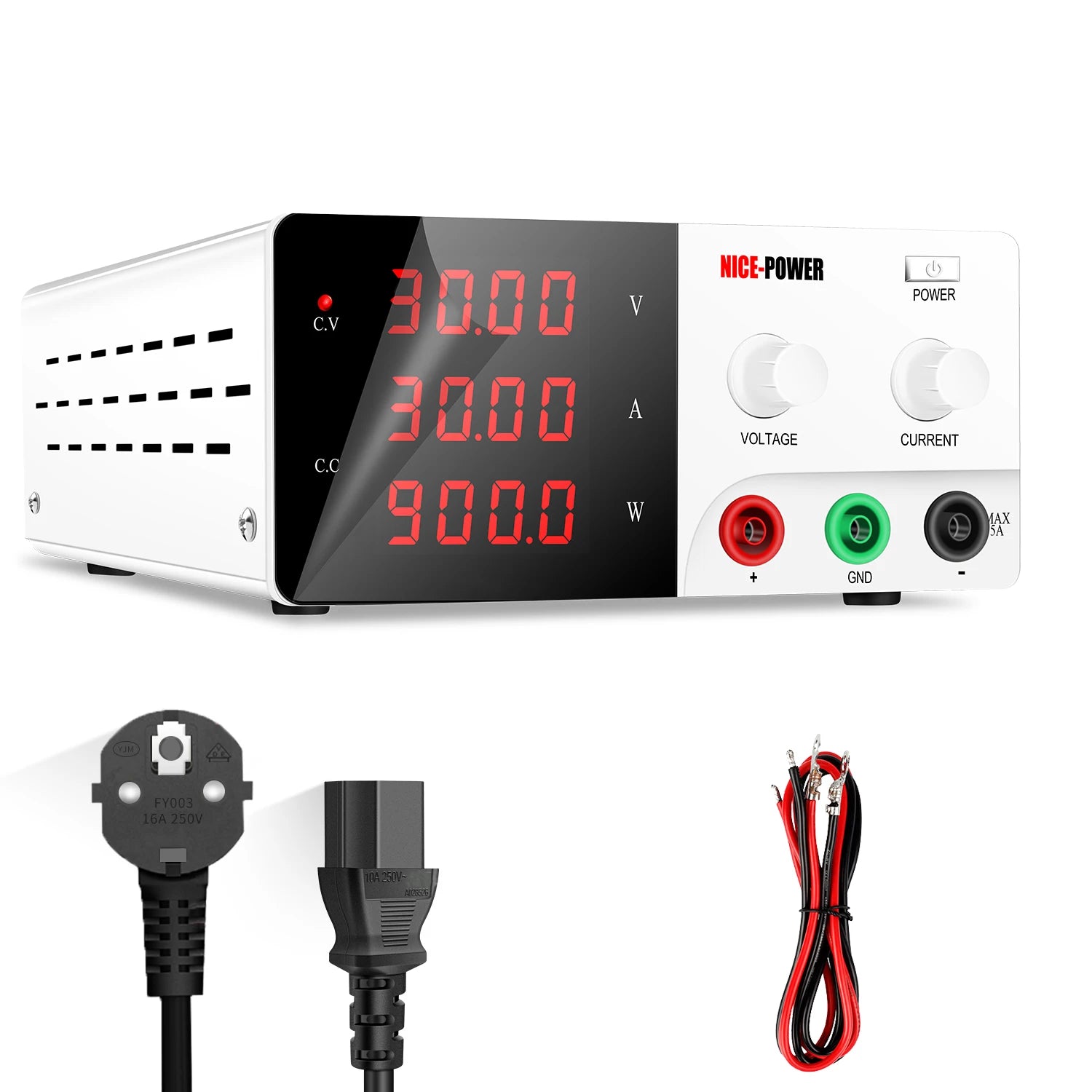

NICE-POWER R-SPS3030 30V 30A White Lab Testing Adjustable Voltage Dc Power Supply Mobile Repair Variable DC Voltage Regulator
Product description:
SPS series high-power DC power supply is a high-performance switching DC developed specifically for
industrial applications.
industrial applications.
Power Supplier. This series of products is a single output, high precision dual display, voltage and
current are within the nominal value Continuously adjustable, with strong load capacity, low continuous failure rate, stable
performance, low ripple noise, etc. point. Complete over-voltage, over-current, over-temperature, overload, short-circuit and
other protection functions can be used to supply SPS series power supply. The device and load are protected from accidental damage. SPS series power supply has temperature control circuit, intelligent fan with excellent heat dissipation effect and low noise. Is a research unit, real The best choice for laboratory, teaching, production line, and product life testing.
current are within the nominal value Continuously adjustable, with strong load capacity, low continuous failure rate, stable
performance, low ripple noise, etc. point. Complete over-voltage, over-current, over-temperature, overload, short-circuit and
other protection functions can be used to supply SPS series power supply. The device and load are protected from accidental damage. SPS series power supply has temperature control circuit, intelligent fan with excellent heat dissipation effect and low noise. Is a research unit, real The best choice for laboratory, teaching, production line, and product life testing.
Features:

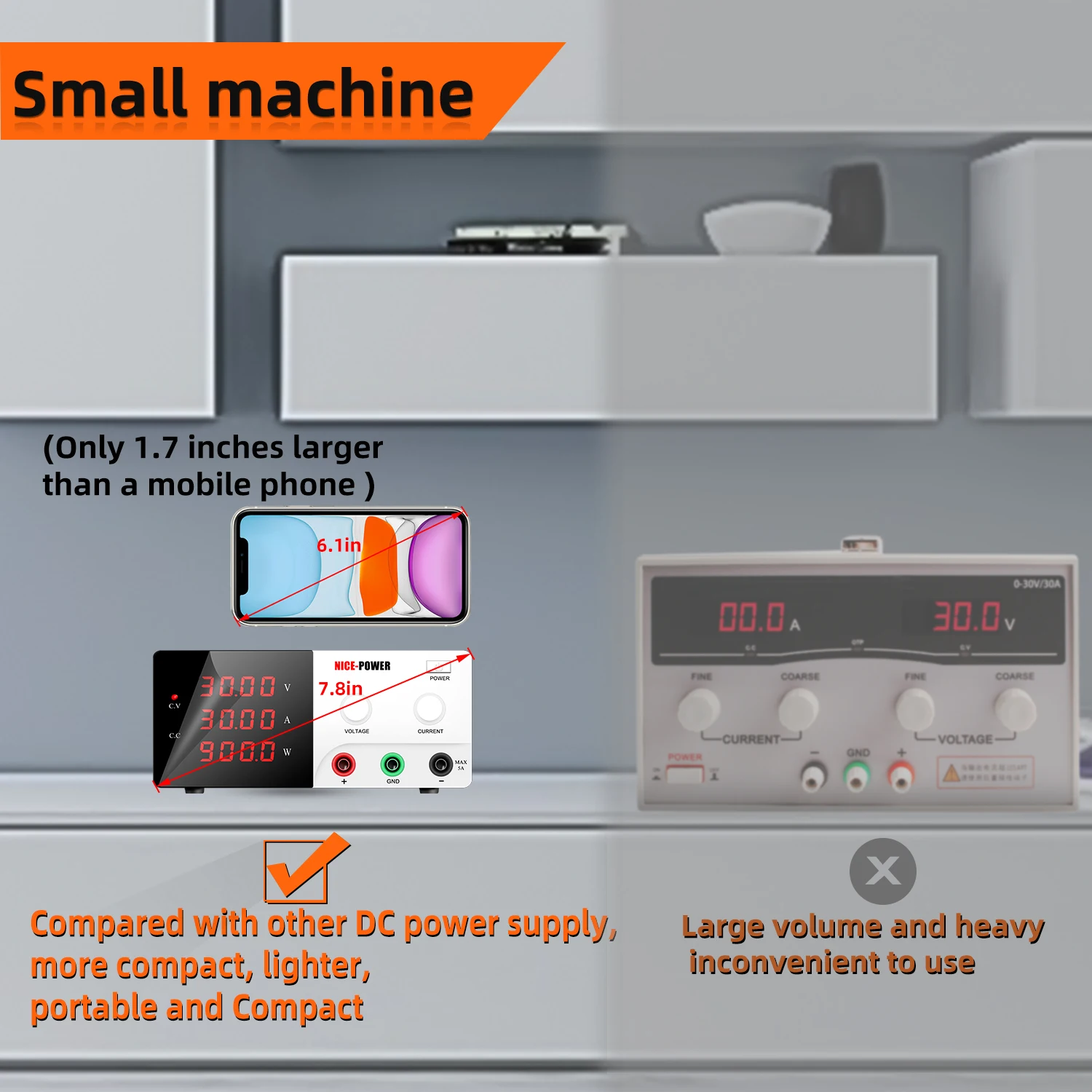

1.Small size, light weight and low ripple;
2, using PWM modulation, high efficiency, power, and stable performance;

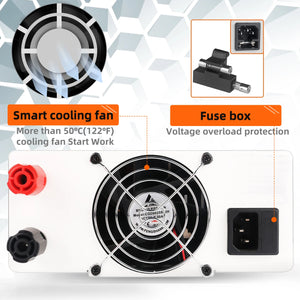

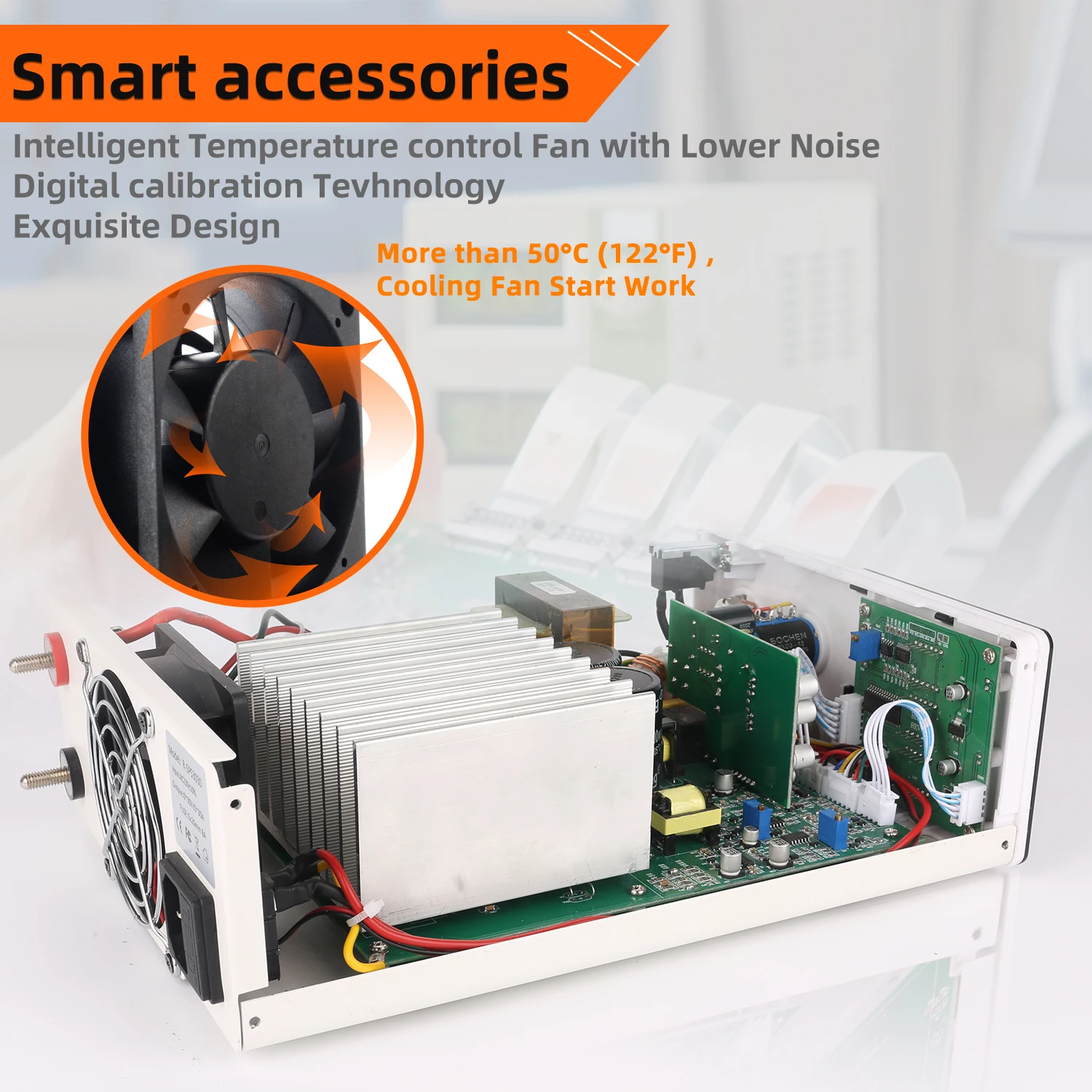

3, intelligent temperature control circuit, good heat dissipation effect, low noise;

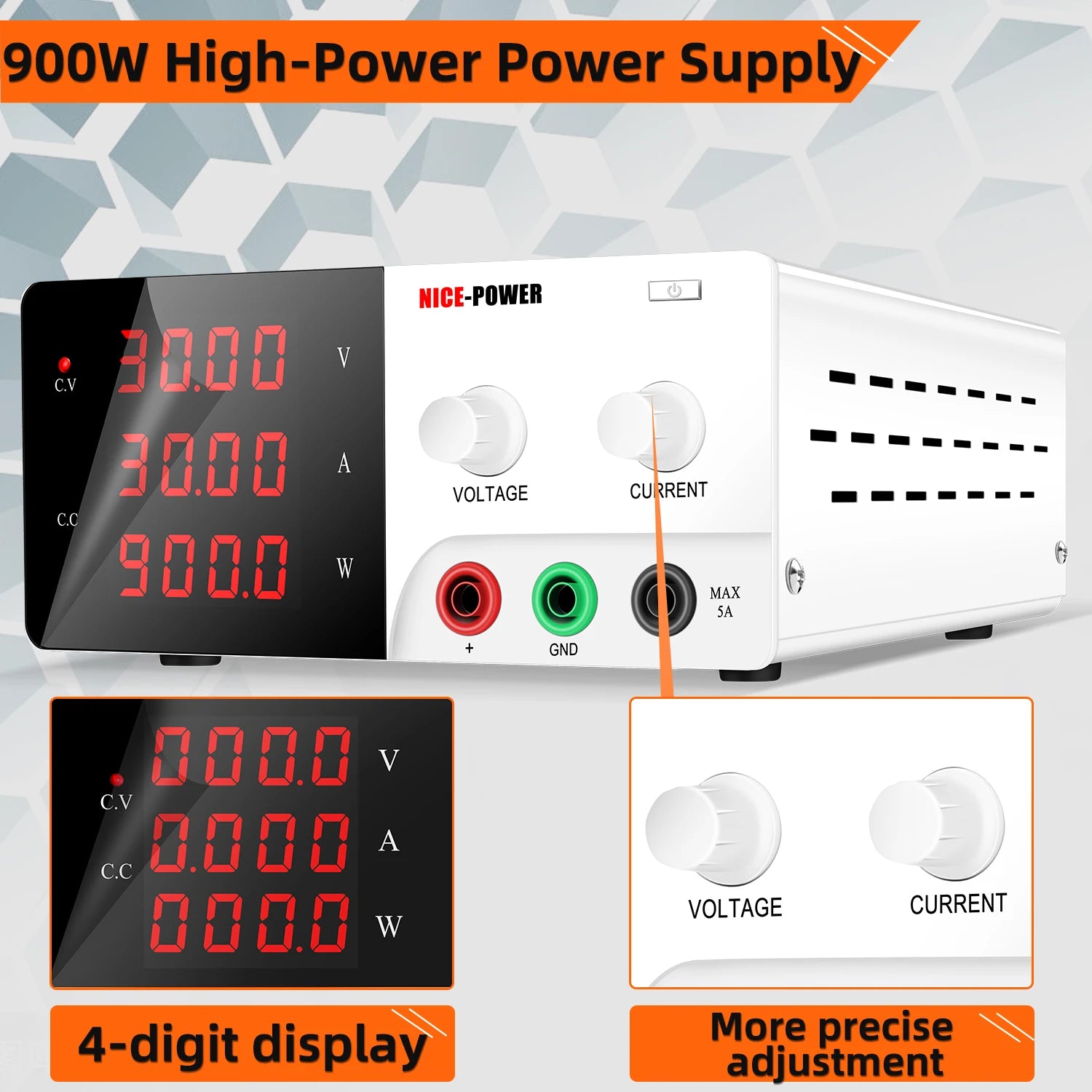

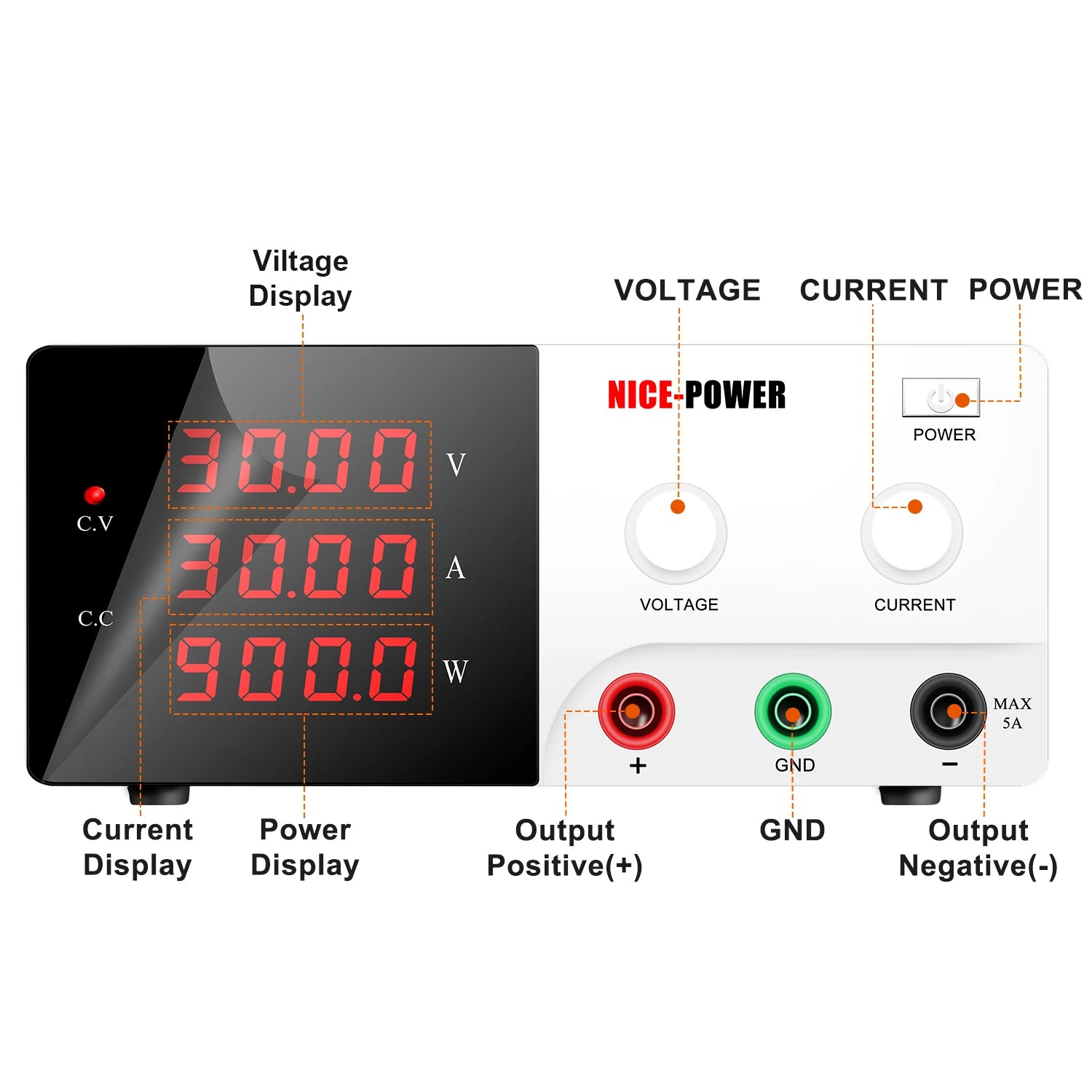

4, voltage, current, Power triple LED display, intuitive;
5,voltage regulation, current limit, simple operation;
6, multiple protections such as overvoltage, current limiting, over temperature, over work, short circuit;
Applications:
1. Production line testing;
2, electrical maintenance and repair;
3. Life product aging test;
4, battery charging;
5. Laboratory, scientific research and teaching;
6. Any other occasion where a DC stabilized power supply is required;
Product parameters:
AC input : AC 220V ± 10% 50Hz(AC 110 need Customized)
Output power: see specification sheet
Power supply stability rate: <0.3%+10mV
Load stability rate: <0.5%+30mV
Ripple noise: < 0.5%+10mV(rms)

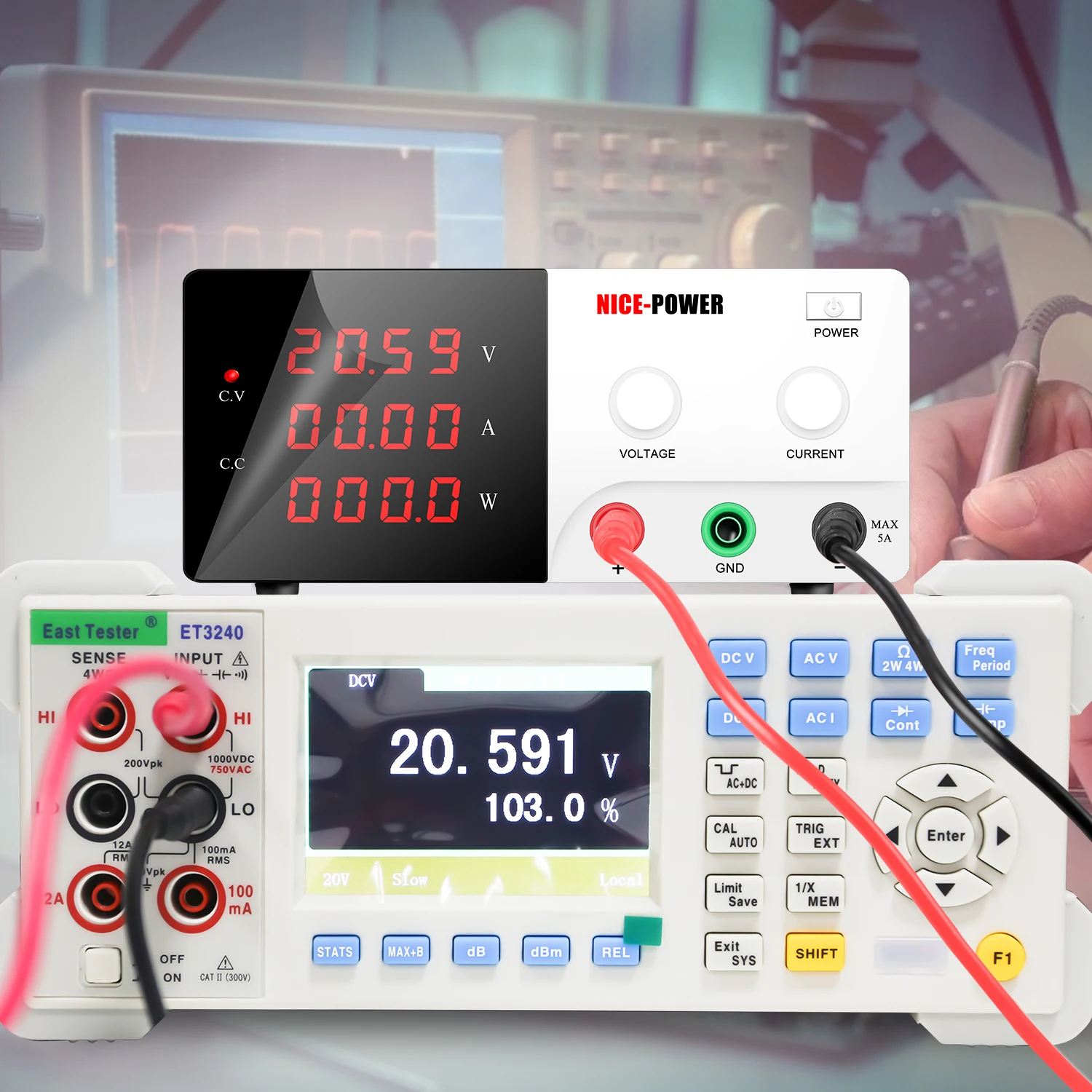

Voltage value display: 4-digits LED digital tube Accuracy: ±1% +1 word
Display resolution: 0.1V
Current value display: 4-digits LED digital tube Accuracy: ±1% +1 word
Display resolution: 0.1A
Output overvoltage protection: built-in O.V.P protection, some models can be set externally
Output overcurrent protection: current limiting, overload, short circuit constant current output
Over temperature protection: Built-in O.T.P protection, protection value is 85 °C ± 5%, turn off the output after protection Output polarity: output positive (+), negative (-) can be grounded arbitrarily

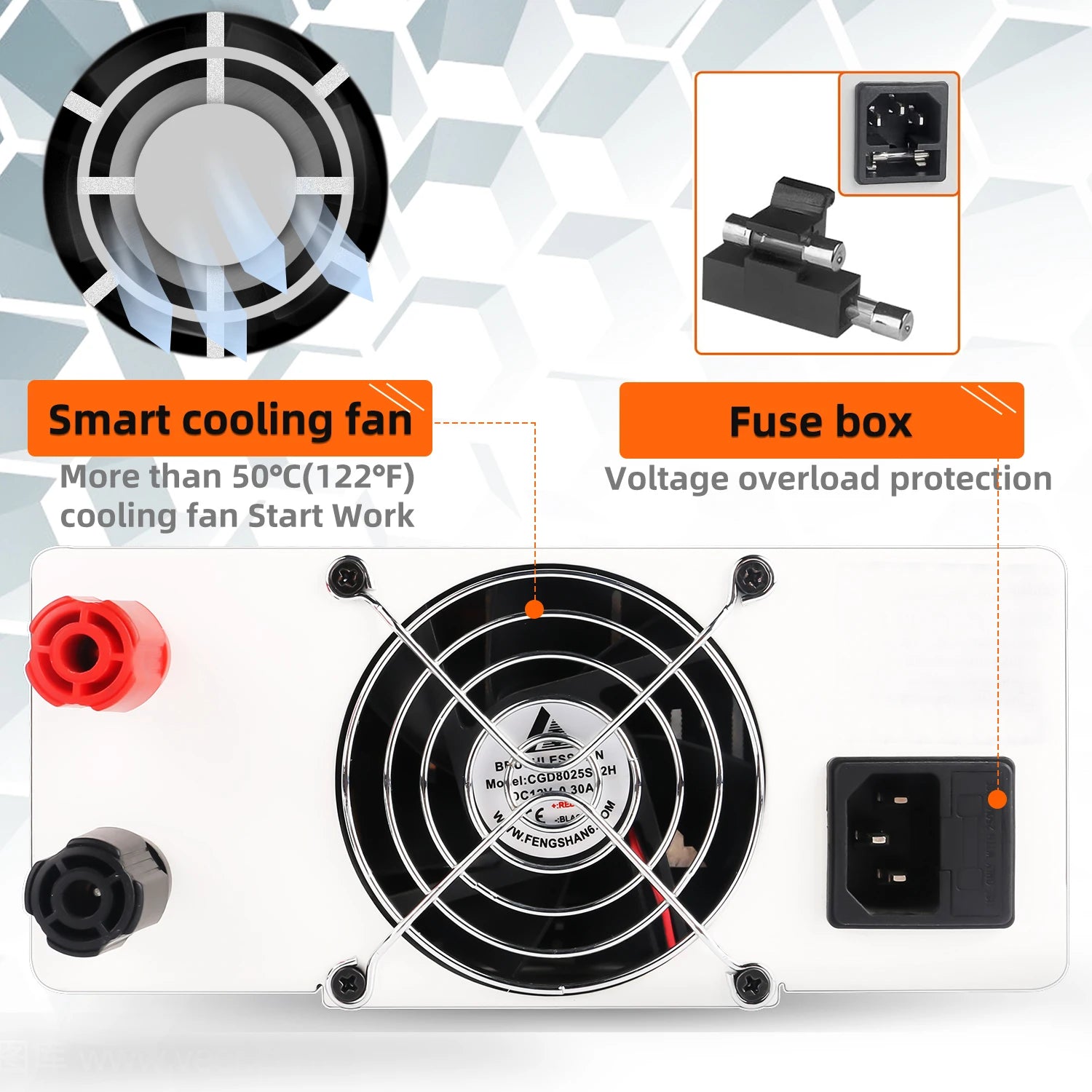

Heat dissipation method: temperature control circuit forced air cooling
Operating environment Temperature: 0°C~40°C; Humidity: 10%~85% RH
Storage environment Temperature: -20 ° C ~ 70° C; Humidity: 10% ~ 90% RH
Description: All values are typical, so they will exceed in different loads or other situations.
Over this value. Accuracy is measured at the load terminal voltage detection state, at temperature
In the case of degree error and component aging, there may be a deviation between the actual value and the rated value.
|
Type
|
R-SPS3030
|
|
Output Voltage
|
0-30V(continuously adjustable)
|
|
Output current
|
0-30a (continuously adjustable)
|
|
Power
|
900W
|
|
Voltage/current display
|
Four display
|
Details Images
