Newest cheap CNC Desktop Portable NEJE Pro E30130 Lazer oyma makinesi Photo Plastic Stamps Laser Cutter Laser Engraving Machine
$1,077.00$2,543.50
Payment Methods
Product Paramenters

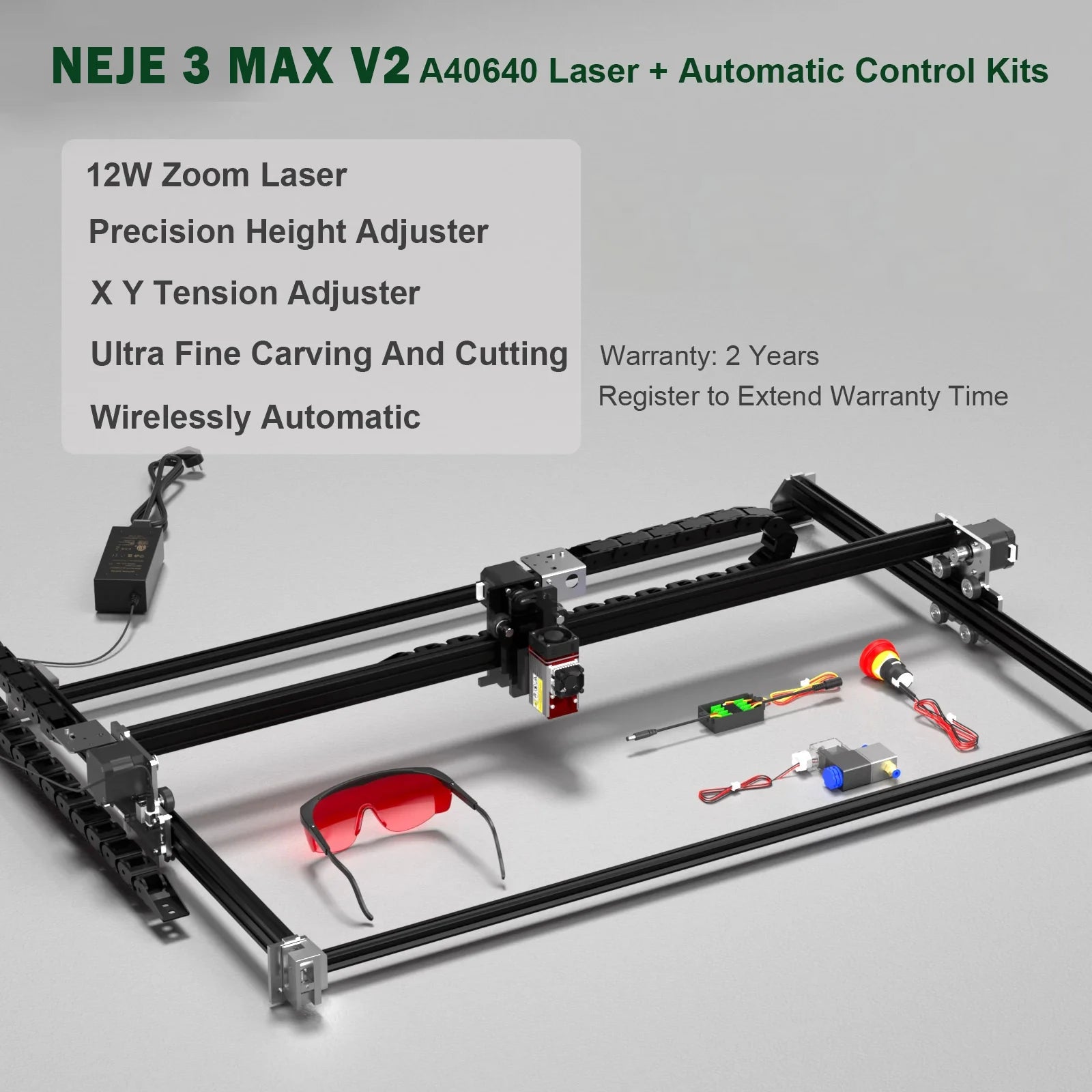

| NEJE 3 Max V2: DIY Professional Diode Laser Engraver and Cuttter
| ||
|
Frame Size (L – W – H):
|
970x582x60mm
| |
|
Working Area( X – Y):
|
790 x 470mm, Extends to 790x1030mm
| |
|
X axis：
|
Industrial straight track, bottom CNC straight line correction
| |
|
Y axis：
|
NEJE diamond CNC linear track, smooth and durable
| |
|
Z axis：
|
Industrial linear track
| |
|
A axis：
|
Rotary axis expansion
| |
|
Y axis Extension:
|
Yes, NEJE will provide linear extension track, and the Y axis can be extended to 1030mm.
| |
|
Limit Switch:
|
Build in X Y Z
| |
|
Homing Repeat Position Accuracy:
|
0.01mm
| |
|
Repeat Position Accuracy:
|
X Y: 0.01mm; Z: 0.001mm
| |
|
Recommended acceleration and top speed:
|
400mm/s （NEJE Max 4 has a longer acceleration stroke, and the peak speed is faster than the ordinary 400x400mm frame.）
| |
|
Vertical Carving:
|
Yes(90°)
| |
|
Input Voltage:
|
12V or 24V, Match according to module voltage
| |
|
Interface:
|
5.5*2.1, Max 6A
| |
|
Compatible:
|
all 12V and 24V NEJE modules
| |
|
M7,M8,Door Extension：
|
Yes
| |
|
Lightburn Offline Control
|
Yes
| |
|
Lasergrbl Offline Control:
|
Yes
| |
|
BLE Bluetooth Function:
|
Support Bluetooth 4,Windows 10, iOS 8 and Android 4.2 and above.
| |
|
App control：
|
Yes
| |
|
MEMS protection：
|
Yes
| |
|
NEJE Software OTA Upgrade:
|
Yes
| |
|
Software:
|
NEJE Win Soft, NEJE APP, Lightburn, LaserGRBL
| |
|
Firmware:
|
build in NEJE fireware and GRBL 1.1f(optimized)
| |
|
Systems Support:
|
Win 7/Win 8/Win 10, Android, iOS, ipadOS, macOS
| |
|
File Format Supports:
|
GC/SVG/DXF/JPG/JPEG/PNG/BMP/TIF/etc.
| |
| NEJE A40640 Laser Module
| ||
|
Focus method
|
adjustable ( 30-70mm from lens )
| |
|
Maximum cutting thickness
|
20mm
| |
|
Weight:
|
204g
| |
|
Output power
|
Pulse 12W+, CW 11W
| |
|
Focal spot size
|
0.04x0.06mm
| |
|
Modulation Fan
|
double ball high life fan
| |
|
Max scanning speed
|
1000mm/s (mdf material clear test results)
| |
|
Working Voltage:
|
DC 12V/ 24V TTL&PWM
| |
|
Modulation:
|
YES. Compatible with Both TTL & PWM
| |
|
Modulation Input Interface:
|
PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
| |
|
Warranty:
|
2 Years(If the laser module works 8 hours per day,the lifespan will be 7 years)
| |
Products Description
Precision optical level focus adjuster
NEJE has designed an optical laboratory level Z-axis height adjuster for 3MaxV2, providing a highly portable, precise, and stable
operating experience. The Z-axis height adjuster has scale and locking functions, with a rotation of 0.7mm. You can even manually
control the focus accuracy to 0.1mm. In the process of metal carving or cutting thick materials, it can greatly improve
operational accuracy and portability, thereby improving operational efficiency.
CNC linear track
The newly upgraded 3MaxV2 framework's X and Y axis tracks are calibrated through high-precision industrial CNC master machines.
Ensure precise and balanced X and Y axes through precise CNC structure nesting. The difference between CNC straight track and
ordinary track lies in the elimination of profile extrusion deformation tolerance and improvement of smoothness, which improves
the image quality of carving and cutting; In addition, the new framework has improved the track size structure, increased the hardness of aluminum materials, and additionally designed shock absorption treatment, making the framework more stable and precise, which has greatly improved the quality of artworks.
Ensure precise and balanced X and Y axes through precise CNC structure nesting. The difference between CNC straight track and
ordinary track lies in the elimination of profile extrusion deformation tolerance and improvement of smoothness, which improves
the image quality of carving and cutting; In addition, the new framework has improved the track size structure, increased the hardness of aluminum materials, and additionally designed shock absorption treatment, making the framework more stable and precise, which has greatly improved the quality of artworks.
Adjustable damping function for X-axis and Y-axis
The newly upgraded 3MaxV2 has improved the adjustable damping function, which improves the smoothness of the X and Y direction modules and enhances the stability of repeated positioning accuracy on the X and Y axes. The repeated positioning accuracy is
0.01mm, making the image quality more stable and reliable
Belt adjuster
The NEJE team has equipped three original designed CNC precision belt tension adjusters for large-area laser engraving machines. It can easily solve the problem of image deviation in the X and Y directions, resulting in higher precision in large-scale cutting and carving, and a more perfect quality of the work
Upgraded control system
The 3MaxV2 is equipped with a stability control system based on the NEJE Master series, which has been iterated for 10 years. The new control system optimizes silence, performance, stability, portability, and functionality to the extreme. Supporting 4-axis
independent control, equipped with native drive Z-axis and expandable A-axis interface, it can be used to transform Z-axis and expand other motor functions. The new BLE stable wireless control solution replaces traditional card insertion manual control solution, and can complete wireless real-time control and offline control directly through NEJE software, LaserGRBL, and Lightburn, greatly improving efficiency and saving time. Standard Door, M7, M8 expansion interfaces can be used to expand automatic air assist, automatic smoke exhaust, automatic lighting, and automatic safety sensing stop functions. This saves
operating time and improves the ability of laser multi-layer automated processing.
independent control, equipped with native drive Z-axis and expandable A-axis interface, it can be used to transform Z-axis and expand other motor functions. The new BLE stable wireless control solution replaces traditional card insertion manual control solution, and can complete wireless real-time control and offline control directly through NEJE software, LaserGRBL, and Lightburn, greatly improving efficiency and saving time. Standard Door, M7, M8 expansion interfaces can be used to expand automatic air assist, automatic smoke exhaust, automatic lighting, and automatic safety sensing stop functions. This saves
operating time and improves the ability of laser multi-layer automated processing.
Diverse accessory support
3MaxV2 can use almost all accessories applicable to NEJE Max 4. You only need to pay attention to the matching voltage to complete the construction of a professional laser system and build a more safe and professional laser equipment. The NEJE team will also develop more features and compatible accessories for the NEJE 3MaxV2 framework to enhance user value.
NEJE 3 Max V2 laser cnc machine is compatible with all series of NEJE functional laser modules, and has excellent fine carving or portrait grayscale effect on different materials. You can choose laser modules according to your needs.
high precision portable laser engraving machine for glass,pvc card,acrylic nameplate,pencil ballpen,jewellery, mirror glass,granite and marble, Stainless steel
