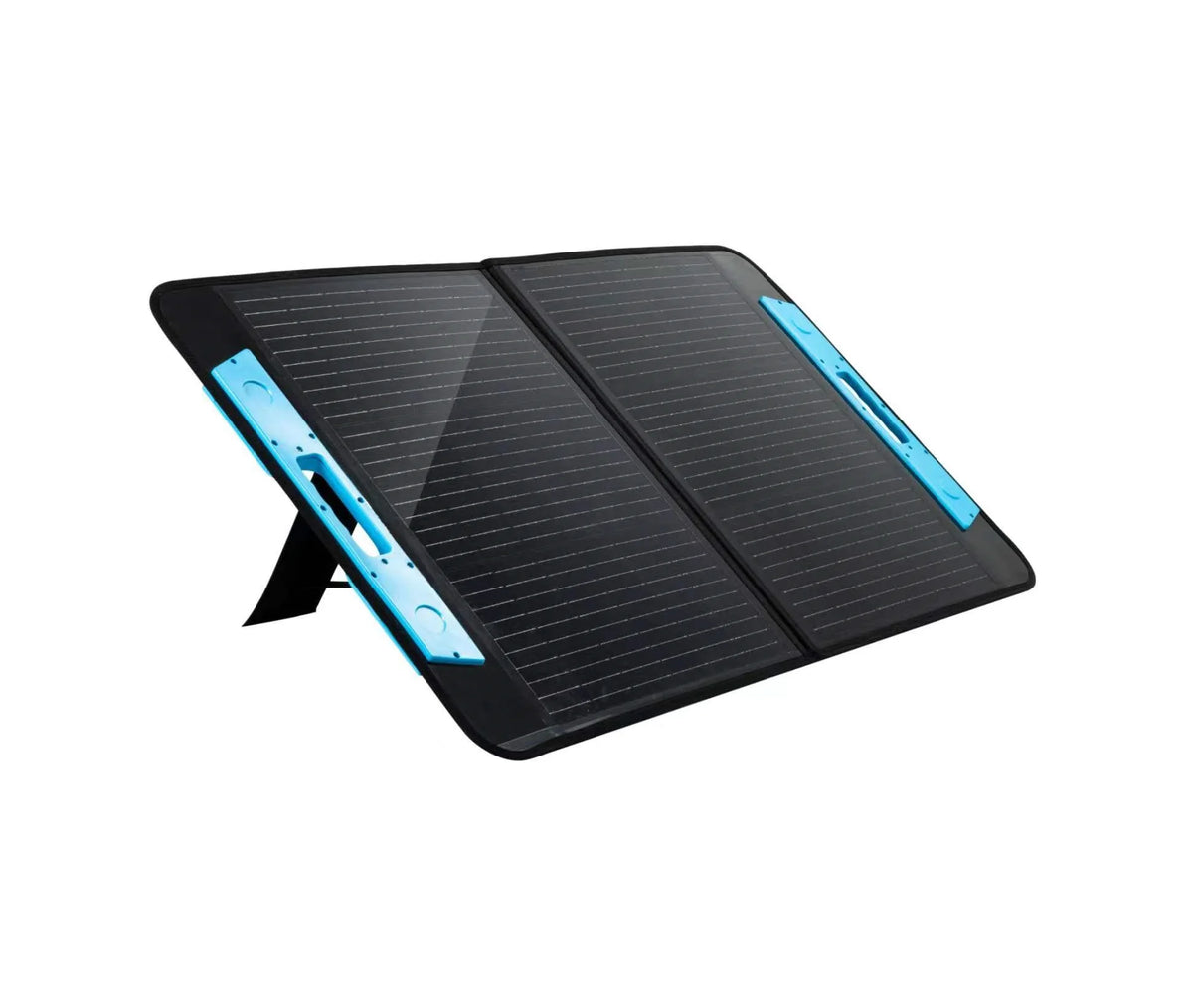

New Technology 100W foldable solar panel 1000W for portable power station
$157.79$339.79
Payment Methods
Product Description
The Foldable Series Solar Panels are made to be weatherproof, UV resistant for up to 10 years of continuous use, and provide clean energy for all your portable electronics. This series is ideal for most outdoor activities and the expanded line of different units will ensure that you have the best cell for your purpose. The units are made to fold conveniently for storage and come with a female cigarette lighter adapter, great for charging electronics. Should you need to charge many different types of batteries, we offer a full line of authorized accessories to accommodate your needs.
Key Features
★Highest efficiency PERC Shingled Solar cells- 21.4%. ★Use ETFE or PET materials for longer lifespan and resist the worse weather. ★Use fabric materials to make more lighter, smaller and easier folding.
★Support OEM & ODM customize service.
Specification
| Typical Electrical Data | ||||||||||||
| at STC: lrradiance 1000 W/m2 module temperature 25°C AM=1.5;
NOCT: lrradiance 800 W/m 2 ambient temperature 20°C wind speed :1m/s | ||||||||||||
| Model
| RG-FS60M-B | RG-FS100M-B | RG-FS120M-B | RG-FS160M-B | RG-FS200M-B | RG-FS300M-B | ||||||
| Pmax (W)
| 60 | 100 | 120 | 160 | 200 | 300 | ||||||
| Power Tolerance
| 0 ~ +3% | |||||||||||
| Vmp (V)
| 20.36 | 23.82 | 20.36 | 20.44 | 23.82 | 23.82 | ||||||
| Imp (A)
| 2.95 | 4.20 | 5.90 | 7.83 | 8.40 | 12.6 | ||||||
| Voc (V)
| 24.47 | 28.64 | 24.47 | 24.55 | 28.64 | 28.64 | ||||||
| Isc (A)
| 3.12 | 4.45 | 6.23 | 8.31 | 8.91 | 13.36 | ||||||
| Mechanical Data | ||||||||||||
| Cells Type
| Prime Shingled Solar Cells | |||||||||||
| Cells Efficiency
| 22.00% | |||||||||||

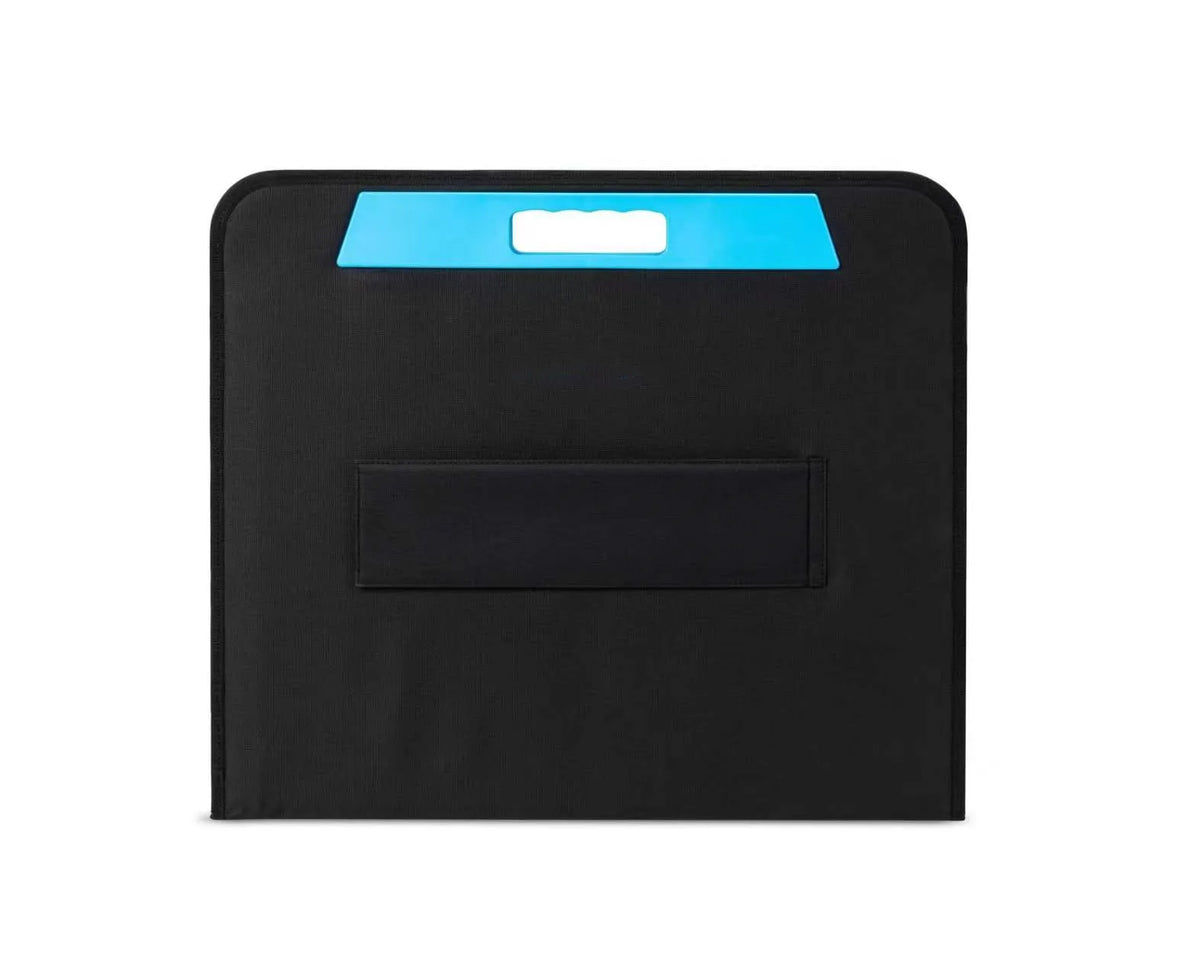

| Folded Size (L/W/H) (mm)
| 490*480*50 | 570*590*50 | 490*480*50 | 510*590*50 | 570*590*50 | 520*590*50 | ||||||

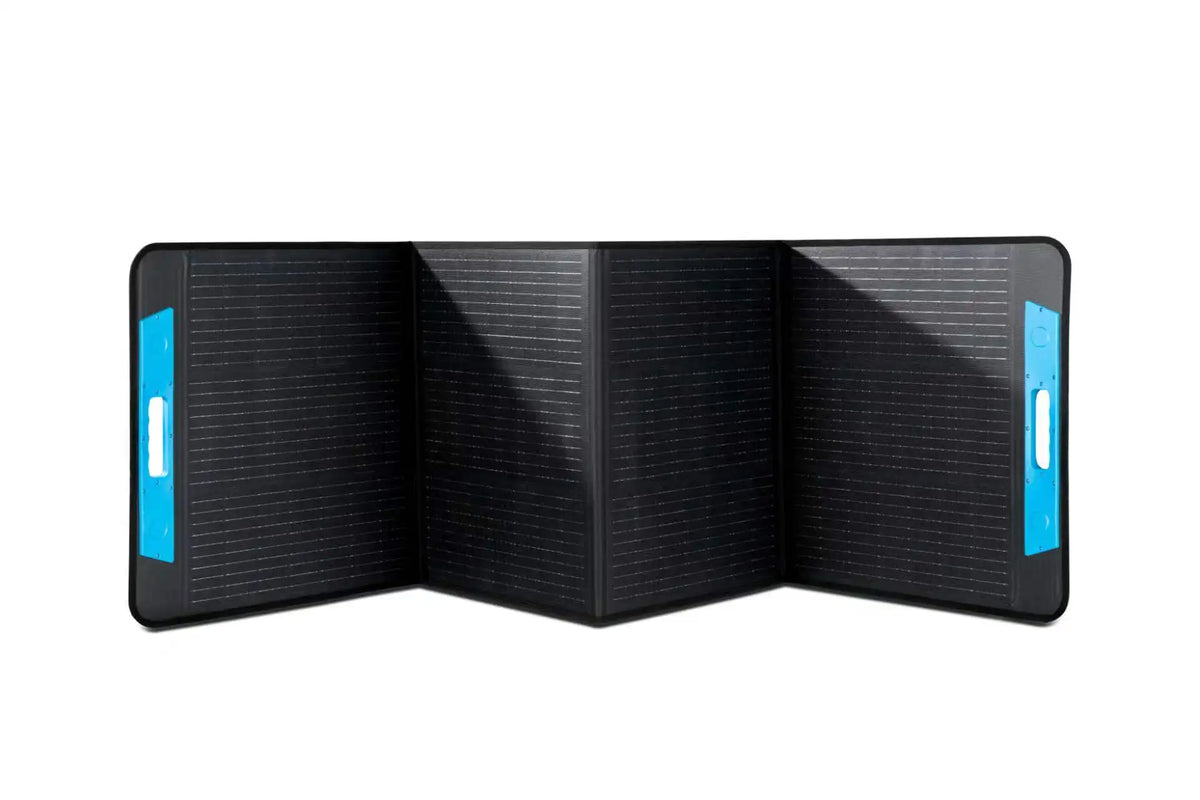

| Unfolded Size (L/W/H) (mm)
| 970*480*30 | 1150*590*30 | 1740*480*30 | 1920*590*30 | 2150*590*30 | 3160*590*30 | ||||||
| Foled Layers/power
| F2/30W | F2/40W | F4/30W | F4/40W | F4/50W | F6/50W | ||||||
| Module weight (kg)
| 3.65 | 4.97 | 6.68 | 7.81 | 8.46 | 11.32 | ||||||
| Front/Backsheet Materials
| 11PET+FR4 fibreglass | |||||||||||

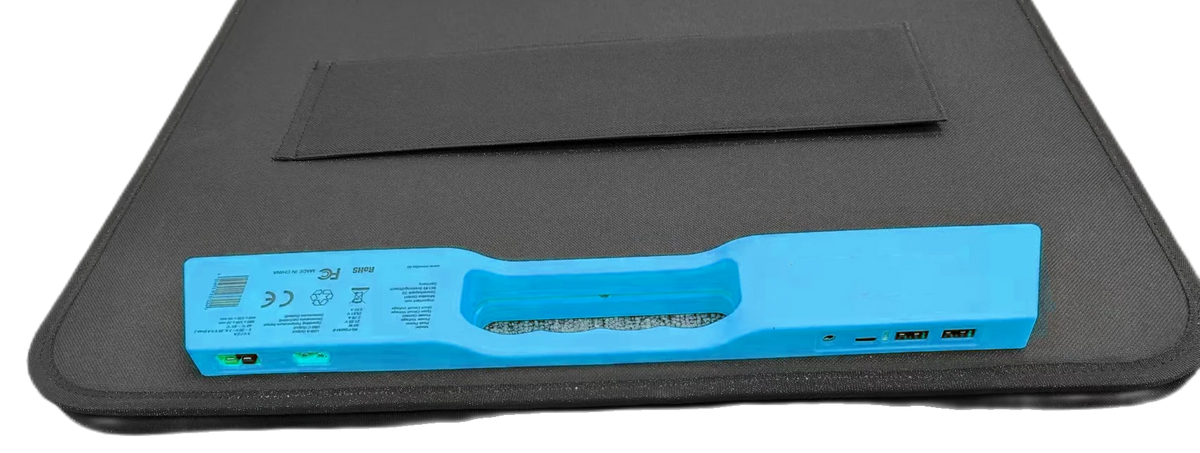

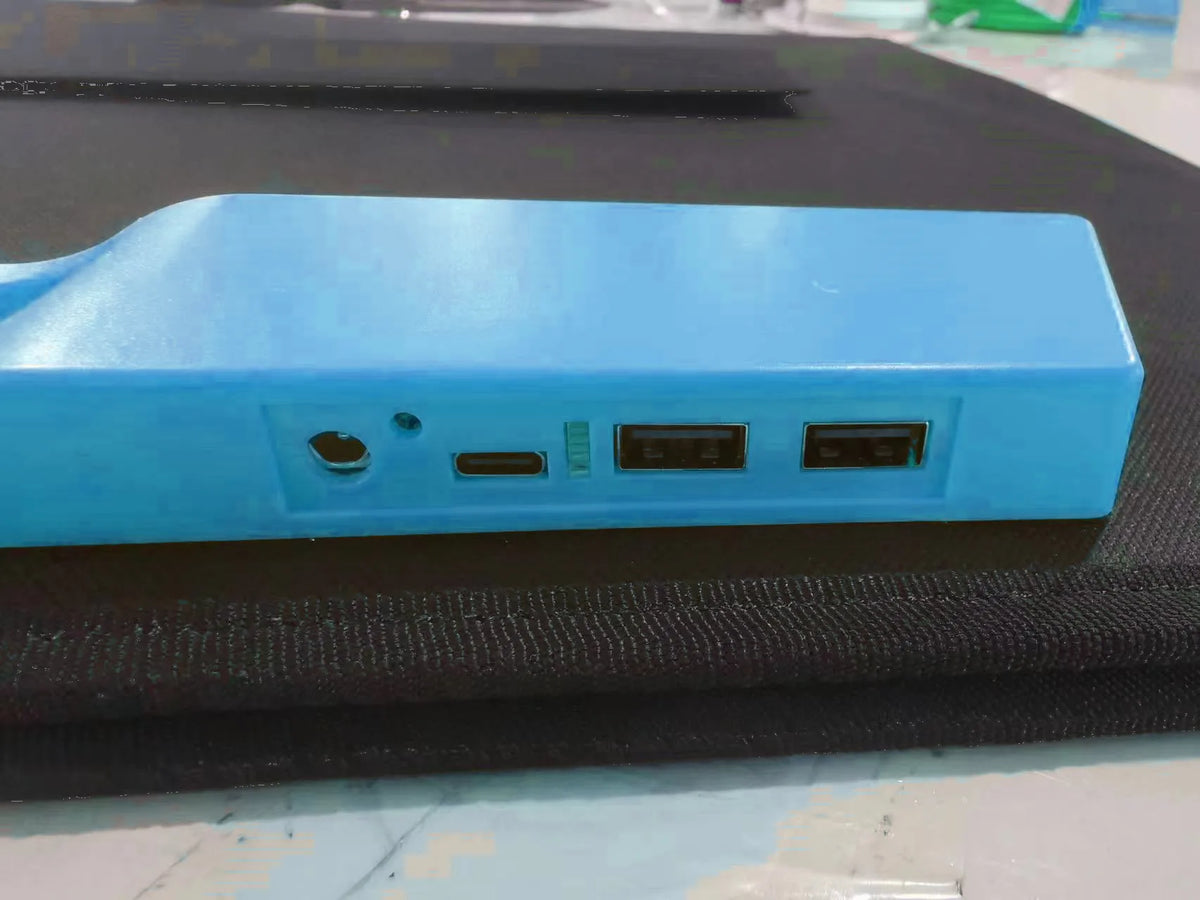

| USB Output-1
| 5V/2A; QC3.0-5~20V/3A | |||||||||||
| USB Output-2
| Type C (PD100) | |||||||||||

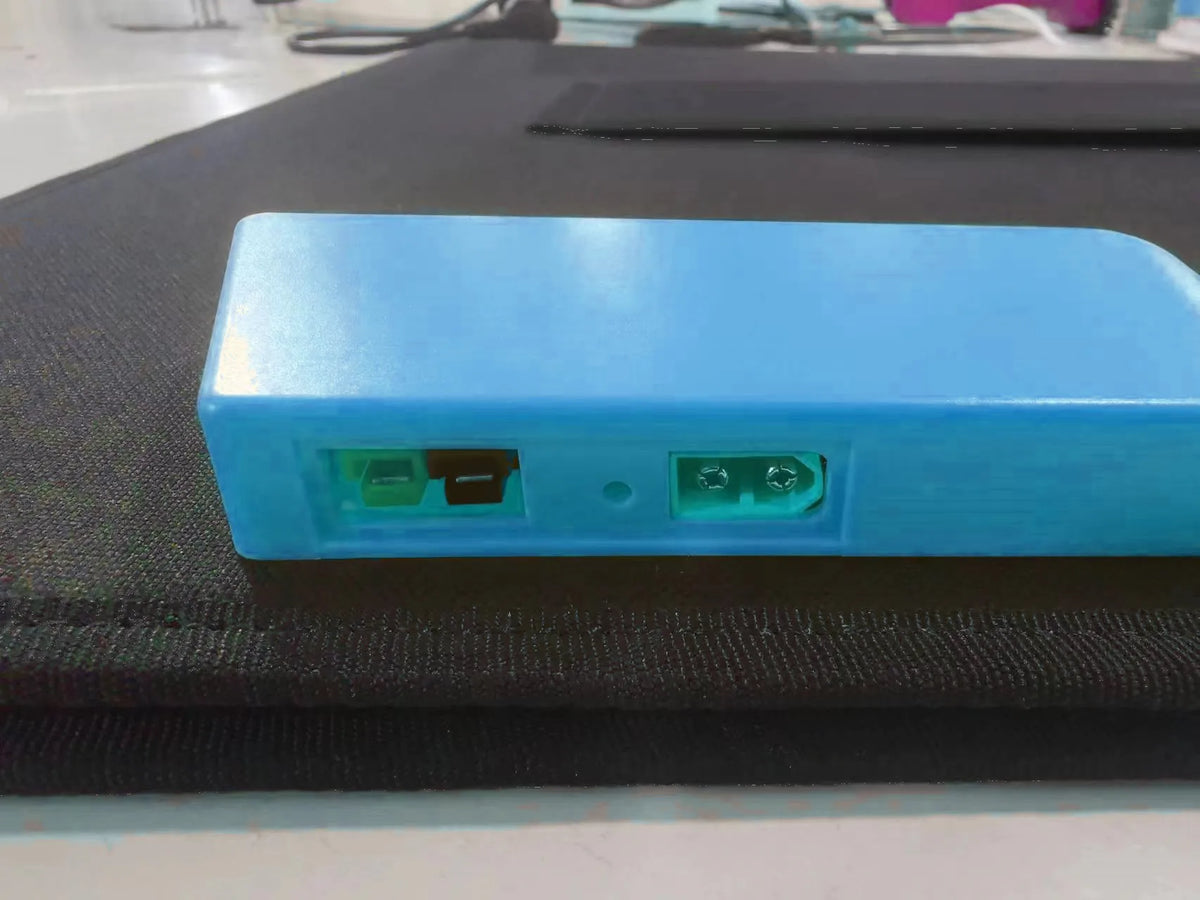

| DC Output | Anderson Output port | |||||||||||
| 5521 (5.5*2.1mm)/5A(Max.) | ||||||||||||
| XT60 Connector/30A (Max.) | ||||||||||||
| Supporting Leg
| Yes | |||||||||||
| Eyelets/Ropes
| Yes | |||||||||||
| Thermal Characteristics | ||||||||||||
| Nominal Operating cell temperatures
| 45± 2°C | |||||||||||
| Temperature coefficient of Pmax
| -0.3%/ °C | |||||||||||
| Temperature coefficient of Voc
| -1.74 %/ °C | |||||||||||
| Temperature coefficient of Isc
| 0.05 %/ °C | |||||||||||
| Temperature coefficient of Vmpp
| -0.35 %/ °C | |||||||||||
| Operating Conditions | ||||||||||||
| Nominal Voltage
| 12V | |||||||||||
| Max. System Voltage
| 100Vdc | |||||||||||
| Max. Fusing Current
| 12A | |||||||||||
| Working Temperature
| -40°C ~+ 85°C | |||||||||||
| Optional Accessories | ||||||||||||
| 1000mm cable,battery clips,supporting legs | ||||||||||||
Product Details
Onvels is synonymous with excellence.Onvels stands for quality.Onvels is synonymous with originality.Onvels is synonymous with effectiveness.Onvels. Excellence is our goal.Onvels committed to the best service ( Always ).
