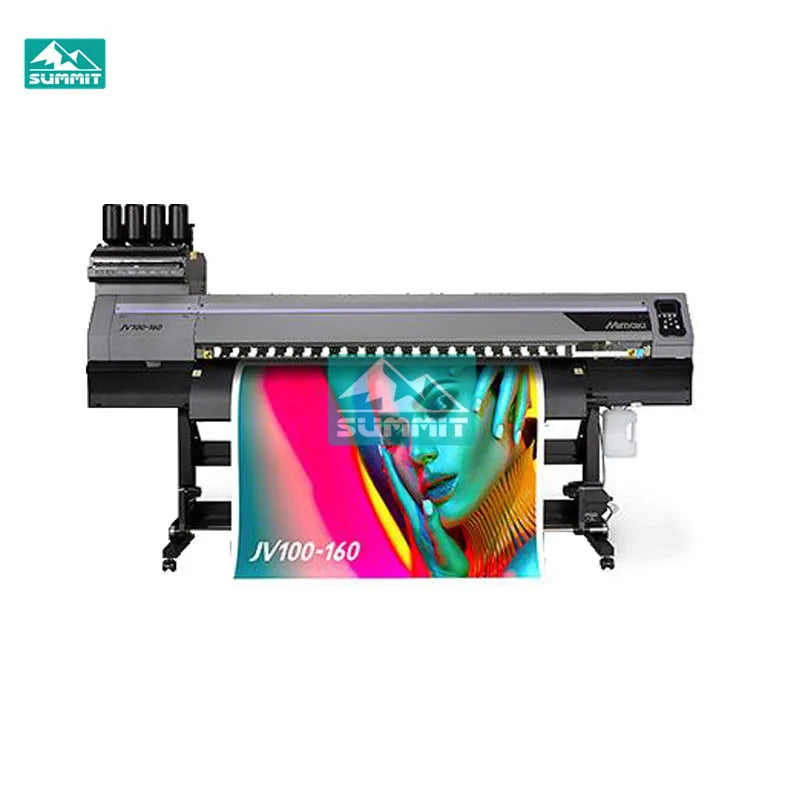

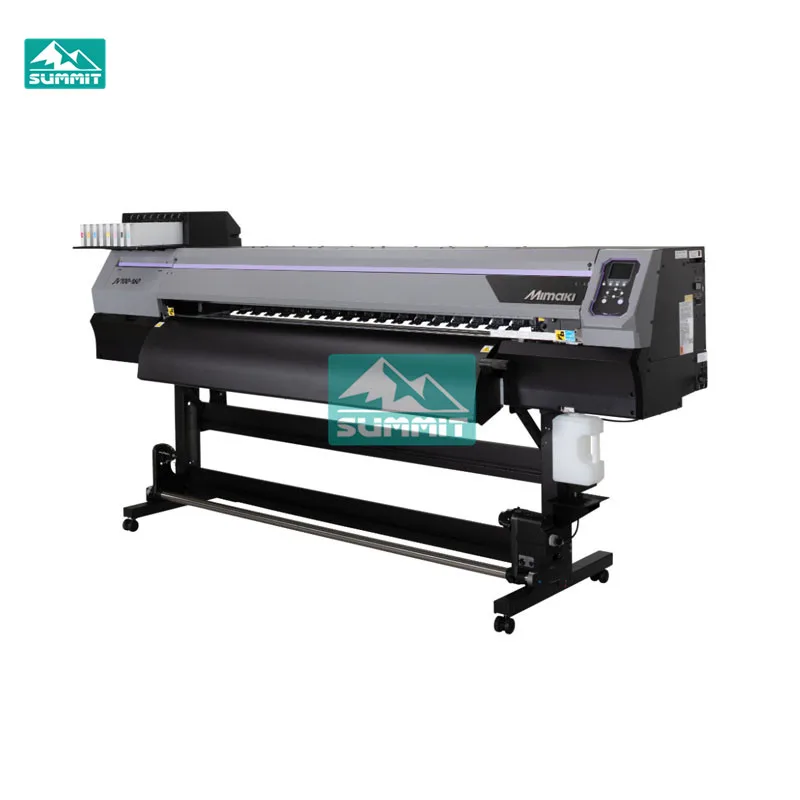

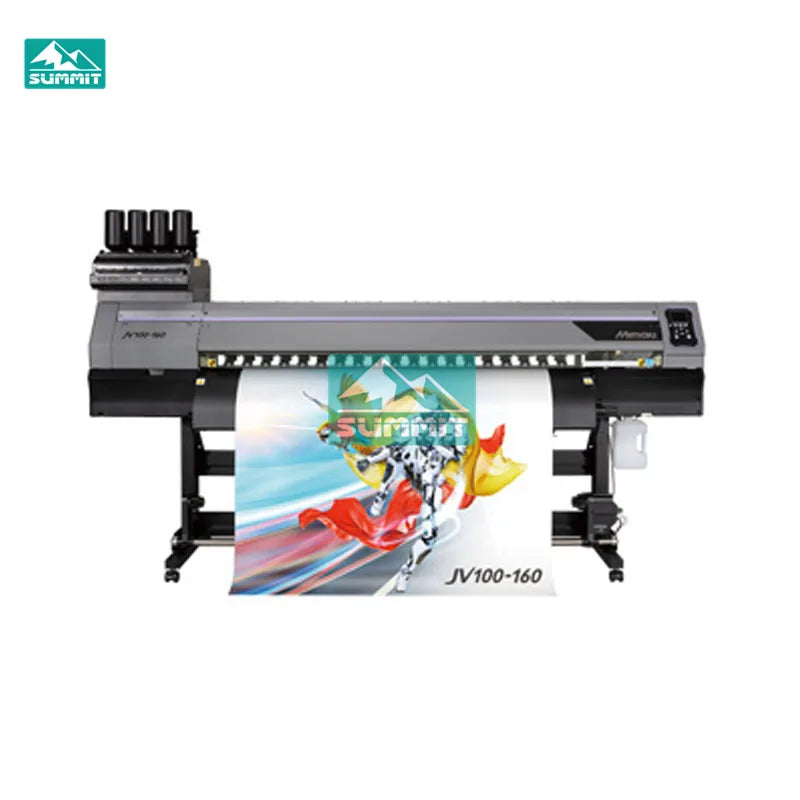

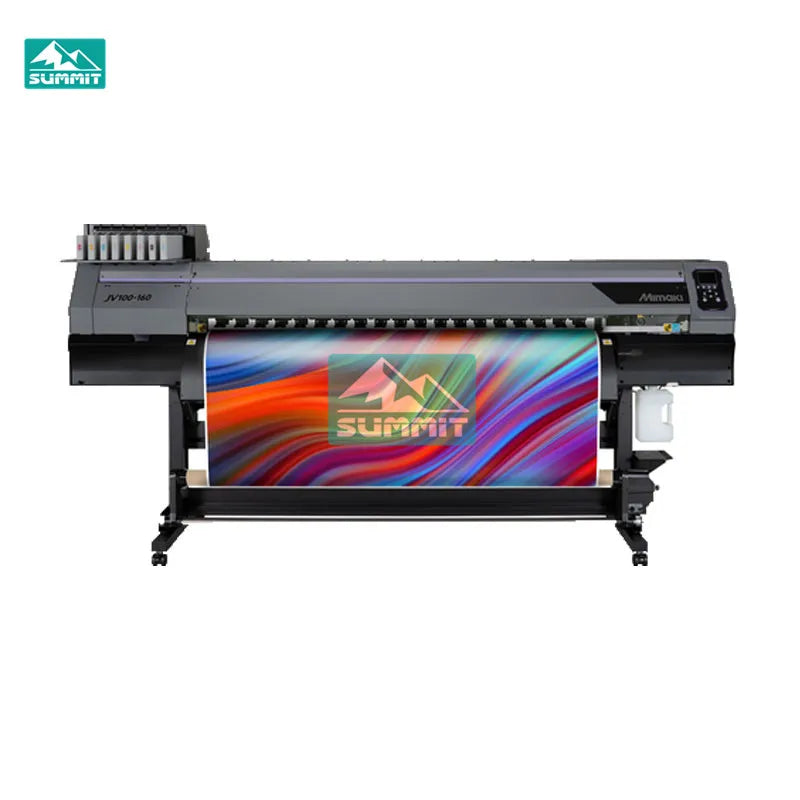

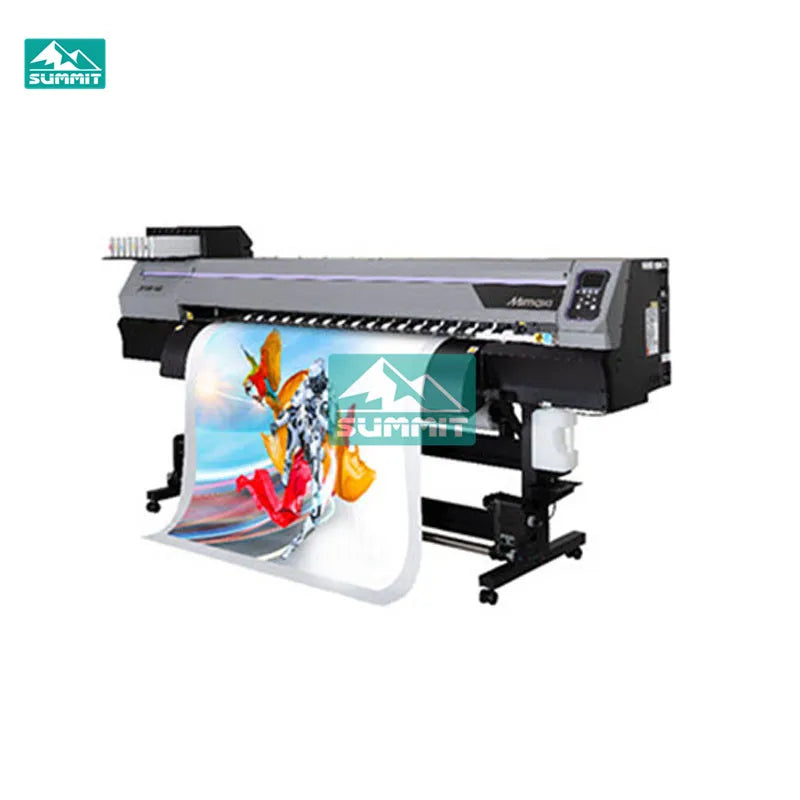

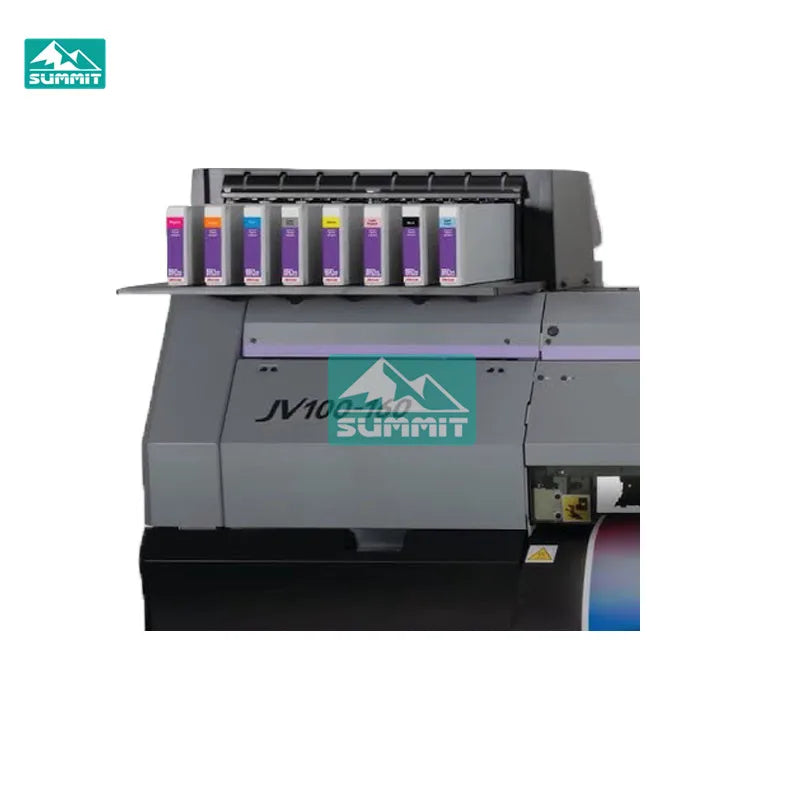

MIMAKI 64 Inch JV100 JV100-160 PVC PET Film Paper Cloth Canvas Printing Machine
$19,296.00$61,846.00
Payment Methods
Product Description
Specification
| JV100-160 | ||||||
|

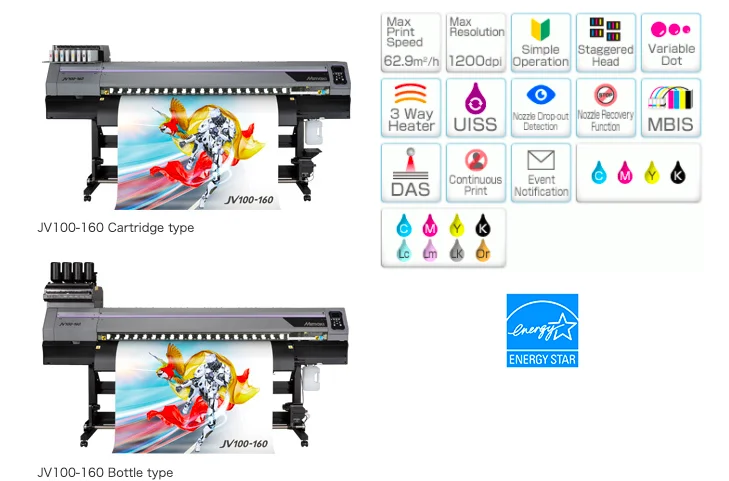

Cartridge type
|
Bottle type
| |||||
| Print head
|
On-demand piezo head (2 staggered layout)
| |||||
| Print resolution
|
360 dpi, 600 dpi, 720 dpi, 900 dpi, 1200 dpi
| |||||
| Ink
|
Type/ Color
|
Eco-solvent ink
・AS5 (C,M,Y,K,Lc,Lm,Lk, and Or) ・SS21 (C,M,Y,K,Lc,Lm,Lk, and Or) ・BS4 (C,M,Y, and K) *Only available in specific countries |
Eco-solvent ink
・CS250 (C,M,Y, and K) *Only available in specific countries | |||
|

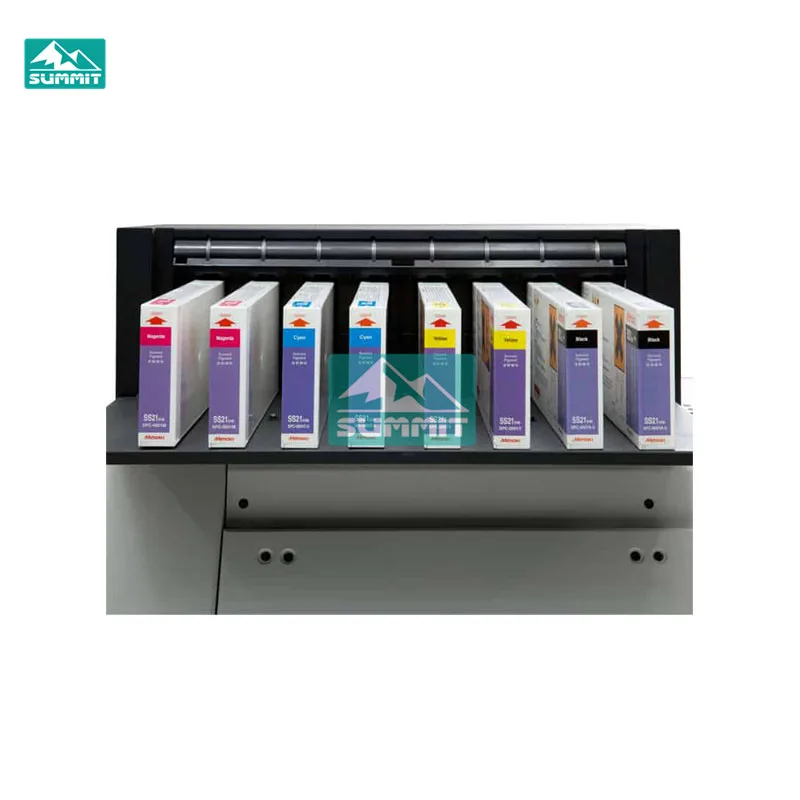

Capacity
|
600ml Ink pack *1 / 2L Ink pack *2
|
1L bottle
| ||||
| Maximum print width
|
1,610 mm (63.4 in)
| |||||
| Media
|
Maximum width
|
1,620 mm (63.8 in)
| ||||
|
Thickness
|
1 mm or lower
| |||||
|
Roll diameter
|
φ250 mm or less
| |||||
|
Roll weight
|
45 kg or less
| |||||
|
Roll inside diameter
|
2 inch / 3 inch
| |||||
| Certifications
|
VCCI class A, FCC class A,
CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, ENERGY STAR®, RCM, EAC | |||||
| Interface
|
USB2.0 / Ethernet 1000BASE-T
| |||||
| Power supply
|
Single-phase (AC100-120 / 200-240V±10%, 50/60Hz±1Hz) x2
| |||||
| Operational environment
|
Temperature: 20–30 °C (68–86 °F)
Humidity: 35–65% Rh (Non condensing) | |||||
| Dimensions (W×D×H)
|
2,775 x 700 x 1,392 mm (109.3 x 27.6 x 54.8 in)
|
2,775 x 700 x 1,475 mm (109.3 x 27.6 x 58.1 in)
| ||||
| Weight
|
166 kg (366 lb)
|
168 kg (370.4 lb)
| ||||
Product outlines
1. Abundant features that achieve Mimaki quality
- Dot position / Feeding amount auto correcting function "DAS"
- Mimaki technology that enables stable and high-quality print
2. High productivity supported by high-quality functions
- 6pass 20.0m²/h (PVC), 4pass 27.4m²/h (tarpaulin)
3. Stable quality is achieved with eco-solvent ink with an excellent drying property
- New AS5 and CS250 inks with excellent drying properties are used
4. New and improved genuine RIP [RasterLink7] is provided as standard
- RIP processing becomes faster to increase productivity
- Dot position / Feeding amount auto correcting function "DAS"
- Mimaki technology that enables stable and high-quality print
2. High productivity supported by high-quality functions
- 6pass 20.0m²/h (PVC), 4pass 27.4m²/h (tarpaulin)
3. Stable quality is achieved with eco-solvent ink with an excellent drying property
- New AS5 and CS250 inks with excellent drying properties are used
4. New and improved genuine RIP [RasterLink7] is provided as standard
- RIP processing becomes faster to increase productivity
Application
Trade Shows
