lab SKZ60A Gloss test device for Coatings Paint Marble Plastic Paper
$812.08$1,635.28
Payment Methods
IS07668 SKZ60A Precise Digital LCD Prints Paint Plastic Metal Surface Glarimeter Gloss Tester
Designed according to the national verification regulation of JJG696 standard, adopt long life light source, good repeatability,small volume, high precision and good stability. It is mainly used coatings, printing ink, paint, paint, wood, marble, granite,polishing brick, brick of pottery and porcelain, plastic, paper, metal and non-metallic materials to the surface of the mirror gloss measurement, more stable performance, more durable, more comfortable
Function:
(1) One button to complete triangle measurement: one operation can complete three angle measurement; Measuring light incident angle meet ISO 2813 three measuring light incident angle. Three incident angle of mirror gloss meter is 20 °, 60 °, 85°respectively
(2) Optional angle mode: choose measuring angle or angle combination according to user needs.
(3) Manually entering standard samples gloss data
(4) Humanized design, good man-machine communication interface
(5)Three angle can store 50000 testing records, storage structure is: 100 prototypes, each prototype with 500 testing data
(6) Data browsing and viewing function
(7) The machine has automatic shutdown function, low power warning functions, full data storage hint functions
(8) USB communication interface to communicate with PC
(9) PC software can be extended more functions.
Function:
(1) One button to complete triangle measurement: one operation can complete three angle measurement; Measuring light incident angle meet ISO 2813 three measuring light incident angle. Three incident angle of mirror gloss meter is 20 °, 60 °, 85°respectively
(2) Optional angle mode: choose measuring angle or angle combination according to user needs.
(3) Manually entering standard samples gloss data
(4) Humanized design, good man-machine communication interface
(5)Three angle can store 50000 testing records, storage structure is: 100 prototypes, each prototype with 500 testing data
(6) Data browsing and viewing function
(7) The machine has automatic shutdown function, low power warning functions, full data storage hint functions
(8) USB communication interface to communicate with PC
(9) PC software can be extended more functions.
Standard
IS02813, 1S07668, ASTM D523, ASTM D2457, GB/T9754, GB/T13891, GB/T7706, GB/T 8807, JG 696-2002
| Measuring Angle
| 60°
| ||
| Measuring range
| 60:0~1000 GU | ||
| Repeatability
| 0.2GU(0~100GU)
0.2%GU(>100GU) | ||
| Measuring Spot
| 9*15mm(60°) | ||
| Indication Error
|
±1.5 GU
| ||

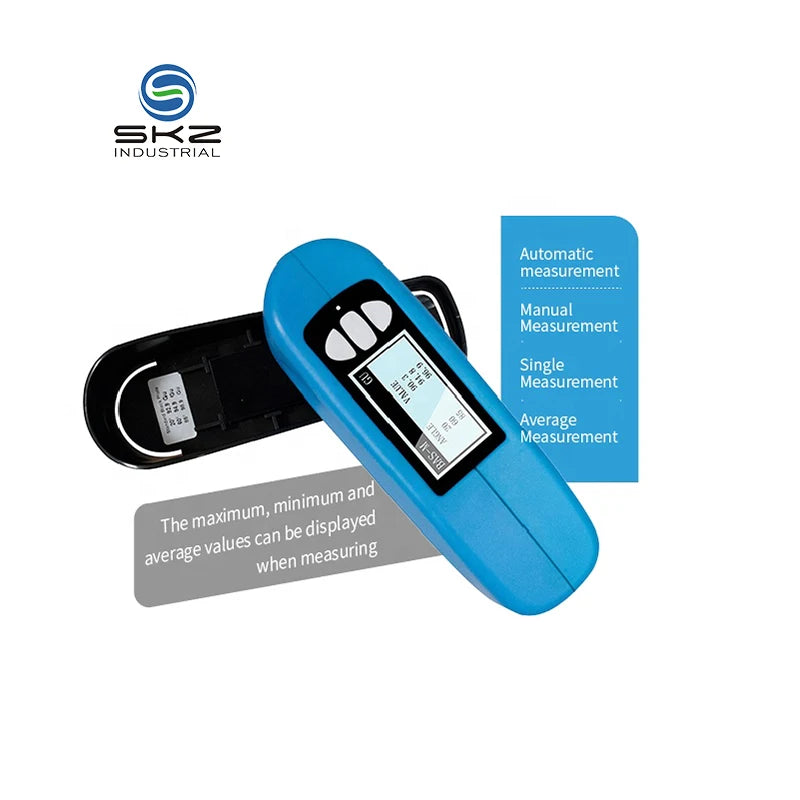

| Measurement Pattern
| Manual measurement
Automatic measurement Single measurement Average measurement | ||
| Division Value
| 0.1GU(0~1000GU)
1GU(1000~2000GU) | ||
| Data Interface
| USB and DC ports
| ||
| Data Storage
| 50000(Three angle)
| ||
| Languages
| Chinese/English
| ||

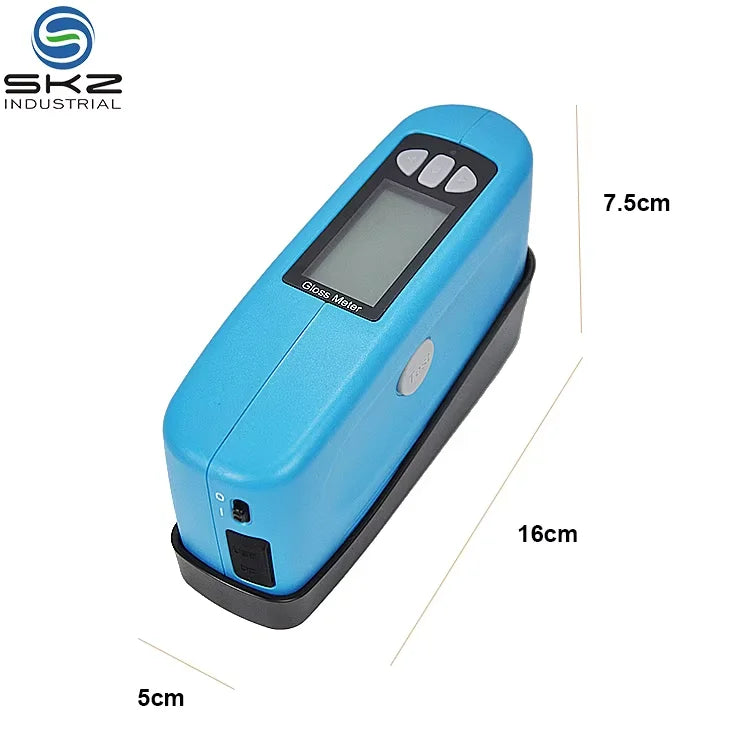

| Instrument size
| 159*79*72
| ||
| Weight
| 500g
| ||
| Power Supply
| 2 # 5 alkaline batteries/power adapter
| ||
| Zero error
| 0.2GU
| ||
| Operating Temperature
| 10-40℃
| ||
| Storage Temperature
| -10-70℃
| ||
| Relative Humidity
| <85%, without condensation
| ||
|
Humidity Range
|
less than 85%,without condensation
| ||
|
Volume
|
159x49x72 mm
| ||
Product details

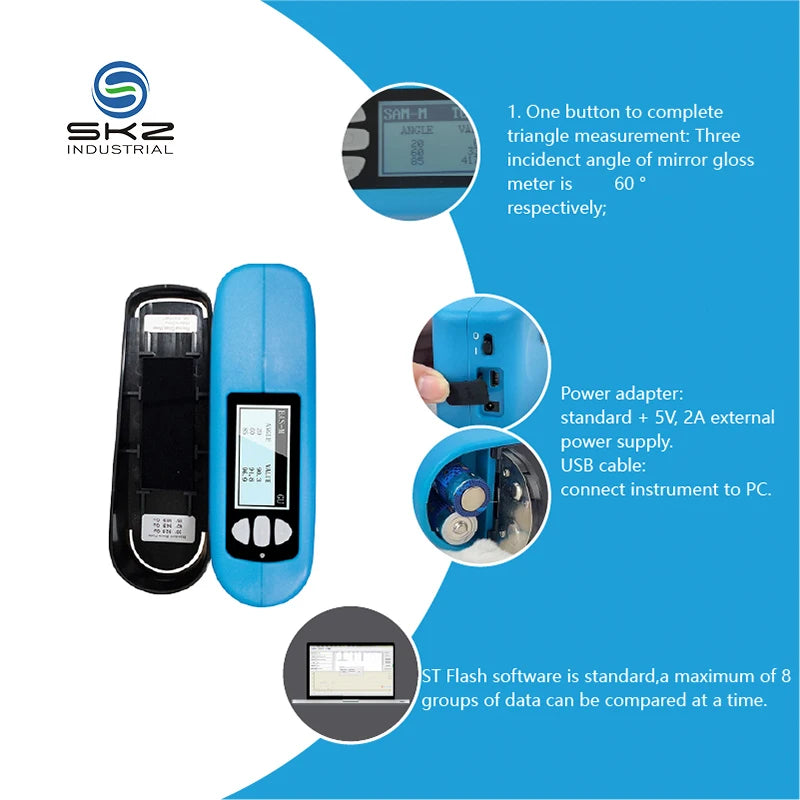

One button to complete triangle measurement: Three incidenct angle of mirror gloss meter is
60 ° respectively
Power adapter: standard + 5V,2A external power supply.
USB cable: connect instrument to PC.
Equipped with computer gloss degree analysis software real time generate professional report
.

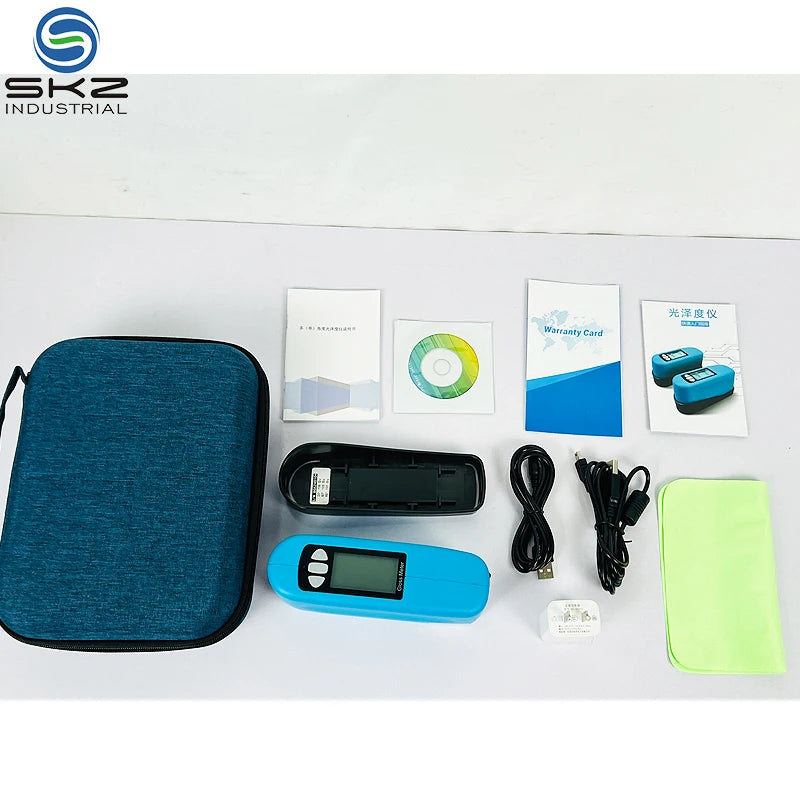

Product acessories
Usage scenario
Coating
Printing
Oil Paint
Plastic
Metal
Stone
Electroplate
Mirror Surface
Leather
