JIMTEC JITAI6103 In Stock Digital Electronic Dry Film Coating Thickness Gauge Car Paint Coating Thickness Gauge
$306.75$606.75
Payment Methods
Product Overview

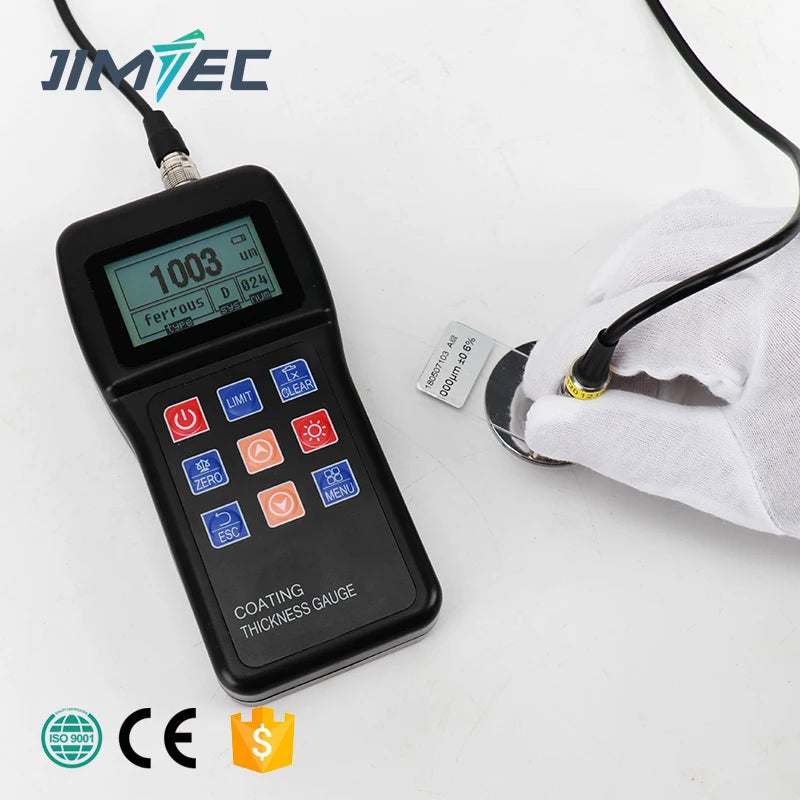

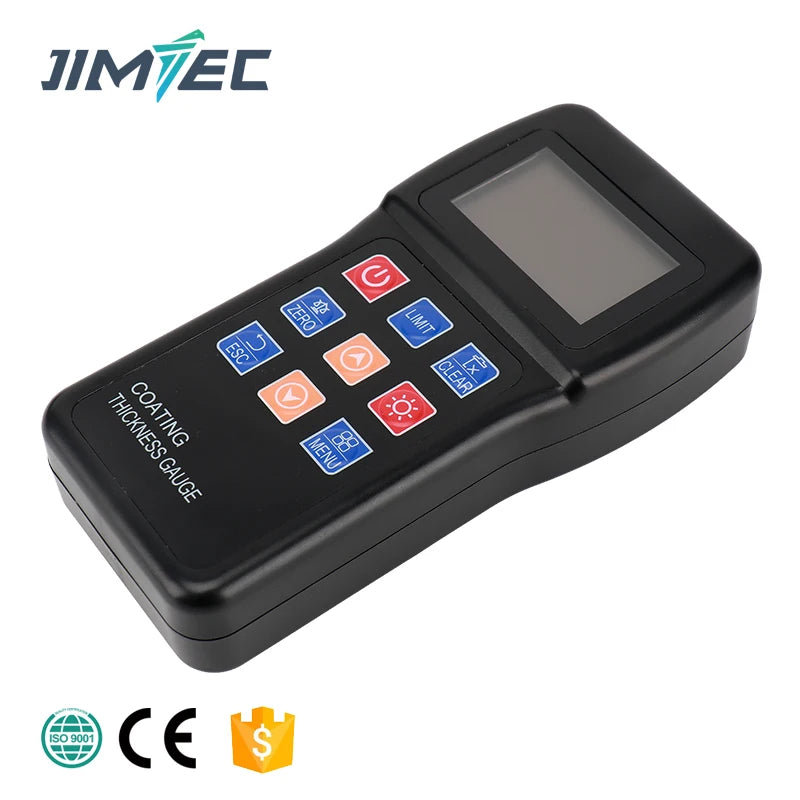

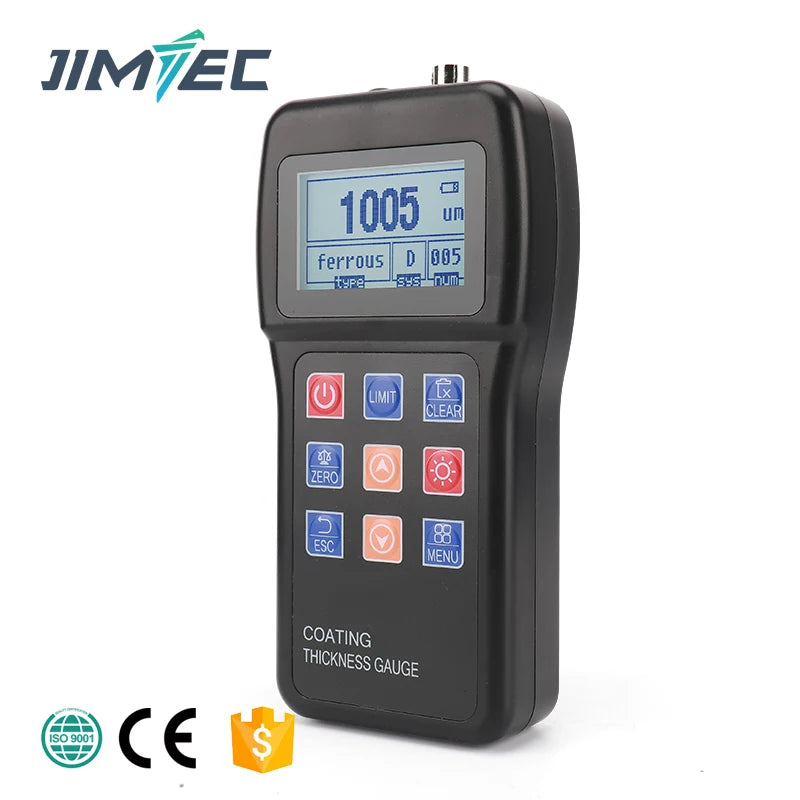

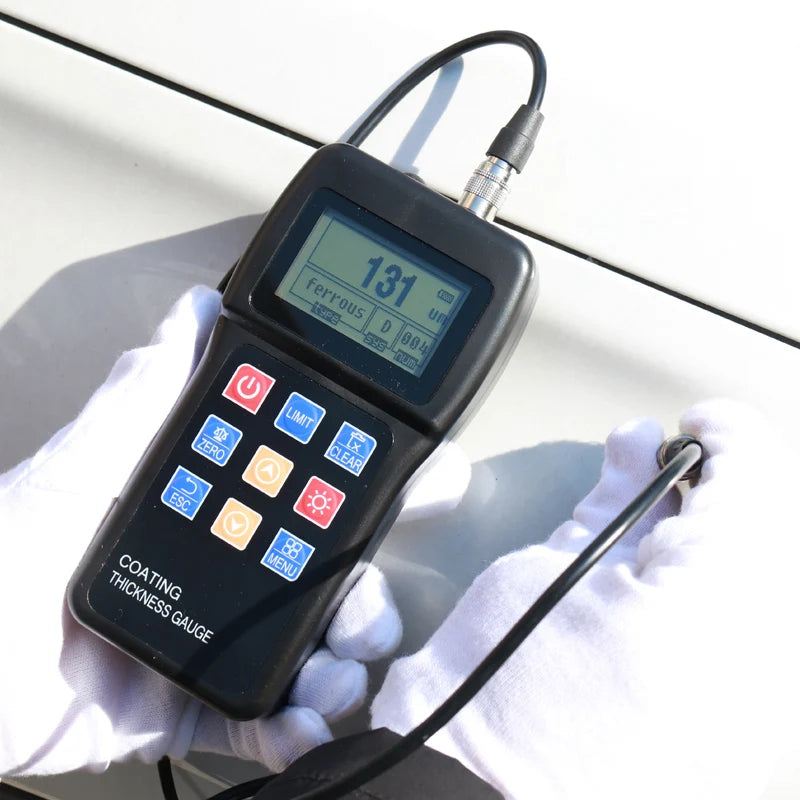

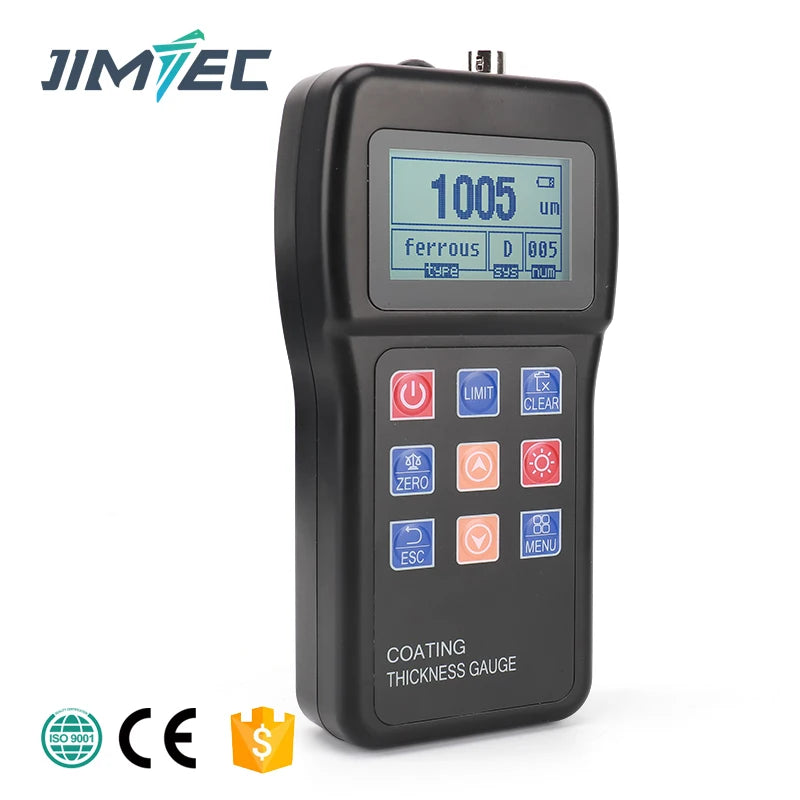

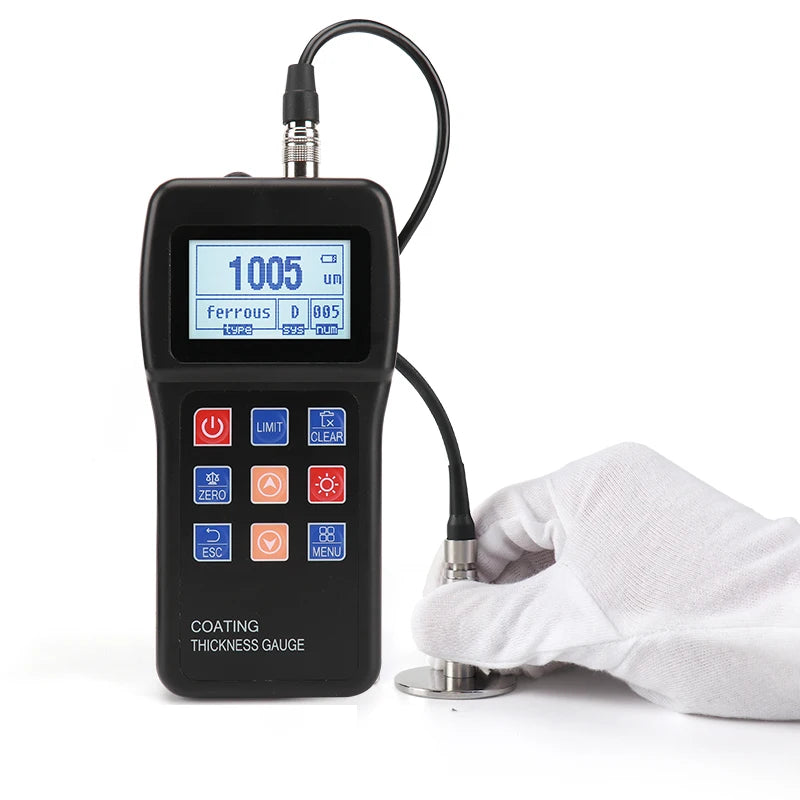

JIMTEC JITAI6103 Digital Electronic Dry Film Paint Coating Thickness Gauge for car
With different probe: it can measure the thickness of non-magnetic coating layers covered on magnetic substrate. Such as: non-magnetic (aluminum, chrome, copper, enamel, rubber, paint) covered on magnetic substrate (steel, alloy and magnetic stainless steel)
It also can measure the thickness of non-conductive coatings layers covered on conductive substrate. Such as: (enamel, rubber,paint, vanish, plastic anodic-oxide layer) covered on conductive substrate (aluminum, brass, zinc and nonmagnetic stainless steel).
It also can measure the thickness of non-conductive coatings layers covered on conductive substrate. Such as: (enamel, rubber,paint, vanish, plastic anodic-oxide layer) covered on conductive substrate (aluminum, brass, zinc and nonmagnetic stainless steel).
PRODUCT SPECIFICATIONS
| Model
| JITAI6103
|
|
Measuring range
|
0-1250μm, depends on probes, MAX 10mm for the probe F10.
|
|
Working principle
|
Magnetic & Eddy
|
|
Substrate
|
FE / NFE base
|
|
Resolution
|
0.1μm
|
|
Display
|
128x64 LCD with backlight
|
|
Accuracy
|
±2%H+1um Note: H is thickness reading
|
|
Memory
|
5 files x 100 values
|
|
Unit switch
|
Metric (μm) Imperial (mil)
|
|
Working temperature
|
Operation Temp. : -10~50°C Storage Temp. :-30~70°C
|
|
Power
|
AA battery 2pcs
|
|
Weight
|
340g
|
|
Size
|
115*67*31mm
|
PRODUCT CONFIGURATION
| Name
| QTY
| |
|
1
|
Main unit
|
1
|
|
2
|
Probe (Fe or NFe)
|
1
|
|
3
|
Calibration piece + Zeroing plate
|
5+1
|
|
4
|
Operating manual
|
1
|
|
5
|
Warranty card
|
1
|
|
6
|
Instrument case
|
1
|
