Notice:This link's price is barebone system price, doesn't include ram and hard disk, if you need the ram and hard disk, please contact us, we will give you the best price.
1)Intel Pentium N3700/J3710 (Quad core quad threading,1.6GHz,turob boost 2.4GHz)
2) Support 1*VGA+1HD+2*LAN+1*COM+5*USB2.0+1*USB3.0(2*COM,4USB optional)
3)AMI 32MB Flash ROM.supportRPL/PXE diskless boot,wake on lan, electricity boot, WDT

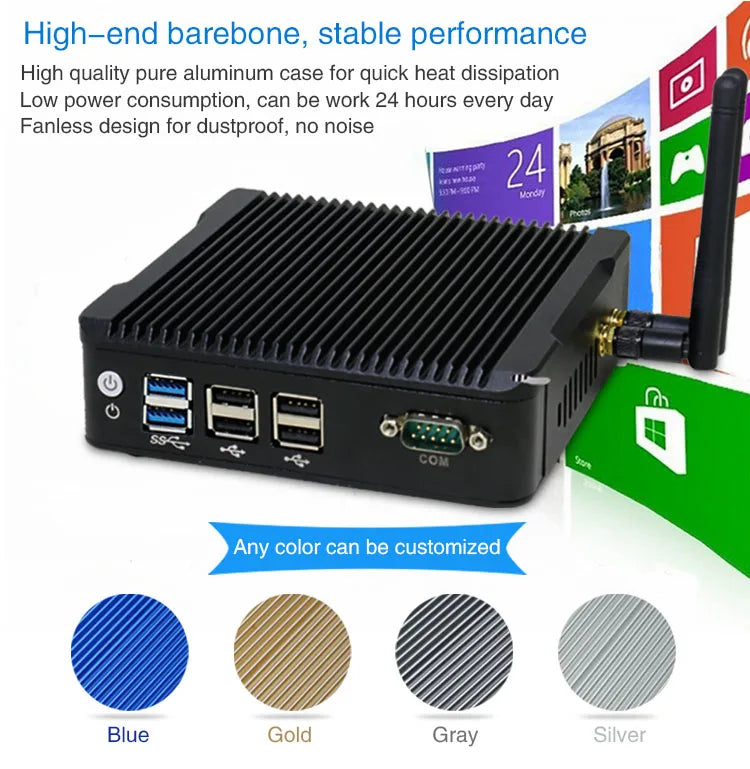

4)High-quality pure aluminum Case
5) 1*MSATA,1*mini-PCIE, support wifi and BT
6) 2*RTL8111E 1000M lan card, support wake on lan
7) DC-IN 12V power supply and AC power adapter
8) Applied in Digital signage, KIOSK, Advertising Machine, Self-service Terminal,
Electronic Whiteboard, ATM, POS/Retail, Networking, Automation, Surveillance
Parking Pay Station, Channel System, Medical electronic etc
Specification | |||
Model | IBOX-501 N5 | ||
Case Color | Black(color can be customized) | ||
Material | High-quality pure aluminum | ||
CPU | Adopt Intel Celeron N3160 quad core 1.6GHz | ||
Intel Pentium N3700 (Quad core quad threading,1.6GHz,turob boost 2.4GHz) | |||
Chipset | Adopt Intel express chipset | ||
Mainboard | 120*120mm mini itx mainboard | ||
RAM | 1*SO-DIMM DDR3 , Support Max 8G | ||
Storage | 1*MSata, 16G/32G/64G/128G/256G/512G SSD (optional 500~1T HDD ) | ||
Audio | Integrated Realtek ALC662 6sound channel | ||
Display Interface | support 1*DP, 2HD | ||
Display | Integrated Intel HD Graphic card, support DP, 2HD, display input | ||

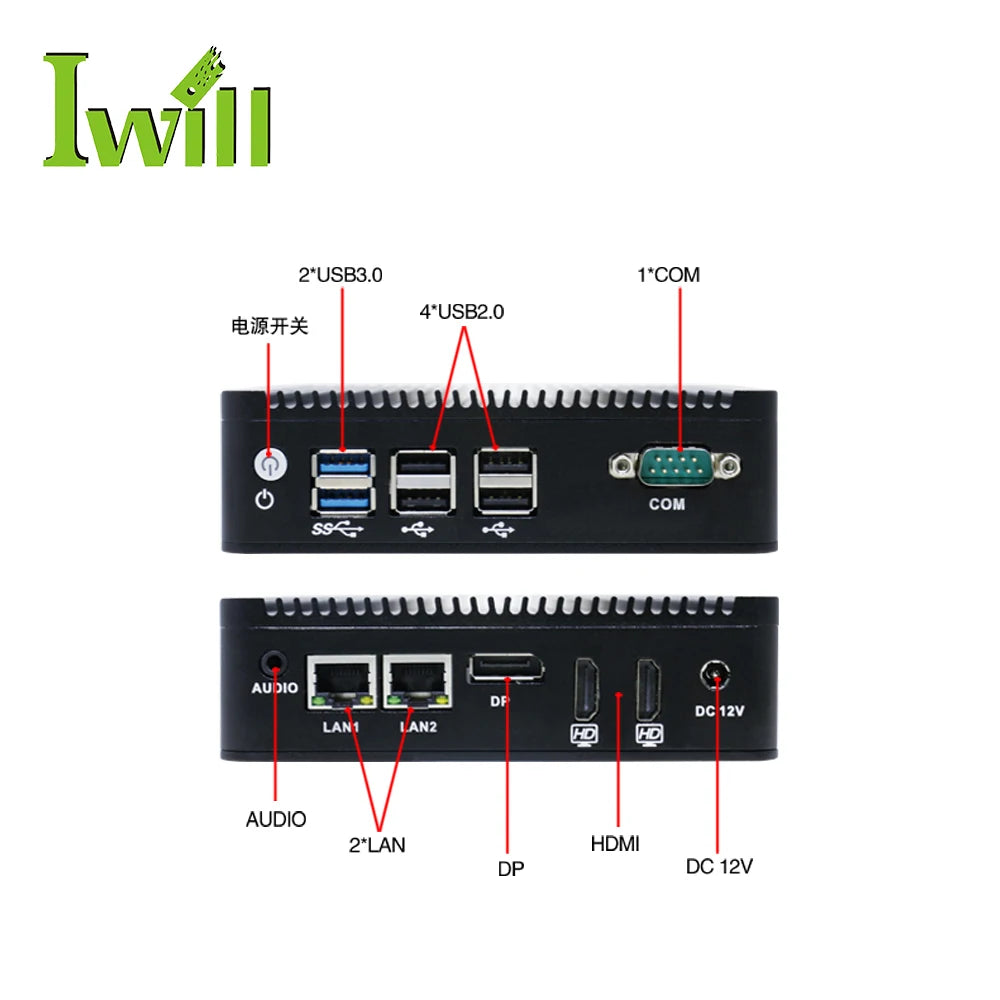

I/O | USB | 4*USB2.0, 2*USB3.0 | |
COM | 1*RS232 COM(2*COM optional) | ||
WIFI Antenna | 2 | ||
Lan | 2*RJ45 lan | ||
Audio | 1 | ||
Network Card | 2*RTL8111E 1000M lan, support wake on lan | ||
Expansion | 1*mini-PCIE, support Wifi and BT | ||
Watch Dog Timer | Support | ||
Power Supply | DC 12V-IN power supply and AC power adapter | ||
Operating System | Windows 7/8/10, Linux | ||
BIOS | AMI 64Mbit Flash ROM | ||
Working Temperature | -10°C - 60°C | ||
Working Humidity | 0% - 95% relative humidity, Non-condensing | ||
Size | 134*126*39 mm (W*D*H) | ||
Weight | 0.65kg |
