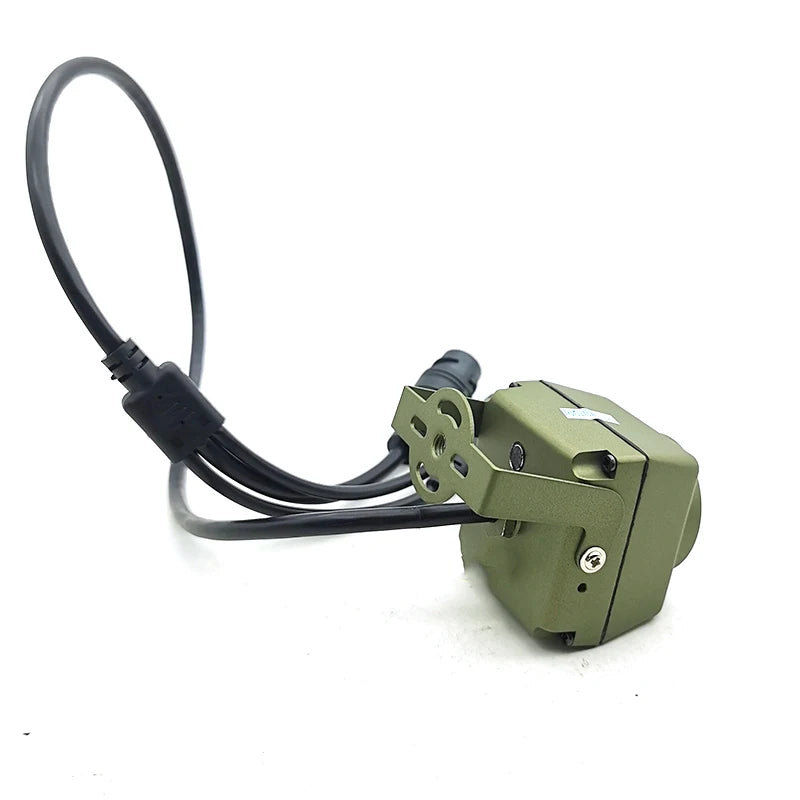

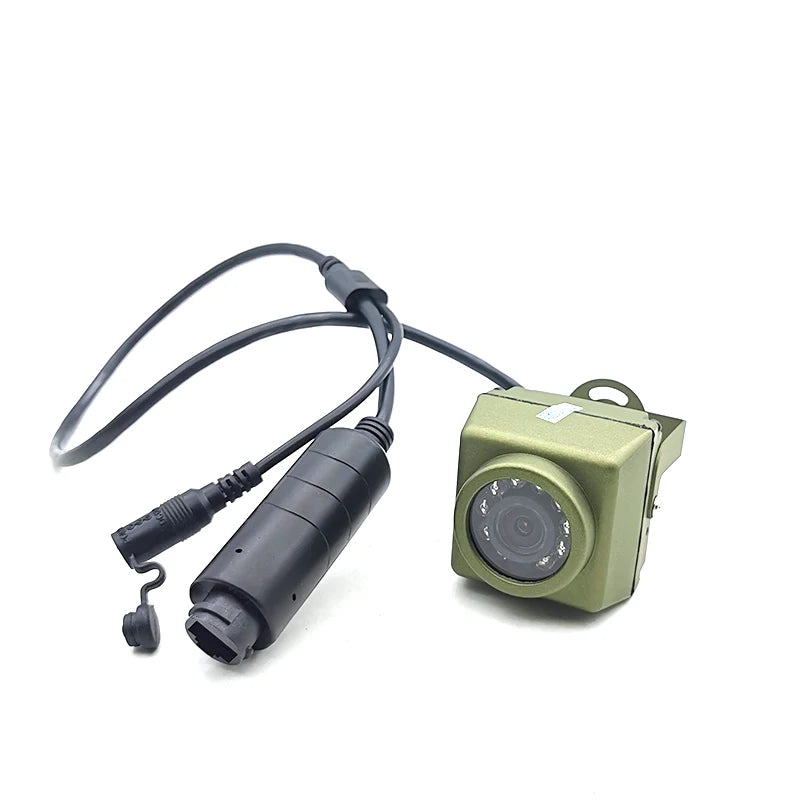

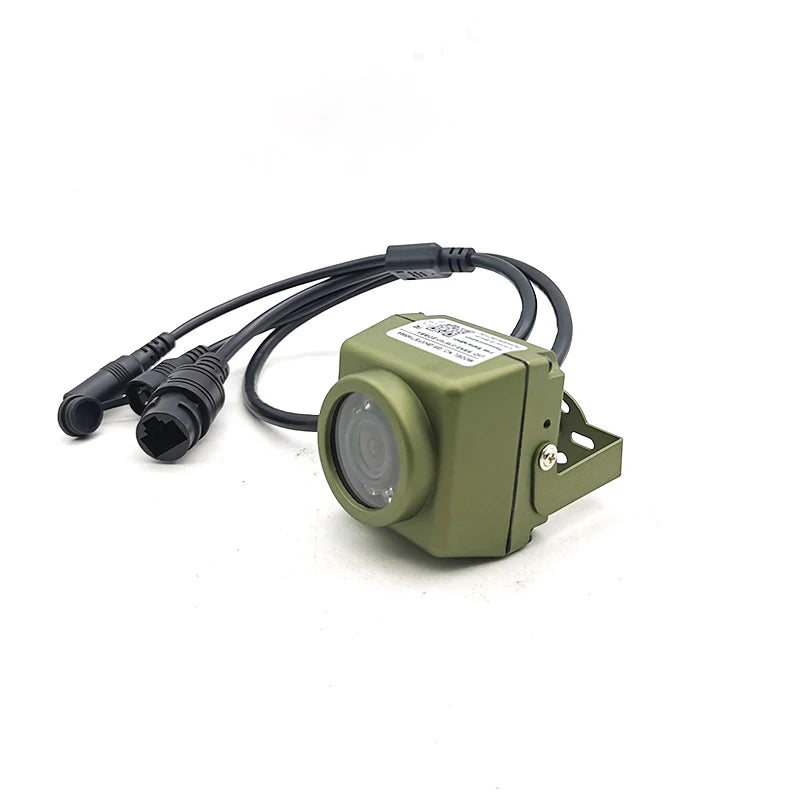

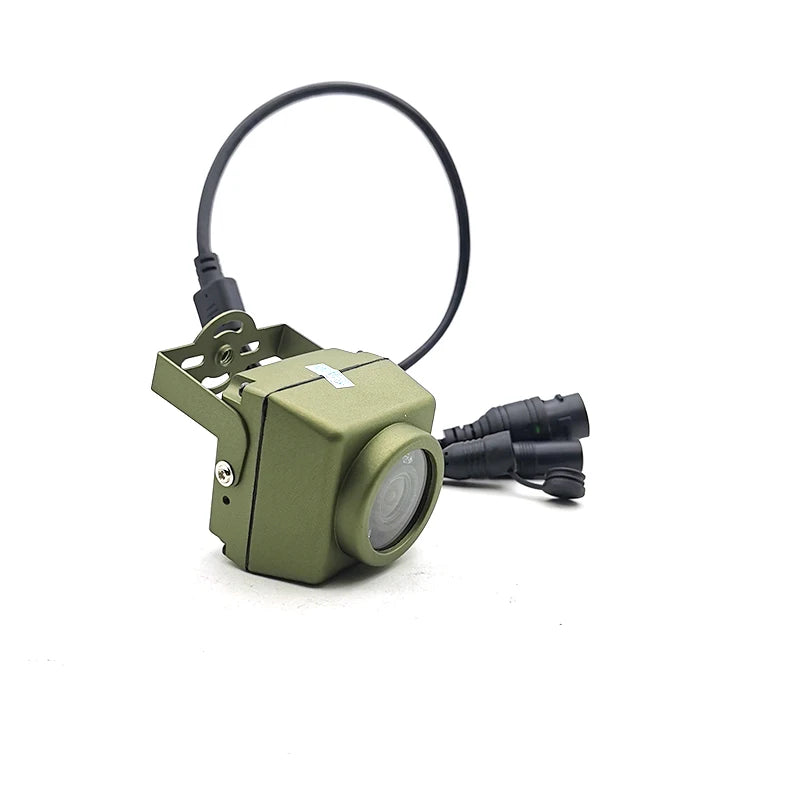

Geniuspy P2P 8MP 4K 4MP 5MP 3MP IP66 Outdoor Night Vision IR-Cut 940Nm IR Mini Type POE IP Bird Box Camera For CCTV Security
$69.36 - $94.86$210.06 - $298.56
Payment Methods
8MP 4K Feature
Supporting Face detection, Humanoid detectionn, and supports customization of other smart functions;
8.0MP HD Black light illumination resolution, clear and fine images;
Support 2D/3D noise reduction, digital wide dynamic;
Advanced H.265(Compatible with H.264) video compression, Super low rate, high definition quality of image;
Professional anti-lightning, conform to GB/T17626.5 and IEC61000-4-5;
Support ON VIF, access third party;
Support various mobile monitoring(iPhone, Android);
Product Description
Features:
1. H.265/H.264,support dual-stream,AVI;0.1M~8Mpbs variable;1~30f/s variable;
2. Color 0.1Lux; B/W 0.01Lux;
3. 1 RJ45 Ethernet interface, 10/100M automatically adapting;
4. Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc network protocol;
5. Support ON VIF, and mobile monitoring;
7. Metal case.
Specifications:
| GS-GFS1CMA-POE / GS-GFS1CA3M-POE / GS-GFS1CA4M-POE / GS-GFS1CA5M-POE GS-GFS1CA8M-POE | |
| System structure | Embedded RTOS,dual-core 32bit DSP,pure hard compression ,watch dog |
| Sensor | 2MP:1/3" CMOS sensor color 0.01Lux’F1.2,black/white 0.01Lux’F1.2 3MP:1/2.7" SC2235 CMOS sensor color 0.1Lux’F1.2,black/white 0.01Lux’F1.2 4MP:1/2.7" SC5239 CMOS sensor color 0.1Lux’F1.2,black/white 0.01Lux’F1.2 5MP:1/2.8" CMOS sensor color 0.1Lux’F1.2,black/white 0.01Lux’F1.2 8MP:1/2.7 SC8239 Cmos senor cloor 0.1lux F1.2 black and white 0.01lux F1.2 |
| Video compression | H.265/H.264,support dual stream,AVI;0.1M~6Mpbs variable;1~30f/s variable |
| Image output | 2MP:Main stream:1920*1080(25fps), 3MP:Mail stream:2048*1536(20fps), 4MP:Mail stream:2560*1440(20fps), 5MP:Mail stream:2592*1944(15fps), 8mp:Main Stream:3840*2160p(15fps) |
| Noise reduction | Support 2D/3D |
| lens | 3.6MM MP lens Default,(2.8mm.6mm optional) |
| Storage | Via PC/Mobile Phone/NVR With HDD |
| Light | 10pcs 940nm ir leds |
| Wide dynamic | Support digital |
| Network interface | 1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc |
| Singal interface | One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR |
| AUDIO | Build inside mic |
| SD Card | NO |
| Reliability | Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours 65’C high temperature stable and reliable testing (including mounted machine testing) |
| Other function | NO |
| ON VIF | Support |
| Mobile monitoring | Support multiple mobile monitoring(iOS,Android) |
| Power | DC12V |
| Dimension | / |
| Housing material | Metal Housing |
8MP Chipset Specification as below:
(Does not include Power Adapter)
Note: " 12V" Please use 12 V 1A power supply, packaging does not include the power supply. if you need ,pls send us message !
We recommend using our h.265 NVR, other manufacturers of NVR may not be able to run h.265 perfectly, it will run with h.264.
Q & A
1, IP camera default IP address:192.168.1.10
User name:admin,password:empty(null)
If there is a problem with "Can not find the Device", it is the default ip address is not in the same network segment as your router.
Please click "Edit Device" to change the camera's ip address,
For example, if your router's ip address is 192.168.0.1, then you need to change the camera's ip address to 192.168.0.XX.
"DeviceManage" It can find and change the IP address, upgrade the firmware.
2, P2P website: "www.xmeye.net" ,please use IE and install ActiveX,only IE supports Multi Language.Chrome,Safari just support Chinese .
then please input your P2P ID,user name and password to login and preview.
Access to the IPC through the web, only one screen can be displayed.
There are multiple IPC, please use client software to manage(such as: CMS VMS SNVR)
3,The camera's port information.
on vif 2.0 Port 8899 ;RTSP Port 554 ;HTTP Port 80;Media Port 34567;E-mail default port 25; SLL protocol Port 465.
4,Does the cameras can be compatible with other manufacturers NVR?
Please confirm whether other manufacturers NVR support on vif protocol.
Our camera's on vif protocol is on vif Profile S, does not support HTTPS protocol;
Auto focus camera, other manufacturers NVR can only zoom, can not focus.
5, The camera all supports Motion Detect,FTP,Email alarm, RTSP.
A,How to set up motion detection?
Access to IPC via IE (or CMS software), device configuration - alarm function - motion detection - on and save.
B, About FTP
FTP upload video and pictures, pictures will always upload, video files larger, after the alarm, the video file will be completed to upload.
We suggest the Sever-U and FileZilla FTP Server to upload the video or image.
C,For the Email alarm,please use Email server which supports SMTP ( Hotmail ,Yahoo not support SMTP ,it not supports Gmail temperately since the server problem ) .
D, RTSP URL for VLC media Player :
RTSP port: 554
rtsp: // (IP): (PORT) / user = (USER) & password = (PWD) & channel = (Channel) & stream = (Stream) .sdp? Real_stream
Example:
rtsp: //10.6.10.25: 554 / user = admin & password = & channel = 1 & stream = 0.sdp? Real_stream (stream = 0 primary stream 1 auxiliary stream)
If it is through the public network need to RTSP port open (default is 554), the port in the network service-RTSP can be set
6, About DDNS
Mapped media TCP port: 34567 and HTTP port: 80 (Note: mapping need to be changed to non-80)
Note: The two ports in the network settings can be viewed, can be modified
What domain names are supported?
- CN99 / DynDns / Oray / NO-IP / MYQ-SEE
7.
Q:When I finish the steps to add the camera to the CMS list,why it notify “ Can’t find the Device “ even I can see the default ip address 192.168.1.10 in the menu .
F: It is the IP Address conflict ,the default ip address is not in the same network segment as your router.
Please click “Edit Device “ to change the camera’s ip address to make them in the same network segment !
For example ,if your router’s ip address is 192.168.0.1 ,then you need to change the camera’s ip address to 192.168.0.XX .
Package contents:
1 x Camera,1 x English User Manual,1x Bracket
Note:
Software will be sent to your emails !pls contact with our SALES team if you need !
Note: If you need POE power supply, select the ADD POE option. If you do not select POE power supply, it is normal cable
Advanced H.265 Video Compression
Working With NVR For 24/7 Reliable Recording
Product Overviews
Transaction Flow
Packaging & Shipping
In Color Box or Netural Packaging , Do As Customer 's Requirement
For Amazon and other Wholesaler:
*We can OEM your packing with MOQ 500pcs only.
*Over 100pcs we can print your logo on the camera.
*Free printing and stickering logo & UPC/Amazon barcode is provided with no MOQ.
Shipping Method & Shipping Time:
2kg above by DHL/FedEx/TNT/Aaramex .(about 3-7days)
2kg bellow by ePacket/Netherland Post.
*North America/Southeast Asia/East Asia: 5-10 days.
*West Europe: 10-15 days
*East Europe/ Australia/ NZ: 10-20 days
*Mid-East/ Africa/South America: 20-30 days
Bulk Order BY air &BY sea.(About 15-35days)
Payment
we accept T/T ,Paypal,Alibaba Trade Assurance,Escrow.Western Union,L/C etc
Work Flow
Trade Assurance
Onvels is synonymous with excellence.Onvels stands for quality.Onvels is synonymous with originality.Onvels is synonymous with effectiveness.Onvels. Excellence is our goal.Onvels committed to the best service ( Always ).
