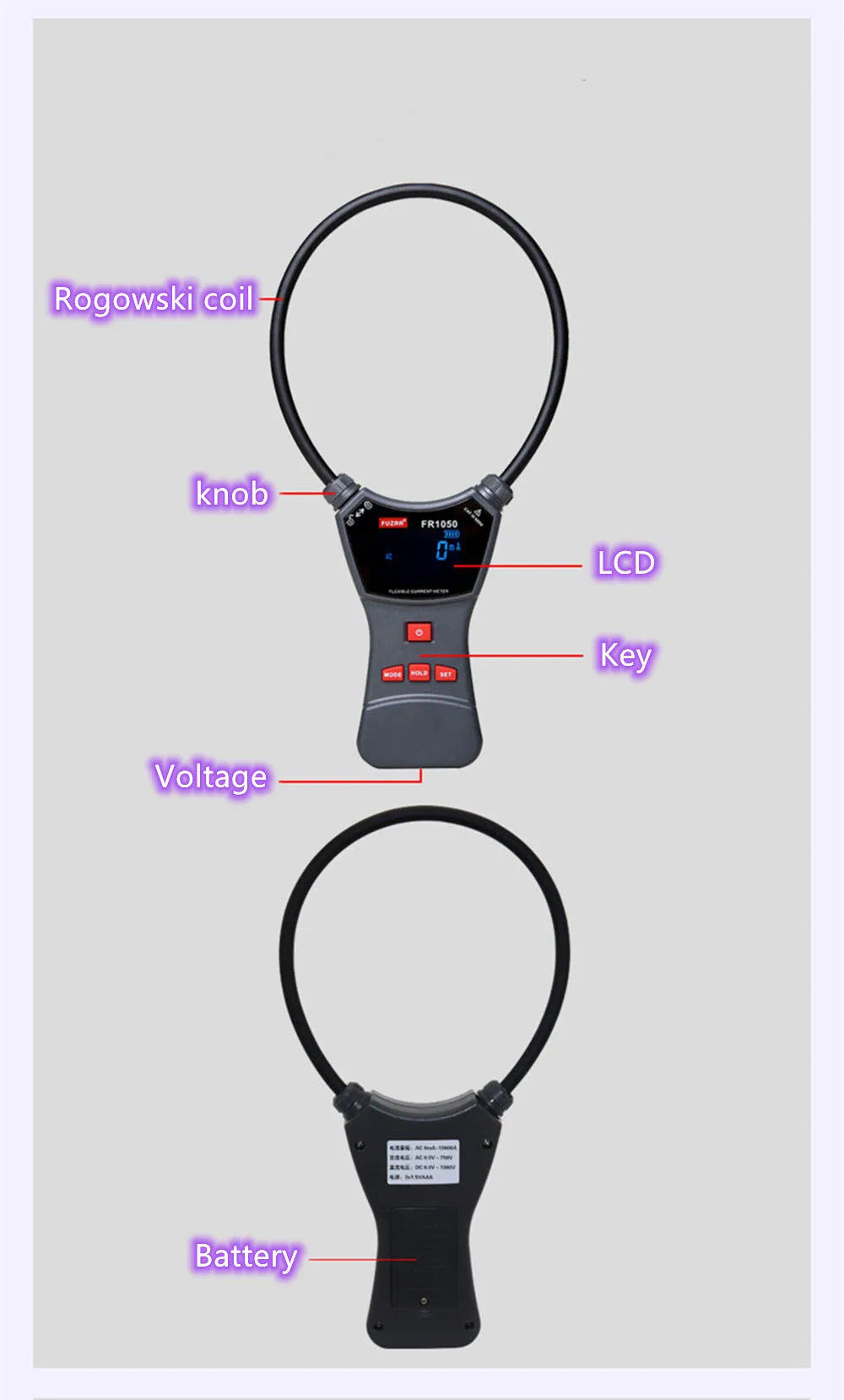

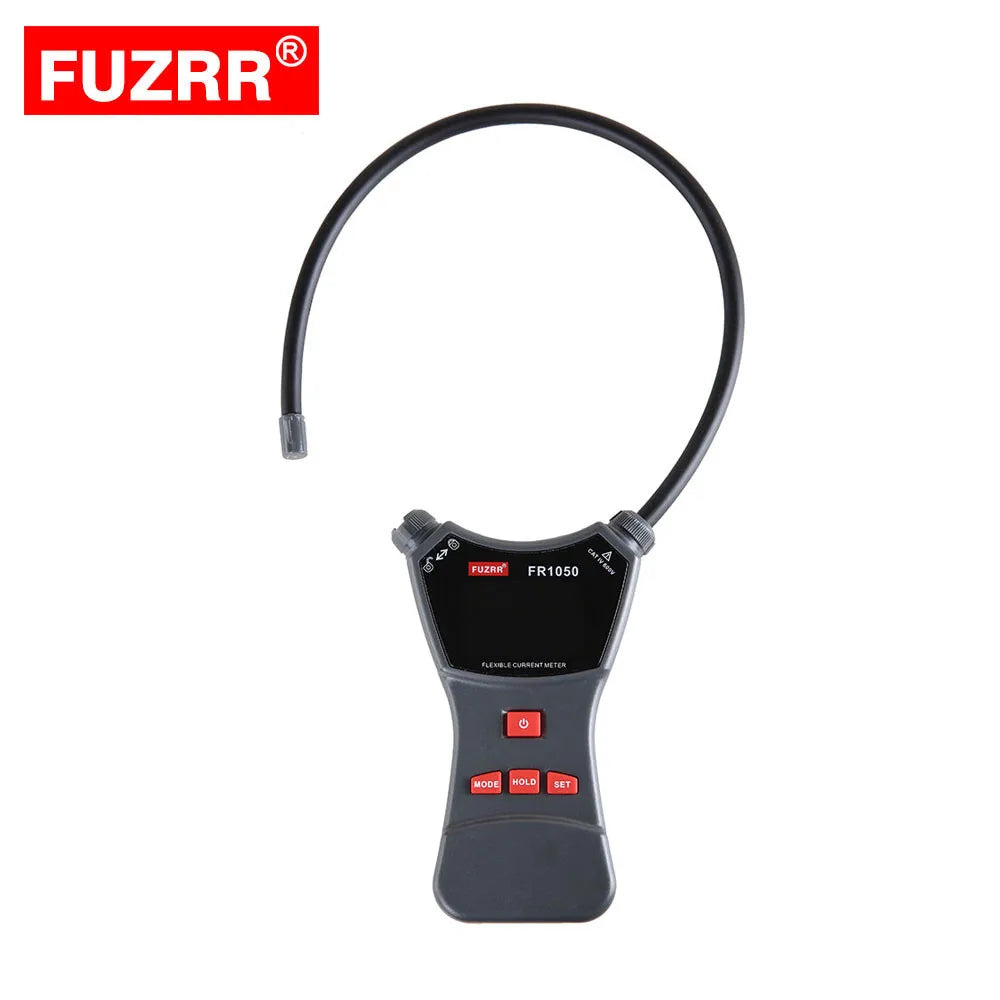

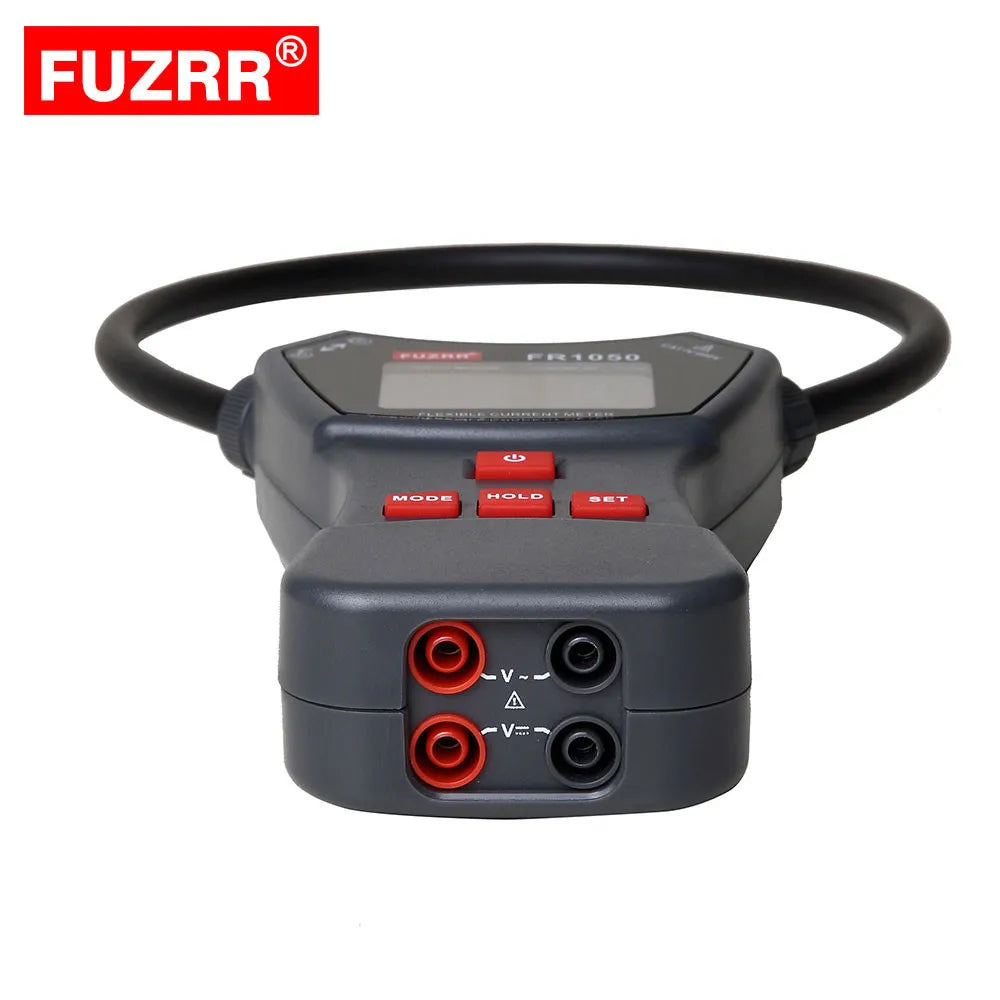

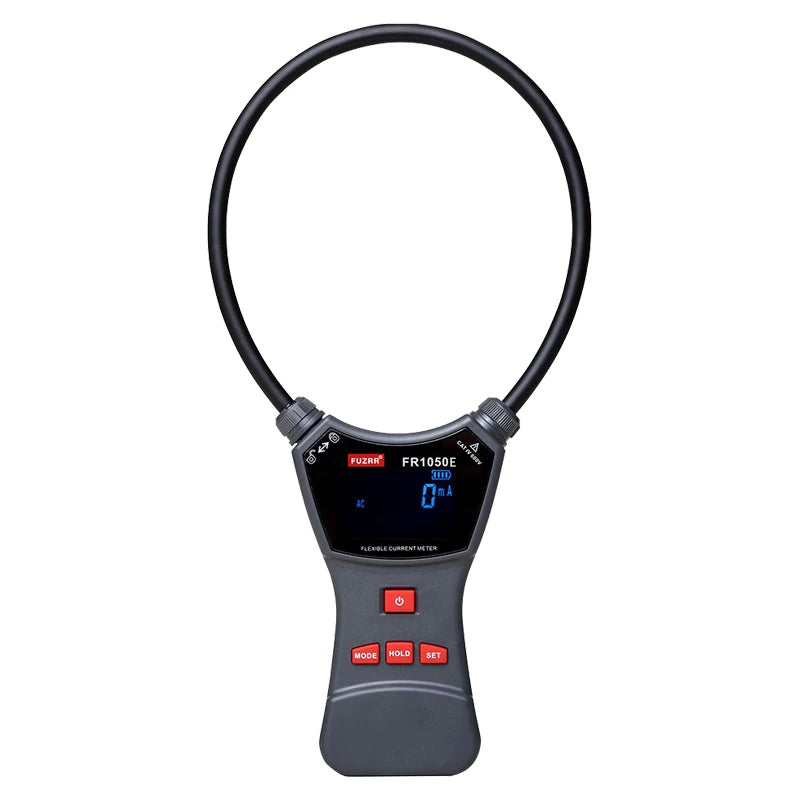

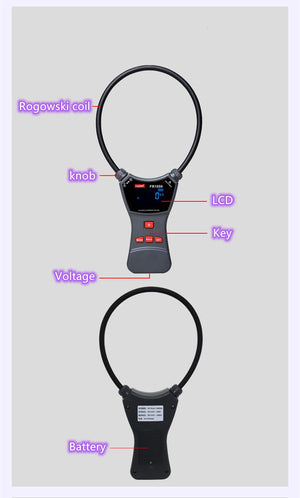

FR1050E Current 10000A Test Digital AC Clamp Meter
$298.86$656.28
Payment Methods
Product Name:FR1050E Current 10000A Test Digital AC Clamp Meter
Function: current test, leakage current test
Coil inner Dia.:300mm
Current range: 0mA-10000A
Current resolution: 1mA
AC voltage: 0V-750V AC
DC Voltage:0.0V-1000V DC
Data storage: 500 groups
Have backlight function
Application:FR1050E series flexible current clamp meter is well-designed and manufactured for field test of AC large current and leakage current, with high accuracy, good linearity, and anti-interference ability, it can replace the traditional ordinary clamp meter and large diameter clamp meter to measure large current and leakage current.,widely used in electricity, communications, meteorology, railways, oil fields, construction, measurement, research and teaching units, industrial and mining enterprises and other fields. It is especially suitable for places where cables are dense, transformers are connected to the wall for current measurement of subway cores, and tests for thick wire cables are conducted,suitable for current testing of industrial environments such as relay protection, thyristor rectification, variable frequency speed control, semiconductor switching, power electronics conversion equipment, arc welding, etc. with severely distorted signals.

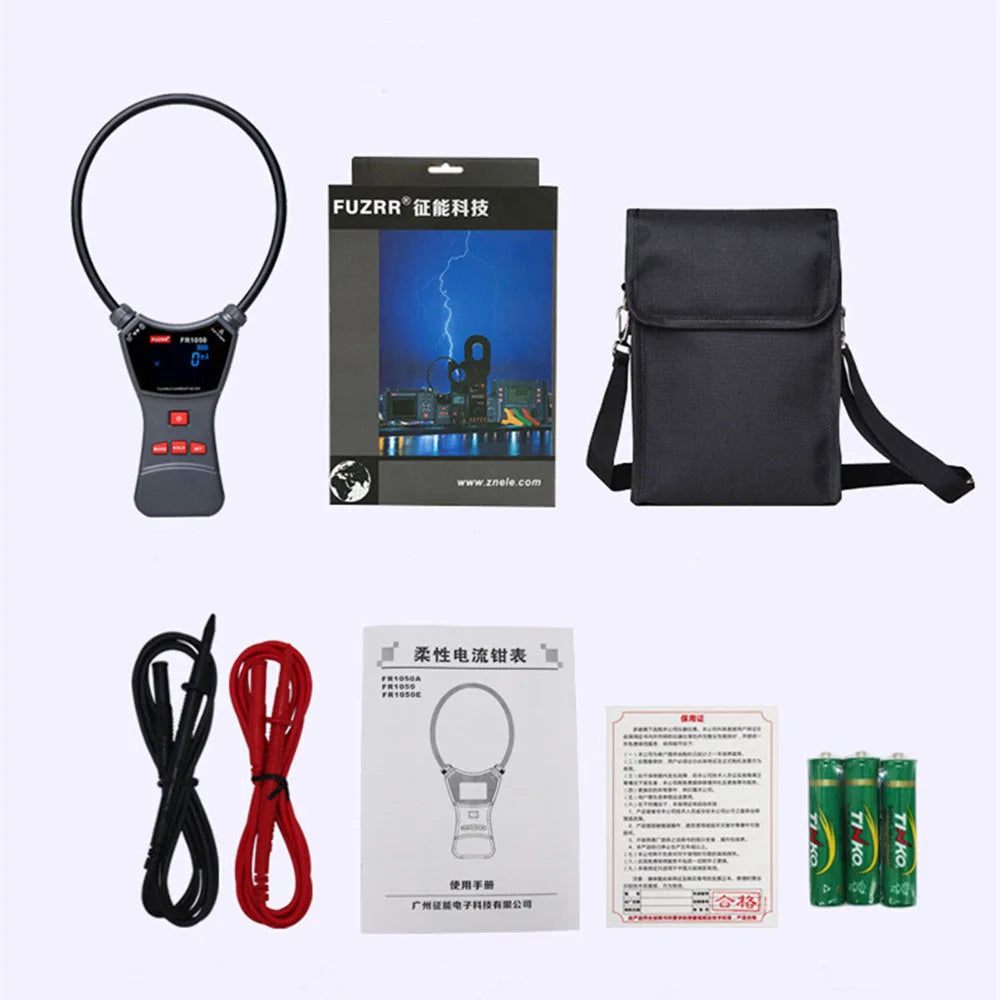

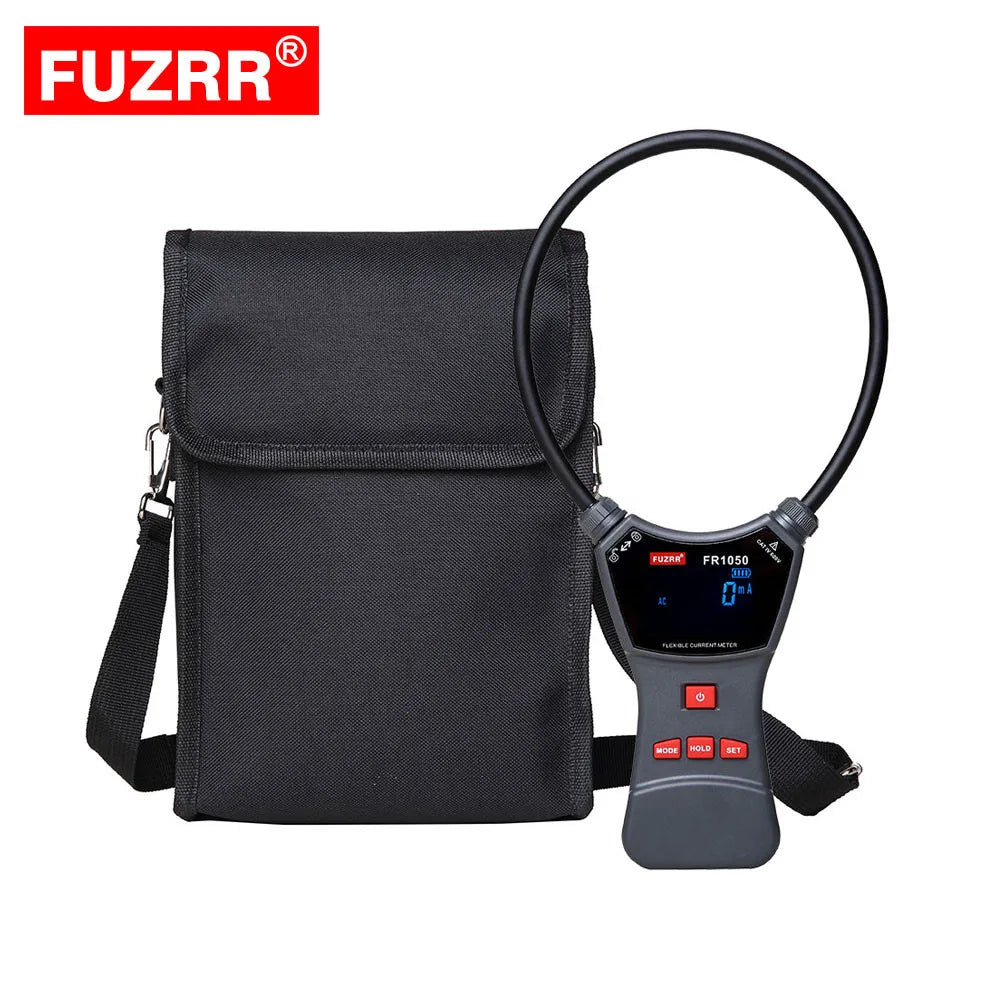

Accessories
| Instrument | 1PC |
| Test pen | 1SET(red and black each 1) |
| Instrument bag | 1PC |
| Instrument battery | 7# alkaline AAA batteries 3 section |
| Manual, certificate | 1SET |
| Function | Current test, leakage current test |
| Current accuracy | Accuracy ±2%±5dgt (The wire is at the center of the flexible coil,23℃±2℃) |
| AC voltage | 0.0V~750V AC Accuracy±1.5%rdg±3dgt |
| AC voltage resolution | 0.1V |
| DC voltage range | 0.0V~1000V DC Accuracy±1.5%rdg±5dgt |
| DC voltage resolution | 0.1V |
| Sampling rate | 2times/sec |
| Power | DC4.5V 7# alkaline battery(1.5V AAA×3) |
| Backlight | Have |
| Test method | Flexibility CT |
| Instrument size | Host size:W/T/H: 151*100*35mm(not including coil) |
| LCD size | 45mm×28mm |
| Coil thickness | Φ8mm(Suitable for narrow environments and cable-intensive places) |
| Instrument total weight | 220g(φ150mm caliber, including battery) |
| Overflow display | Over-range overflow function:“OL”symbol display |
| Data storage | 500groups |
| Data is full | Data full function:“FULL”symbol display |
| Battery voltage | The battery voltage is 4 grids. When the battery symbol is empty, the battery is less than 3.15V. |
| Insulation resistance | Larger than 100M(1kV) |
| Working temperature and humidity | -10℃~40℃ below 70%rh |
| Storage temperature and humidity | -10℃~60℃ below 80%rh |
| IEC1010-1,IEC1010-2-032, pollution grade 2,CAT Ⅲ(600V) IEC61326(EMC standard) |
