Fiber glass wool thermal heat resistant metal building roofing or wall rigid glass wool board glass panel wool
$18.22$21.02
Payment Methods
PRODUCT INFORMATION
United Insulation rigid glasswool board provides an excellent balance of both thermal and acoustic insulation properties, which render it suitable for a broad range of industrial applications. It is particularly suited to the mechanical services industry where design requirements dictate optimum performance from internally lined air conditioning ducts, plant room and equipment casings.
AVAILABLE FORMS
Rigid Panel
AVAILABLE SIZE
| Product Code | Density (kg/m³) | Thickness (mm) | Width (mm) | Conductivty (W/m·K) | Packing (pcs/PKG) | PKG/40'HQ (No#) | |
| UET RIGID 6425 | 64 | 25 | 1200 | 0.034 | 1 | Loading Qty, Please consult | |
| UET RIGID 6430 | 64 | 30 | 1200 | 0.034 | 1 | ||
| UET RIGID 6450 | 64 | 50 | 1200 | 0.034 | 1 | ||
| UET RIGID 8025 | 80 | 25 | 1200 | 0.033 | 1 | ||
| UET RIGID 8030 | 80 | 30 | 1200 | 0.033 | 1 | ||
| UET RIGID 8050 | 80 | 50 | 1200 | 0.033 | 1 | ||
| UET RIGID 9625 | 96 | 25 | 1200 | 0.032 | 1 | ||
| UET RIGID 9630 | 96 | 30 | 1200 | 0.032 | 1 | ||
| UET RIGID 9650 | 96 | 50 | 1200 | 0.032 | 1 |
Conductivity Value tested under temperature in 23°C
Consult your local sales representative for other available sizes and specification.
PHYSICAL PROPERTIES OF UET RIGID 8050
| Tested Content | Tested Method | Tested Value | |
| Density | ASTM C612 | 80kgs/m³ | |
| Thickness | GB/T 17795-2008 | 50mm | |
| Average diameter of fibers | GB/T 17795-2008 | 6.0μm | |
| Coefficient of Heat Conductivity | EN12667 | 0.033W/m·K | |
| Thermal Resistance | ASTM C653 | 1.50m²·K/W | |
| Average NRC | EN ISO 354 | 1.00 | |
| Maximum Service Temperature | ASTM C411 | 170°C | |
| Corrosion Resistance | ASTM C665 | NO Chemical Reaction | |
| Mold Resistance | ASTM C665 | Mildew proof | |
| Moisture Absorption | ASTM C1104 | Less 3% by weight | |
| Humidity veneration Rate | ASTM E96 | Max 0.013g/24Hours·m² | |
| Non-Combustibility | ASTM E84 | Flame Propagation: 25; Flame Diffustivity: 50 |
SOUND ABSORPTION
| Thickness(mm) | 125 Hz | 250 Hz | 500 Hz | 1000 Hz | 2000 Hz | 4000 Hz | NRC | |
| 25 | 0.03 | 0.25 | 0.62 | 0.92 | 1.03 | 0.97 | 0.70 | |
| 30 | 0.02 | 0.44 | 0.96 | 1.17 | 1.16 | 1.12 | 0.95 | |
| 50 | 0.19 | 0.64 | 1.08 | 1.13 | 1.06 | 1.06 | 1.00 |
AVAILABLE FACINGS
Unfaced, Foil-Faced

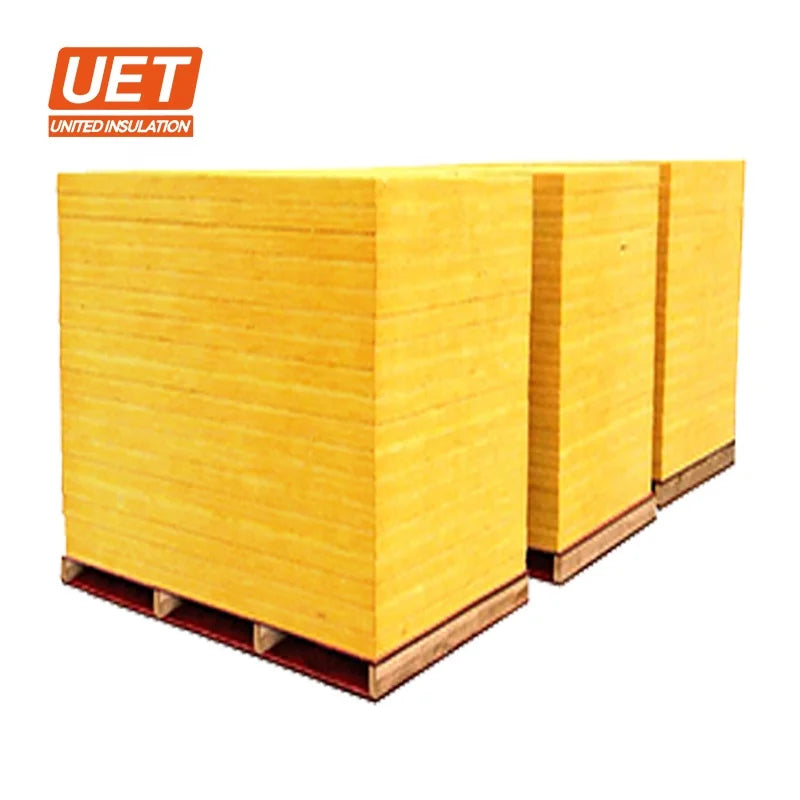

PACKAGING

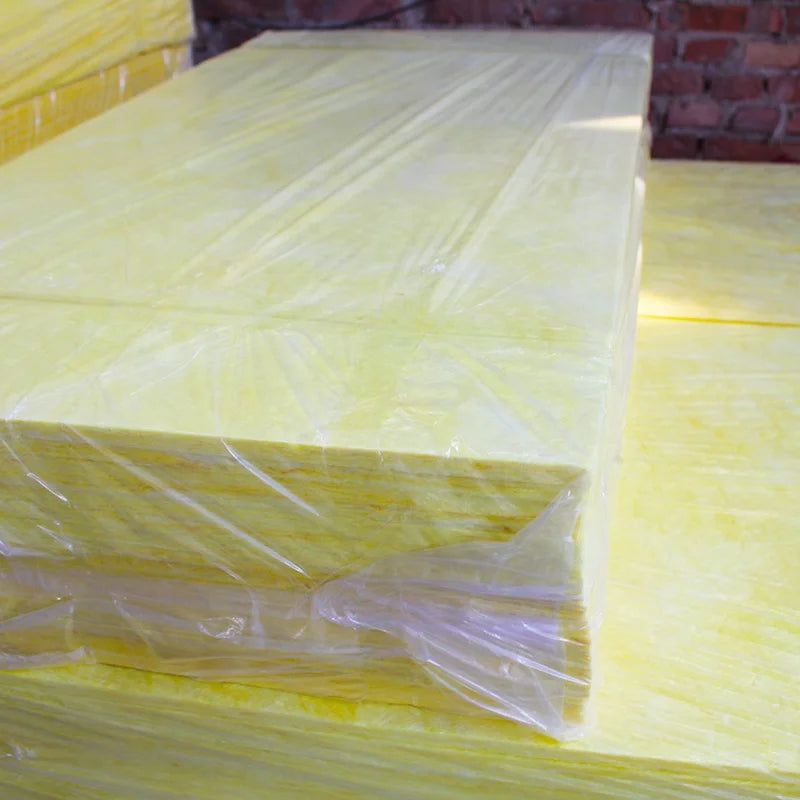

Rigid board is wrapped by a stretch shrink film, packed in Caton. It's easy to load and un-load with forklift to save labor cost and save storage space.
STORAGE AND TRANSPORT
Store insulation indoors. Store product under cover and in dry conditions. Handle with care, Products will be damaged if subject to sharp or heavy impact.
QUALITY MANAGEMENT AND SPECIFICATION COMPLIANCE
ISO 9001: 2008, ISO 14001:2004
GB/T17795-2008, EN ISO 354, EN12667, ASTM C653, ASTM C665
With CE Certificate according to standard EN 13162:2008
GB/T17795-2008, EN ISO 354, EN12667, ASTM C653, ASTM C665
With CE Certificate according to standard EN 13162:2008
FIRE PERFORMANCE
Classified as Euroclass A1 to STN EN 13501-1: 2007, and GB/T5464-2010, GB/T14402-2007
FEATURES AND BENEFITS
• Excellent thermal and acoustic properties
• Easy to fasten
• Made to size to reduce wastage
• Excellent machanical performance
• Available in various densities to meet specific performance
• Easy to fasten
• Made to size to reduce wastage
• Excellent machanical performance
• Available in various densities to meet specific performance
| Keep Cool | Keep Warm | Fire Proof | Moisture Proof | Noise Control | Sustainbility | Save Cost | Health Safe |
APPLICATIONS
It is recommended for the optimum thermal and acoustic insulation of industrial equipment, domestic appliances and sheet metal ductwork, operating at up to 170°C.
NOTICE
Safety first. Follow good safety/industrial hygiene practices during insulation. Wear appropriate personal protective equipment. Read SDS and literature before specification and insulation.
