DZJX 15L 20L 30L 100L 200L 300L 500L Manufacturers Lab Small Metal V Cone Shape Blender V Type Feed Mixer Machine For Powder
$1,180.33$2,361.83
Payment Methods
Product Description
DZJX 15L 20L 30L 100L 200L 300L 500L Manufacturers Lab Small Metal V Cone Shape Blender V Type Feed Mixer Machine For Powder
V-type mixer is also known as high efficiency asymmetric mixer, it is suitable for chemical, food, feed, ceramics, metallurgy and other industries, especially suitable for powder or granular material mixing.
Advantages:
1. Compact structure and simple operation.
1. Compact structure and simple operation.
2. It can adapt to the mixing of various materials, and the uniformity rate reaches 98%.
3. Vacuum feeding and butterfly valve discharging can be implemented to realize dust-free operation.
4. Stable operation without noise.
5. Adjustable rotating speed, timing device and can designed forced mixing.
6. Food grade 304 stainless steel (or customized medical grade 316 stainless steel), easy to clean.
Product Details
What You See Is What You Get

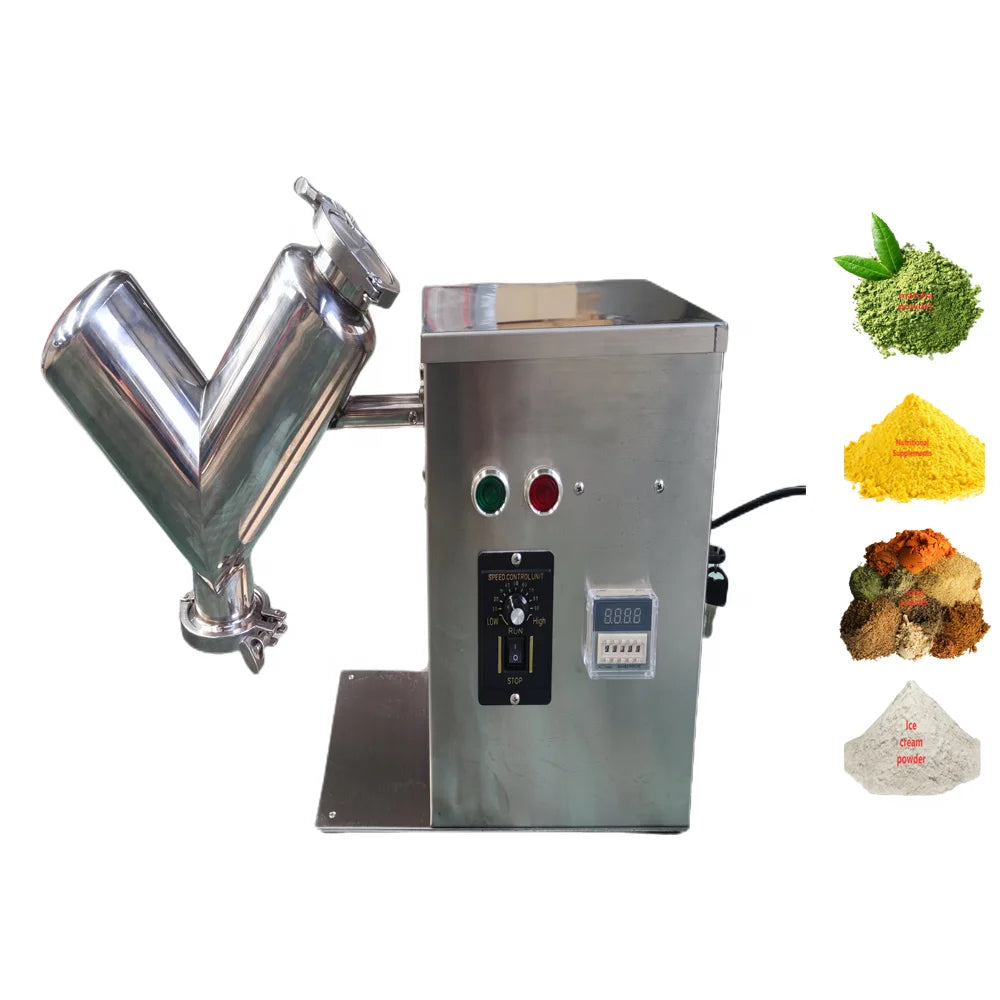

Model : DZV2
Desktop mixer,suitable for laboratory or home use.

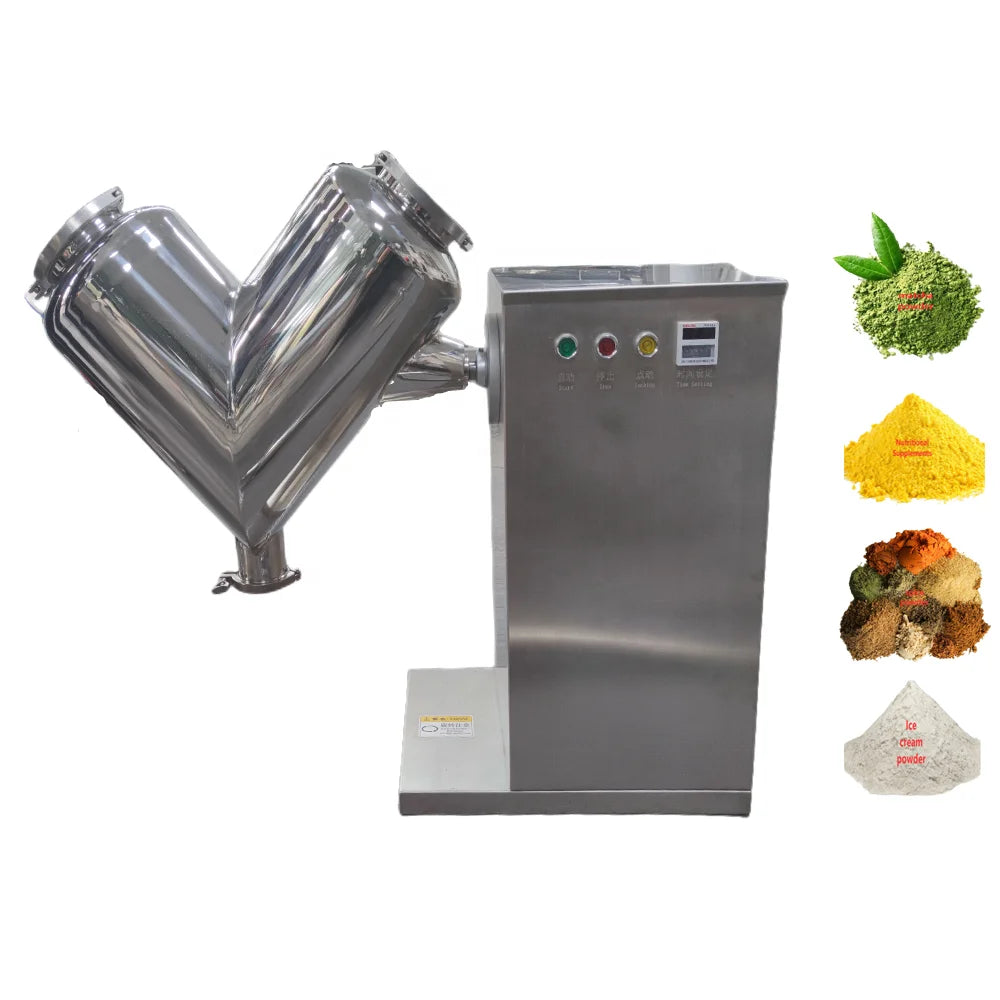

Model : DZV5 to DZV20
Suitable for laboratory, commercial and factory, all 304 material, easy to clean.

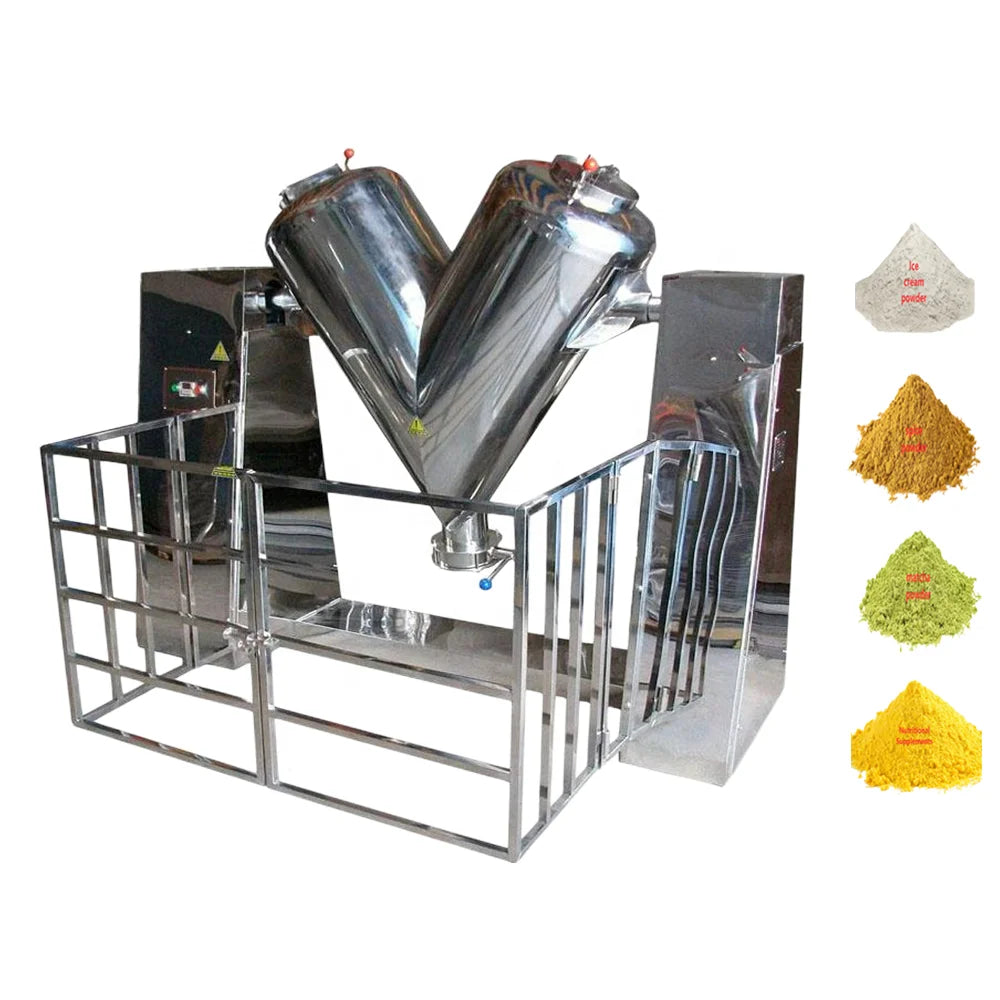

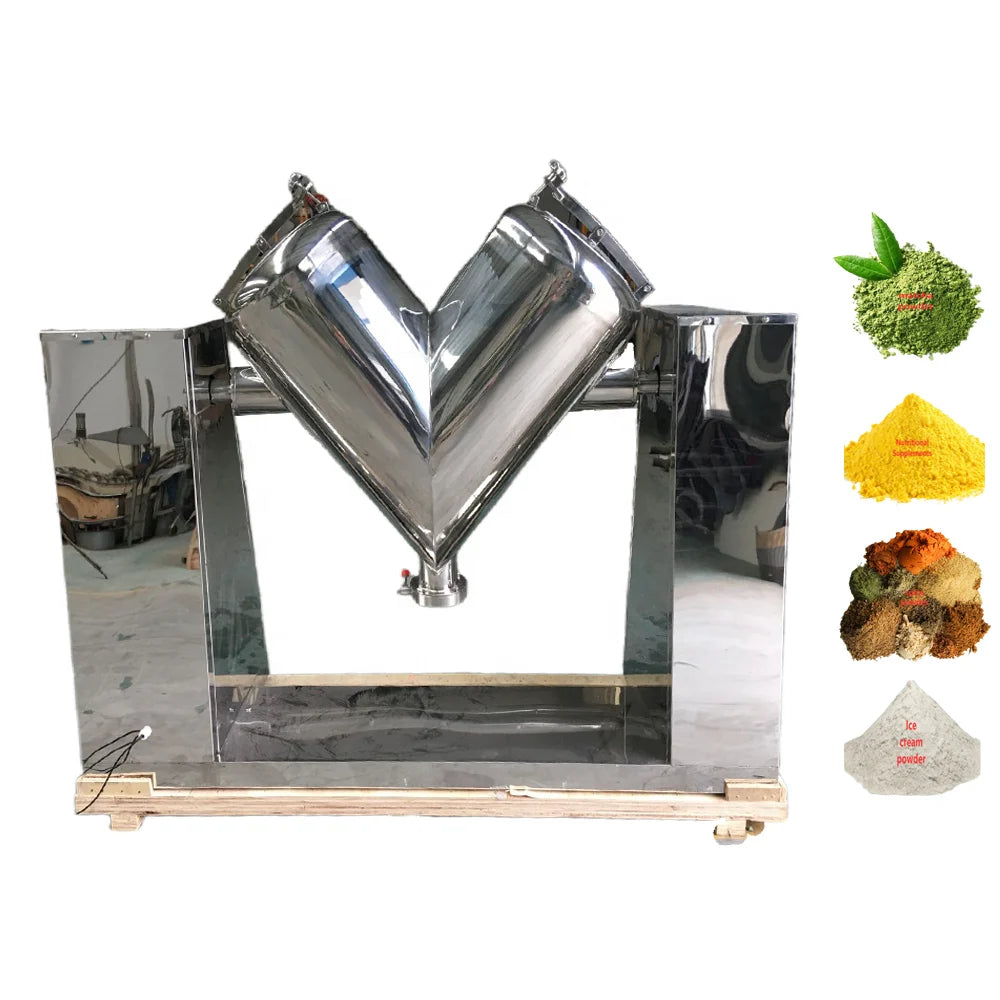

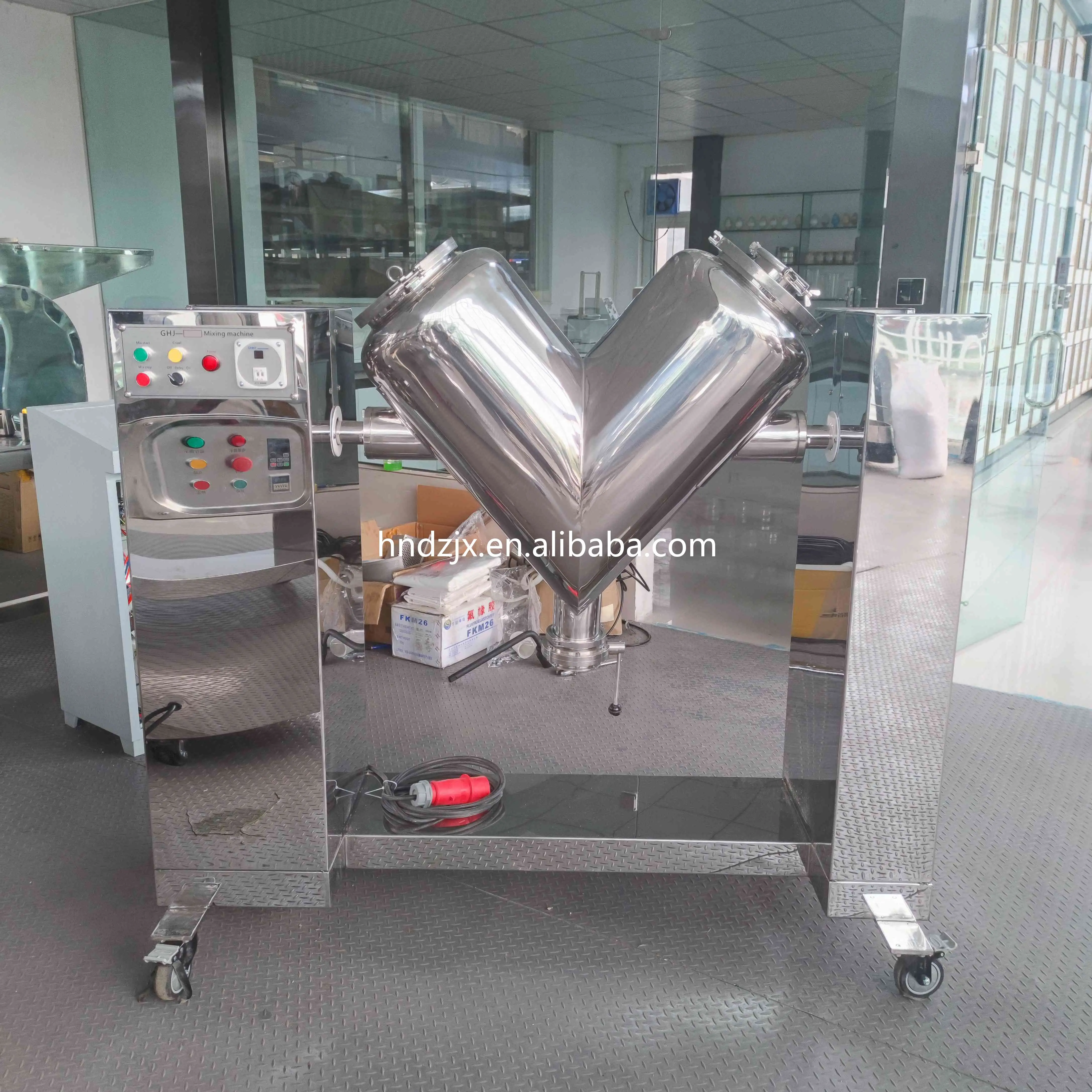

Model : DZV30 to DZV6000
Suitable for small, medium and large factories, all 304 material, the inner wall of the mixer full mirror processing, easy to clean. According to customer requirements to increase the forced mixing device, so that more efficient and uniform mixing.

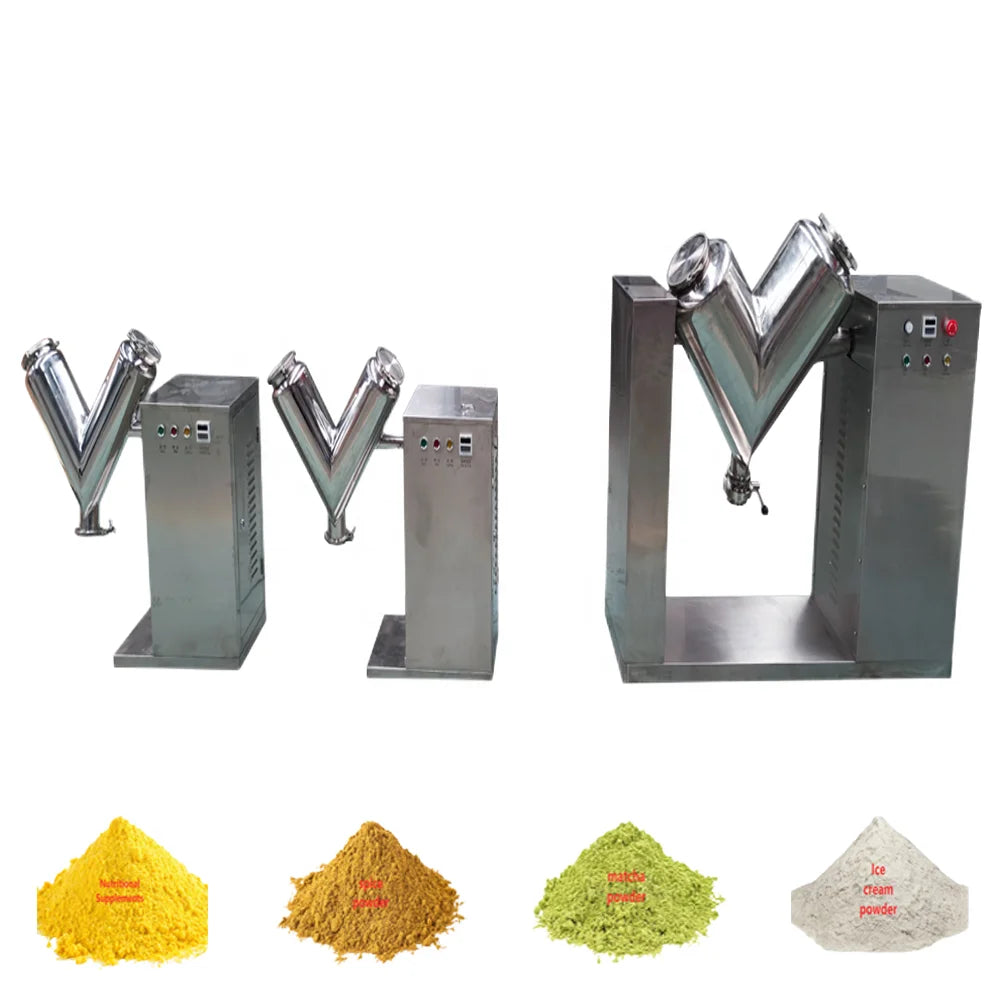

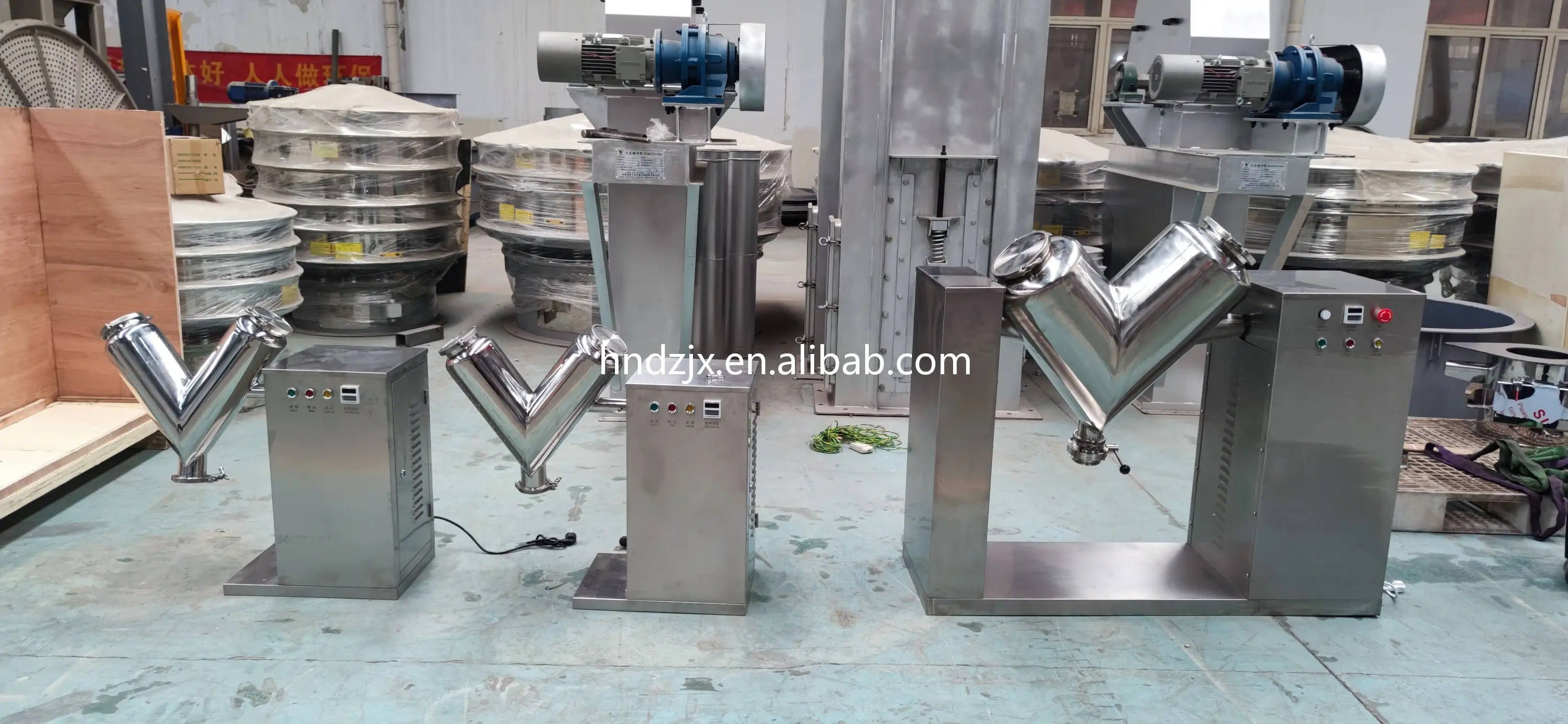

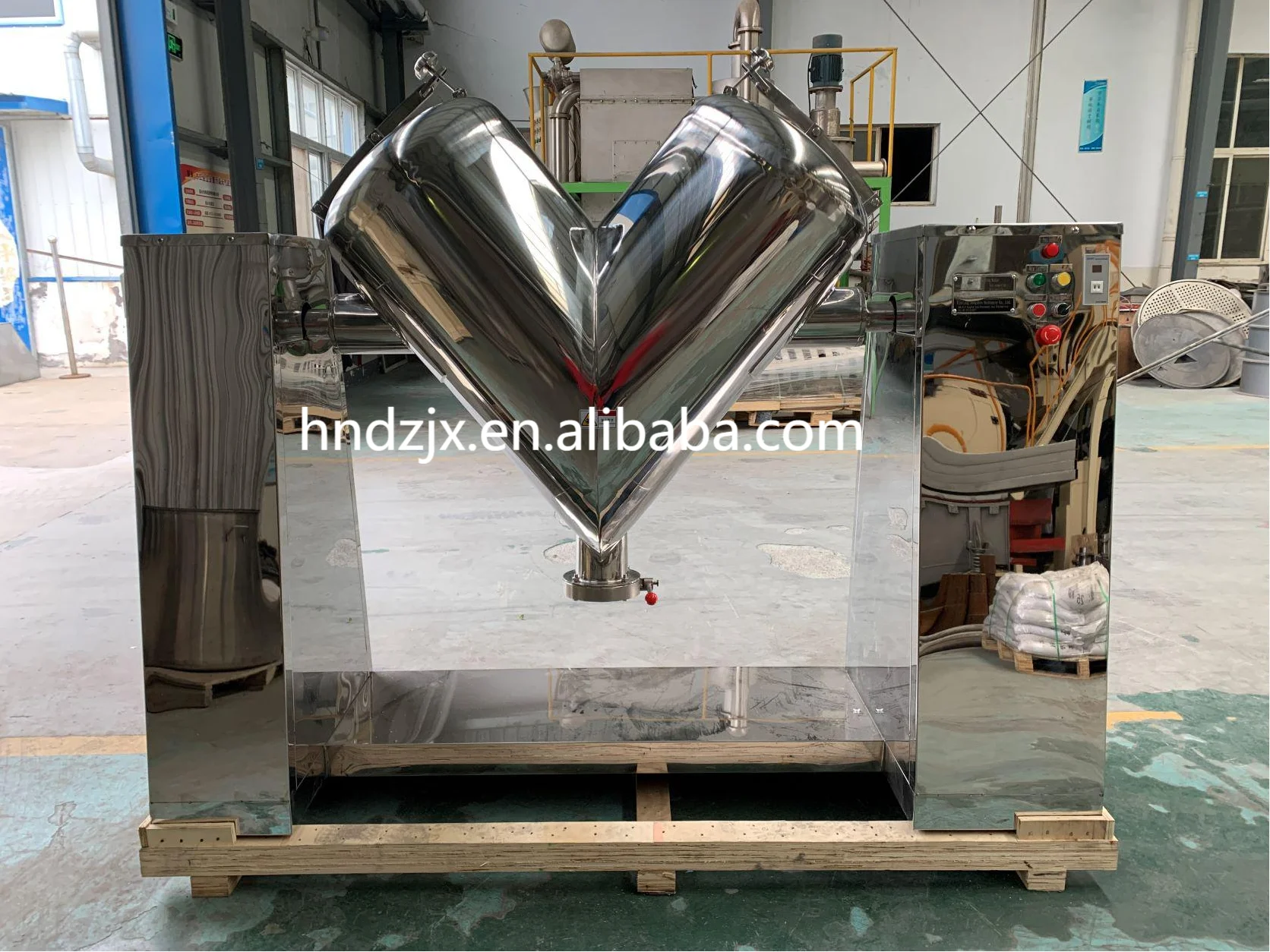

Product Show
Technical Parameters
| Single/Double arm | ||||||||
|
Model |
Total volume(L） |
Loading capacity(kg/batch) |
Mixing time (min) |
Power(kw) | ||||
|
DZV2 |
2 |
1 |
4-8 |
0.04 | ||||
|
DZV5 |
5 |
2.5 |
4-8 |
0.55 | ||||
|
DZV8 |
8 |
4 |
4-8 |
0.55 | ||||
|
DZV14 |
14 |
7 |
4-8 |
0.55 | ||||
|
DZV20 |
20 |
10 |
4-8 |
0.75 | ||||
| Double arm | ||||||||
|
Model |
Total volume
(L) |
Loading
Capacity(kg/batch) |
Mixing time
(min) |
Power
(kw) | ||||
|
DZV180 |
180 |
60 |
4-8 |
1.1 | ||||
|
DZV300 |
300 |
100 |
6-10 |
1.5 | ||||
|
DZV500 |
500 |
150 |
6-10 |
2.2 | ||||
|
DZV1000 |
1000 |
300 |
6-10 |
4 | ||||
|
DZV1500 |
1500 |
500 |
6-10 |
5.5 | ||||
|
DZV2000 |
2000 |
650 |
6-10 |
7.5 | ||||
|
DZV2500 |
2500 |
825 |
6-10 |
8.5 | ||||
|
DZV3000 |
3000 |
1000 |
6-10 |
11 | ||||
Application
DZJX V type mixer
V-type mixer is suitable for mixing powder particles with good material fluidity and small physical property difference, as well as materials with low mixing degree and short mixing time. Because the material in the V-type mixing container flows smoothly and will not destroy the original shape of the material, the V-type mixer is also suitable for the mixing of granular materials that are easy to break and wear, or for the mixing of fine powder particles, blocks, and materials containing a certain amount of water, and is widely used in pharmaceutical, chemical, food and other industries.
