diesel heating car spray booths paint booth for cars auto painting oven spray booth car painting price
$8,911.40$18,031.40
Payment Methods
we offer customization options where customers can choose from a variety of options such as color, size, material and brand. We work closely with our customers to understand their specific needs and provide tailored solutions.
Product Description

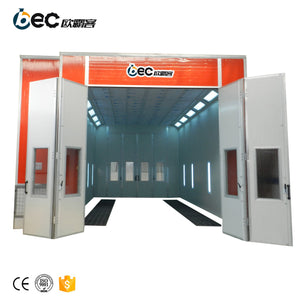

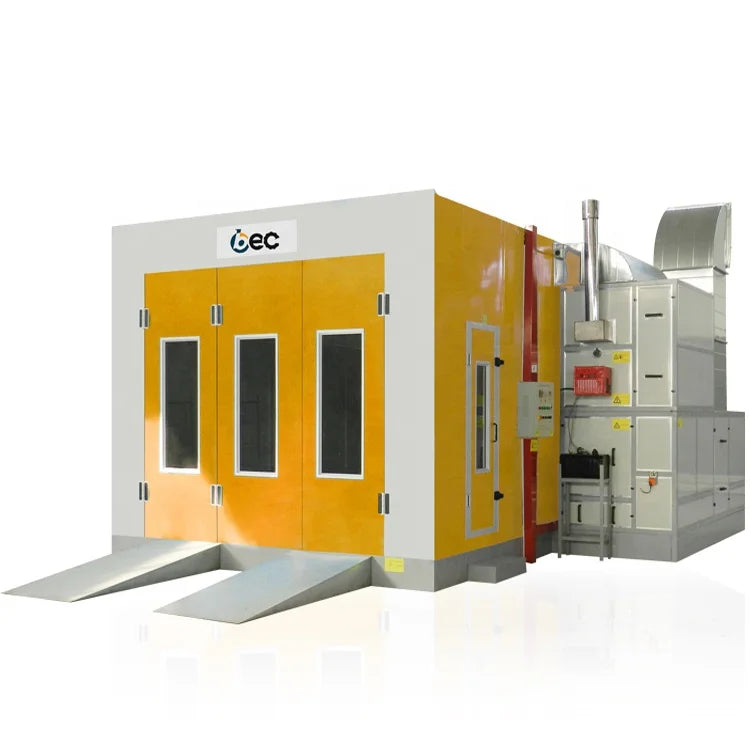

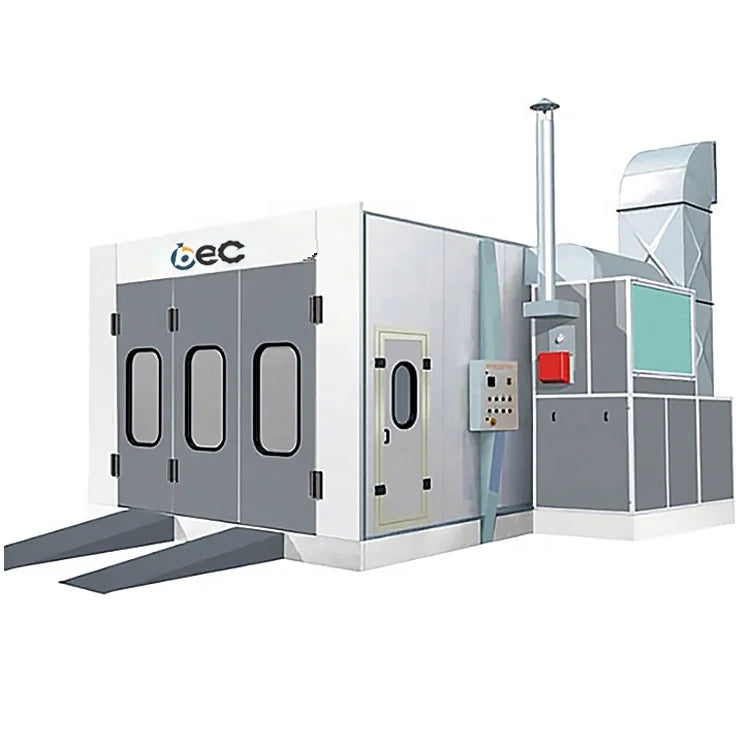

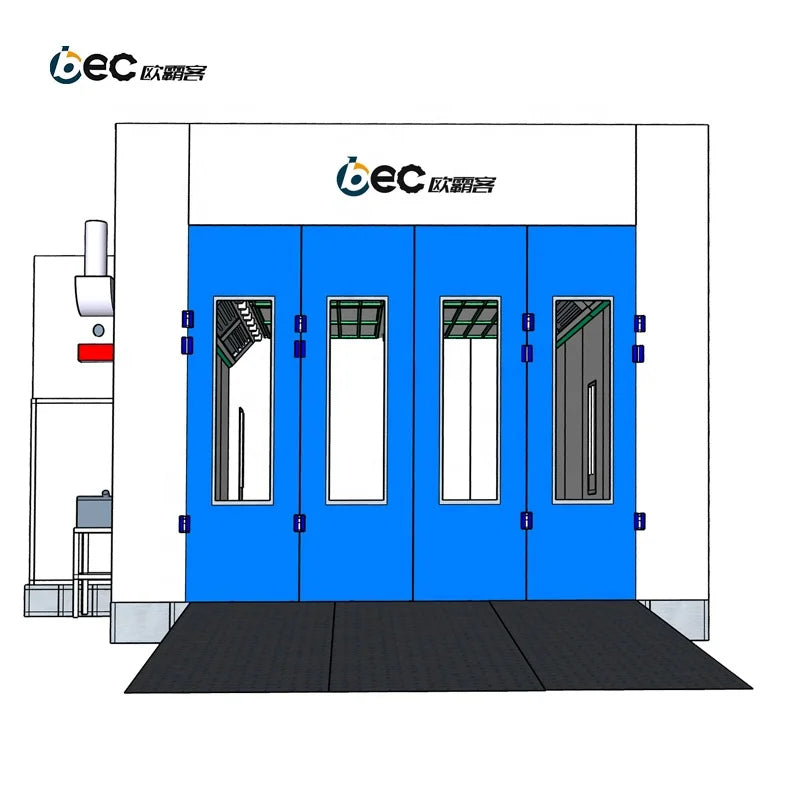

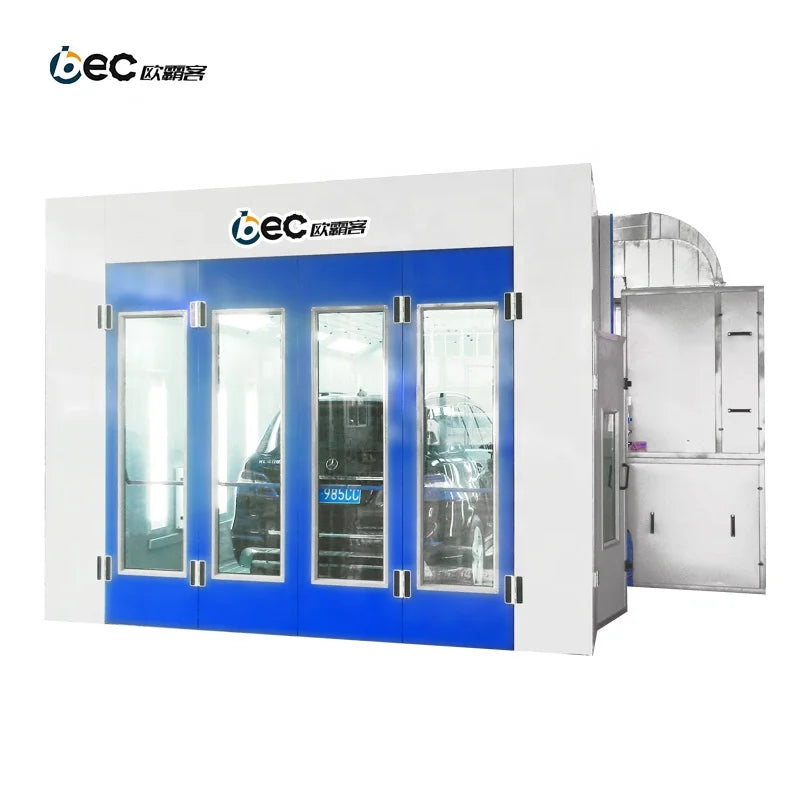

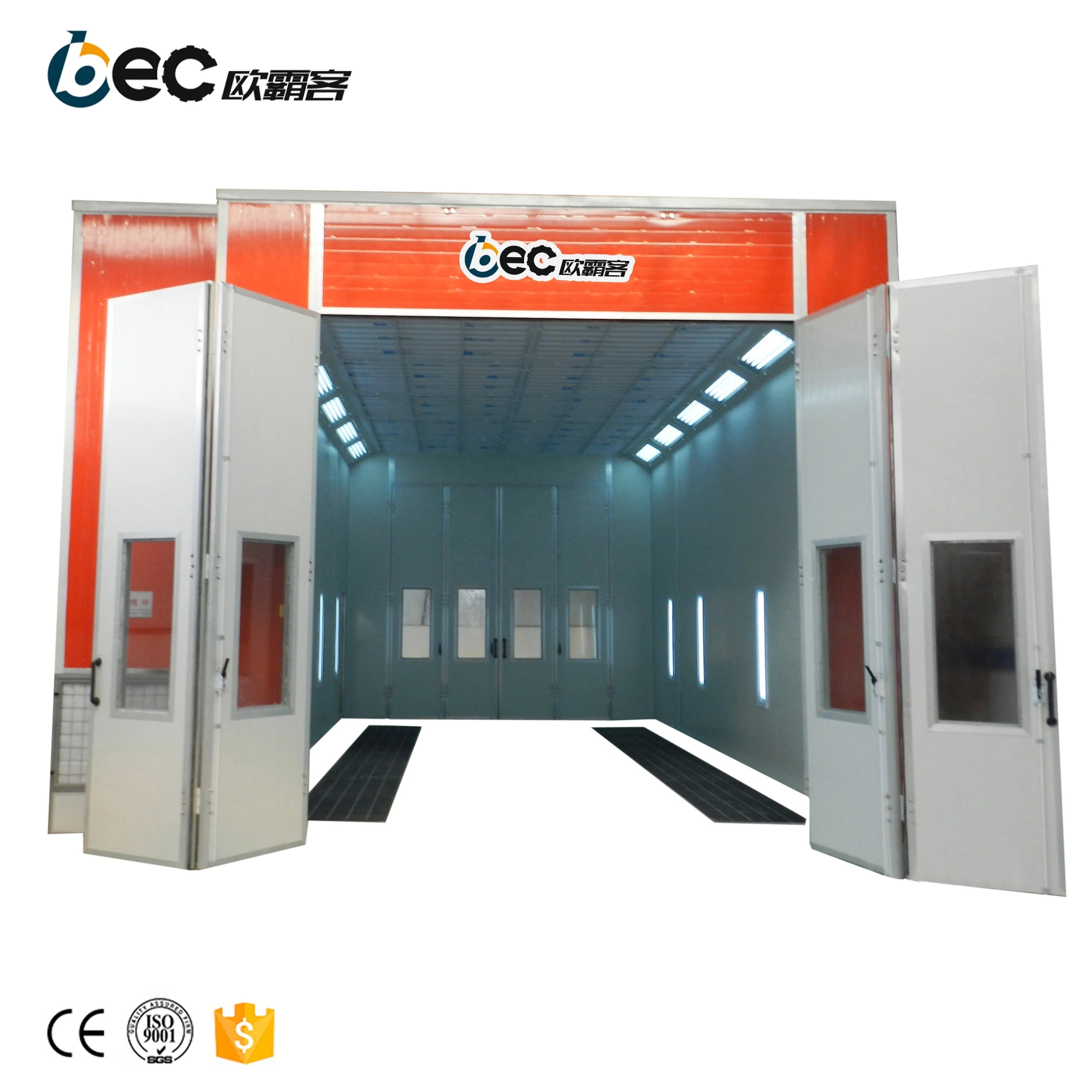

diesel heating car spray booth paint booth
Detailed Images
| Parameters | ||||
|
Outside size
|
7100*5550*3600mm(L*M*H)
| |||
|
Inside size
|
7000*4000*2800(L*M*H)
| |||
|
Entrance door
|
4folds,3200*2700mm(W*H)aliminum alloy covered frame
| |||
|
Emergency door
|
800*2000mm(W*H),equipped with handle lock
| |||
|
Main System | ||||
|
Cabin System
|
Wall Panel
|
-75mm rock wool,0.5mm thick steel,fire proof and heat-insulation
-High quality galanized steel roof panel | ||
|

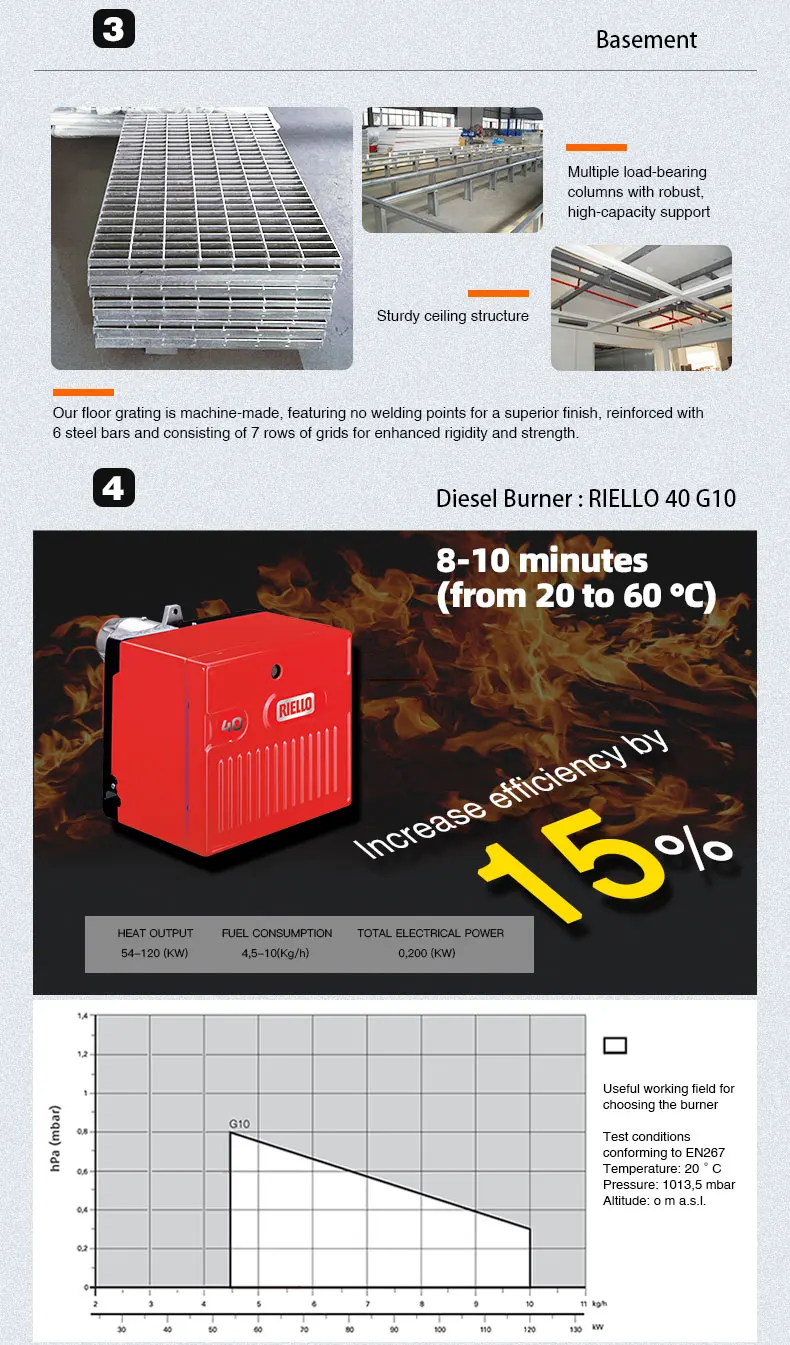

Basement
|
-Galvanized steel assemble,300mm high,quadrate steel support,2 rows of floor grilles, 3 rows of corrugated panels,with height
adjustable bolts -3 ramps,external setting,900*2000mm(W*L)/pc | |||
|
Ventilation system
|
Inlet fan
|
1*7.5kw single-intake turbo fans
air capacity:25000m³/h for each set | ||
|
Outlet fan
|
1*7.5kw single-intake turbo fans
air capacity:20000m³/h for each set | |||
|
Cabinet setting type
|
-Intake air from side upper,adopt powder quadrate steel frame,strong and beautiful
-Cabinet for the fan*1unit,air duct*2m long*1unit -Elbow:90°*1 unit | |||
|
Airflow speed
|
0.4m/s,ventilation rate 320time/h
| |||
|
Heating system
|
Burner
|
Italy RIELLO RG5S oil burner,heating capacity:260000kcal/h,
with BELIMO 20N electric damper | ||
|
Heat Exchanger
|
2mm thickness SUS304 stainless steel
| |||
|
Cabinet
|
Rock-wool insulation*1 unit
| |||
|
Lighting system
|
Ceiling lights
|
32pcs*18w LED lights
| ||
|
Side lights
|
40pcs*18w LED lights
| |||
|
Filtering system
|
Primary filter
|
Grade G2 plate type,filtering rate>83%
| ||
|
Ceiling filter
|
EU5 grade high efficient filter,filtering rate>98%
| |||
|
Floor filter
|
Multi-layer fiberglass filter,filering rate>70%
| |||
|
Active carbon
|
Grade G4,purifying rate of bug dust≥85%
| |||
|
Control system
|
Control panel
|
Micro-computer control system
| ||
|
Fuction
|
Lighting,temerature time setting,painting,constant temperature painting,
baking,emergency stop,failure indication tine accumulate,etc | |||
|
Total power
|
18KW
| |||
|
Voltage/Frequency
|
380V,50HZ,3phase or customization
| |||
FAQ
1.As for auto spray booth,what kind of heating system do you have?
It has electric heating system,diesel heating system.You are suggested to choose one heating method.It depends on whether
electricity or diesel is more expensive in your local.
2.What is the thickness of wall panels metal sheets?
The thickness of EPS is 50mm,75mm,Rock wool board 50mm,75mm,the thickness of metal sheets is 0.35-0.476mm
3.What is the roof material?
Galvanized steel roof panel.
4.What is the relate of outside height and inside height of auto spray booth?
The height of basement is 280mm,the height of roof is 490mm,so 3470mm-280mm-420mm=2700mm
5.As for auto spray booth,what is the height requirement of vehicles which will be sprayed and baked?
Height of vehicles should be less than or equal to 1900mm,because there should be 800mm from car roof to inside booth roof.Be
convenient to spray paint on the top of vehicles.
6.What is the main purpose of flat steel grilles?
There is filtration system under flat steel grilles.
7.What is the advantages of inlet fans and exhaust fans?
With fans,the booth will have a good and rapid internal air circulation,paint fumes can be drain out as quick as
possible.Pollution is small,it will be comfortable when people are working in the booth.
8.What kind of fans used in your auto spray booth?
YDW European turbofan,high air volume,low noise,low pressure,it's ideal fans in automobile spray cabinet.
9.What kinds of color of main door I can choose?
As for main door,you can choose grey,white,red,blue,reddish orange,silver grey.
10.What kinds of color of SLD-E50 auto spray booth I can choose?
Generally speaking,we have grey,blue etc.You also can tell us the color you like.We will make sure whether it is available
according to color card.
11.How do you determine fans on the left or right of spray booth?
When you stand in front of auto spray booth looking at it,the fans will be on the left or right.
12.Where is the temperature sensor installed in spray booth?
Temperature sensor should be installed at the middle of top roof.It is both beautiful and effective.
13.Can I open the ventilator and heating system at the same time?
When spraying,ventilator works,making a good internal air circulation,paint fumes can be drain out as quick as possible,you can
open infrared lamps or diesel burner if indoor temperature is very low.But when baking,ventilator is not allowed to open.heating
system and ventilator can not work at the same time when baking.
14.Besides SLD-E50,do you have other types of spray booth?
Yes,we have a series of spray booths,SLD-E10,SLD-E20,SLD-E30,SLD-E40,SLD-E50,SLD-E60,SLD-E70,SLD-E80.
15.How about your after-sales service?
Our after-sales service is very good.Each kind of spare parts of spray booth will be marked by number before delivery,and packing
list,installation drawing,circuit diagram will come with auto spray booth.Besides,we have installation videos of spray booth in
Youtube.If you have any question during the process of installation,you can also consult our machine expert.
1.As for auto spray booth,what kind of heating system do you have?
It has electric heating system,diesel heating system.You are suggested to choose one heating method.It depends on whether
electricity or diesel is more expensive in your local.
2.What is the thickness of wall panels metal sheets?
The thickness of EPS is 50mm,75mm,Rock wool board 50mm,75mm,the thickness of metal sheets is 0.35-0.476mm
3.What is the roof material?
Galvanized steel roof panel.
4.What is the relate of outside height and inside height of auto spray booth?
The height of basement is 280mm,the height of roof is 490mm,so 3470mm-280mm-420mm=2700mm
5.As for auto spray booth,what is the height requirement of vehicles which will be sprayed and baked?
Height of vehicles should be less than or equal to 1900mm,because there should be 800mm from car roof to inside booth roof.Be
convenient to spray paint on the top of vehicles.
6.What is the main purpose of flat steel grilles?
There is filtration system under flat steel grilles.
7.What is the advantages of inlet fans and exhaust fans?
With fans,the booth will have a good and rapid internal air circulation,paint fumes can be drain out as quick as
possible.Pollution is small,it will be comfortable when people are working in the booth.
8.What kind of fans used in your auto spray booth?
YDW European turbofan,high air volume,low noise,low pressure,it's ideal fans in automobile spray cabinet.
9.What kinds of color of main door I can choose?
As for main door,you can choose grey,white,red,blue,reddish orange,silver grey.
10.What kinds of color of SLD-E50 auto spray booth I can choose?
Generally speaking,we have grey,blue etc.You also can tell us the color you like.We will make sure whether it is available
according to color card.
11.How do you determine fans on the left or right of spray booth?
When you stand in front of auto spray booth looking at it,the fans will be on the left or right.
12.Where is the temperature sensor installed in spray booth?
Temperature sensor should be installed at the middle of top roof.It is both beautiful and effective.
13.Can I open the ventilator and heating system at the same time?
When spraying,ventilator works,making a good internal air circulation,paint fumes can be drain out as quick as possible,you can
open infrared lamps or diesel burner if indoor temperature is very low.But when baking,ventilator is not allowed to open.heating
system and ventilator can not work at the same time when baking.
14.Besides SLD-E50,do you have other types of spray booth?
Yes,we have a series of spray booths,SLD-E10,SLD-E20,SLD-E30,SLD-E40,SLD-E50,SLD-E60,SLD-E70,SLD-E80.
15.How about your after-sales service?
Our after-sales service is very good.Each kind of spare parts of spray booth will be marked by number before delivery,and packing
list,installation drawing,circuit diagram will come with auto spray booth.Besides,we have installation videos of spray booth in
Youtube.If you have any question during the process of installation,you can also consult our machine expert.
