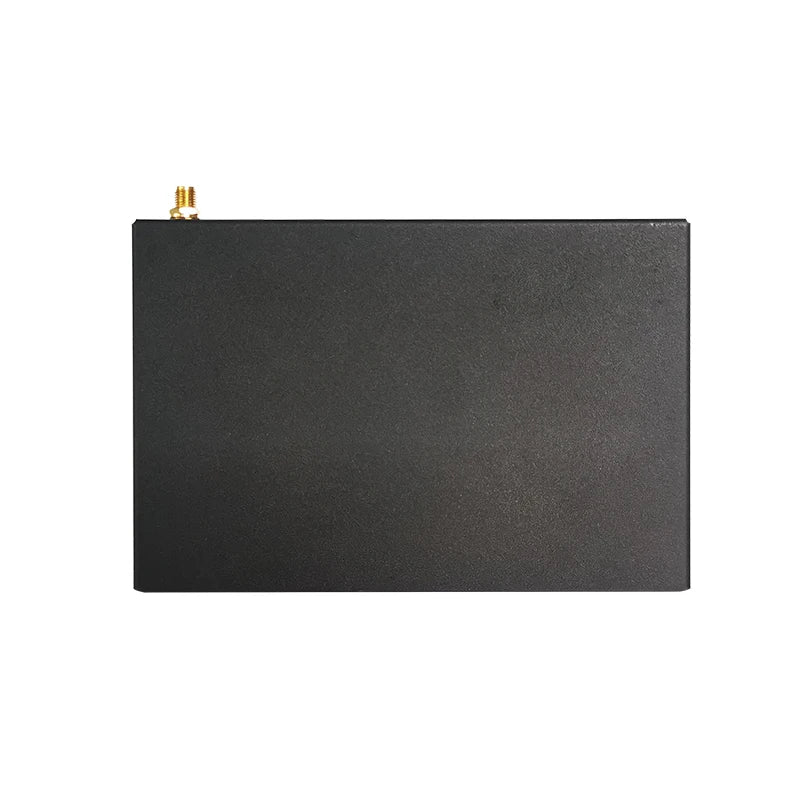

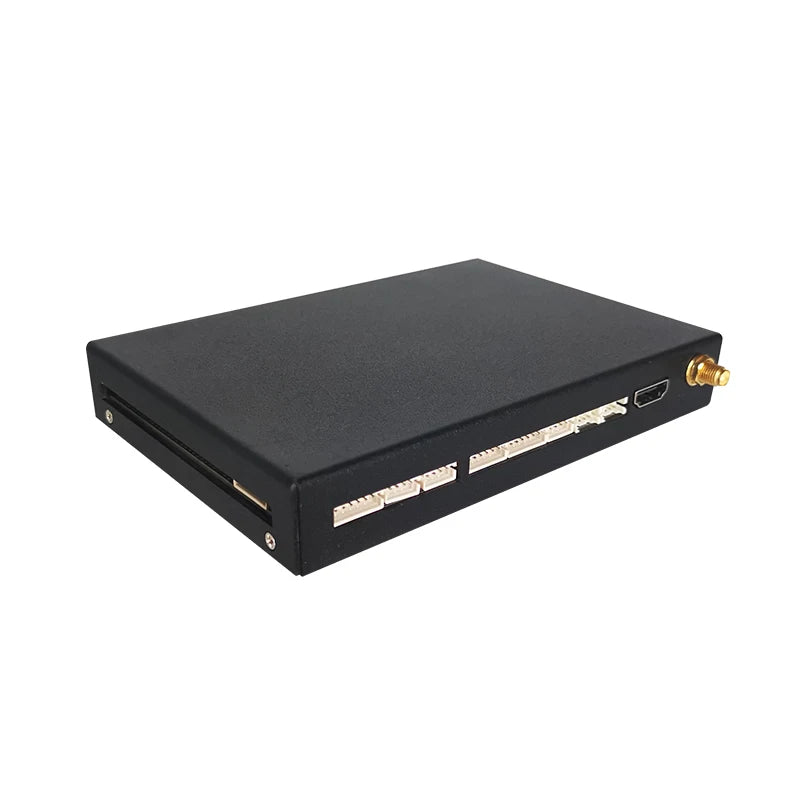

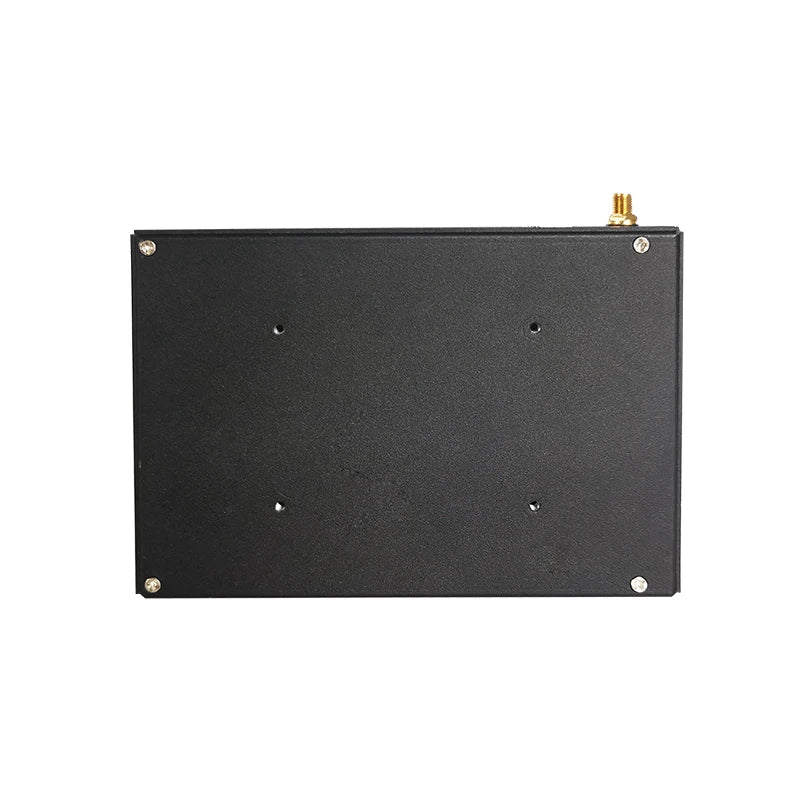

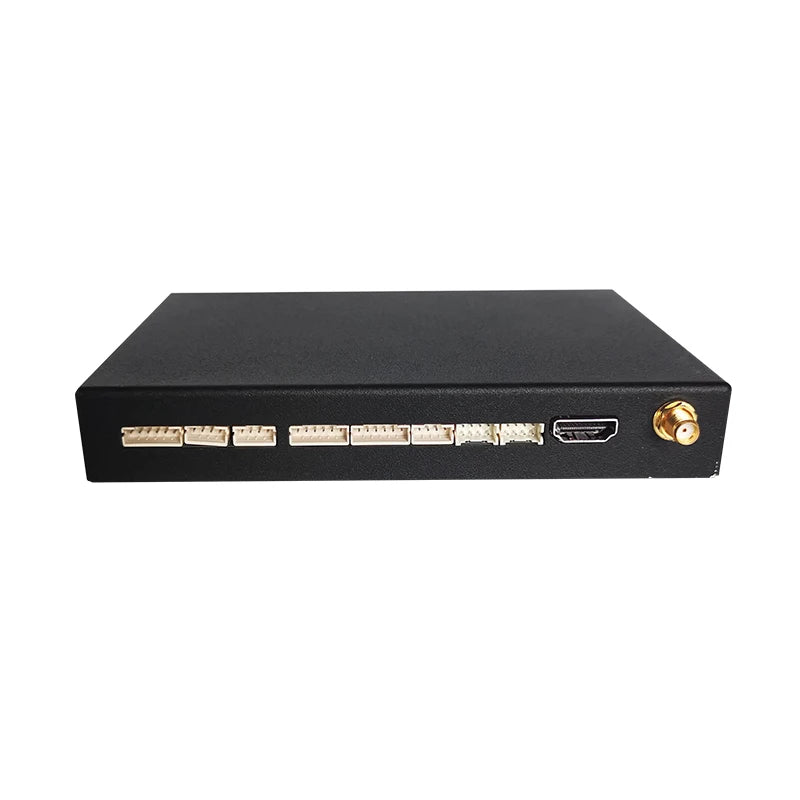

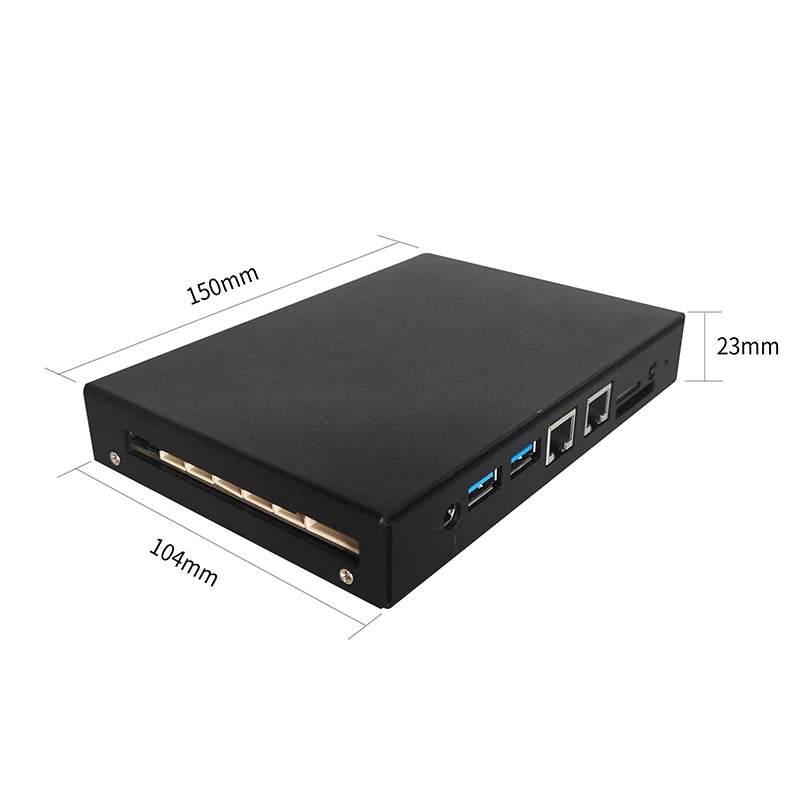

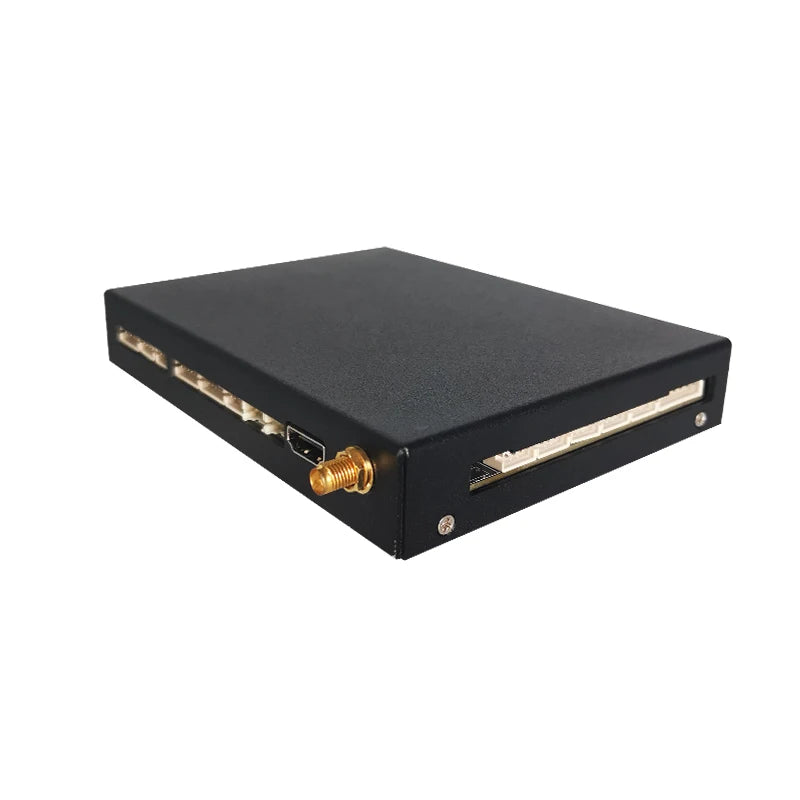

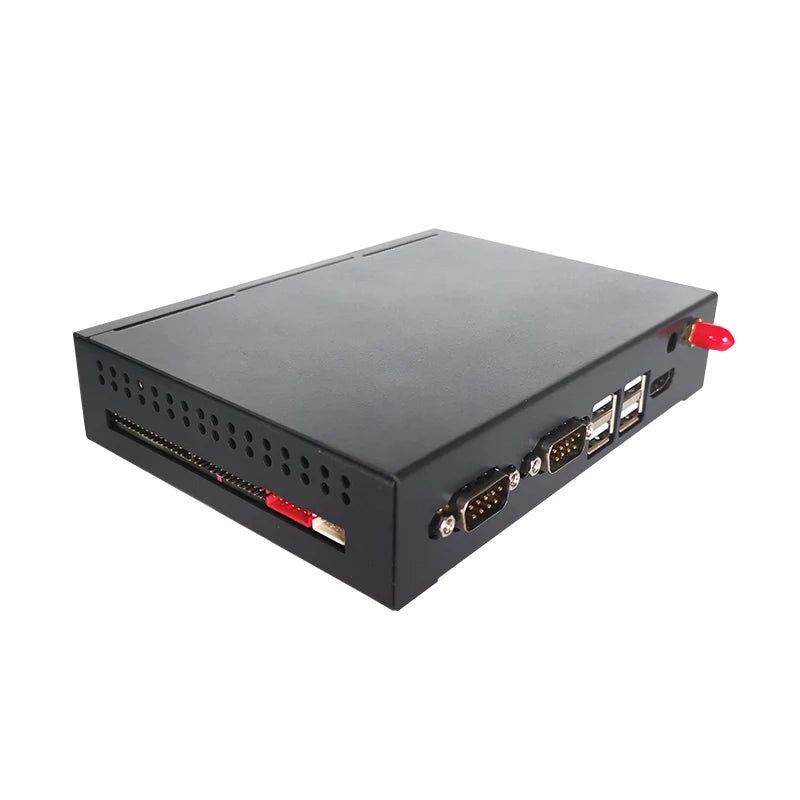

Desktop Android System 9 Industrial Computer HD-MI RK3399 Embedded Computer 4G-32G Memory Fixed Mounted Android Mini Box
$369.31$855.81
Payment Methods
Product Description
Rockchip RK3399 up to 64-bit high-performance CPU, 2.0GHz; Dual Cortex-A72 large core + four Cortex-A53 small core 64-bit CPU
8* USB, 4 serial ports
3G/4G
EDP, LVDS,HDMI interface
2. Optional storage and memory;
3. Support OEM/ ODM.
Application
Specification
We also supply 7inch, 8inch, 10.1inch, 15.6inch, 21.5inch, etc industrial touch panels. Optional Windows, Android system.
Support desktop bracket, wall-mounted bracket and top bracket.
If you need barcode scanners please click here!
|
CPU
|
Rockchip RK3399 up to 64-bit high-performance CPU, 2.0GHz; 1. Dual Cortex-A72 large core + four Cortex-A53 small core 64-bit CPU
2. Built-in low-power MCU Cortex-M0 |
|
GPU
|
Quad-core ARM Mali-T860MP4 high-performance GPU
|
|
Memory /storage
|
Standard 2G (4G optional) / EMMC standard 16G (8G/32G/64G optional)
|
|
audio and video output
|
Support left and right channel output, built-in dual 8R/5W power amplifier
|
|
Earphone
|
Support one headphone jack
|
|
USB
|
1* USB2.0(Support OTG/HOST switching); 7* USB2.0 HOST;
8*USB in total |
|
LVDS
|
1 single/dual channel, can directly drive 1920x1080 LCD screen
|
|
eDP
|
Maximum drive 4KX2K resolution eDP interface LCD screen
|
|
HDMI
|
1, support 1080P@60Hz, 4kx2k@60Hz output
|
|
Serial port
|
4*RS232, 2*485，1* TTL，1* DEBUG total 8 serial port
|
|
Mipi Camera
|
Dual channel supports dual camera 30pin FPC interface, supports 1300w Camera
|
|
TF card
|
Support TF card
|
|
WIFI、BT
|
Built-in WIFI, BT4.0 (optional) WIFI module, support WIFI hotspot sharing during 4G communication
|
|
3G/4G
|
Built-in WCDMA, EVDO, 4G full Netcom expansion interface
|
