CE SDl12 Robust Construction Free Maintenance Anti UV Scalable 10 In 1 Weather Station
$3,104.79$7,391.24
Payment Methods
Application scenario
Product Description
| Measurement parameters | ||||||
| Parameters Name
| 10 in 1: Temperature, Humidity, Wind speed, Wind direction, Air pressure, PM2.5, PM10, Rainfall, Noise, Illumination/solar radiation
| |||||
| Parameters
| Measure range
| Resolution
| Accurancy
| |||
|
Air temperature
|
-40-60℃
|
0.01℃
|
±0.3℃（25℃）
| |||
|
Air relative humidity
|
0-100%RH
|
0.01%RH
|
±3%RH(<80%RH)
| |||
|
Atmospheric pressure
|
500-1100hpa
|
0.1hpa
|
±0.5hpa（0-30℃）
| |||
|
Wind speed
|
0-60m/s
|
0.01m/s
|
±（0.3+3%V）m/s
| |||
|
Wind direction
|
0-359.9°
|
0.1°
|
±3°
| |||
|
PM2.5
|
0-500ug/m³
|
1ug/m³
|
±(10+10%)ug/m³
| |||
|
PM10
|
0-500ug/m³
|
1ug/m³
|
±(10+10%)ug/m³
| |||
|
Rainfall
|
0-200mm/h
|
0.2mm
|
±15%
| |||
|
Noise
|
30-130dB
|
±1.5dB
|
0.1dB
| |||
|
Illumination/solar radiation
|
0-200KLux |
10Lux
|
±3% or 1%F.S
| |||
|
0-2000W/㎡
|
1W
|
±5%
| ||||
| * Other customizable parameters
|
Ultraviolet,CO2,CO,NO2,SO2,O3,H2S,TVOC
| |||||
|
Monitoring principle |
Air temperature and humidity: Swiss Sensirion digital temperature and humidity sensor
| |||||
|
Wind speed and direction: Ultrasonic sensor
| ||||||
| Technical parameter | ||||||
|
Stability
|
Less than 1% during the life of the sensor
| |||||
|
Response time
|
Less than 10 seconds
| |||||
|
Warm-up time
|
30S
| |||||
|
Supply voltage
|
9-24VDC
| |||||
|
Working current
|
DC12V≤180ma
| |||||
|
Power consumption
|
DC12V≤2.16W
| |||||
|
Life time
|
In addition to SO2 \ NO2 \ CO \ O3 \ PM2.5 \ PM10 (normal environment for 1 year, high pollution environment is not guaranteed),
life is not less than 3 years | |||||
|
Output
|
RS485, MODBUS communication protocol
| |||||
|
Housing material
|
ASA engineering plastics which can be used for 10 years outside
| |||||
|
Working environment
|
Temperature -30 ～ 70 ℃, working humidity: 0-100%
| |||||
|
Storage conditions
|
-40 ~ 60 ℃
| |||||
|
Standard cable length
|
2 meters
| |||||
|
The farthest lead length
|
RS485 1000 meters
| |||||
|
Protection level
|
IP65
| |||||
|
Electronic compass
|
Optional
| |||||
|
GPS
|
Optional
| |||||
| Wireless transmission | ||||||
|
Wireless transmission
|
LORA / LORAWAN(eu868mhz,915mhz,434mhz), GPRS, 4G,WIFI
| |||||
| Mounting Accessories | ||||||
|
Stand pole
|
1.5 meters, 2 meters ,3 meters higth, the other higth can be customize
| |||||
|
Equiment case
|
Stainless steel waterproof
| |||||
|
Ground cage
|
Can supply the matched ground cage to burried in the ground
| |||||
|
Lightning rod
|
Optional(Used in thunderstorm places)
| |||||
|
LED display screen
|
Optional
| |||||
|
7 inch touch screen
|
Optional
| |||||
|
Surveillance cameras
|
Optional
| |||||
| Solar power system | ||||||
|
Solar panels
|
Power can be customized
| |||||
|
Solar Controller
|
Can provide matched controller
| |||||
|
Mounting brackets
|
Can provide the matched bracket
| |||||
Detailed Images
Temperature, humidity, wind speed, wind direction, air pressure, rainfall (optical), PM2.5, PM10, light/solar radiation, noise data collection adopts 32-bit high-speed processing chip, high precision and reliable performance
Feature 2 :MINI Size
High precise free maintenance wind speed and direction sensor
Feature 4: air temperature, humidity, pressure, PM2.5, PM10,noise
Simultaneous measurement of air temperature, humidity, pressure, PM2.5, PM10, noise
Feature 5: Reserve an expandable interface
It can integrate the other weather sensors , soil sensors, water sensors and so on.

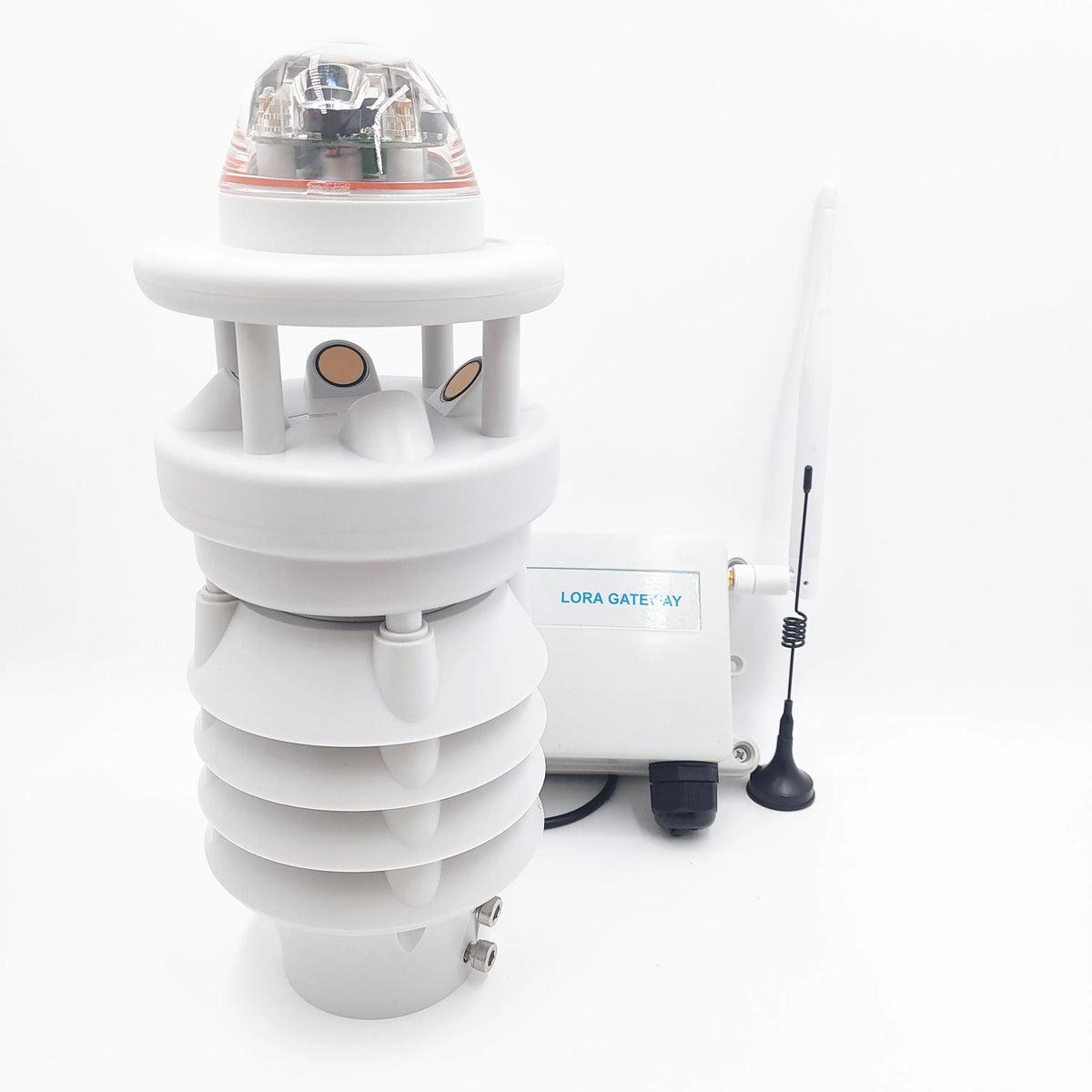

Feature 6:Multiple wireless output methods
RS485 modbus protocol and can use the LORA/ LORAWAN/ GPRS/ 4G/WIFI wireless data transmission, and the LORA LORAWAN frequence can be custom made.
Feature 7:Send free cloud server and software
The free cloud server and software can be send if using our wireless module to see the real time data in PC or Mobile and also can download the data in excel.
Air temperature and humidity: Swiss Sensirion digital temperature and humidity sensor.
This weather station intergrate the air temperature humidity pressure rainfall and also can intergrate the wind speed , wind direction,soil temperature, soil moisture,soil EC and so on.
Feature 10： Two ways install
Flange fixing
1. Compact weather station
2. Fixing screw ∅6 specifications

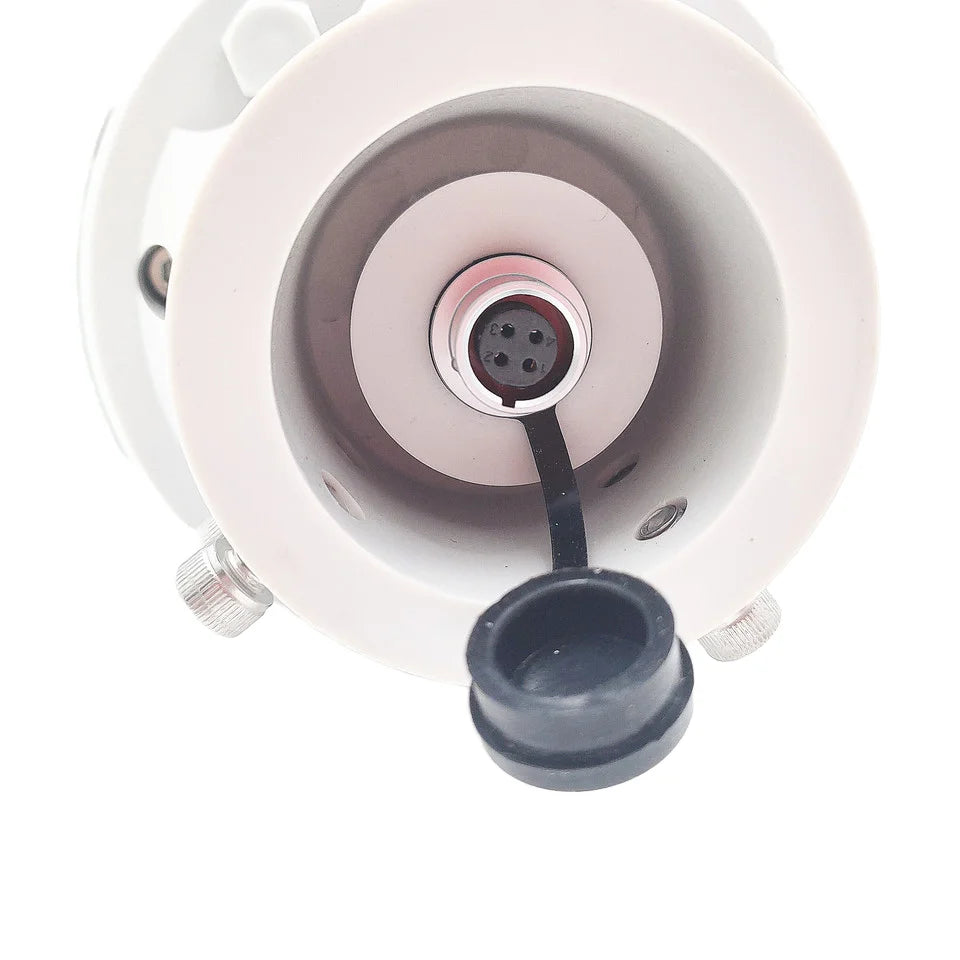

3. Communication cable + aviation plug
4. Fixed pole
3. Communication cable + aviation plug
4. Fixed pole
Sleeve fixing
1. Compact weather station
2. Fixing screw ∅6 specifications
3. Communication cable + aviation plug
4. Fixed pole
3. Communication cable + aviation plug
4. Fixed pole
