Alibaba gold supplier Low noise Cooling greenhouse/poultry farm/livestock/piggery/chicken house ventilation exhaust fan
$993.00$1,503.00
Payment Methods
Product Description
Detailed Specifications
Through the aerodynamic design of the new BangYuan Fiberglass Cone Fan line,BangYuan Ventilation can Ф offer the market a fiberglass cone fan line,which sets a new ventilation standard focusing on the three most important fan paramenters:air performance, fan efficiency and the air flow ratio. Tunnel or length ventilated livestock buildings and greenhouses demand through higher product 18 performances also higher quantities of air. With durability and reliability as an asset,the BangYuan Fiberglass Cone Fan line guarantees fresh air at low cost.
| Name | Rated power | Static Pressure | 0 | 15 | 25 | 37 | 50 |
|
54"Fibergalss cone fan |
1500W |
m3/h Capacity |
55500 |
52900 |
50800 |
48300 |
45600 |
|
50"Fibergalss cone fan |
1100W | m3/h Capacity
|
46500 |
44000 |
41500 |
38900 |
35200 |
|
36"Fibergalss cone fan |
750W | m3/h Capacity
|
23500 |
22500 |
21800 |
21000 |
20000 |
|
24"Fibergalss cone fan |
550W | m3/h Capacity
|
11700 |
11300 |
11100 |
10600 |
10200 |
|
18"Fibergalss cone fan |
250W | m3/h Capacity
|
6600 |
6200 |
6017 |
5484 |
4451 |

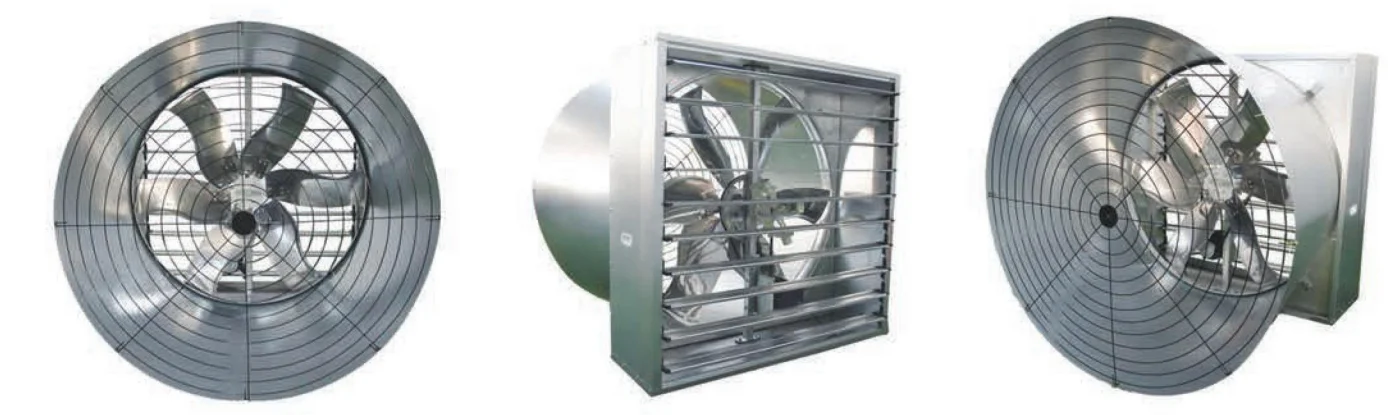

BangYuan Series Push-pull Centrifugal Fan
Structure and principle
BY series High class fan is mainly made up of blade.Centrifugal Opening Device, motor,outer frame protecting nets,supporting frames,shutters.It is made based on aerodynamic,effectively reduce the wind resistance.The major parts are made of galvanized steel sheets and Stainless steel sheets.All the products are widely used in various types of buildings as farms,greenhouses,factory building.
Air Flow Curve

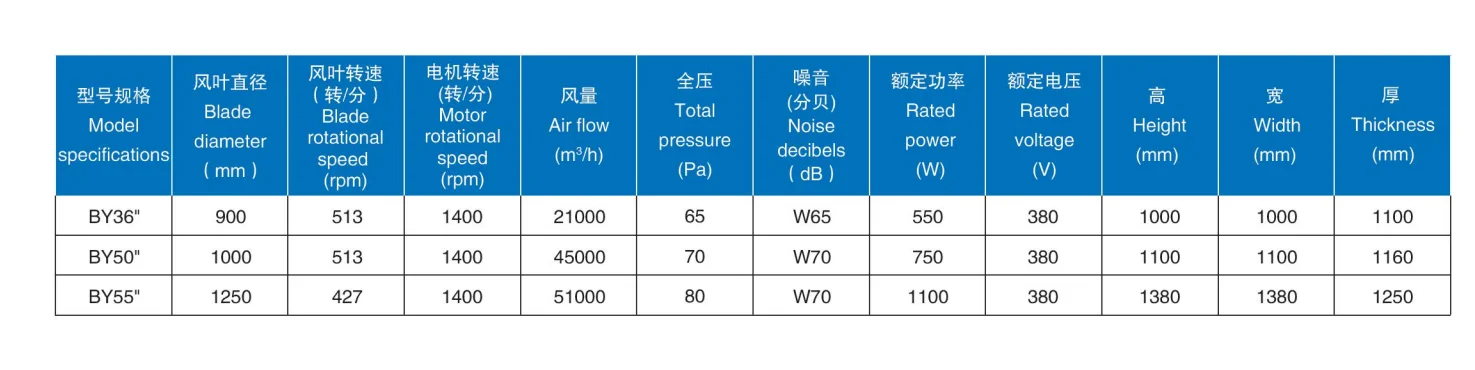

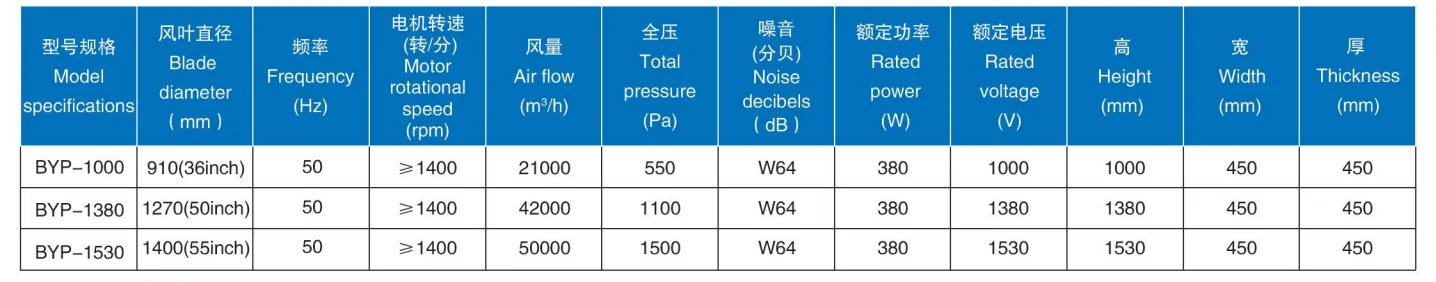

Technical parameter

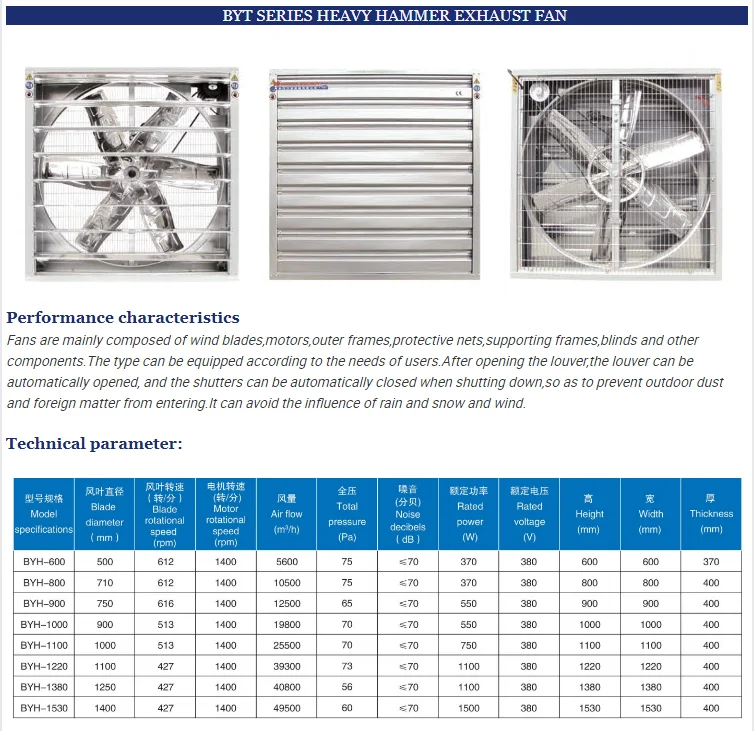

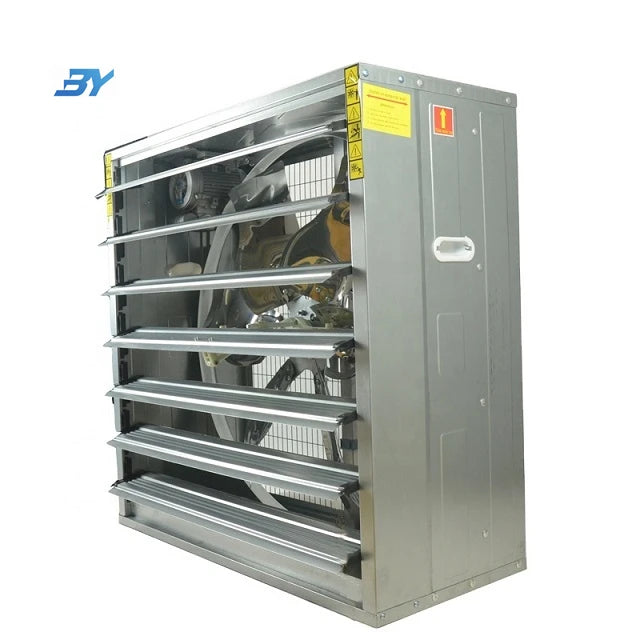

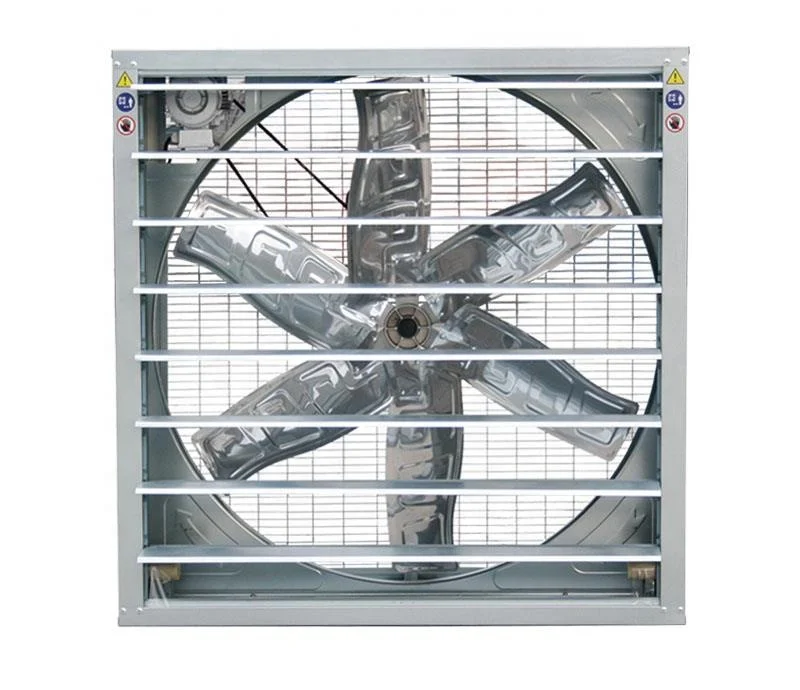

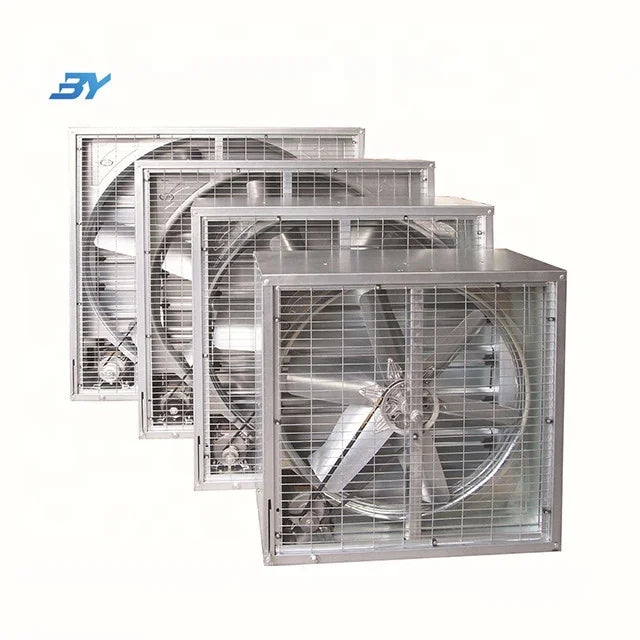

BangYuan Series Hammer Exhuast Fan

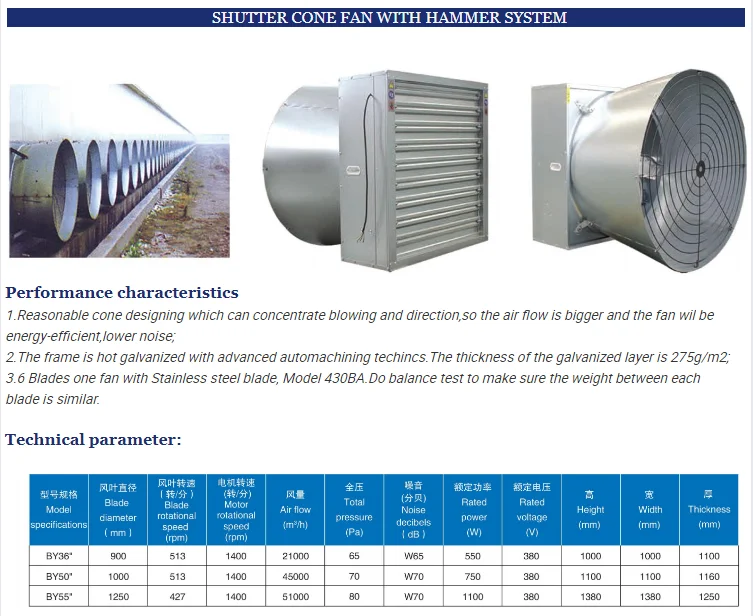

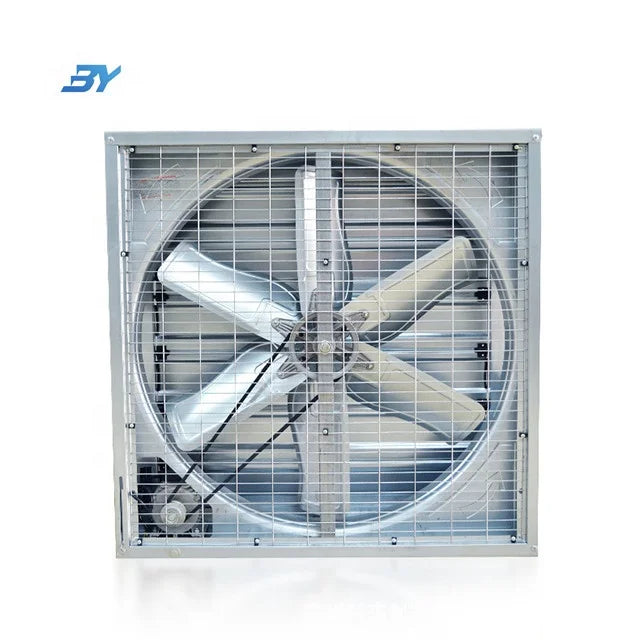

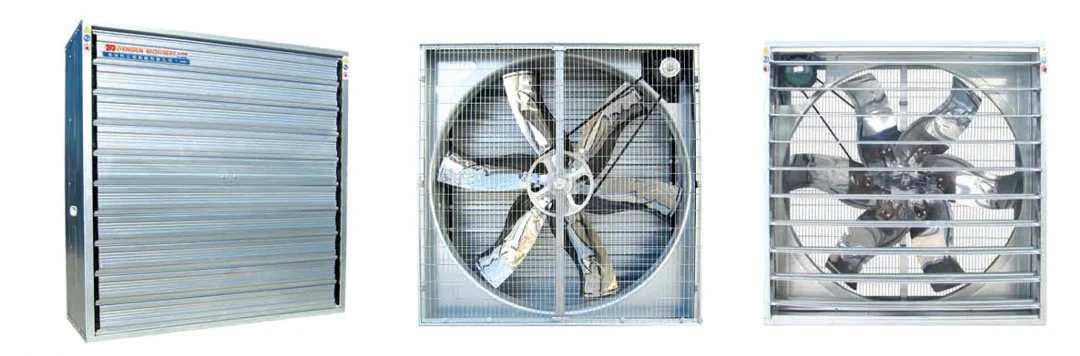

SHUTTER CONE FAN WITH CENTRIFUGAL OPENING SYSTEM
Performance characteristics

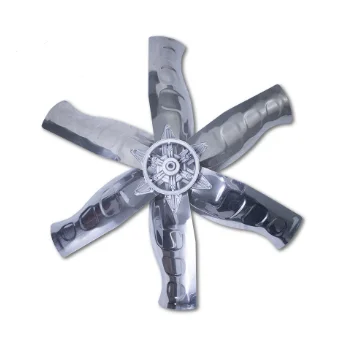

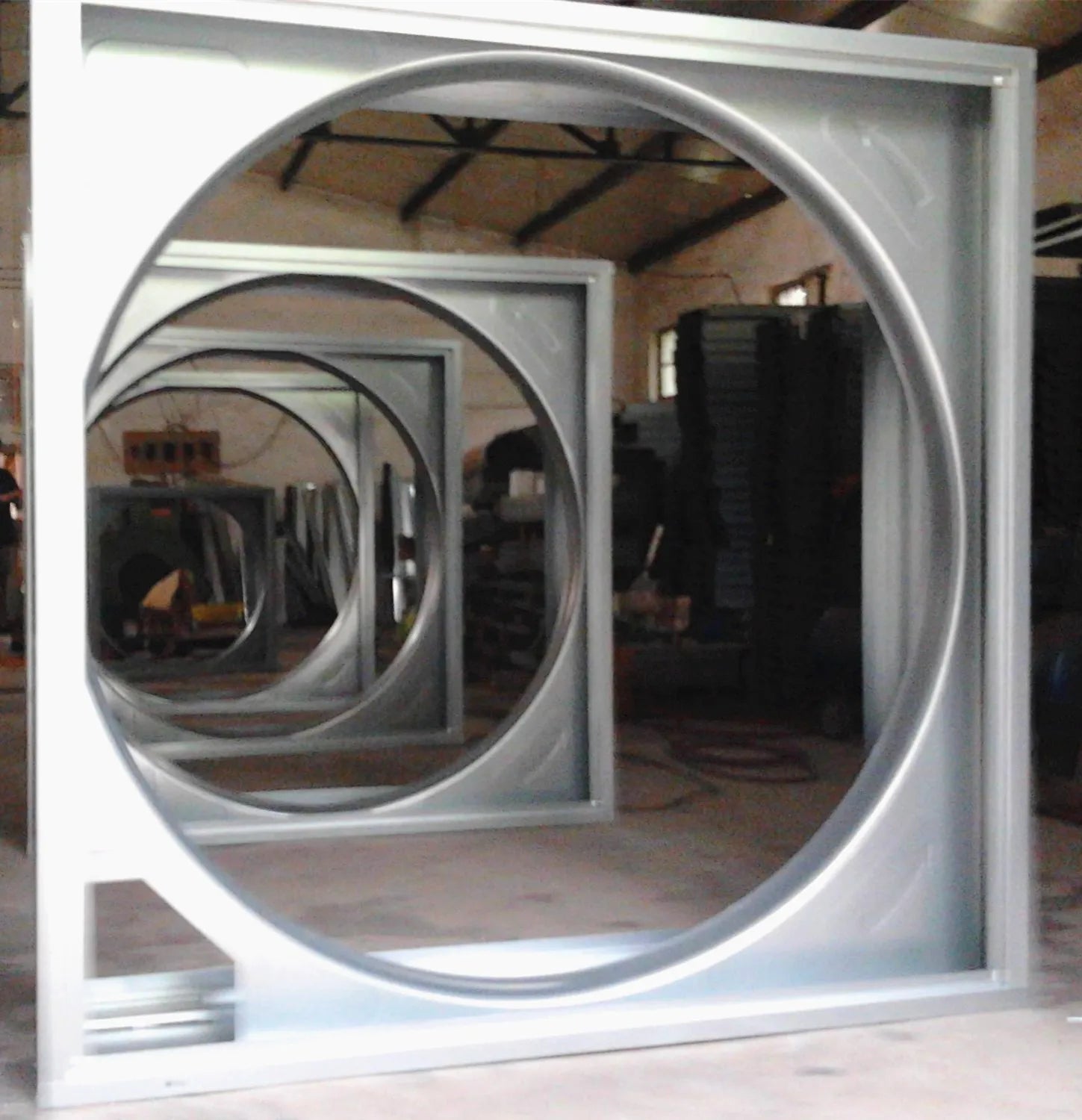

1.Galvanized steel frame is made of 275g/m2.galvanized layer avoid rust. 2.Trans-push-pull louver with thickness of 0.8mm and 1.5mm to achieve effective sealing; The high strength push and pull open device can make the shutter open,always keep the Angle of 90 degrees with the horizontal ground, the air quantity is constant 3.BangYuan fan blade is special designed for top grade efficiency which made of Krupp stainless steel by punch forming.Large air volume,no deformation,no broken,no dust,attractive and durable Thickness 12mm,su rface finish BA grade.

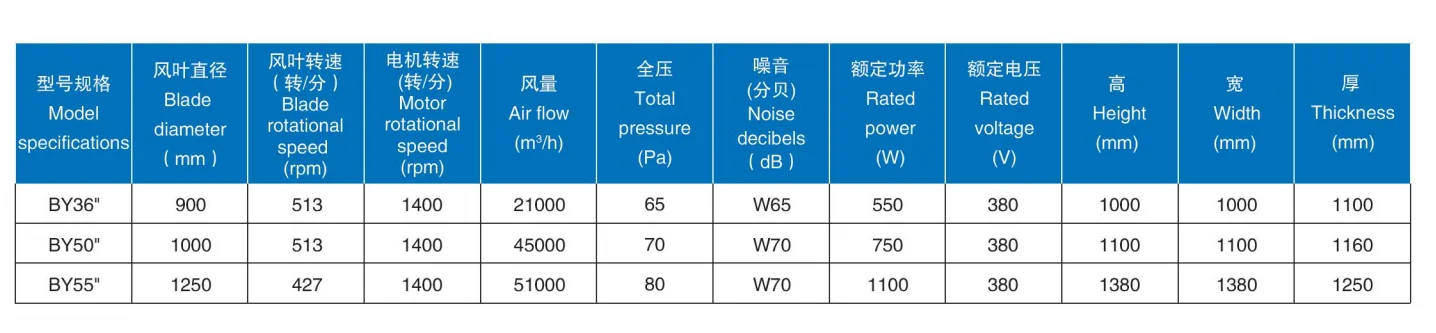

Technical parameter:

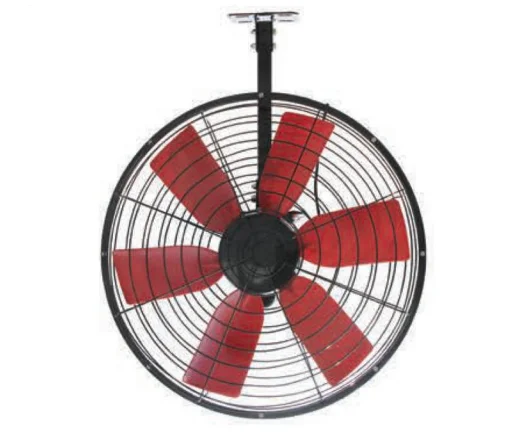

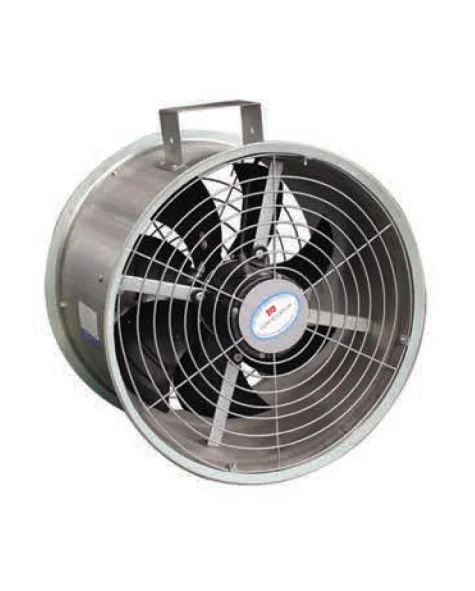

BY AIR CIRCULATION FAN
Performance characteristics
2.International advanced energy conservation technology testing 3.Light aluminium board punch press fan blade, wide angle, heavy wind and low noise. 4.Outer covering is stainless steel or steel spraying available 5.Equipped with beautiful and convenient button type hanging articles 6.Long service life over 10 years.
Technical parameter:
Onvels is synonymous with excellence.Onvels stands for quality.Onvels is synonymous with originality.Onvels is synonymous with effectiveness.Onvels. Excellence is our goal.Onvels committed to the best service ( Always ).
