55 gallon 200L Air Operated Powered Pressure Piston Drum Barrel Engine Motor Lubricant Pneumatic Oil Transfer Pump with Counter

Name: 55 gallon 200L Air Operated Powered Pressure Piston Drum Barrel Engine Motor Lubricant Pneumatic Oil Transfer Pump with Counter
Brand: KUYKTHTR
Price: 623.6 USD
Availability: InStock

KUYKTHTR

$623.60$1,053.20

Payment Methods

Product Description

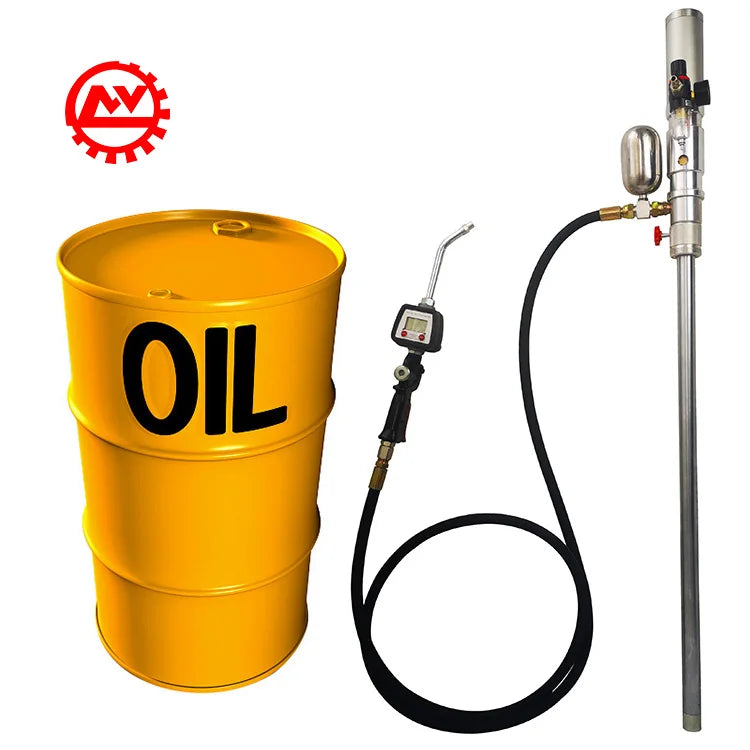

Air Operated Oil Pump Kit-OA940

The pneumatic pump adopts advanced technology, which uses compressed air as the power source to pump various kinds of oil for canning and dispensing. It is especially suitable for the operation requiring explosion-proof. The design is integrated by cylinder and valve, easy to use, safe and environmental protection. Convenient maintenance and high cost performance.

Details Images

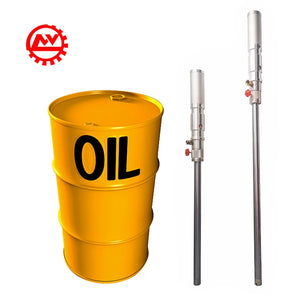

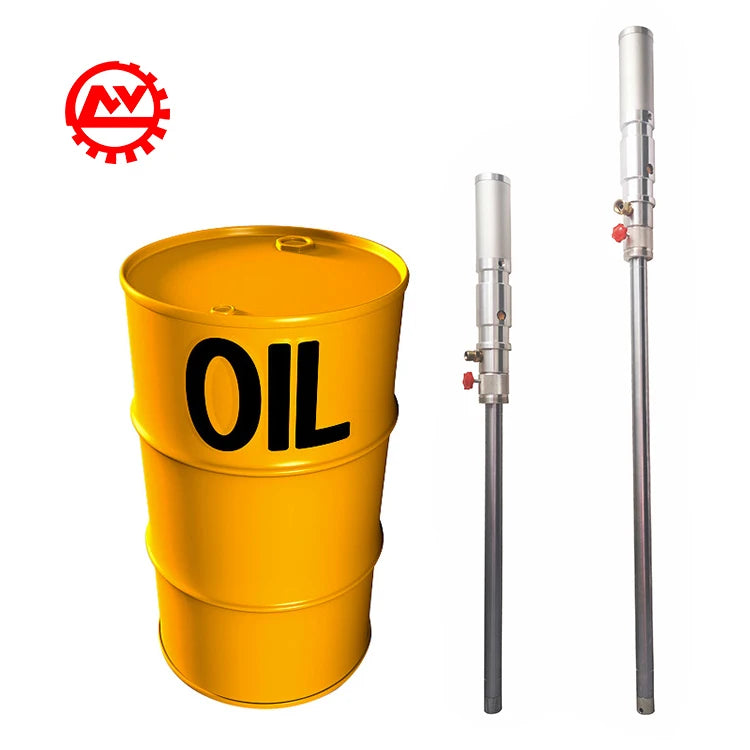

Pneumatic Piston Drum Pump tube can be customized for 20L, 60L. 200L, 205L, 208L, 1000L drums, and can be changed to stainless steel material for dispensing some chemicals. The Barrel Drum Pumps are made by precision-machined parts to ensure high quality for long time use.The Pumps are with Oil Seal in the Oil Inlet Guarantee the Sealing.With filter at the pump bottom to protect the pump inner parts.

Oil Pump Technique Specification
Pressure Ratio:	5:1	Air inlet:	1/4''
Air Input Pressure:	3-8bar	Oil outlet:	1/2''
Flow Rate:	4-18L/min	Drum application:	400LB/55gal

The Digital Oil Meter Gun, model 3200, it’s anti-drip design, easy to handle and operate.With a big LCD display to view the oil dispensed volume. With 4 kinds of measure unit (L. PT. QT. GAL) to meet different market requirement. The Oil Gun can rotate 360°to inject oil, convenient to use. With an Anti-drip Nozzle to avoid the workshops mess.

Digital Oil Meter Gun-#3200
Inlet	1/2'' NPT-1/2''F
Outlet	1/2'' NPT-1/2''F
Pressure Range	0.5 BAR-100BAR
Oil Temperature	MAX 60℃
Oil Viscosity	MAX SAE 240(8-5000mPas)
Precise Unit	0.01L
Net Weight	3.1LB

Features

1.Mobile 5:1 oil pump and digital oil meter gun (Model #3200),easy to use & maintain 2. High flow rate to 18 L/min 3. Max air inlet pressure 3-8 BAR 4.Air consumption (per minute) 8 BAR 5.Best suited for a multiple fluid at a short to medium distance, typical fluids handled include: Lubricating oil such as Engine Oil, Gear Oil, Hydraulic Oil and Refrigerant 6.Pump can be barrel, cart or wall mounted. 7.Includes a set of air regulator 8.1/2 in. x 4 m connection hose

What's Included

(1) Oil pump kit (1) Digital oil meter gun (1) 1/2 in. x 4 m connection hose

The pumps are widely used in lubrication in Oil change Maintenance Center, Auto Repair shops, Automobile, Auto door locks/brakes/wipers/seat rails, Ships, Agricultural Vehicles, Subways etc. It is also widely used in Workshop Production Line, Metallurgy, Paper-making, Electronics, Electric Power, Port, Construction Machinery.

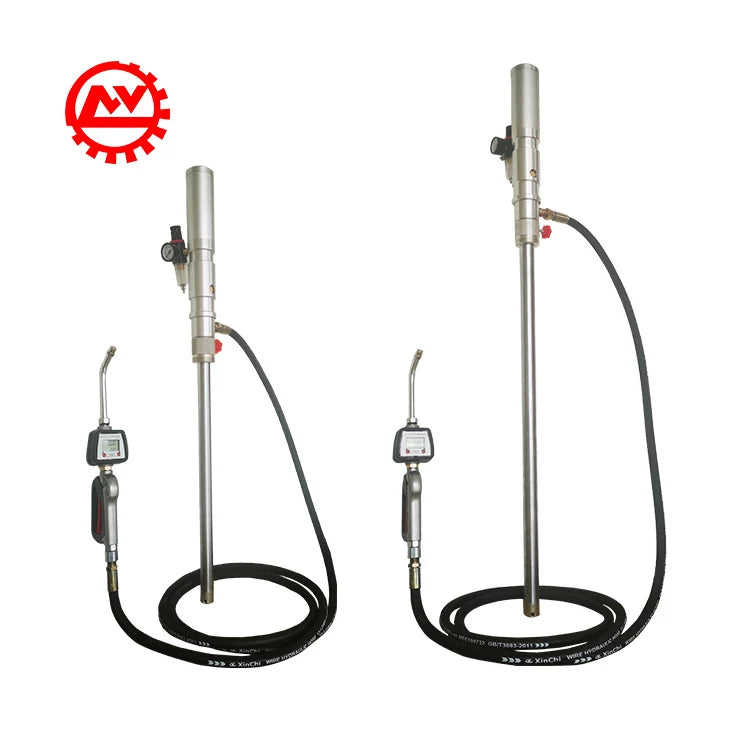

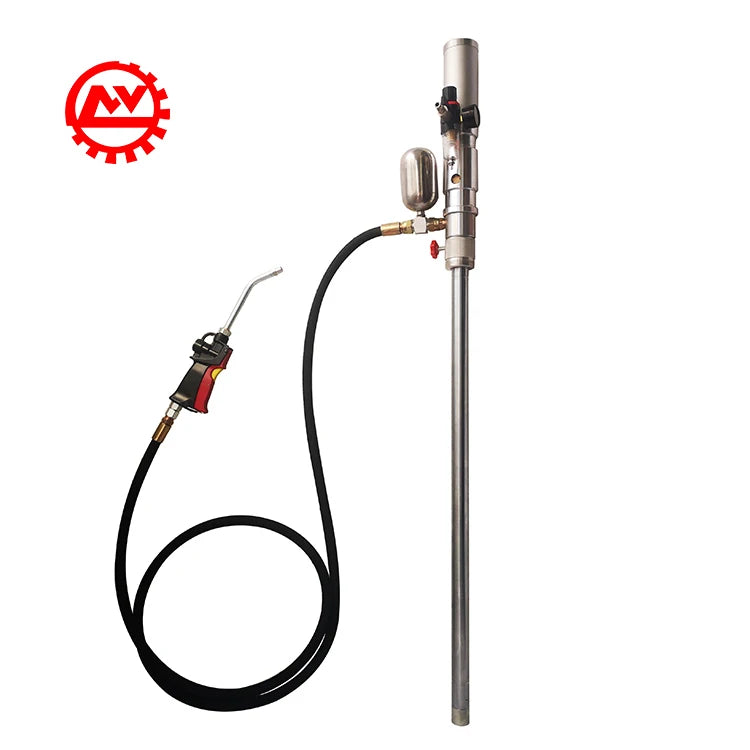

Model:OA940G
Air Operated Oil Pump Kit

The Oil Pump Kit is for 200L drums, With General oil gun, to supply a high flow rate oil injection service.

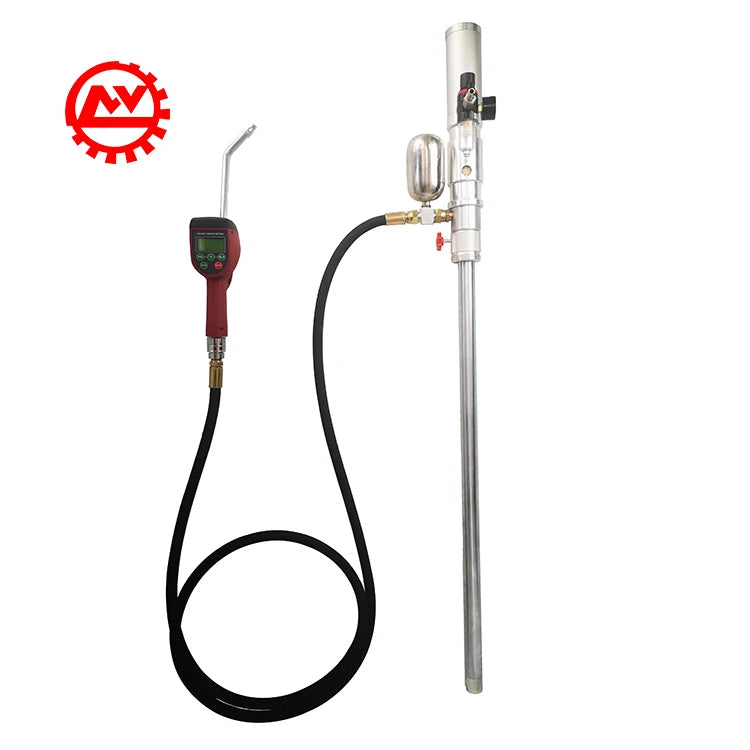

Model:OA940D
200L oil drum pump

Lubrication Dosing Pump Kit, with Preset Digital Oil Meter Gun for 200L drums.High work efficiency.

Model:OA640
Pneumatic Oil Pump Kit

Good to equip with 60L drums, easy to pump high viscosity oil.Fix with Digital Oil Meter Gun.

Model:OA640T
Barrel pump high viscosity

High Flow rate oil pump, for 60L oil drums.

T02 Wheeled-Trolley to supply mobile service.

Model:OA640D
Pneumatic Oil Pump Kit

60L drum pump kit, dosing injection, equipped with Preset Digital Oil Meter Gun.

Model:OA940L
Air Operated Drum Pump Kit

Pneumatic Oil Pump Kit, specially for 1000L drums.

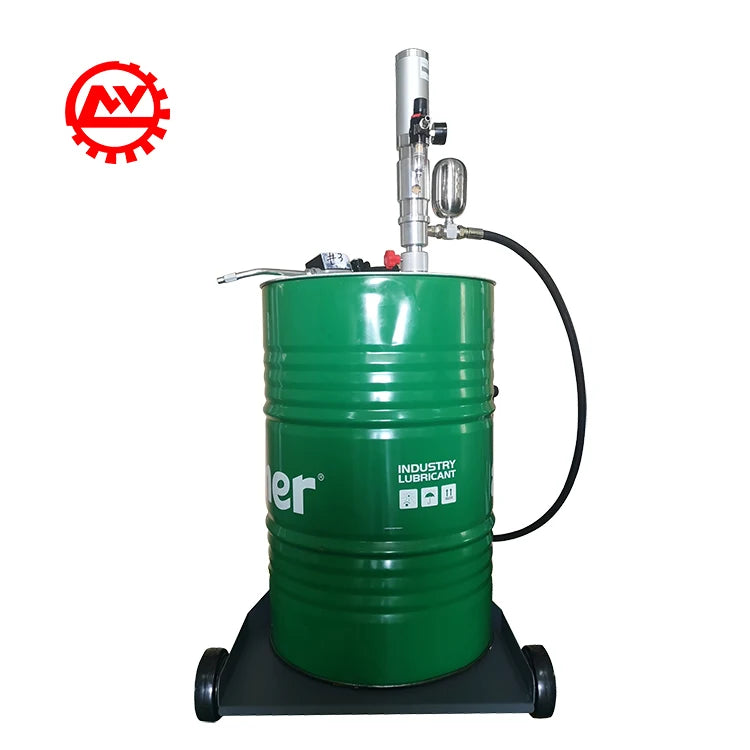

Model:OA940T
Air Operated Drum Pump Kit

Lubrication Pump Kit, with 4mm thick Heavy Duty Trolley for 200L drums

Model:OA940TH
200L Barrel Oil Pump Kit

Lubrication Pump Kit, 4mm thick Heavy Duty Trolley for 200L drums and 1/2"*10M high pressure hose reel to pump oil for long distance.

Model: OA940HG
Wall Mount Pneumatic Oil Pump Kit

Oil Pump Kit with High Pressure Hose Reel to supply long distance service.

Equipped Anti-leakage General Oil Gun.

Model: OA940H
Wall Mount Air Operated Oil Pump Kit

Oil Pump Kit with High Pressure Hose Reel to supply long distance service.

Equipped Digital Oil Meter Gun.

Our Advantages

1. A strong technique team, with more than 10-year experience of making lubricating equipment.

2. ODM products can be supplied, especially the non-standard high precision lubricating dispensers.

3. Products are with stable quality and low maintenance cost.

4.Competitive price and quicky delivery.

5.We provide best service for all of our guests!
