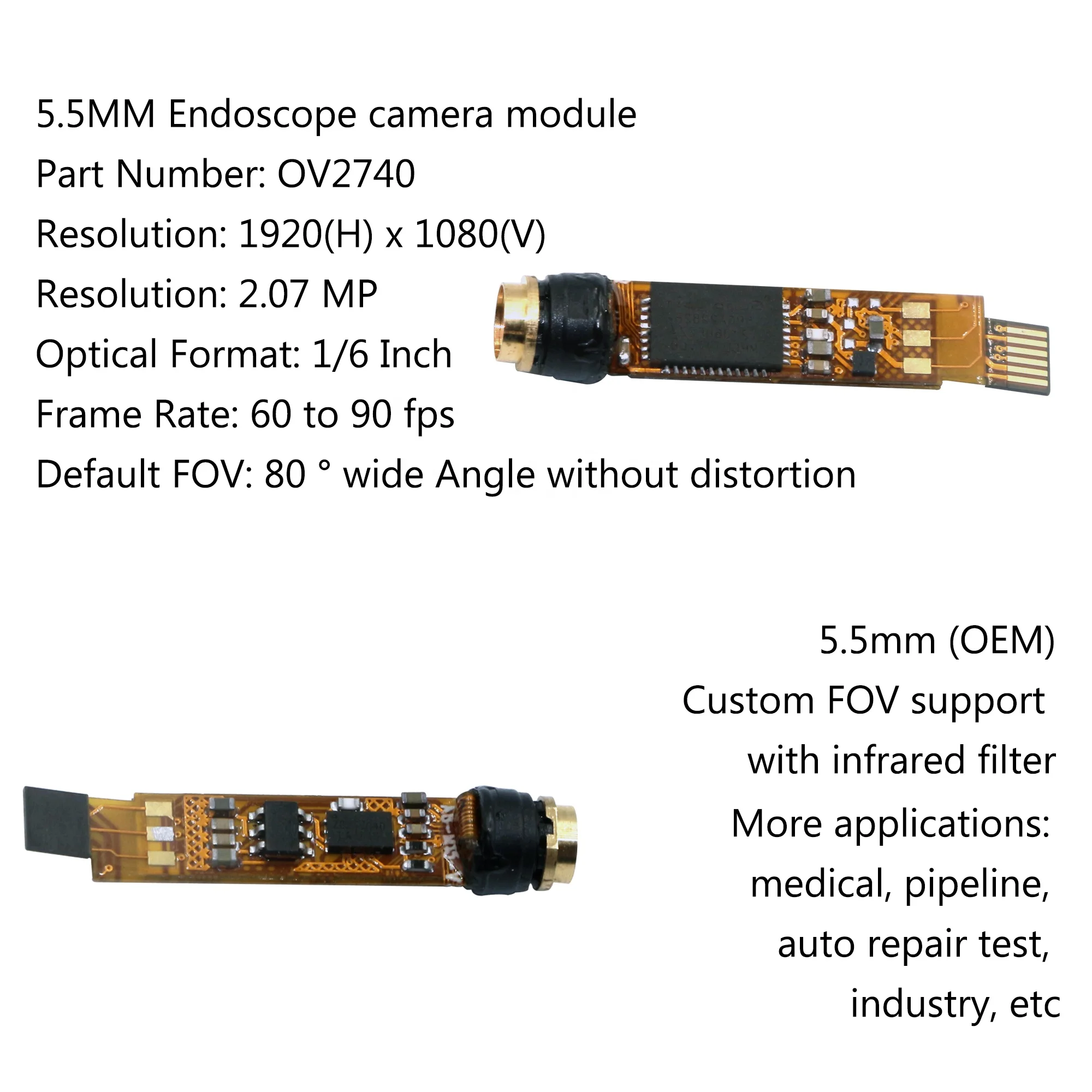

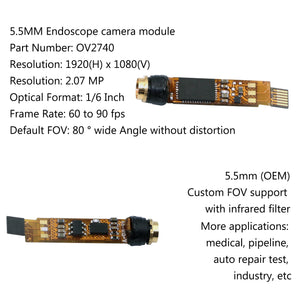

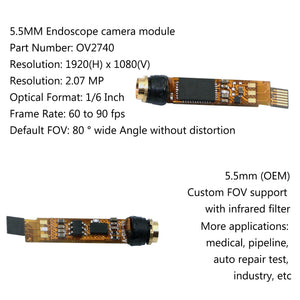

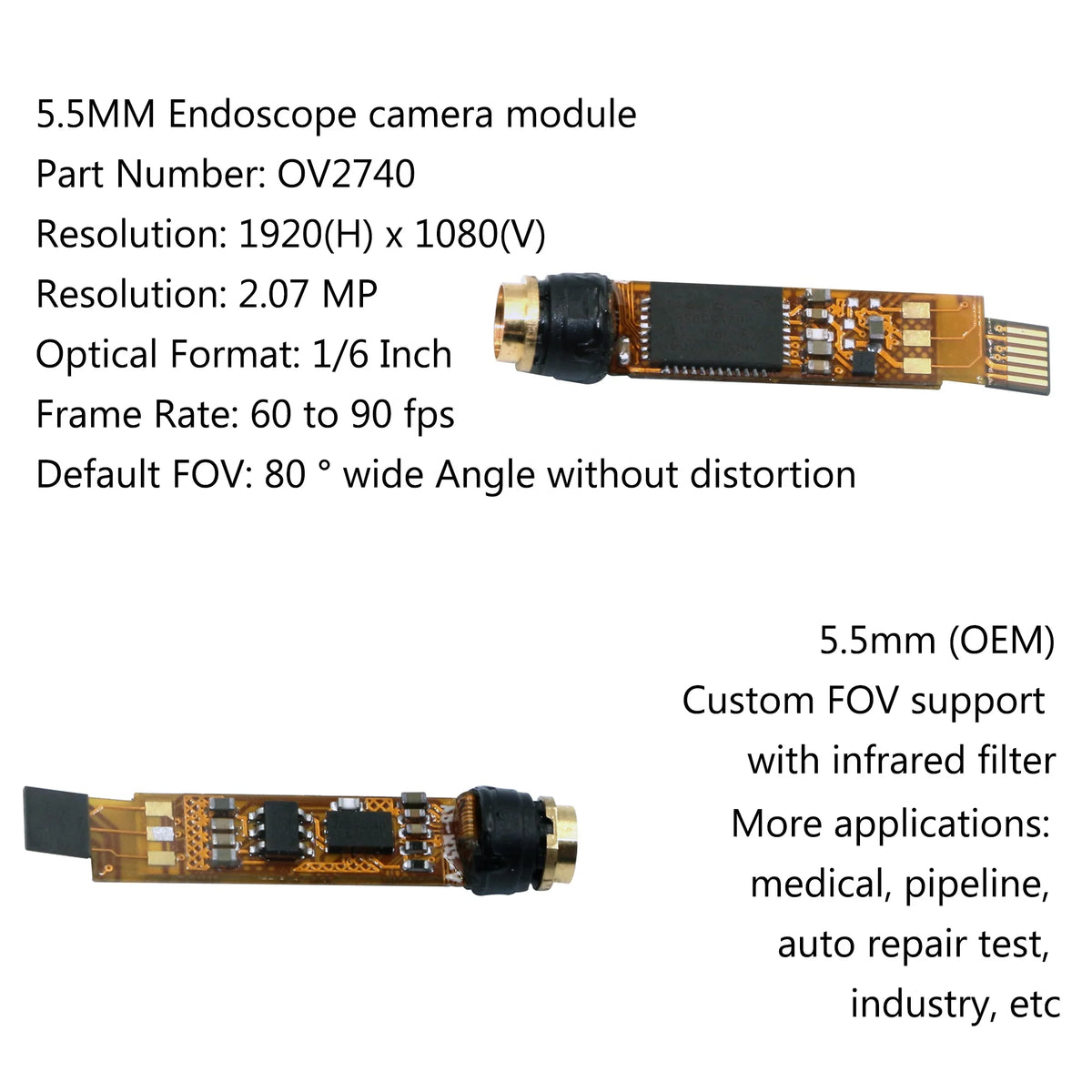

5.5MM 1080P 60fps 1/6inch cmos sensor 140degree Industrial Medical Endoscope Camera Module 2mp with infrared filter
$59.31$127.67
Payment Methods

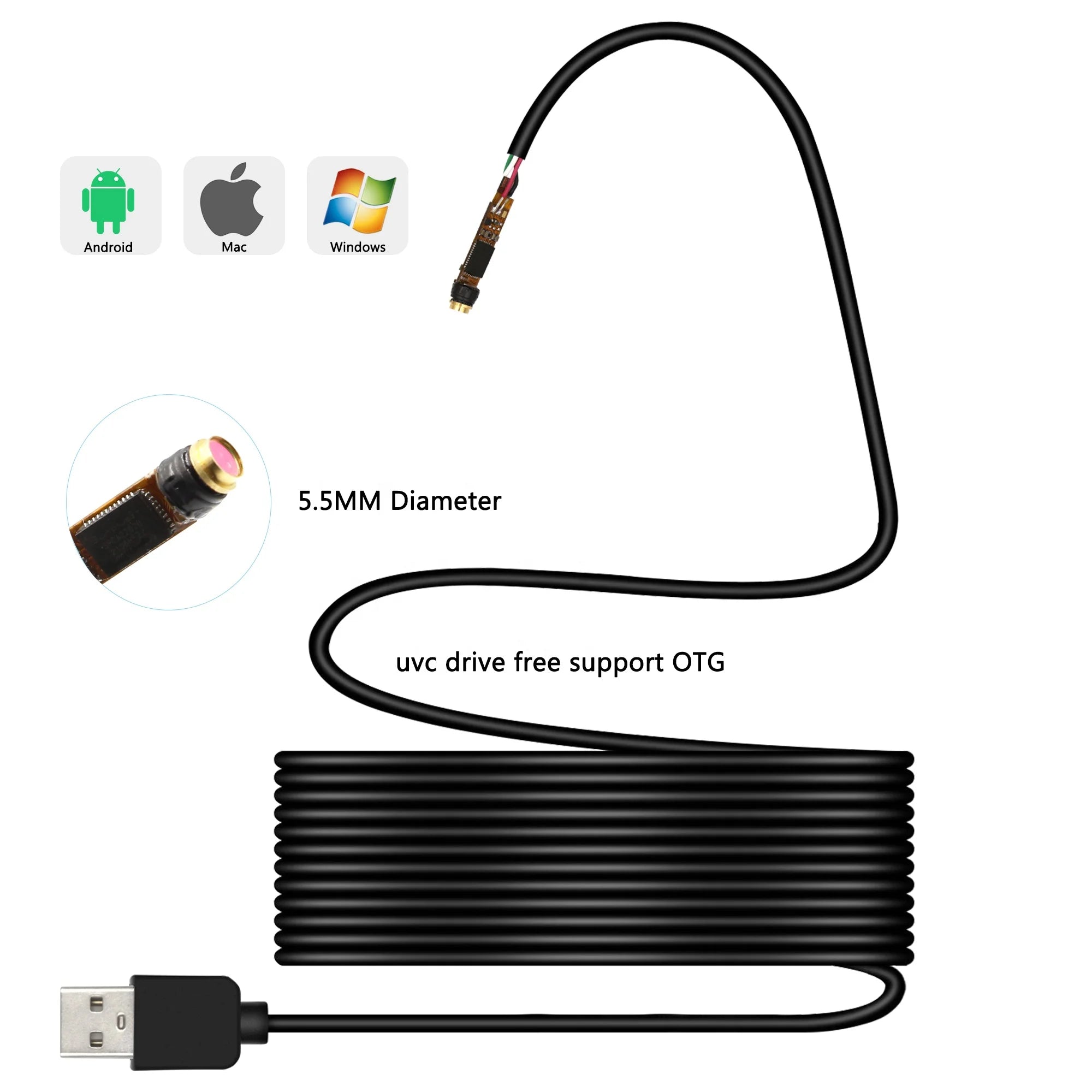

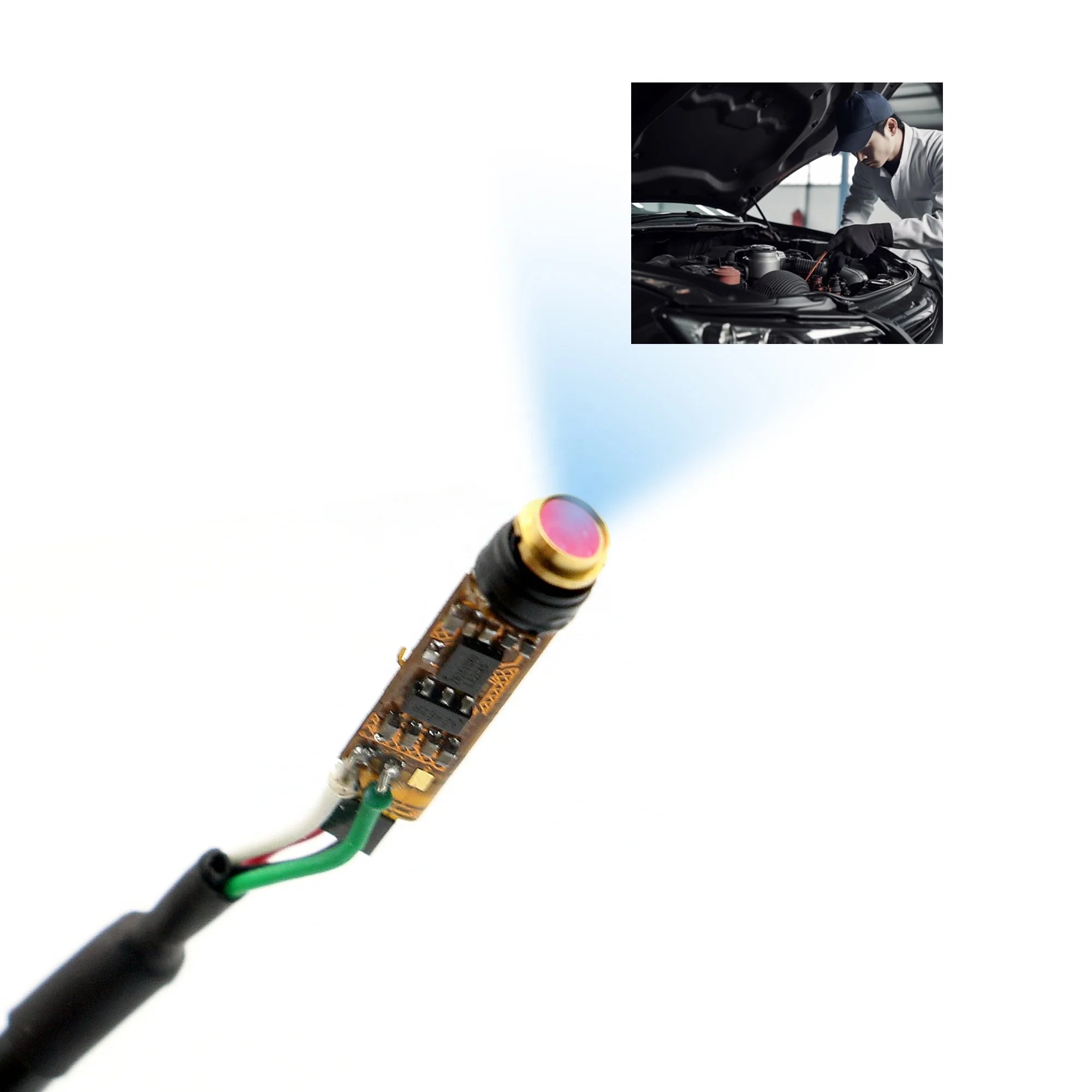

Customize factory high quality 5.5mm mobile phone computer HD usb industrial emedical ndoscope for auto repair pipeline inspection tool
haozhou provides high quality camera modules with professional OEM design and manufacturing services to customers worldwide. We are carrying OmniVision, Sony, Samsung, Hynix, GalaxyCore...
The main application areas: mobile phone, digital still camera, laptop, DV, PDA/handheld, toy, PC camera, security camera, automotive camera, tablet pc, visual doorbell, medical system, smart home, industrial image, recognition system, fingerprint identification system ...
|
Module No.
|
USB 5.5MM
|
|
Sensor
|

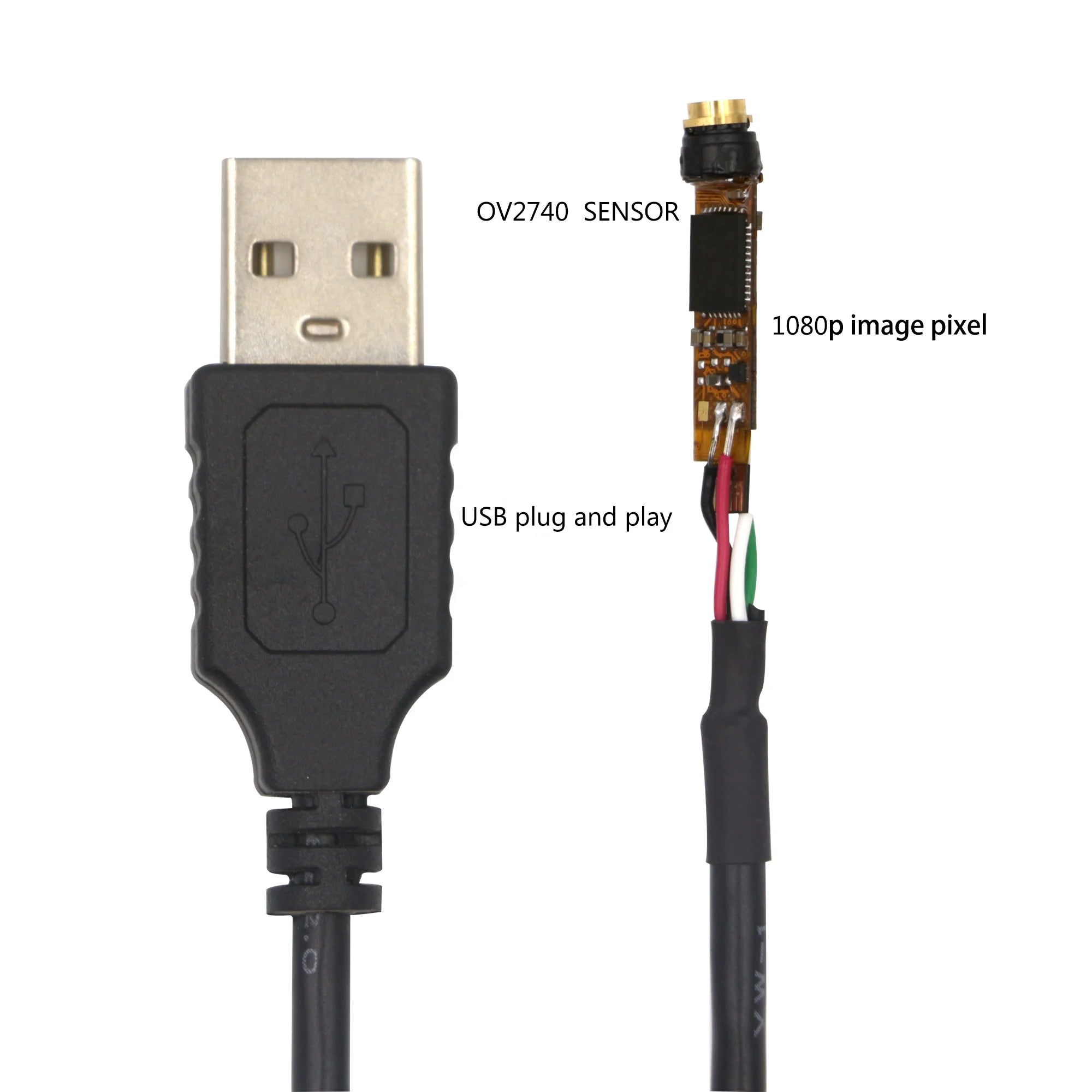

OV2740
|
|
Lens Size
|
1/6inch
|
|
Pixel size
|
1.4um X 1.4um
|
|
Image region
|
2728µm x 1549µm
|
|
Maximum effective pixel
|
1920(H)X1080(V)
|
|
Output image format
|
MJPEG / YUV2（YUYV）
|
|
Supported resolution and frame rate
|
60fps 1080PYUV/MJPEG/60FPS VGA /MJPEG
|
|
Signal-to-noise ratio
|
38.3db
|
|
Dynamic range
|
42db@8x gian
|
|
sensitivity
|
553mV/Lux-sec
|
|
Minimum illuminance
|
1lux
|
|
Shutter type
|
Electronic rolling shutter
|
|
Interface type
|
USB2.0 High Speed
|
|
USB protocol
|
USB2.0 HS/FS
|
|
Support drive - free protocol
|
USB Video Class（UVC）
|
|
OTG protocol is supported
|
USB2.0 OTG
|
|
Automatic exposure control AEC
|
support
|
|
Automatic white balance AEB
|
support
|
|
Automatic gain control AGC
|
support
|
|
Adjustable parameter
|
Brightness, contrast, color saturation, hue, sharpness, gamma, white balance, backlight contrast, exposure
|
|
lens
|
Hd lens/macro
|
|
Power supply mode
|
USB BUS POWER 5P
|
|
Operating voltage
|
DC5V
|
|
Working current
|
100mA
|
|
Operating temperature
|
:-20～70℃
|
|
Storage temperature
|
:0～50℃
|
|
Supported system
|
WinXP/Vista/Win7/Win8.1/Win10/Linux with UVC（above linux-2.6.26）Android 4.0 or above with UVC
|
Shenzhen City Hao Zhou Technology Co.,Ltd. was established in 2014, and is located in shenzhen city, guangdong province, China. We provide with face recognition, camera modules, endoscope and webcam. Customers can choose different type products here, we can ship all items together, so they are able to enjoy one-stop service, it saves time, cost and effort, which benefits customers a lot. And All Our products are with 2 years warranty, O E M and O D M are warmly welcomed. We can design according to the drawings provided by our customers. We are willing to provide customers with products, which carrying their corporate culture and conveying brand concept to end-users., we believe that success is building on a solid foundation and a commitment of delivery. We strive for designing high quality products to meet the changing needs of the marketplace, Offering a perfectly balanced combination of design , sourcing, quality control and marketing. Our company's products are sold worldwide. We have won the unanimous recognition and praise of consumers with satisfactory product quality and perfect after-sales service. We can offer small order quantity, such as retailers on Amazon, Ebay, shopify and so on. it effectively save their economic pressure. We sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits. We are looking forward to receiving your enquiry soon.
1. Good quality products and low factory direct price 2.Free technical support and professional advice,timely communication and after-sale service 3.24-hour aging process, 1-year warranty, CE/FCC/RoHS compliant 4.OEM/ODM service a) Customized camera housingb) Print logo on the camera c)Any your idea on camera we can help you design and put it into production 5.Fast delivery, 3-7 days for production 6.Accept paypal, T/T, western union payment 7.Delivery by DHL/EMS/FedEx, by air or by sea etc
A1: Please contact us first to confrim.We do not provide fee sample and the cost and shipping fee for sample shoudbe paid by buyers.Usually we can offer it in about 3 working days. Q2:What is your acceptable payment term? A2: Trade assurance is our first choice. Then TлT, Western Union,and so on.If you prefer other ways, please contact us.
Q3:What is your guranree for quality? A3: We have 12 months warranty and we will take responsibility for our quanlity and free to repair. Q4:Could you give me a discount? A4: It depends on quantity. Large quantity equal best price.
Q5:How long is your delivery time? A5: After receiving your payment, 1-3days for stock goods and 3-21 days forother goods according to the quantity. Q6:Can you accept small orders? A6: Yes. We enjoy growing up together with all of our clients whether big or small. Q7:How about your after-saleservice? A7: First, we guarantee the quality of our products. Any problem, please contactwith uS and we would solve it as soon as possible.
