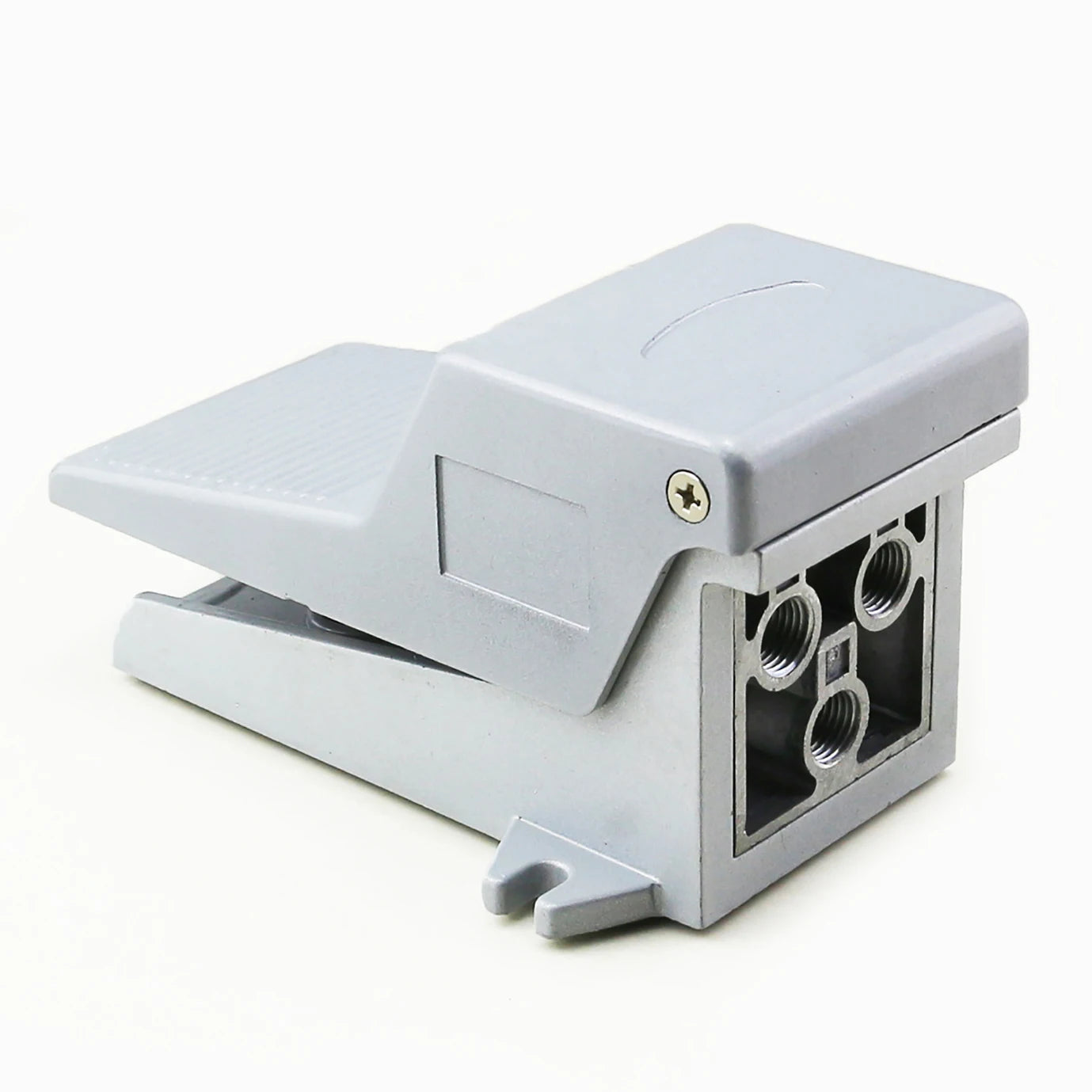

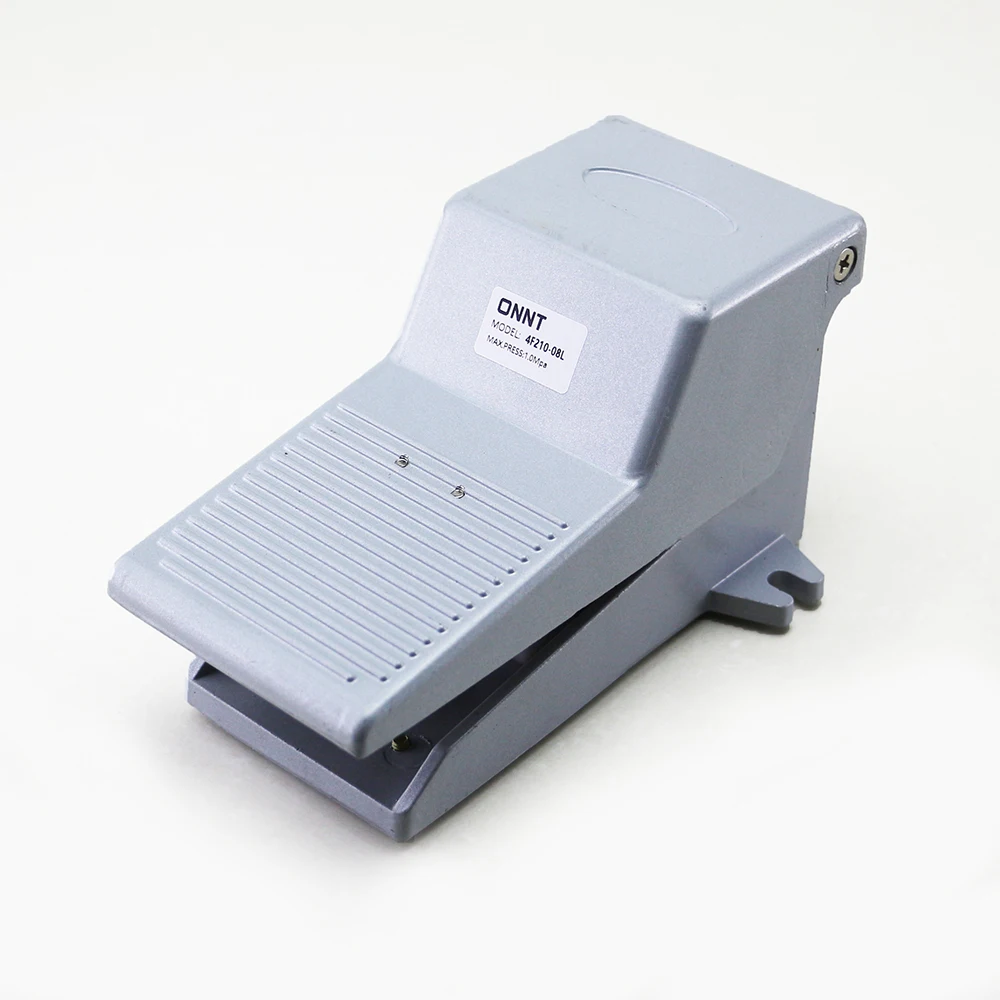

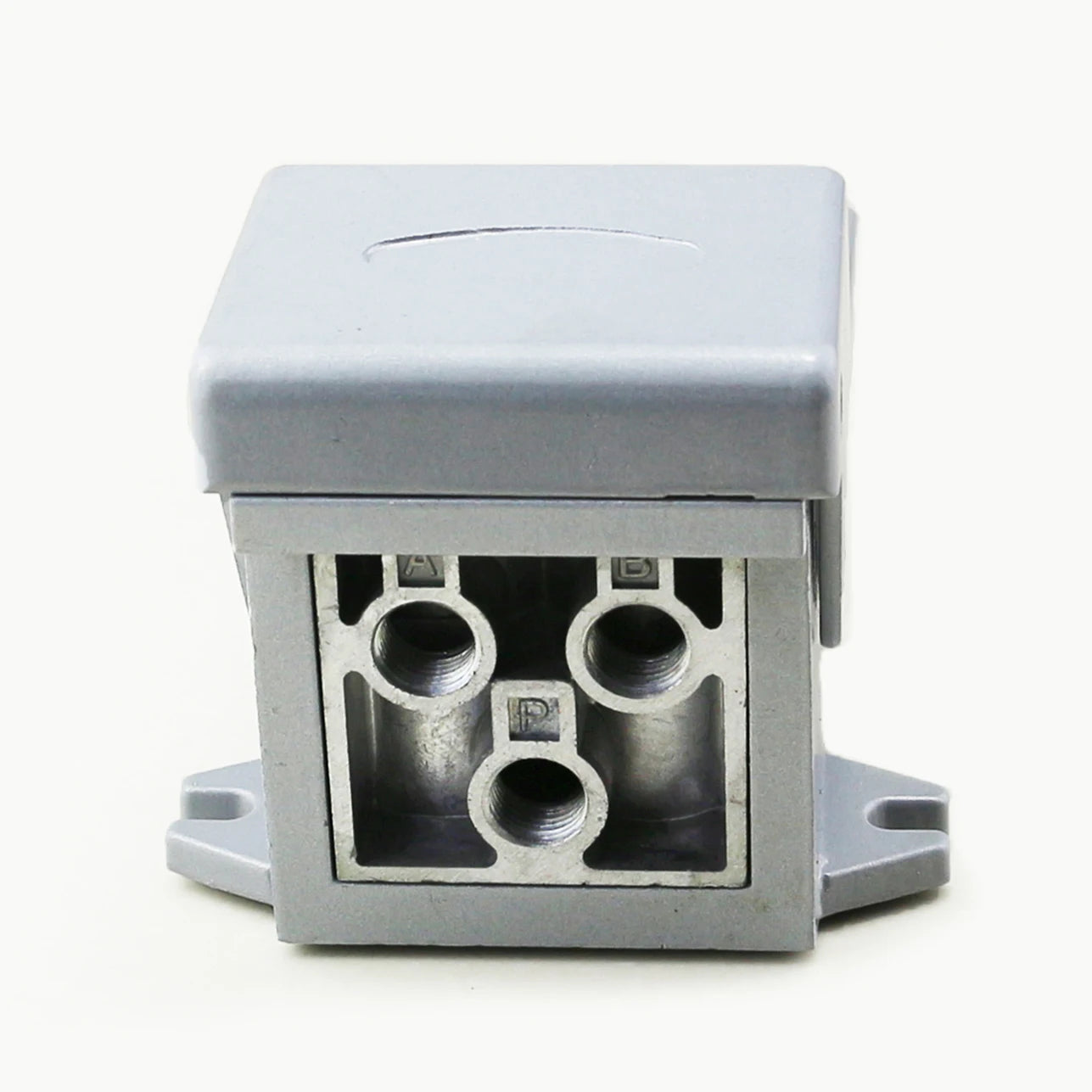

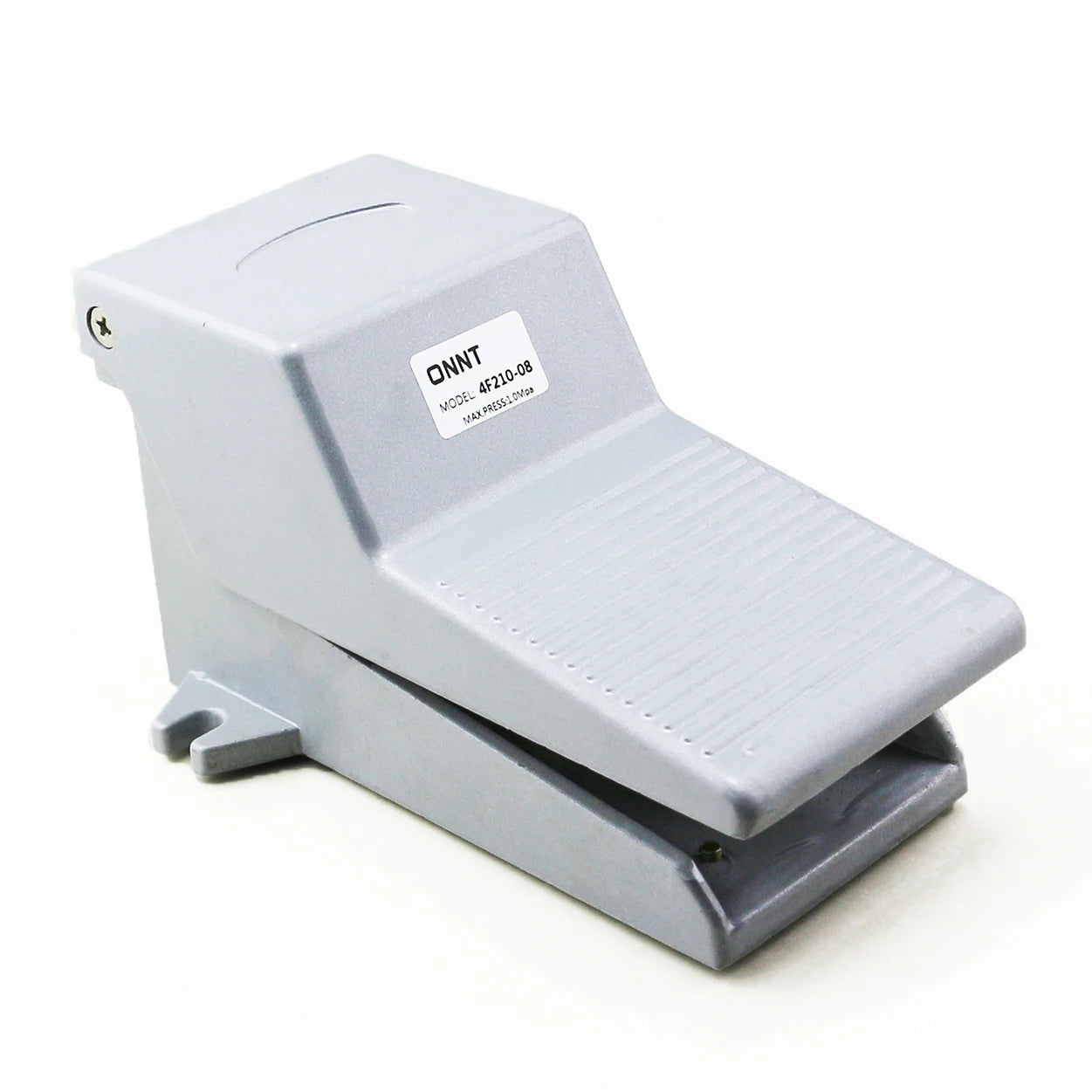

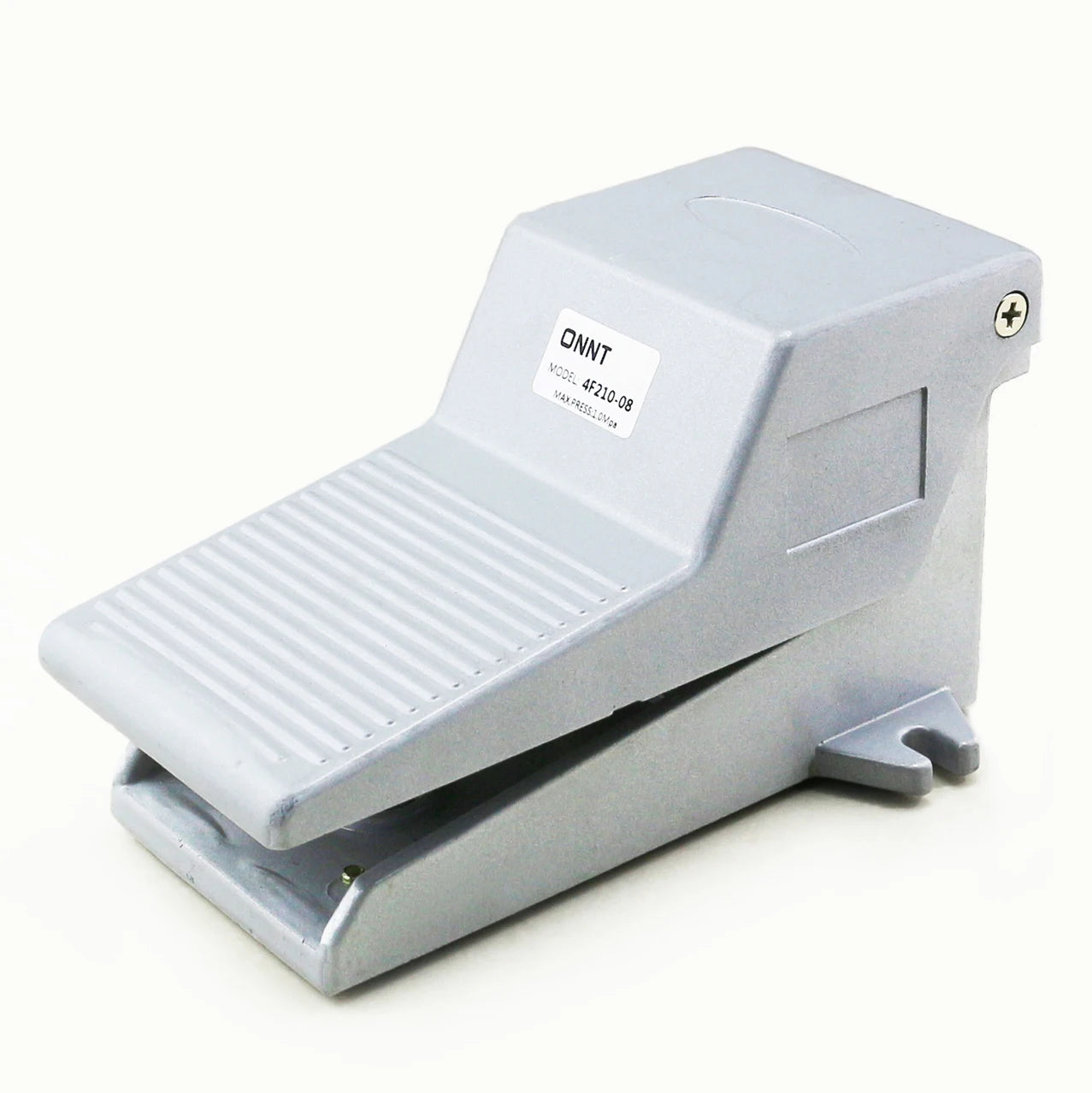

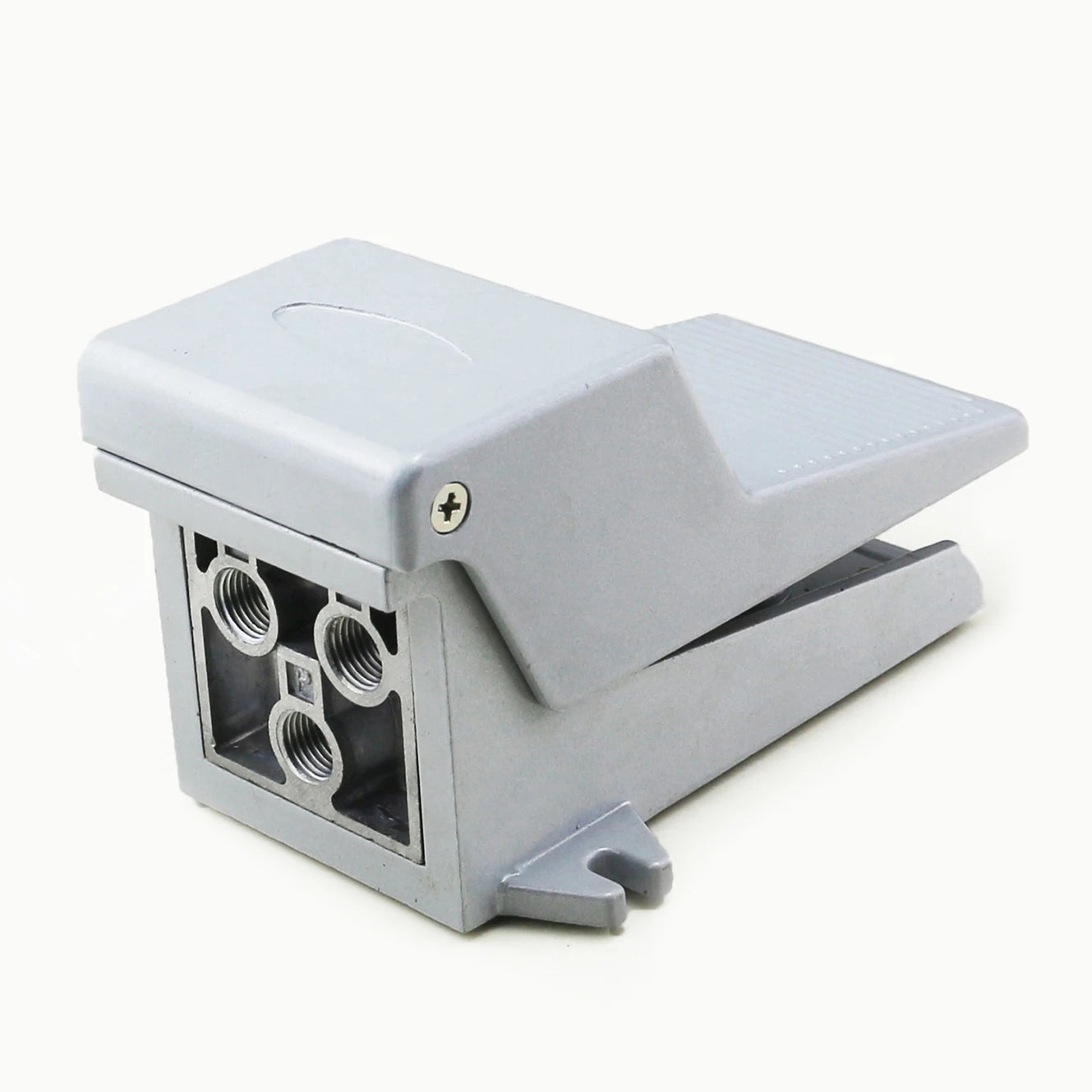

4F210-08 Foot Pedal Valve 4F 5/2 Way Without Lock Acting Type Controlled by Foot Aluminum Alloy Gas OEM Pneumatic Air
$42.90$80.18
Payment Methods
4F210-08 5/2 Way Without Lock Acting Type Controlled By Foot Aluminum Alloy 4F210 08 Foot Pedal Valve 4F
Ordering Code:
Specifications

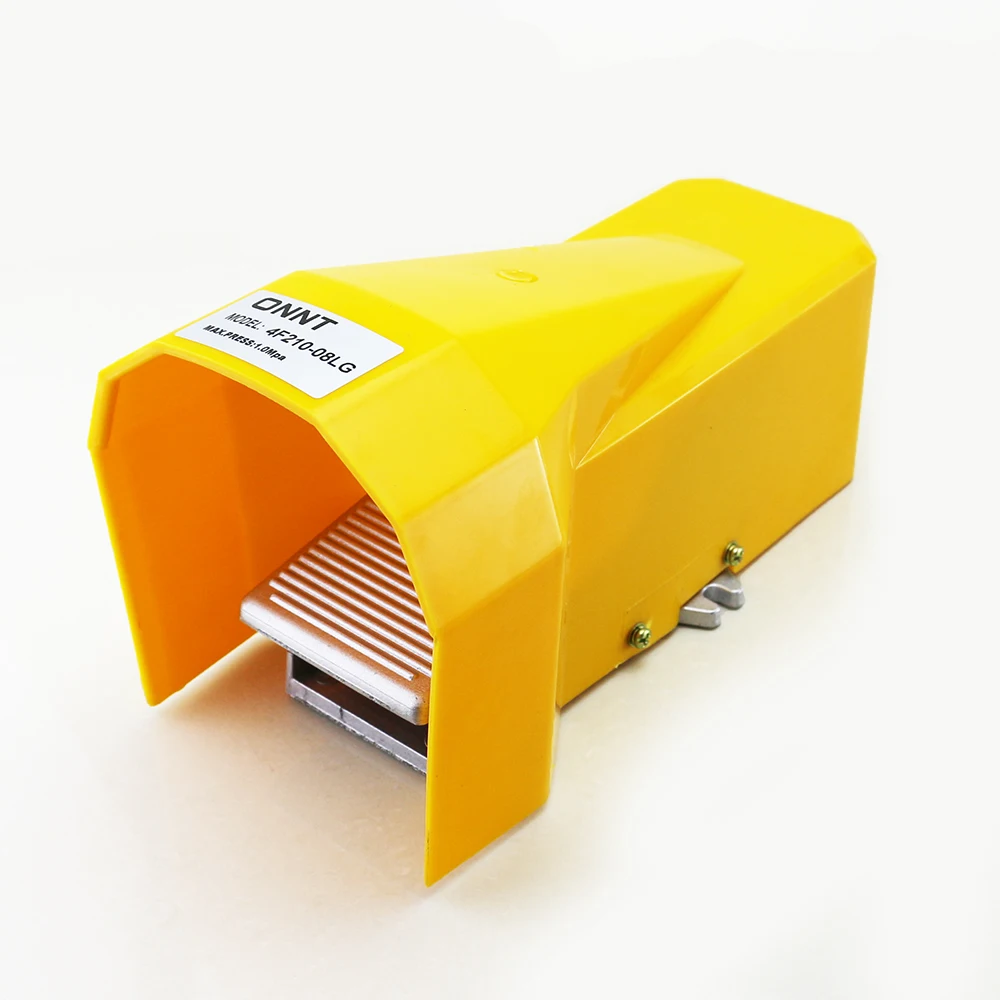

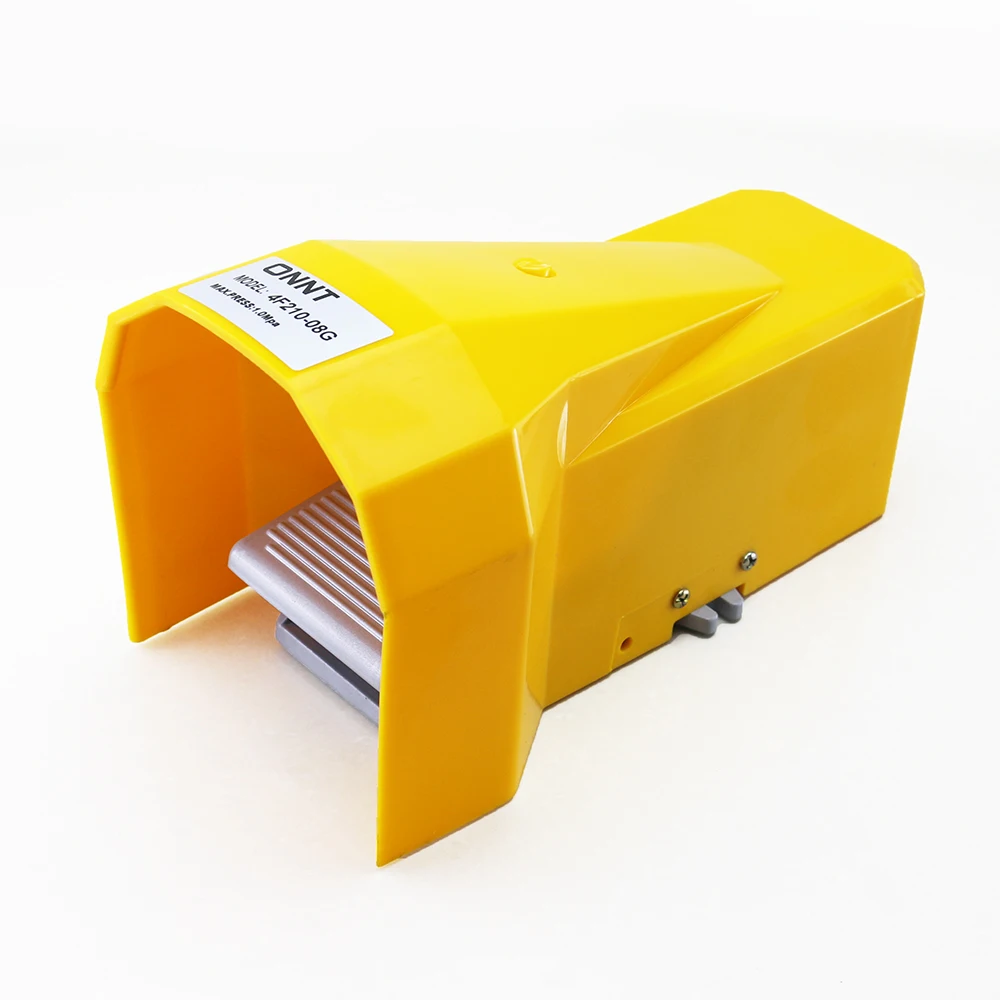

| Model | 4F210-08 | 4F210-08L | 4F210-08G | 4F210-08LG | |||
| Fluid | Air( to be filtered bu 40 µ m filter element) | ||||||
| Acting | Acting type controlled by foot | ||||||
| Port size | 1/4'' | ||||||
| Pressure range | 0~1.0MPa(0~145psi) | ||||||
| Proof pressure | 1.5MPa(215psi) | ||||||
| Temperature °C | -20~70℃ | ||||||
| Material of body | Aluminum Alloy | ||||||
| Lubrication | Not required | ||||||
More products:
Other type for you to choose

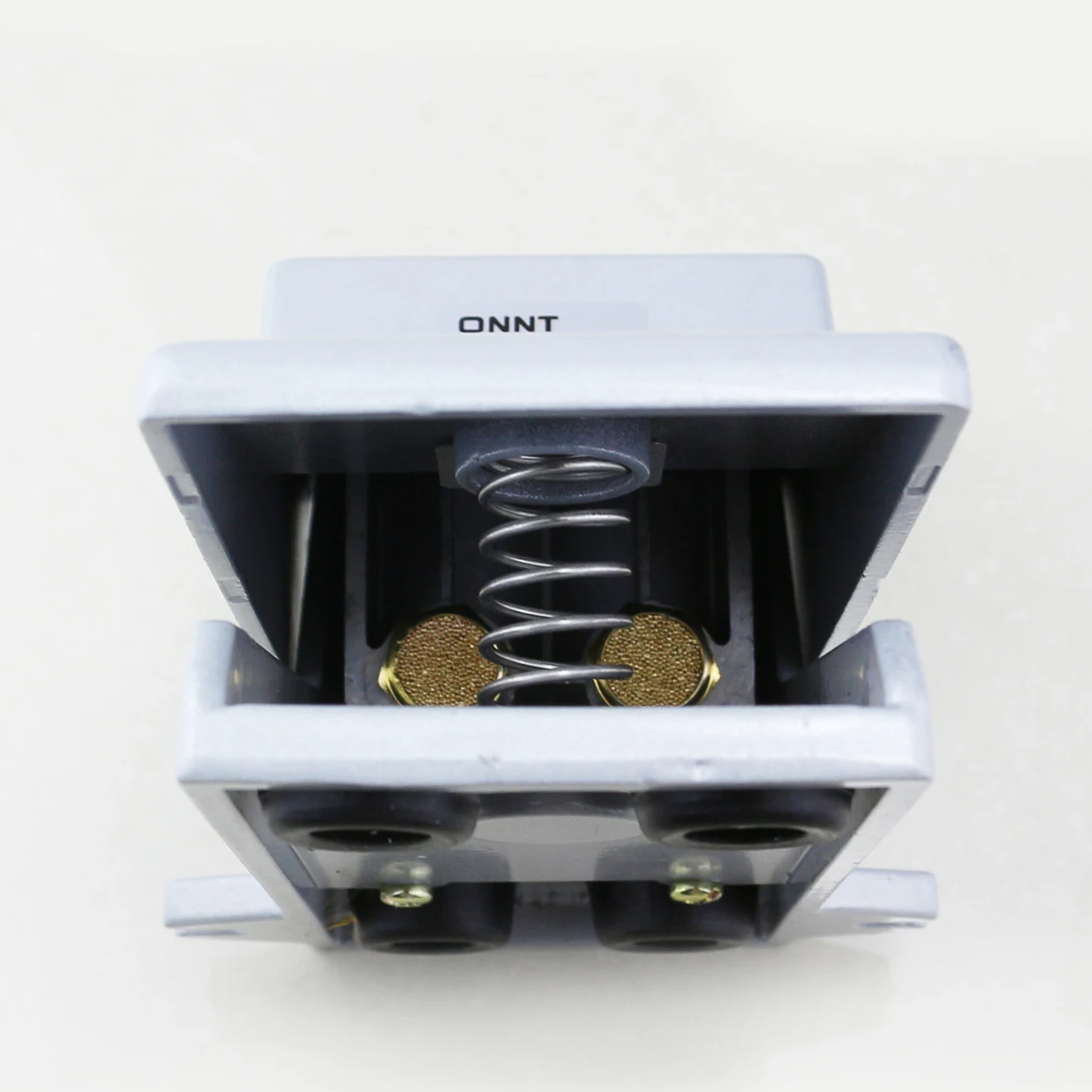

Details Images:

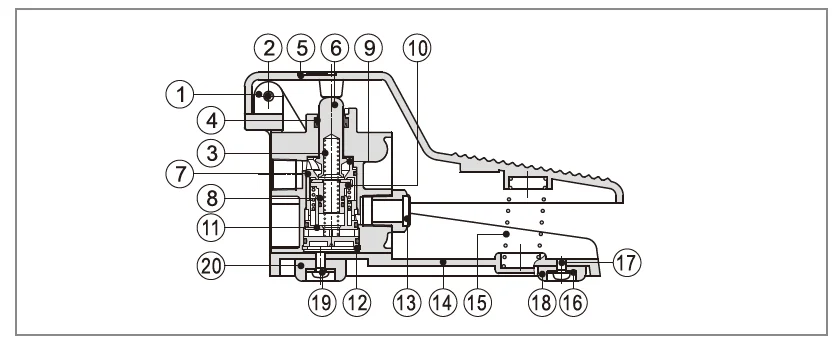

Inner structure and material of major parts:
| NO | Item | NO | Item | NO | Item |
| 1 | Pin | 8 | O-ring | 15 | Pedal spring |
| 2 | Screw | 9 | Front cover | 16 | Washer |
| 3 | Spring | 10 | Piston | 17 | Screw |
| 4 | E clip | 11 | Bottom cover | 18 | Base pad |
| 5 | Pedal | 12 | C clip | 19 | Screw |
| 6 | Spool | 13 | Silencer | 20 | Base pad |
| 7 | O-ring | 14 | Base | | |
| 8 | Axle | 16 | Spring holder | | |

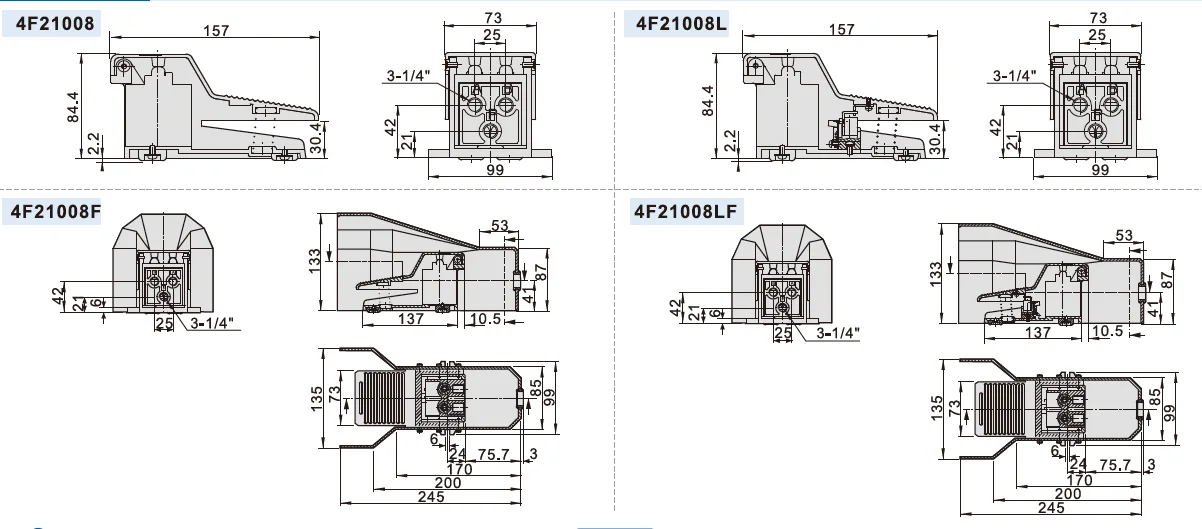

Dimensions
