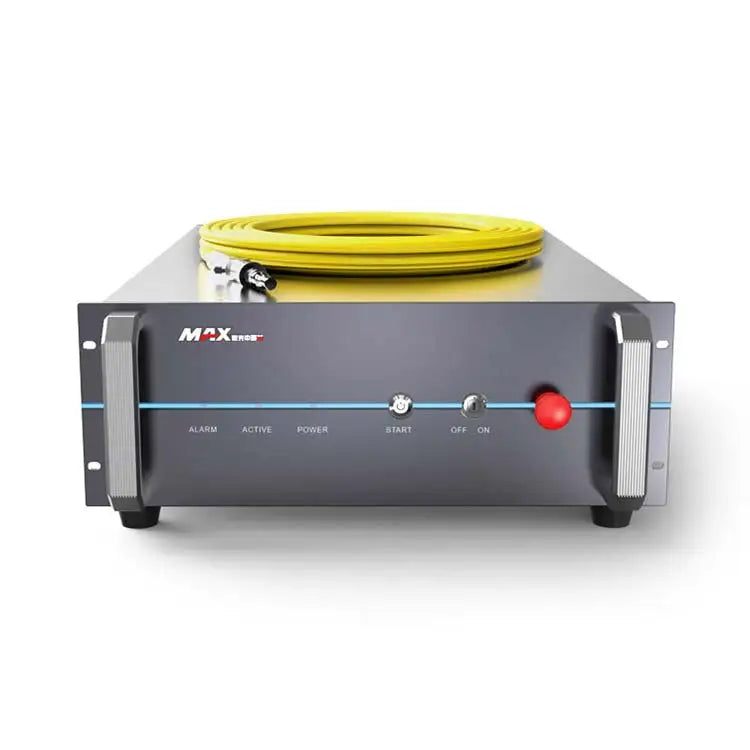

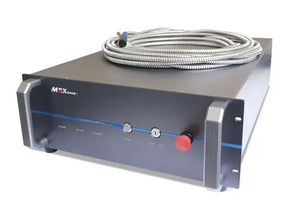

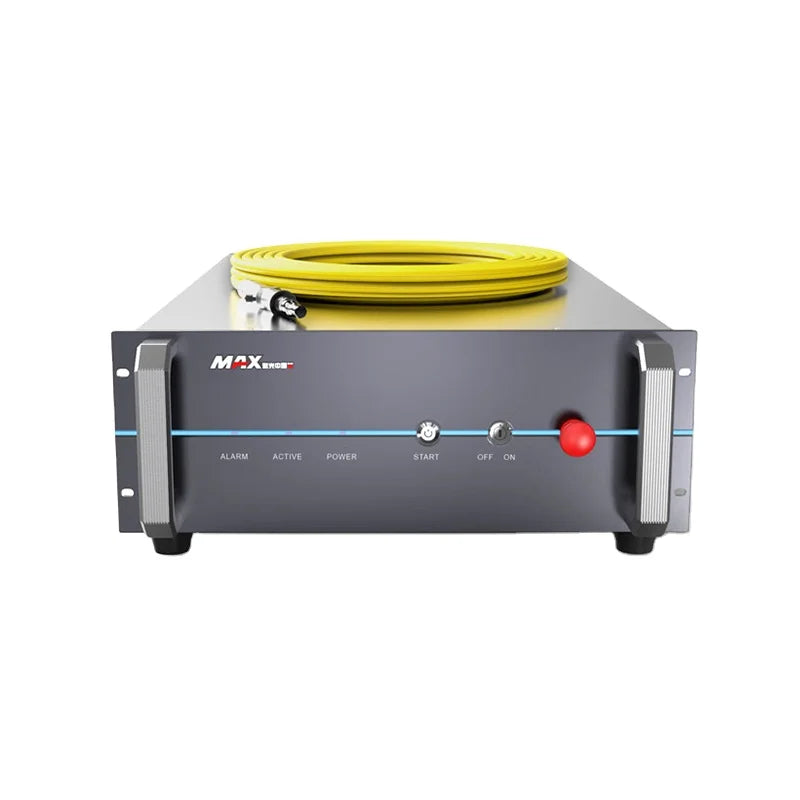

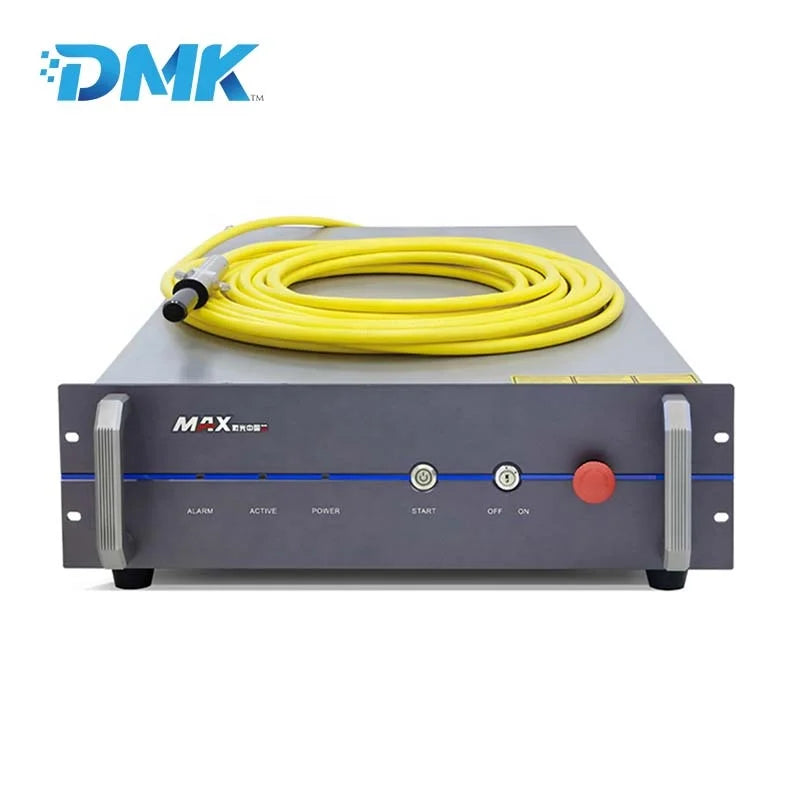

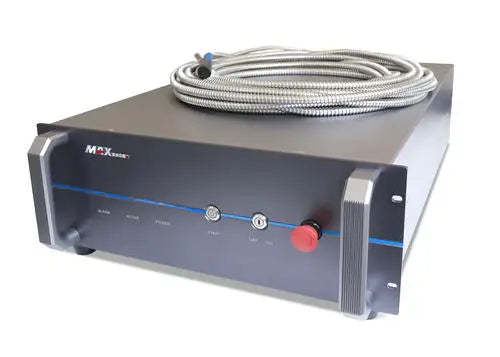

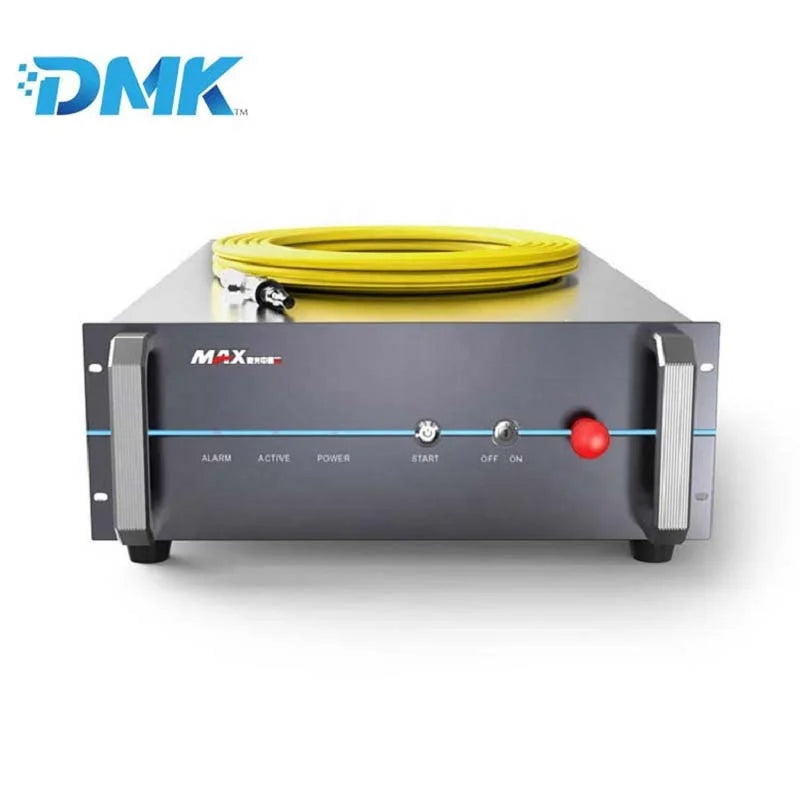

4000W MAX Maxphotonics CW MFSC 6kw Fiber Laser Source Laser Generator Laser Oscillator Power Supply
$43,066.14$100,866.14
Payment Methods
Product Description
MAX MFSC-4000W
MFSC 4000W-6000W single-mode continuous fiber laser adopts modular design, highly integrated system, maintenance-free and high reliability. The laser power is continuously adjustable, with high beam quality and high laser stability. It is an ideal laser source for laser fine cutting, precision welding and other applications. Using optical fiber with QBH head output, it can be used with laser processing heads, galvanometers, etc. to integrate with robots, machine tools, etc., and is widely used in 3C, hardware, medical, automotive, aviation and other fields.
Product Paramenters
| Model
| MFSC-700W | MFSC-800W | MFSC-1000W | MFSC-1200W | MFSC-1300W | MFSC-1500W | ||||||
| Optical Properties | ||||||||||||
| Output Power(W)
| 700
| 800
| 1000
| 1200
| 1300
| 1500
| ||||||
| Operating Mode
| Continuous/ Pulse | |||||||||||
| Power Adjust Range(%)
| 10-100 | |||||||||||
| Wavelemgth (nm)
| 1080(±10) | |||||||||||
| Spectral Bandwidth (nm)
| 3-5 | |||||||||||
| Laser Beam Quality(M2)
| 1.3 (20u-QBH) | |||||||||||
| 2.8 (50u-QBH) | ||||||||||||
| Laser on time(μs)
| 50-100 | 50-80 | ||||||||||
| Laser off time(μs)
| 50-100 | 30-50 | ||||||||||
| Modulation Power(KHz)
| 20 | 20-50 | ||||||||||
| Indicating Red Light Power(μW)
| 150 | |||||||||||
| Output Optical Cable Parameters | ||||||||||||
| Output Mode
| QBH(LOC) | |||||||||||
| Fiber Cable Length(m)
| 15 | |||||||||||
| Fiber Core Diameter
(μm) | 50( 30/100 optional) | |||||||||||
| Bending Radius(mm)
| 200 | |||||||||||
| Electrical Parameters | ||||||||||||
| Voltage(VAC)
| 220 | |||||||||||
| Rated Power Consumption（KW）
| 2.5 | 2.8 | 3.5 | 4.8 | 5.2 | 6.0 | ||||||
| Other Parameters | ||||||||||||
| Working Temperature (oC)
| 10-40 | |||||||||||
| Relative Humidity(%)
| 10-85 | |||||||||||
| Cooling Method
| Water Cooling | |||||||||||
| Storage Temperature (oC)
| -10—60 | |||||||||||
| Size(mm)
| 800*482.6*193.2 | |||||||||||
| Weight(KG)
| 50(±3) | 88 | ||||||||||
Features
MAX MFSC 1000
*Modular design, stable performance
The internal structure adopts the photoelectric module separation design, and the operating performance is more stable.
*Easy maintenance, reduce downtime
Optical modules, electrical modules, control units, and drive units can be directly replaced, upgraded, and maintained at the client.
*Customized to meet various needs
Users can choose different size of fiber core diameters in accordance with the different process requirements to meet differentiated processing needs.
*Uniform spot energy distribution
Reduce welding spatter, thick plate cutting ability is more stable.
*Multiple applying scenarios
It can be used with laser processing heads, galvanometers, etc. for system integration with robots, machine tools, etc.; Laser fine cutting, precision welding processing, used in 3C, hardware, medical, automotive, aviation and other fields.
