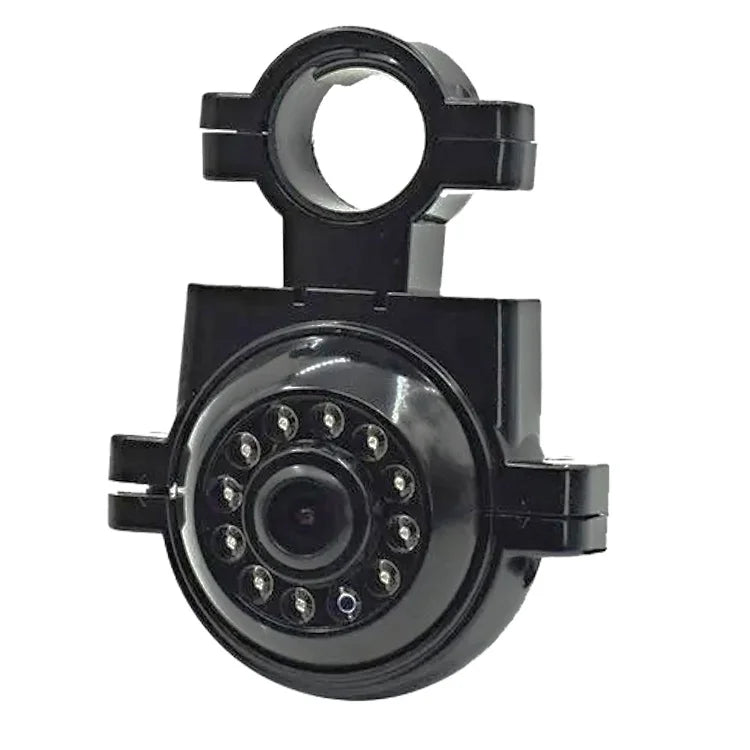

Model
|
MX-AHDM-705/MX-AHDH-705
|
Image sensor
|
1/2.9″ CMOS AHD
|
Resolution
|
720P/1080P
|
Signal system
|
PAL-25fps,NTSC-30fps
|
Pixel
|
PAL/NTSC:1280(H) x 720(V)/1920(H) x 1080(V)
|
Lens
|
Standard 2.8mm lens
|
Minimal illumination
|
0Lux
|
Backlight compensation
|
Built-in
|
Shutter speed
|
1/53~1/100,000(Sec)
|
White balance
|
Automatic tracking
|
noise-signal ratio
|
>38db (AGC OFF)
|
Video output
|
1.0Vp-p,75Ω
|
Power
|
DC12V±10%
|
Consumption
|
≤3W
|
working temperature
|
-20℃ ~ +70℃
|
Infrared wavelength
|
850nm
|
Infrared lamp quantity
|
Φ5 11LED light
|
Infrared lamp Irradiation distance
|
10M
|
Infrared lamp turn on brightness
|
>3Lux
|
Connector
|
VIDEO OUT (Appropriate aviation connector)
|
Size
|
94.68mm*71.58mm*41.5mm
|
