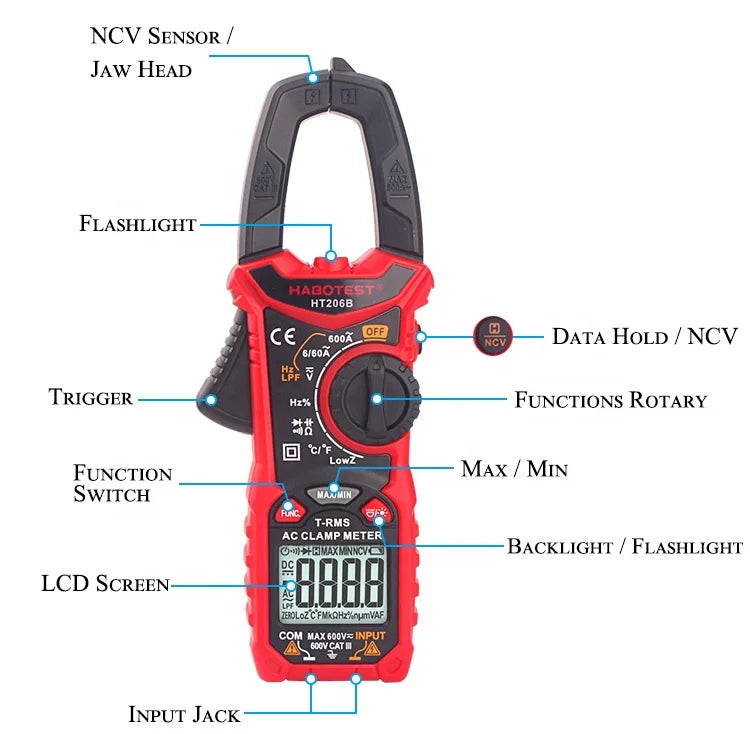

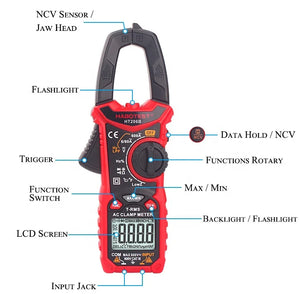

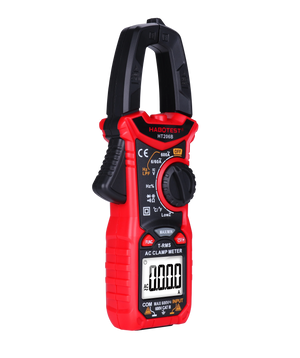

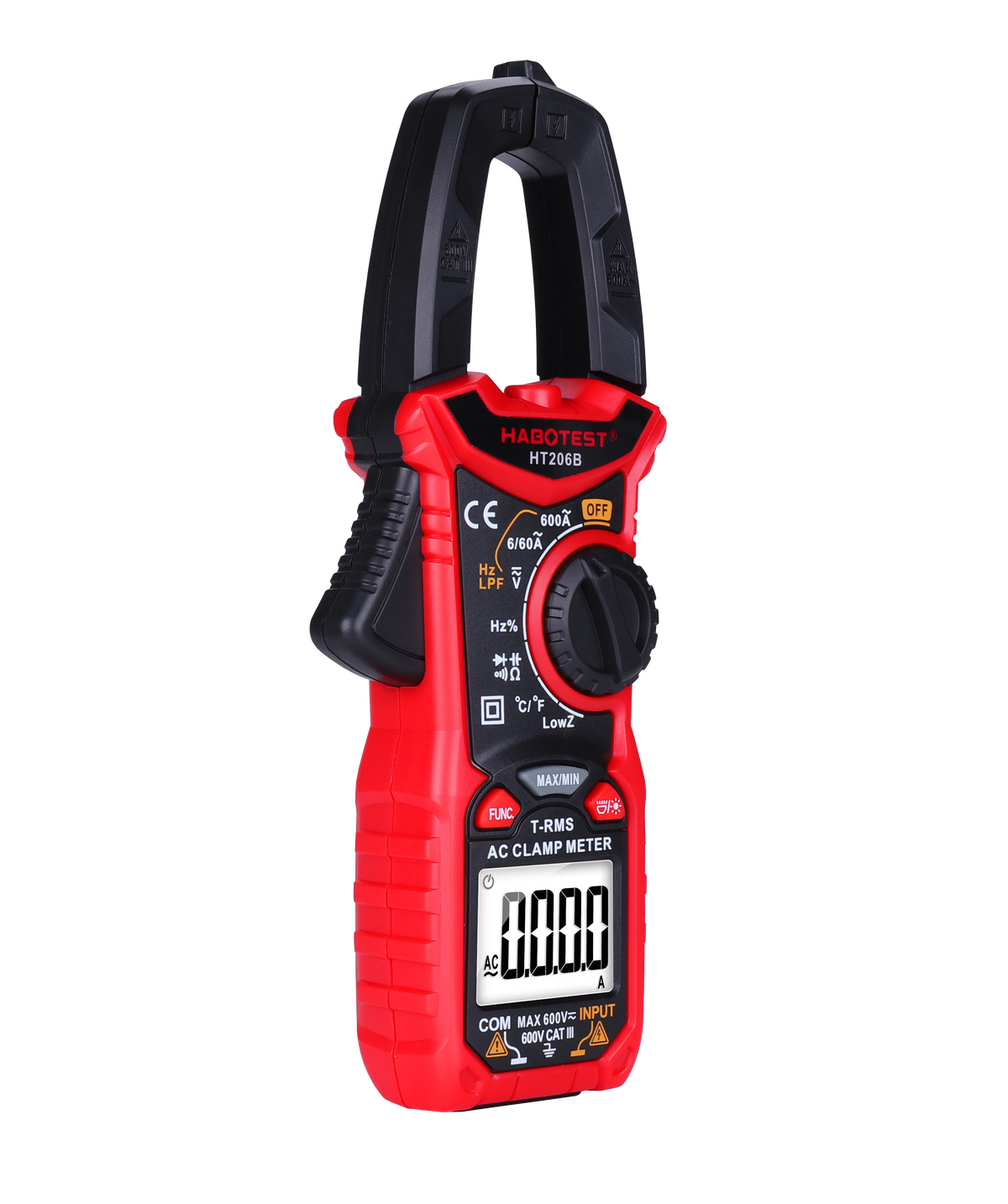

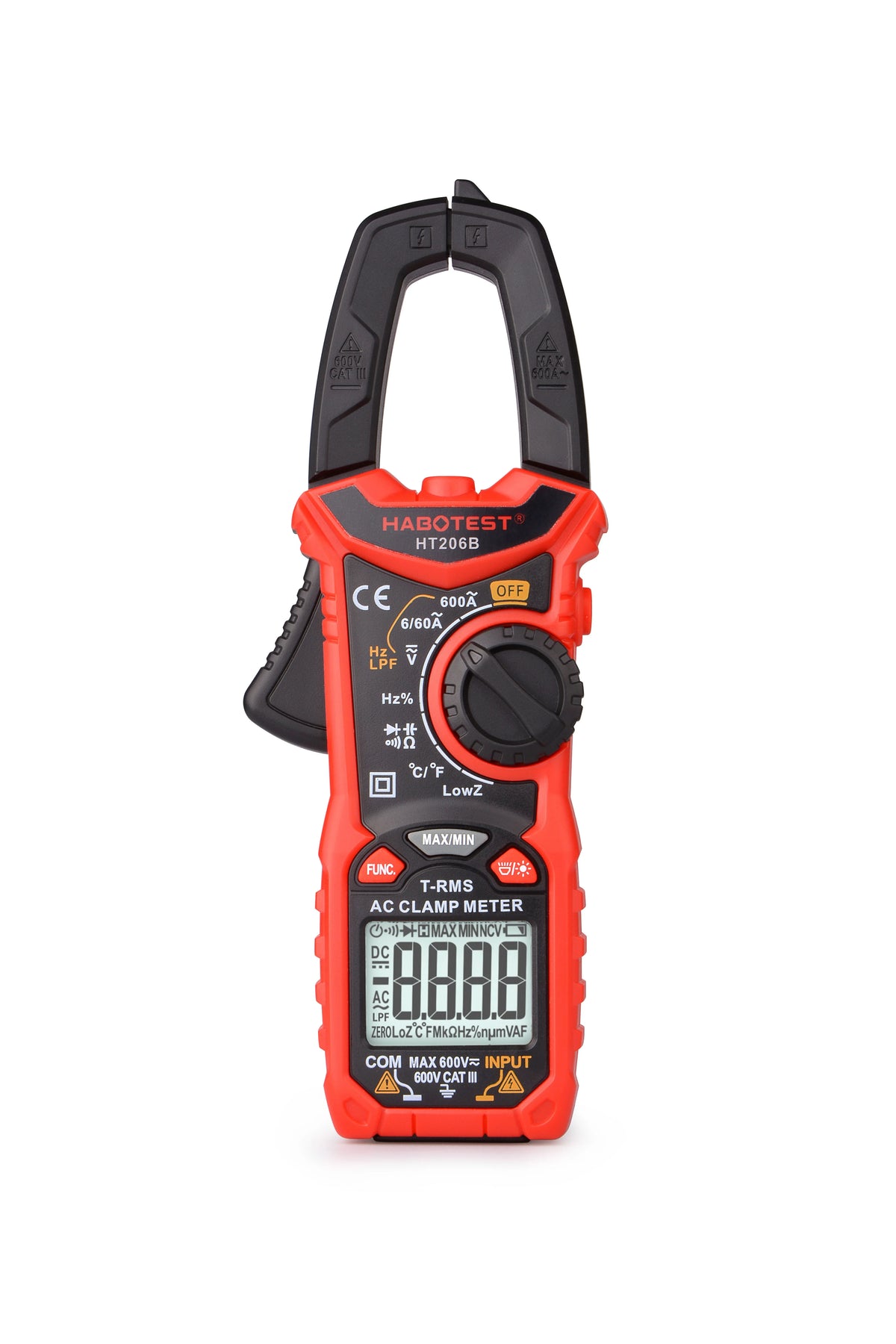

Habotest HT206B 6000 Counts Autorange AC Digital Clamp Meter with TRMS Temperature LPF Test
$43.10$111.44
Payment Methods
Product Description

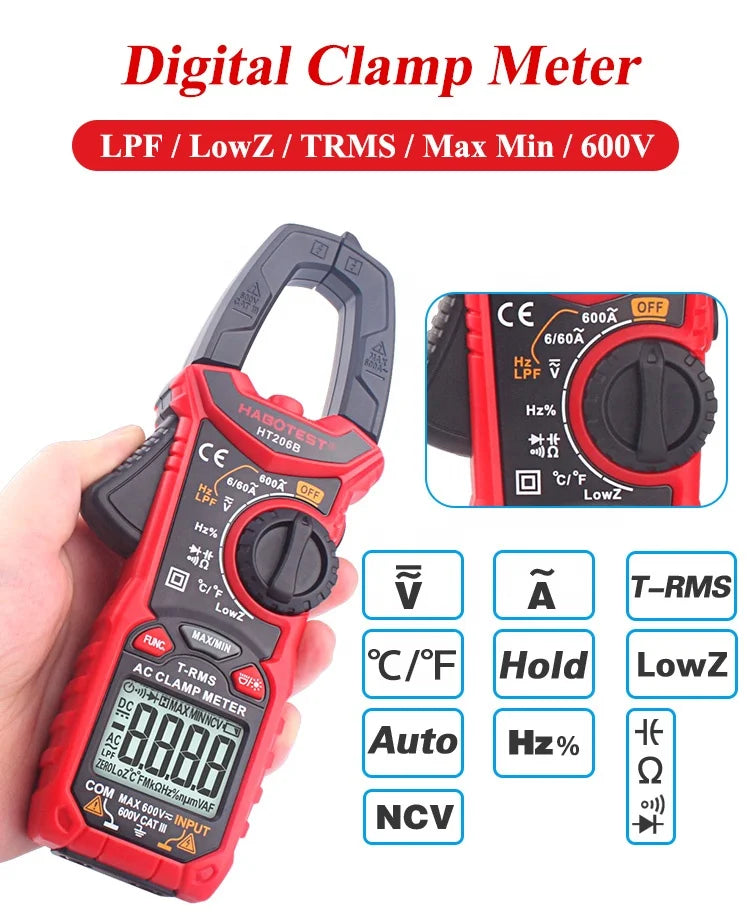

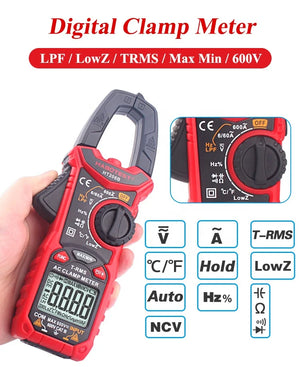

2020 Top Quality Habotest HT206B 6000 Counts Autorange AC Digital Clamp Meter with TRMS Temperature LPF Test
Specification:6000 Counts
AC DC Voltage Range:0-600V
AC DC Current Range:0-6000
Resistance:600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Capacitance Range:10nF/100nF/1μF/10μF/100μF/1mF/10mF/100mF
Auto Range
Frequecy Range:10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz
Diode Test
Continuity
Data hold
NCV
TRUE RMS
LPF
Max/MIN
LowZ
| Specification | HT206A | HT206B | HT206D |
| DC Voltage | 600V | 600mV/6V/60V/600V | 600mV/6V/60V/600V |
| AC Voltage | 600V | 6V/60V/600V | 6V/60V/600V |
| DC Current | × | × | 6A/60A/600A |
| AC Current | 6A/60A/600A | 6A/60A/600A | 6A/60A/600A |

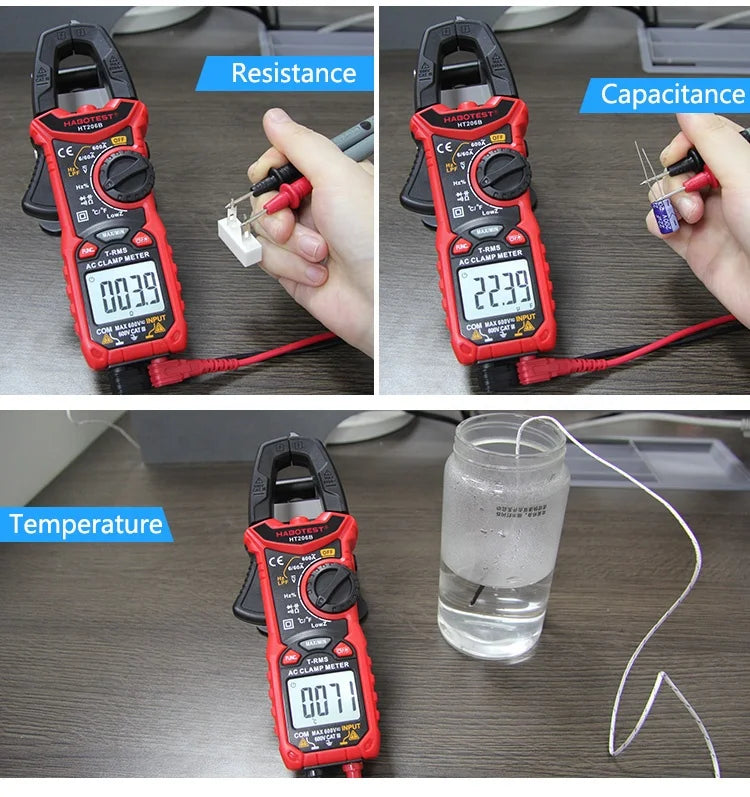

| Resistance | 6kΩ/60kΩ | 6kΩ/60kΩ | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
| Capacitance | × | 10nF/100nF/1μF/10μF/100μF/1mF/10mF/100mF | 10nF/100nF/1μF/10μF/100μF/1mF/10mF/100mF |
| Frequancy | × | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz |
| Duty Cycle | × | 1%~99% | 1%~99% |
| Temperature | × | -40℃~1000℃,-40℉~1832℉ | -40℃~1000℃,-40℉~1832℉ |
| Display Count | 6000 counts | 6000 counts | 6000 counts |
| Range | Manual | Auto | Auto |
| Continuity | Yes | Yes | Yes |
| Diode Test | No | Yes | Yes |
| Data Hold | Yes | Yes | Yes |
| NCV | No | Yes | Yes |
| Backlight | Yes | Yes | Yes |
| Flashlight | Yes | Yes | Yes |
| Low battery indication | Yes | Yes | Yes |
| Auto Power Off | Yes | Yes | Yes |
| True RMS | No | Yes | Yes |
| Full Protection | Yes | Yes | Yes |
| LPF | No | Yes | Yes |
| DCA Zero | No | No | Yes |
| Max/Min | Yes | Yes | Yes |
| Lowz | No | Yes | Yes |
| Power | 2 x 1.5V AAA Battery | 2 x 1.5V AAA Battery | 2 x 1.5V AAA Battery |

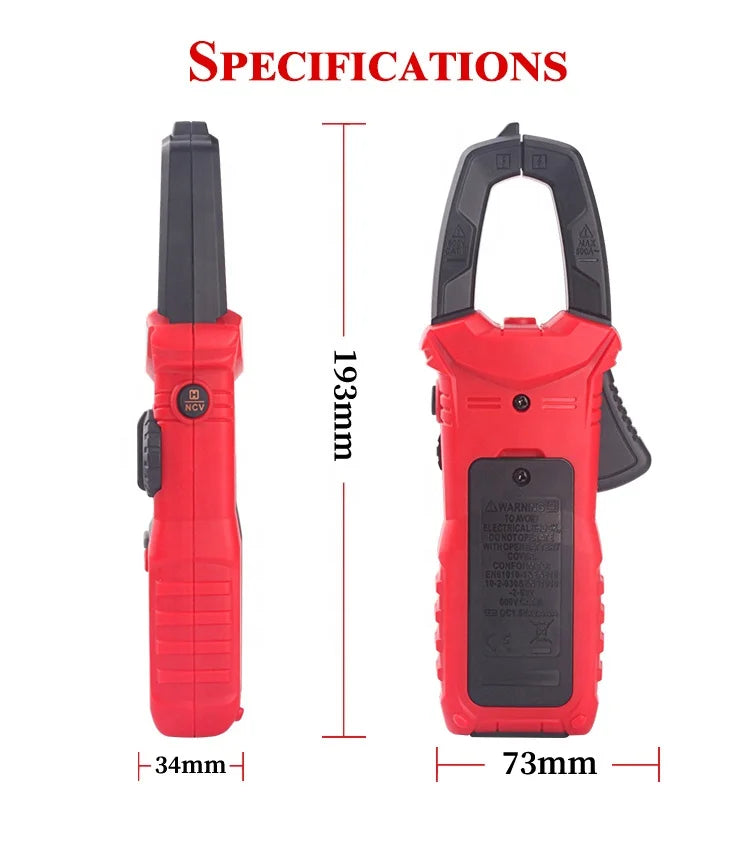

| Size | 193mmX73mmX34mm | 193mmX73mmX34mm | 193mmX73mmX34mm |
| Jaw Size | 26mm | 26mm | 26mm |
|
Safety Rating | EN61010-1,-2-030 EN61010-2-033,EN61326-1 CAT III 600V | EN61010-1,-2-030 EN61010-2-033,EN61326-1 CAT III 600V | EN61010-1,-2-030 EN61010-2-033,EN61326-1 CAT III 600V |
