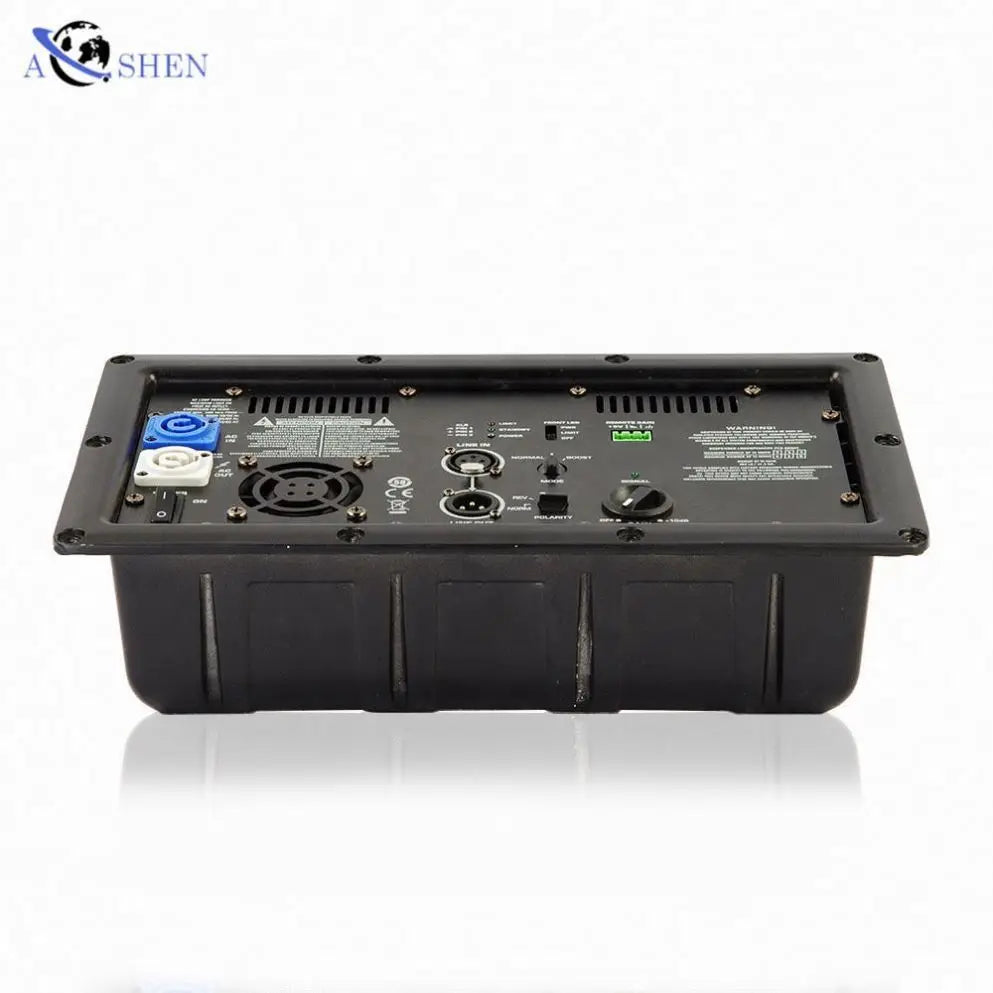

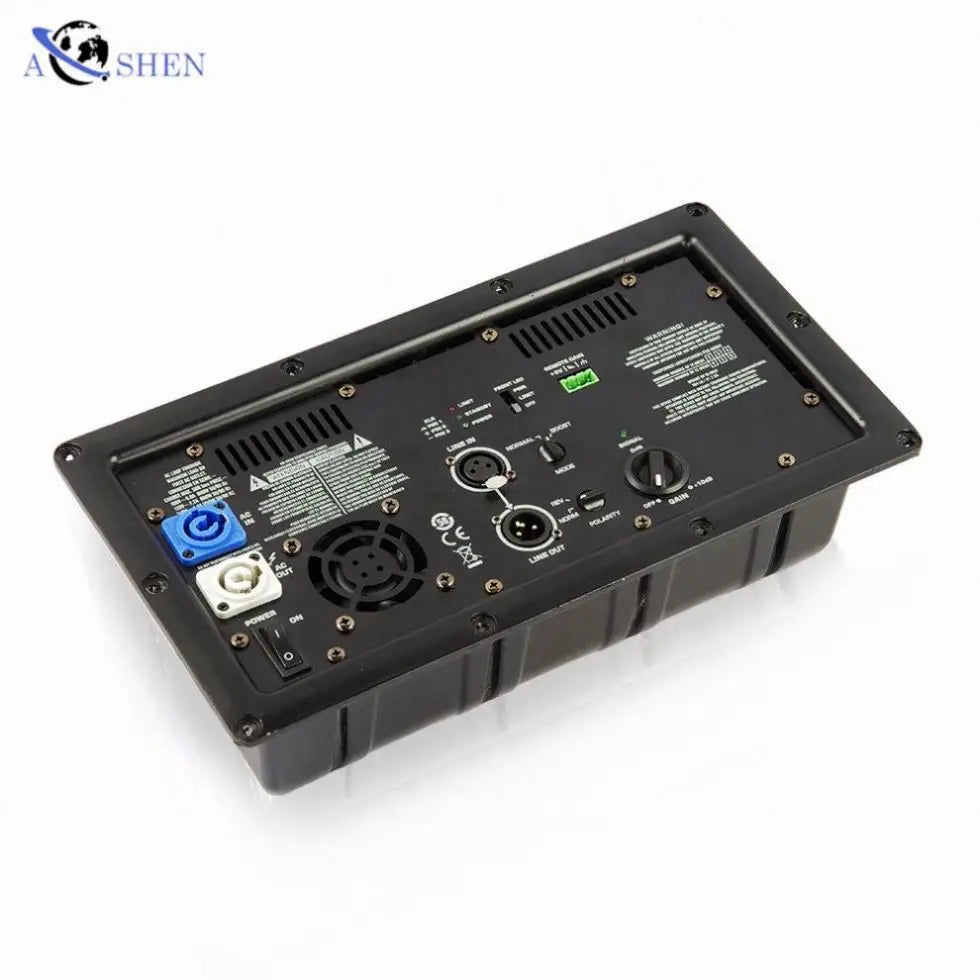

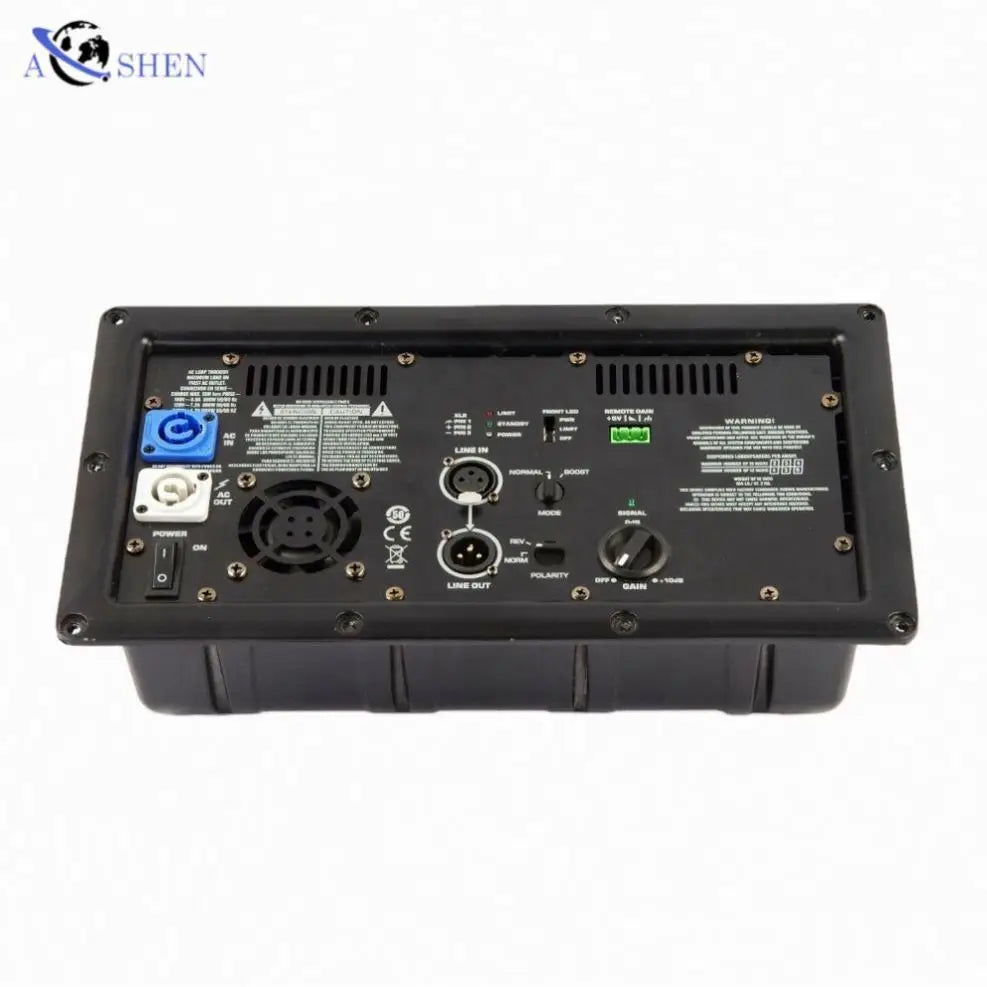

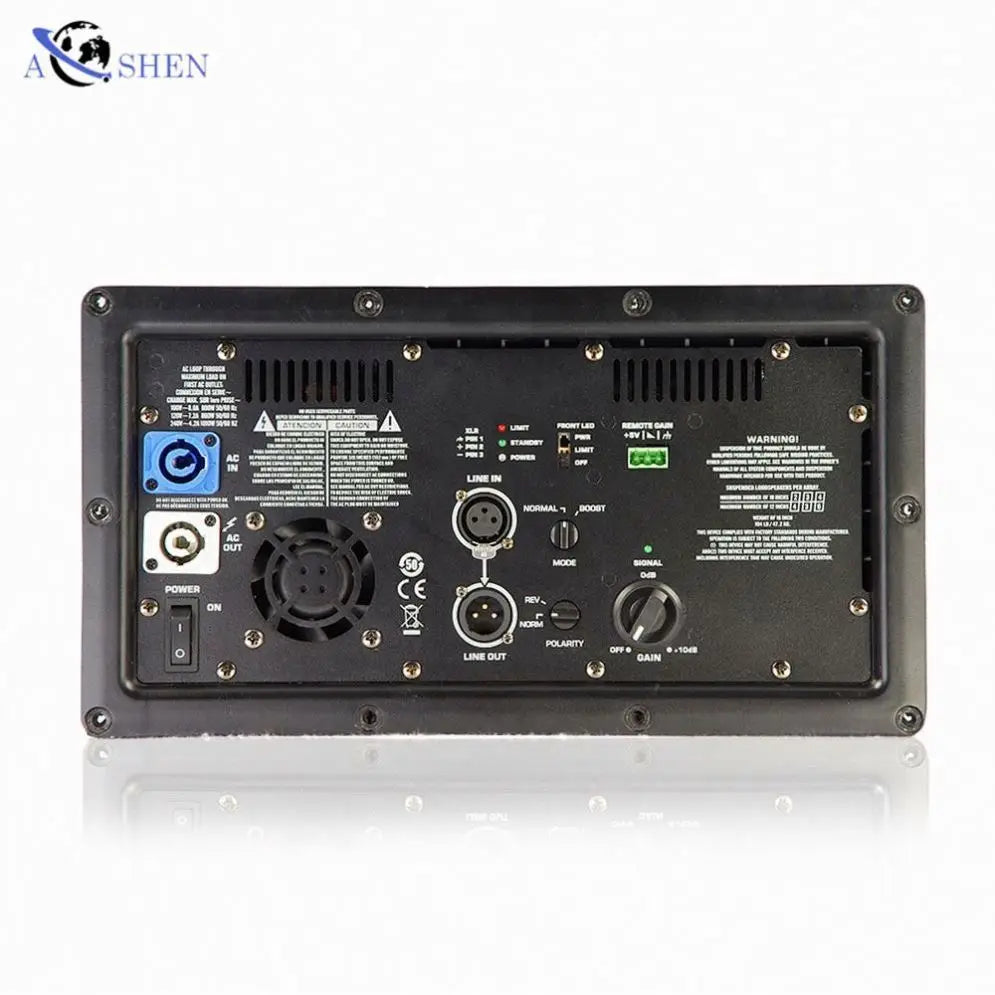

AOSHEN Factory Class D 1000W High Power Amplifier Module KLA181A For Bass Speaker

Type
Payment Methods
American Express Diners Club Discover JCB Mastercard PayPal Venmo Visa

AOSHEN Factory Class D 1000W High Power Amplifier Module KLA181A For Bass Speaker

We are a DJ and stage equipment manufacturer.

Manufacturer Of  Professional Audio Amplifiers, mixers, equalizer, limiter and crossover.

We support OEM and ODM.

If you have any special requirements please feel free to contact us.





  • Onboard mixer with two combo XLR and ¼” inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output

  • Extensive DSP enhances system performance

  • DMT(Directivity Matched Transition) provides for matched LF and HF coverage across the entire listening area, eliminating unnatural "dead" or "hot" frequency zones.

  • Intrinsic Correction, first featured in our high-end line-array products maps 65–75 spatially-averaged measurements to IIR and FIR filters that actively adjust time,  frequency and amplitude response to a maximally flat band pass target. The result is a speaker that behaves equally well across the entire sound field.

  • DEEP and excursion limiting allow for extended low-frequency response by actively managing low-frequency transients without degradation of the underlying signal or adjacent frequencies.

  • GuardRail protection protects both the amplifier module and your performance from unnatural and destructive clipping.


Model

KLA181A power module

Power Output

1000 W Class D continuous

Input Impedance

XLR: 40 kΩ balanced / 20 kΩ unbalanced

Controls

Power, Attenuation, LF Mode (Normal/DEEP), Polarity (Normal/Reverse), Front LED (Pwr/Limit/Off)

Indicators

Power, Signal, Standby, Limit

Connectors

Balanced female XLR line level input, Balanced male XLR full range line level out, Remote attenuation control, Locking powerCON power connector AC In, Locking powerCON® power connector AC Out

Cooling

On demand, 50 mm variable speed fan

Amplifier Protection

Thermal limiting, output overcurrent, overtemperature muting, GuardRail

Transducer Protection

Thermal limiting, excursion limiting

AC Power Input

Universal power supply 100–240 VAC, 50 to 60 Hz

AC Power Consumption
(1/8 of full power)

100 VAC, 2.3 A
120 VAC, 2.01 A
230 VAC, 1.13 A

G weight

2.8KG

Dimensions (W*H*D) mm

395*230*150

Output Circuitry

Class D





Product Description



KLA181A 1000W professional Power AMP Module Bass Speaker Class D Power Subwoofer Amplifier KLA181A 1000W professional Power AMP Module Bass Speaker Class D Power Subwoofer Amplifier KLA181A 1000W professional Power AMP Module Bass Speaker Class D Power Subwoofer Amplifier KLA181A 1000W professional Power AMP Module Bass Speaker Class D Power Subwoofer Amplifier
