| Model | NV980 | Comparasion Advantages | ||
|
Objective Dia. |
31MM |
31MM | Large-aperture objective lens, corresponding to high-resolution photosensitive chip, the picture is more realistic
| |
|
CMOS size |
1/3"CMOS |
1/3"CMOS |
1/3"CMOS | |
|
LCD Screen size |
2.3 inch |
3 inch |
3 inch | |
|
Light Sensitivity |
0.006lux |
0.005lux |
0.001lux | 0.001 lux is the strongest light sensitivity,Stronger light sensitivity of NV980, can see things more clearer in a darker
environment |
|
optical magnification |
3.5X |
5X |
5X | Large aperture objective lens, high magnification can see farther and clearer
|
|
Digital magnification |
2X |
8X |
8X | High magnification, can see farther and clearer
|
|
Infrared lens |
Not adjustable |
Not adjustable |
Adjustable, gather and diverge | Adjustable IR lens, can diverge and gather infrared light, to achieve a better fill light effect
|
|
Video resolution |
640X480 |
1080P 1920X1080 |
1080P 1920X1080 | The higher the resolution, the better the video effect
|
|
Photographic image resolution |
640X480 |
3200X1800 |
3200X1800 | The higher the resolution, the better the picture looks
|
|
Display resolution |
320X240 |
640X360 |
480X800 | The higher the resolution, the clearer and brighter the vision
|
|
Color |
colorful/black and white |
colorful/black and white |
colorful/black and white | |
|
Color switching method |
Turn on the IR in black and white, turn off the IR, in color |
Turn on the IR in black and white, turn off the IR, in color |
Turn on the IR in black and white, turn off the IR, in color | |
|
USB interface |
Micro USB |
Micro USB |
Micro USB | |
|
complete dark environment visible range |
3-400m |
1.5-400m |
2.0-500m | Through the large-aperture objective lens, high magnification, better night vision ability, and adjustable infrared light lens, it
can help us see farther in the dark night |





| Catalog
| Function Description
|
| Optiacal performance
|
Magnification 5X
|
|
Digital Zoom Max 8X
| |
|
Objective Aperture 31mm
| |
|
Lens aperture f1.2
| |
|
IR LED ZOOM 10X
| |
|
2m~∞ in daytime; Viewing in the darkness up to 500M (full dark)
| |
| Imager
|
HD LCD
|
|
OSD menu display
| |
|
VIDEO 1920X1080P
| |
|
Image quality 3200X1800
| |
| The image sensor
|
High-sensitivity CMOS Sensor
|
|
Size 1/3''
| |
|
Resolution 1920X1080P
| |
| IR LED
|
3W Infared 850nm LED (Can be adjusted)
|
| TF Card
|
Support SDHC 8GB~128GB TF Card
|

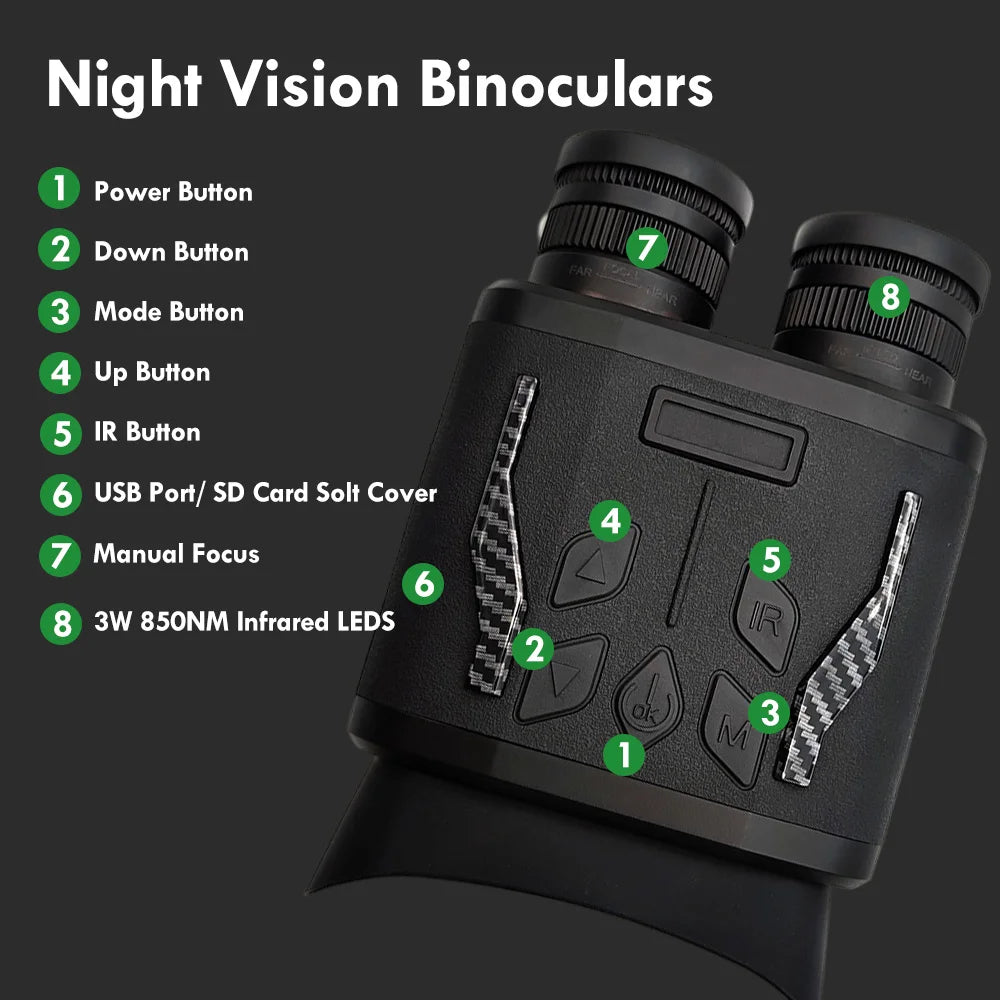

| Button
|
Power on/off
|
|
Enter
| |
|
Mode selection
| |
|
Zoom
| |
|
IR switch
| |
| Function
|
Taking pictures
|
|
video/The recording
| |
|
Preview picture
| |
|
Video playback
| |
| Power
|
External power supply - DC 5V/2A
|
|
1 pcs 18650#
| |
|
Battery life: 12 hours working time with IR off
| |
|
Low battery warning
| |
| System
|
photo options
|
|
Photosensitive setting
| |
|
Exposure compensation
| |
|
Recording setting
| |
|
Time setting
| |
|
Set to turn it off
| |
|
Language selection
| |
|
format
| |
|
System Rest
| |
|
Light Freq. 50/60HZ
| |
|
Light-up setting
| |
|
Version
|
