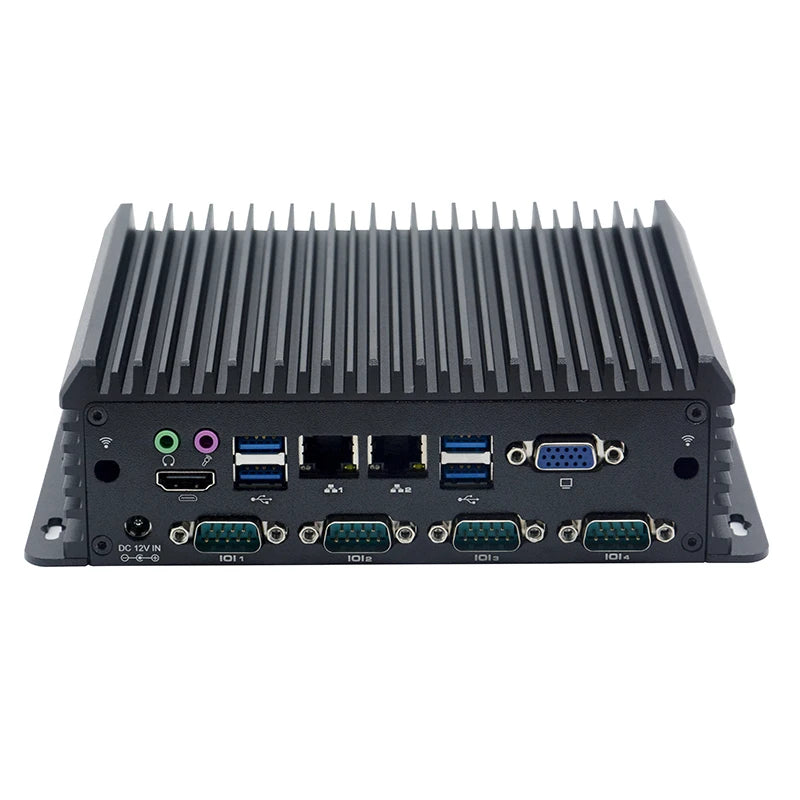

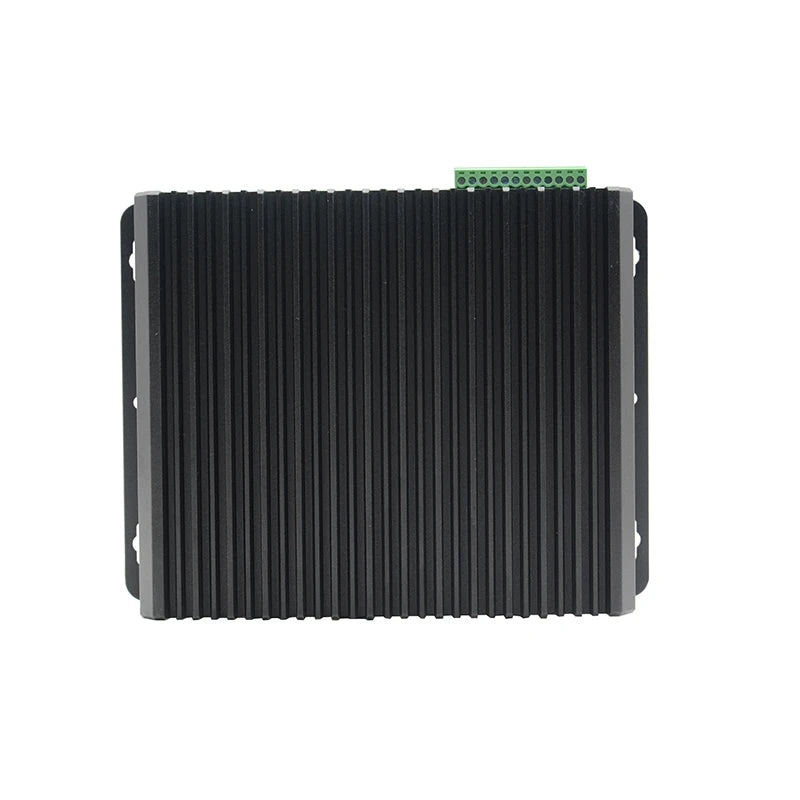

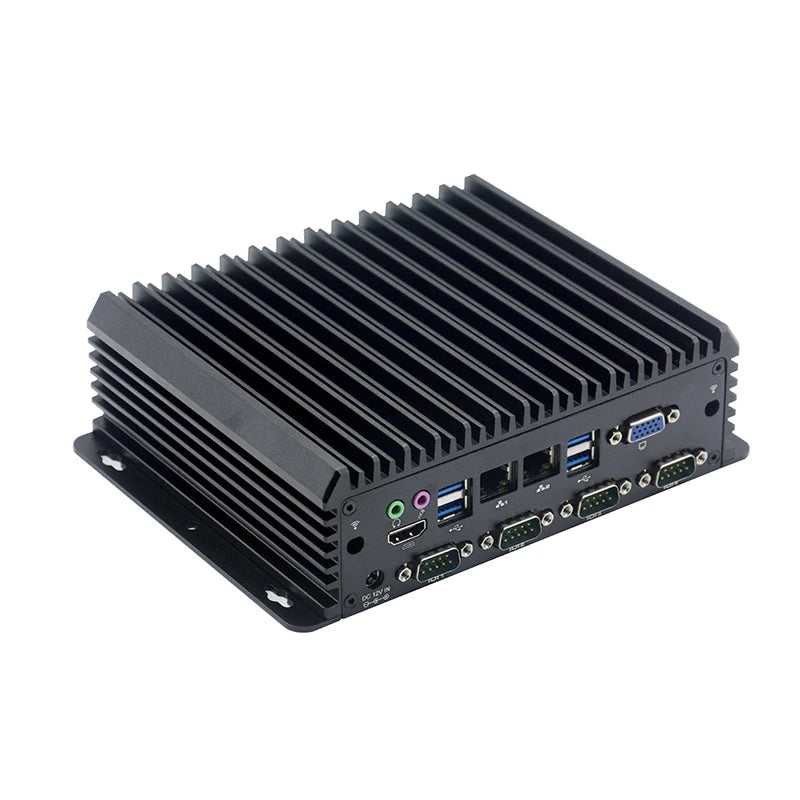

Factory embedded desktop small computer Intel J1900 CPU server Win10 Linux Fanless Industrial Mini PC
$245.51$517.31
Payment Methods
Product specifications
|
Case |
Material/structure
|
All aluminum alloy without fan
| ||
|
Product Form
|
colour
|
Bright black
| ||
|
Dimensions
(length, width, height) |
174mm*148mm*57mm
| |||
|
LCD
|
Weight (bare metal net weight)
|
1.35KG
| ||
|
installation
|
Desktop/embedded
| |||
|

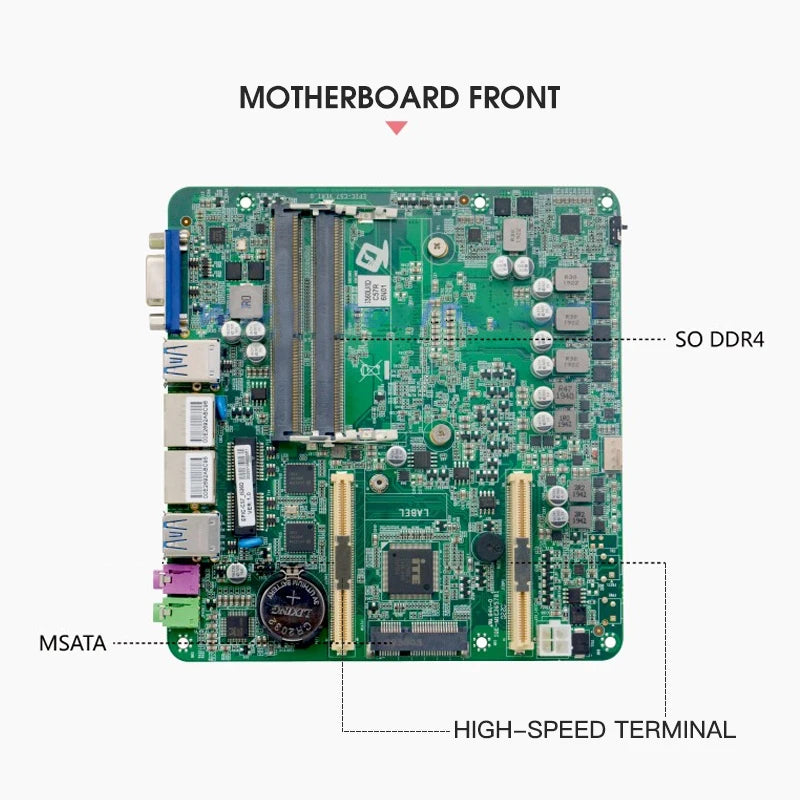

Motherboard |
CPU
|
J1900/2.0GHz
| ||
|
System chip
|
Based on Intel®Skylake-U SOC platform
| |||
|
display
|
Integrated Intel® Iris™ Graphics 540 supports DirectX 12 OpenGL 4.4
| |||
|
RAM
|
2*DDR4 SODIMM memory slot, support dual-channel 2133MHz memory, maximum support 32GB
| |||
|

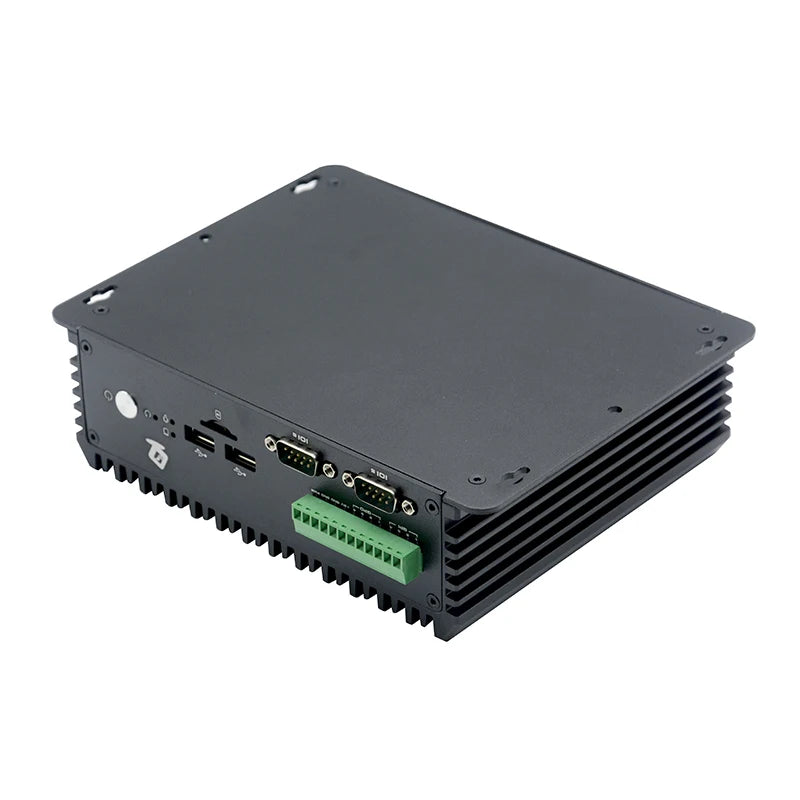

Front panel interface |
POWER
|
1*Power switch, 1*Reset switch
| ||
|
AC LOSS
|
1*AC LOSS (Toggle switch when power on)
| |||
|
USB
|
5* USB2.0, 1*USB3.0, 1* built-in USB dongle
| |||
|
Phoenix terminal
|
1*12pin, support four in and four out GPIO, switch, 5V
| |||
|
SIM
|
1* SIM card slot, 3G/4G module application
| |||
|
Rear panel interface |
Display interface
|
1*VGA interface,
| ||
|
LAN
|
2*Intel® WGI211AT gigabit network card, support Wake on LAN, PXE function
| |||
|
USB
|
4* USB3.0 interface
| |||
|
COM
|
4* DB9 RS232 serial interface, COM1/2 supports the 9th pin
| |||
| Operation / Mechanical |
Audio
|
1* Line out interface, 1* MIC interface
| ||
|
power supply
|
1* DC power adapter interface, support DC12V power input
| |||
|
storage |
SATA
|
1*2.5 inch hard drive expansion
| ||
|
Solid state drive
|
1* MSATA SSD solid state drive expansion, transmission speed up to 6Gbps
| |||
|
Expand |
Mini PCIE
|
1* Mini PCIE slot, support WIFI/4G module
| ||
|
M.2
|
1*M.2 slot, support M.2 2260/2280 NVME PCIE standard SSD
| |||
|
software support |
Microsoft Windows
|
Windows 10, 64bit (without key)
| ||
|
Linux
|
Ubuntu
| |||
|
Watch Dog
|
Support hardware reset function (256 levels, 0~255 seconds)
| |||
|
Power requirement
|
Power type
|
External power adapter
| ||
|
Power requirement
|
Voltage input
|
DC 12V
| ||
| Power |
Power output
|
AC TO DC, 36W / 60W
| ||
| |
Operating temperature
|
-10℃～60℃
| ||
|
storage temperature
|
-20℃～70℃
| |||
|
Relative humidity
|
5%-95% relative humidity, non-condensing
| |||
|
Job vibration
|
0.5g rms/5-500HZ/random/operating
| |||
Detail Images
Product application
