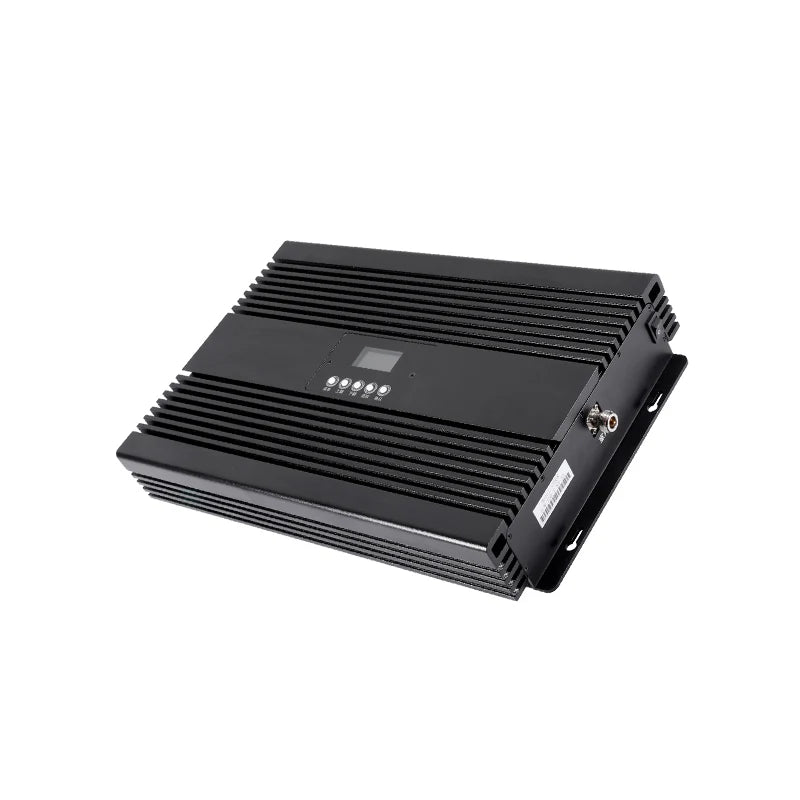

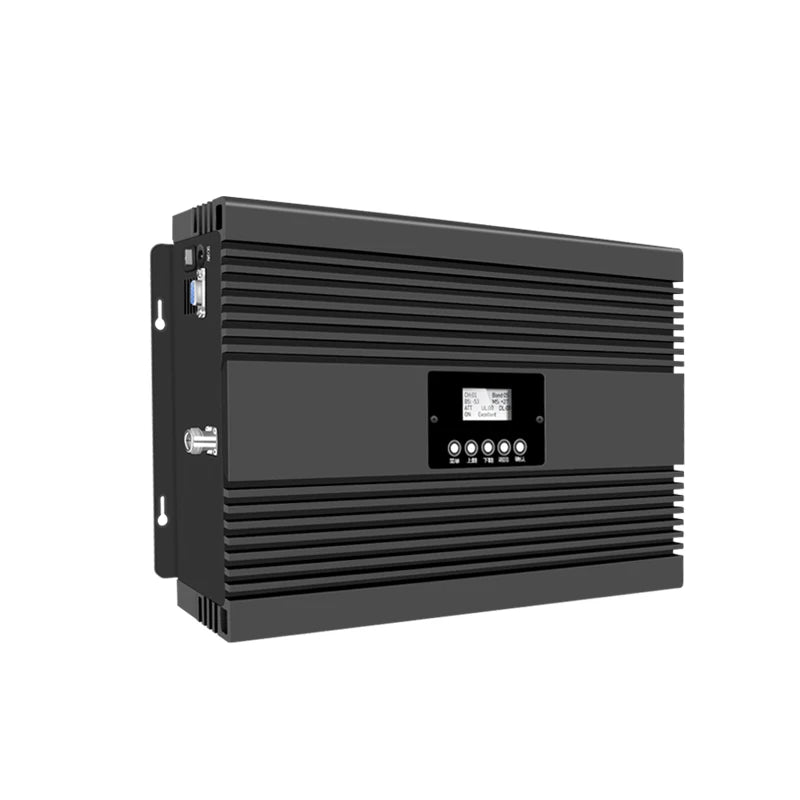

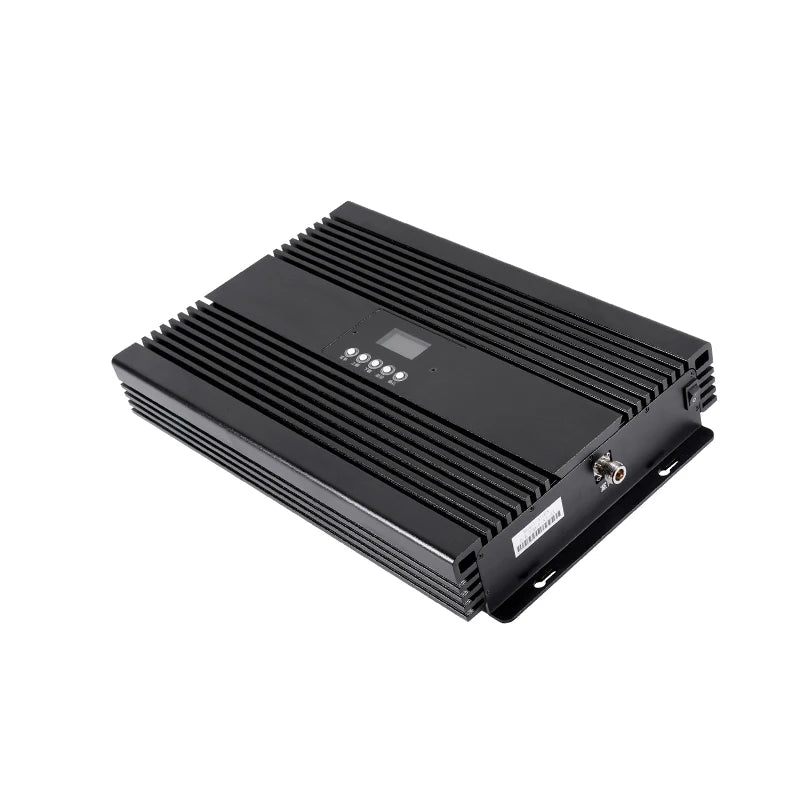

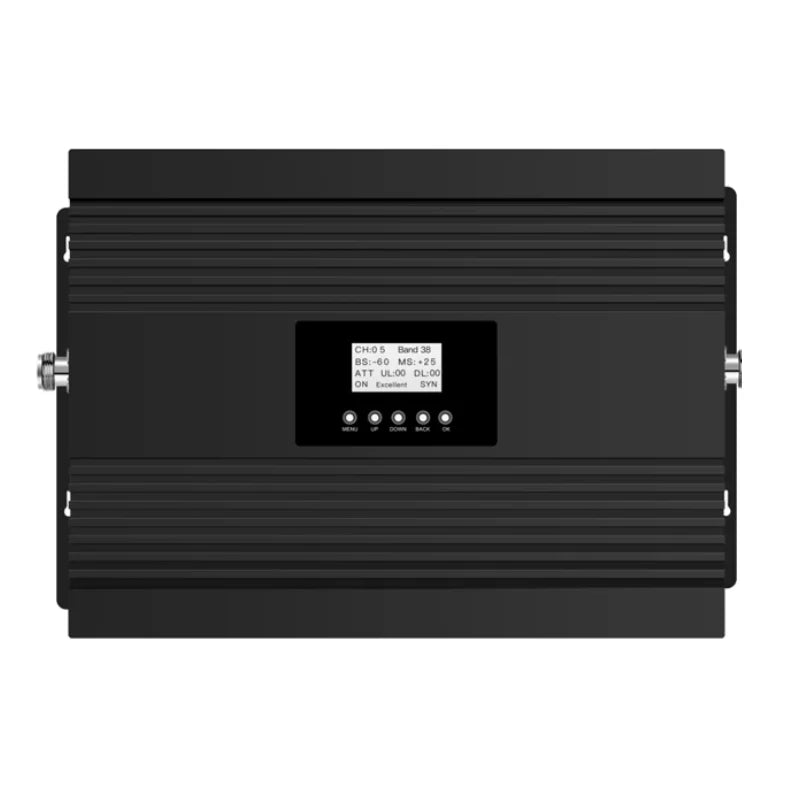

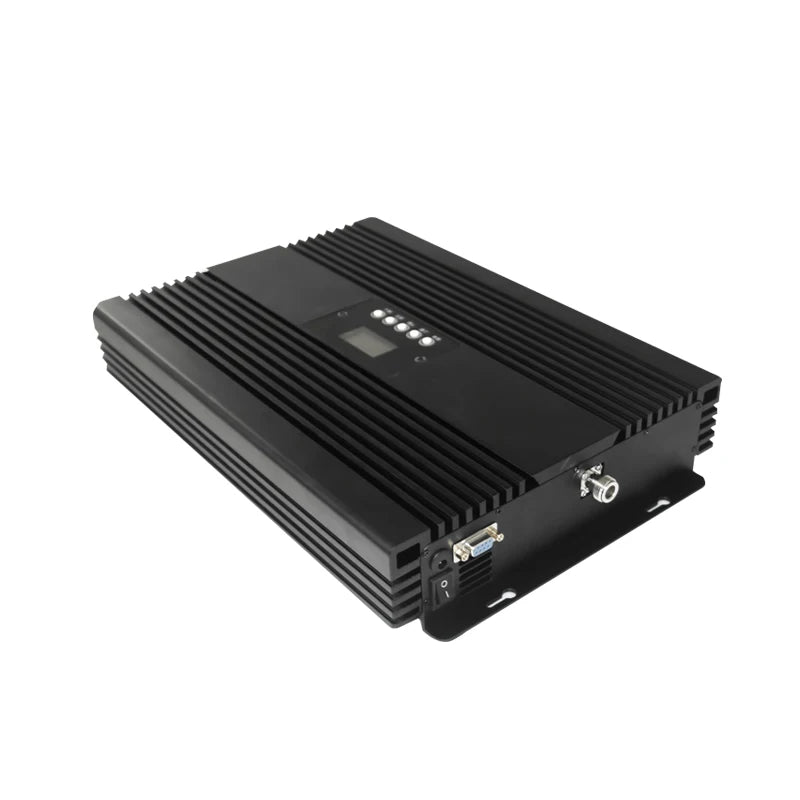

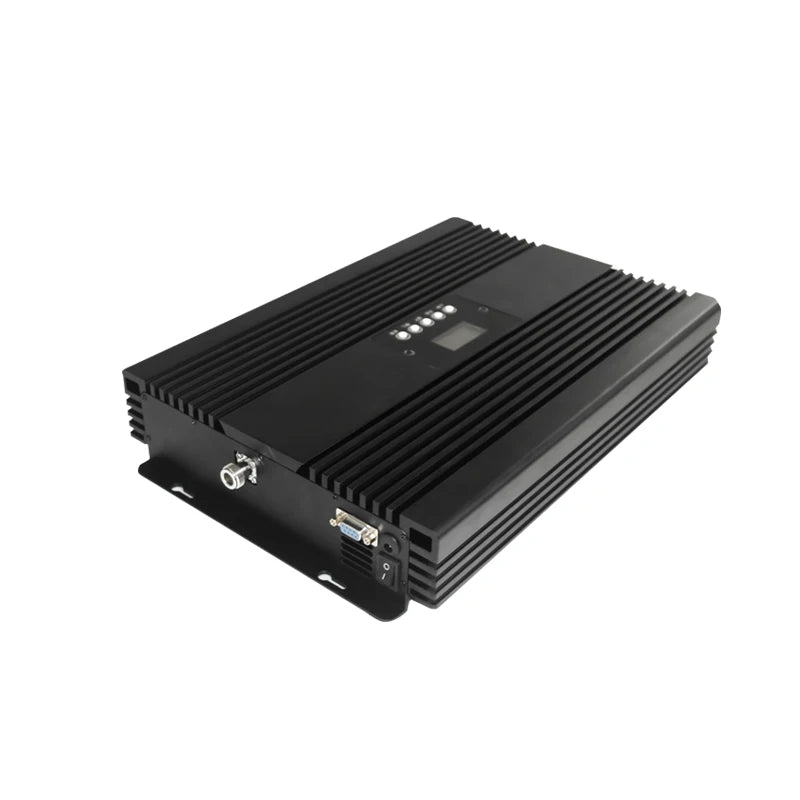

ATNJ Powerful Tri Band 900/1800/2100MHz cell phone amplifier network 3g 4g booster phone repeater
$1,456.20$3,451.20
Payment Methods
VR
Product Description
Specification
|
SPECIFICATIONS
|
parameters
| ||
|
Frequency Range (Customers to Choose)
|
Uplink
|
890-915MHz,1710-1785MHz,1920-1980MHz
| |
|
Downlink
|
935-960MHz,1805-1880MHz,2110-2170MHz
| ||
|
Frequency Bandwidth (3dB Bandwidth)
|
35MHz
| ||
|
Gain
|
85dB
| ||
|
Automatic gain control (Step Attenuation)
|
31dB @ 1dB/ Step
| ||
|
Auto Gain Control
|
20-30dB Min.
| ||
|
Output Power(Customers to Choose)
|
30dBm
| ||
|
Spurious Emission
|
≤ -15dBm/30kHz
| ||
|
9kHz~1GHz: ≤ -36dBm/30kHz
| |||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz
| |||
|
Inter-Modulation Attenuation ACPR
|
≤ -40dBc / 30kHz (measured under rated output power)
| ||
|
In-band Ripple
|
≤ 3dB
| ||
|
VSWR
|
<=2
| ||
|
I/O Impedance
|
50 Ω
| ||
|
Noise Figure
|
≤ 5dB
| ||
|
System Delay
|
≤ 5μs
| ||
|
RF Connector(Customers to Choose)
|
N (Female)
| ||
|
Operating Temperature
|
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C
| ||
|
Power Supply
|
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)
| ||
|
Dimensions
|
165*130*40 (mm)
| ||
|
Weight
|
≤5kg(Net)
| ||
|
Indication LED
|
Power supply
| ||
Features:
1,High Quality AGC+ALC Chips,stable performance .
2, Intelligent to guide the installation with LCD .
3,Metal Shell , High Performance ，Low-power dissipation .
4,Multiple Frequencies Combinations For Your Choice .
5,Stable Performance ，Lower noise and lantency .
6, Three years warranty,worry-free after-sales .
1,High Quality AGC+ALC Chips,stable performance .
2, Intelligent to guide the installation with LCD .
3,Metal Shell , High Performance ，Low-power dissipation .
4,Multiple Frequencies Combinations For Your Choice .
5,Stable Performance ，Lower noise and lantency .
6, Three years warranty,worry-free after-sales .
Onvels is synonymous with excellence.Onvels stands for quality.Onvels is synonymous with originality.Onvels is synonymous with effectiveness.Onvels. Excellence is our goal.Onvels committed to the best service ( Always ).
