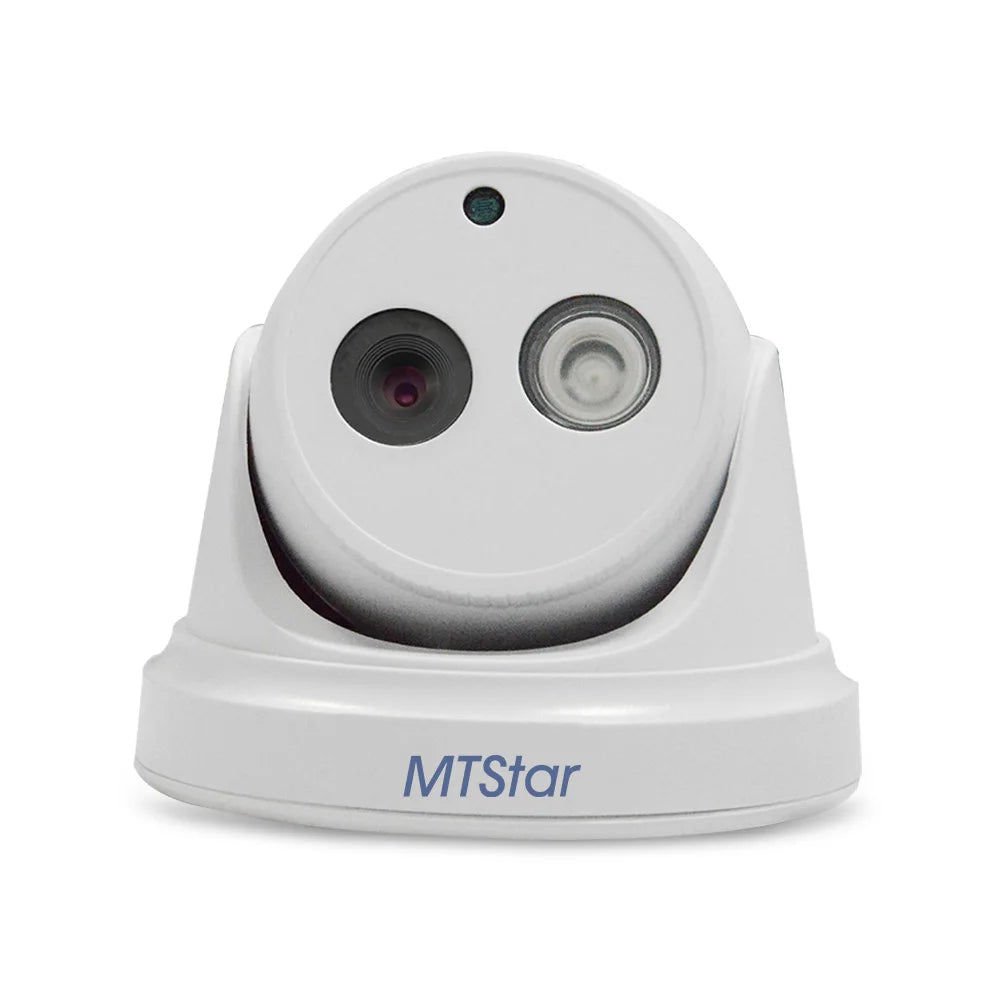

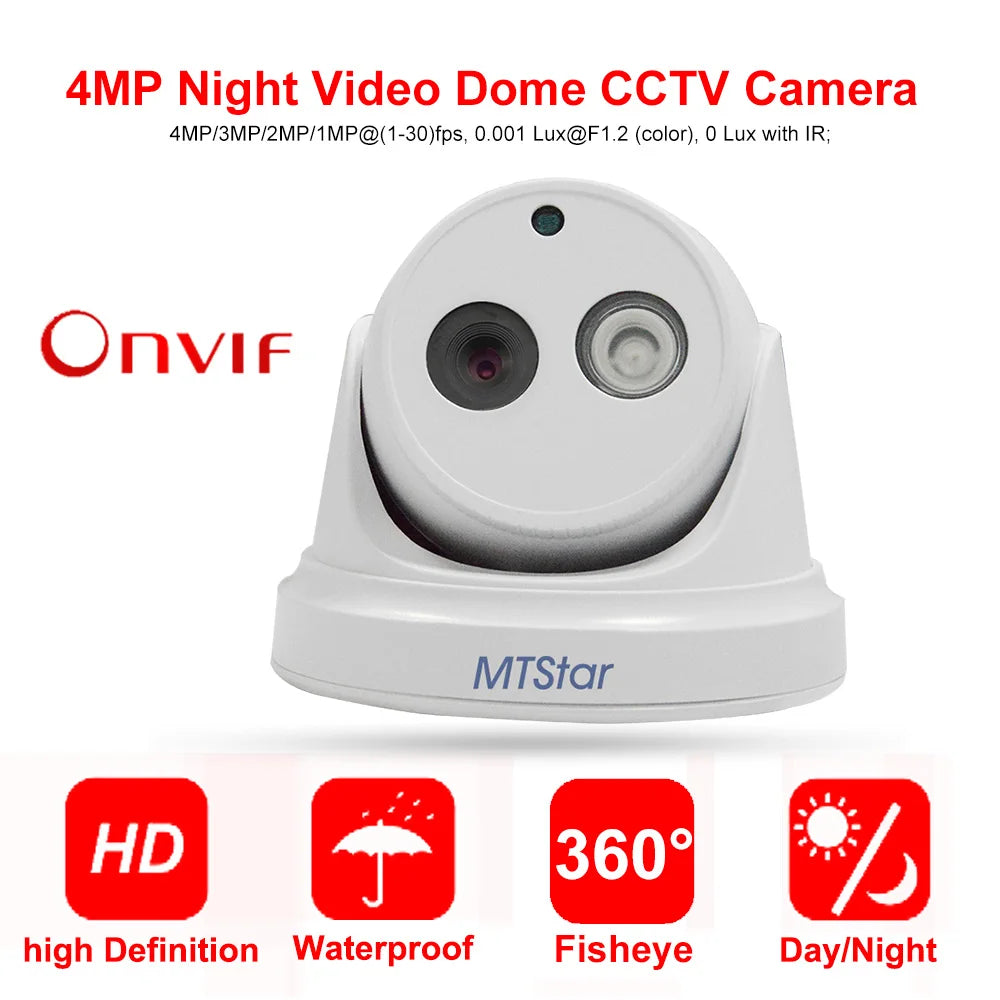

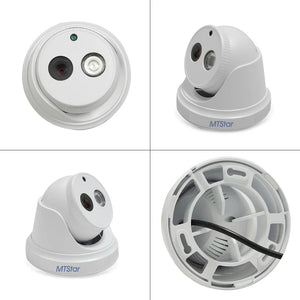

Outdoor Home HD 4MP Dome Camera Network Night Vision infrared 20m hik-vision PoE Camera CCTV Security surveillance IP Camera
$79.98$147.81
Payment Methods
Product Description

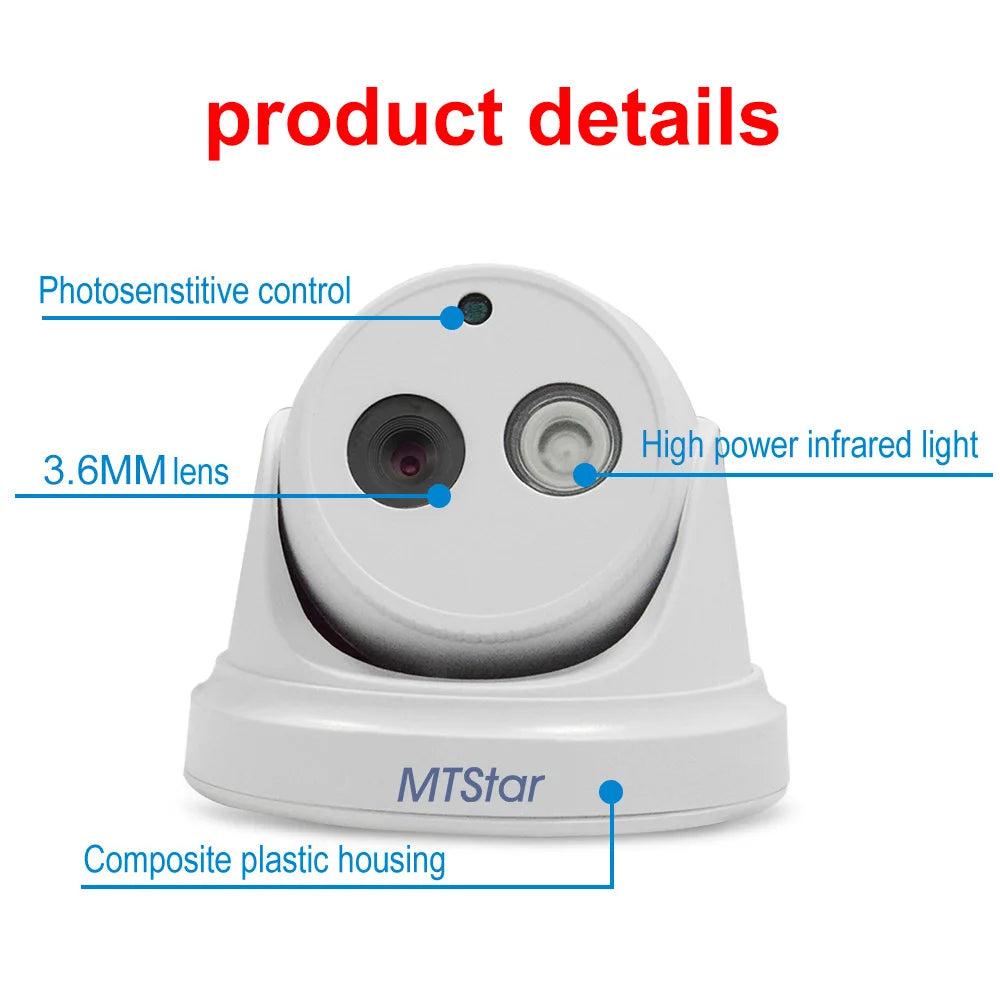

Camera:1/2.8" 4.0 Megapixels Progressive Sensor IF4053CMOS, FH8852 Chipset, the highest resolution of 4MP 2160*1944, low illumination 0.01 Lux@F1.2 (color); 0 Lux@F1.2 (black and white ); IR-CUT (day/night), adapt Box, H.264 /H.265 video coding, double stream, ON-VIF 2.4, be compatible many NVR and platform management software. Key Features: 1.1/2.8" 4.0 Megapixels Progressive Sensor IF4053 MOS 2. 4MP/3MP/2MP/1MP@(1-30)fps 3. Min. Illumination: 0.01 Lux@F1.2 (color); 0 Lux@F1.2 (black and white） 4. H.264 /H.265 & MJPEG dual-stream encoding 5. Multiple network monitoring: Web viewer, Smart phone. 6. 3mp 3.6mm fixed Lens, ICR 2pcs Matrix High Power IR LEDs--IR distance 20M 7. Privacy Mask, Motion Detection 8. Support On-vif 2.4 protocol 9. POE function 10. IP66 rating
| Form parameters | ||
| Mode
|
ASIH20-P8-7040
| |
| Camera Specification
| ||
|
Image Sensor
|
1/2.8" 4.0 Megapixels Progressive Sensor IF4053 CMOS
| |
|
Chipset
|
FH8852
| |
|
Effective Pixels
|
4mp 2160(H)x1944(V)
| |
|
Shuttle time
|
Auto (1/25 ~ 1/10000s)
| |
|
Min. Illumination
|
0.01Lux/F1.2(Color) 0Lux/F1.2(B/W)
| |
|
Lens Specifications
|
4mp 3.6mm fixed Lens
| |
|
Day/Night Mode
|
Auto(ICR)/Color/B/W
| |
|
IR Distance
|
ICR 2pcs Matrix High Power IR LEDs--IR distance 20M
| |
|
S/N Ratio
|
≥50db(AGC OFF)
| |
|
White Balance
|
Auto
| |
|
Gain Control
|
Auto
| |
|
WDR
|
Digital WDR ≥80db
| |
| Image
| ||
|
Compression
|
H.264 /H.265/MJPEG
| |
|
Max Image Size
|
4mp 2160(H)x1944(V)
| |
|
Stream
|
Dual-stream
| |
|
Frame Rate
|
Main Stream ：4MP/3MP/2MP/1MP@(1-30)fps
| |
|
Bit Rate
|
32KB ~16Mbps; support VBR; CBR
| |
|
Text Overlay
|
Channel; Date & Time; Bit Rate
| |
| Network
| ||
|
Data Storage
|
Video record; Picture format
| |
|
Trigger
|
Manual; Automatic(motion detection; alarm; schedule; cycle )
| |
|
Protocol
|
TCP/IP/IUDP/IRTP/IRTSP/IRTCP/IHT-TP/IDNS/IDDNS/IDHCP/IFTP/ INTP/IPPPOE/ISMTP/IUPNP
| |
|
ON-VIF
|
ON-VIF 2.4
| |
|
Max. User Access
|
10 users; IE; Google; Firefox
| |
|
Smart Phone
|
Windows Mobile; iPhone; iPad; Android
| |
| General Parameters
| ||
|
Power Supply
|
DC12V/POE
| |
|
Operation Temperature
|
-20℃ - +50℃
| |
|
Operation Humidity
|
Less than 95%RH(no condensation)
| |
|
Weather Proof Rating
|
IP66
| |
