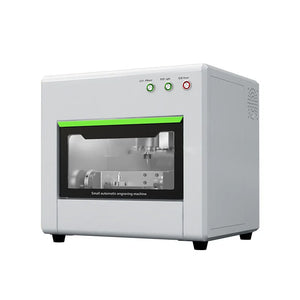

LY FK10 Enclosed CNC Engraving Machine Suitable For Jewelry Jade Stone Glass Gem Cutting 4 Axis Linkage Work Size 150*80mm 1KW

Parameter

Model

Fk10 Desktop Carving Machine

X/Y/Z Stroke

150Mm*80Mm*60Mm

Dimension Of Stereo Processing

Φ60*L90Mm

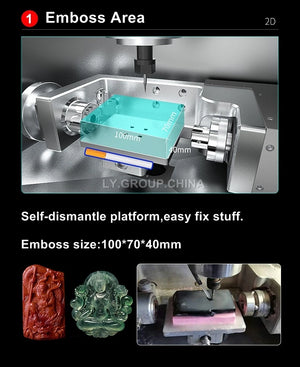

Relief Processing Size

100*80*40Mm

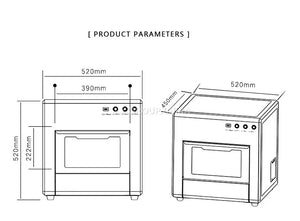

L*W*H

520*450*520Mm

Weight

About 70Kg

Material

Aluminum Alloy

Engraving And Clamping Mode

Top Pressing / Gluing / Four Jaw Chuck

Accuracy

0.01Mm

Spindle Speed

0-24000Rpm/Min

Processing Speed

0-3000Mm/Min

Spindle Power

800W Water Cool Spindle

Guide Rail

Imported 15Mm Square Rail

Screw Rod

Imported 16Mm

Drive Mode

Hybrid Servo

The Diameter Of Clamping Tool Shank

2.3Mm/3Mm/4Mm

Voltage

Ac 220V/50-60Hz

Power

1Kw

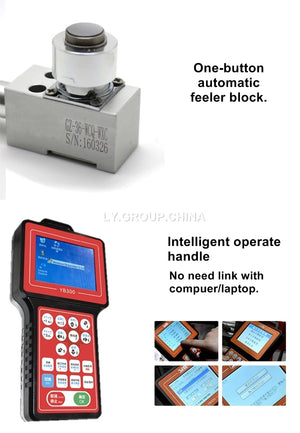

Control System

Handle Control Off-Line System
