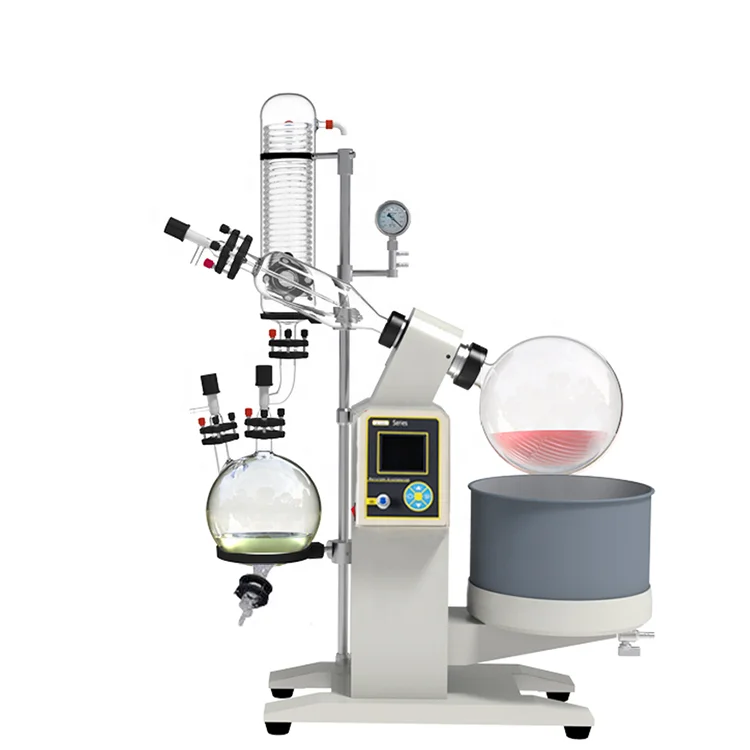

Introduction
The equipment for purification distillation test rotates and shapes a thin film in negative pressure condition
by heating, evaporates efficiently, and then condenses and recollects solvent to purify and separate.
Feature
Specification
Model | HEA-05 |
Condenser | Vertical Condenser |
Collect Flask | 2L |
Rotary Flask | 5L |
Motor Power | 250W |
Power Voltage | 220/110V for Optional |
Bath Power | 1800 W |
Volume | 5L |
Bath Material | SS304 Combined Bath Material Completely Closed Heated |
Evaporation Rate(Water) | 1.5L/ H |
Speed Range | 0 - 140 RPM |
Lift and Stroke | Water Bath Lifting with Manual Control, 150 mm |
Glass Material | GG-17 Glass |
Heating Temperature Range | Rm-99 Degree |

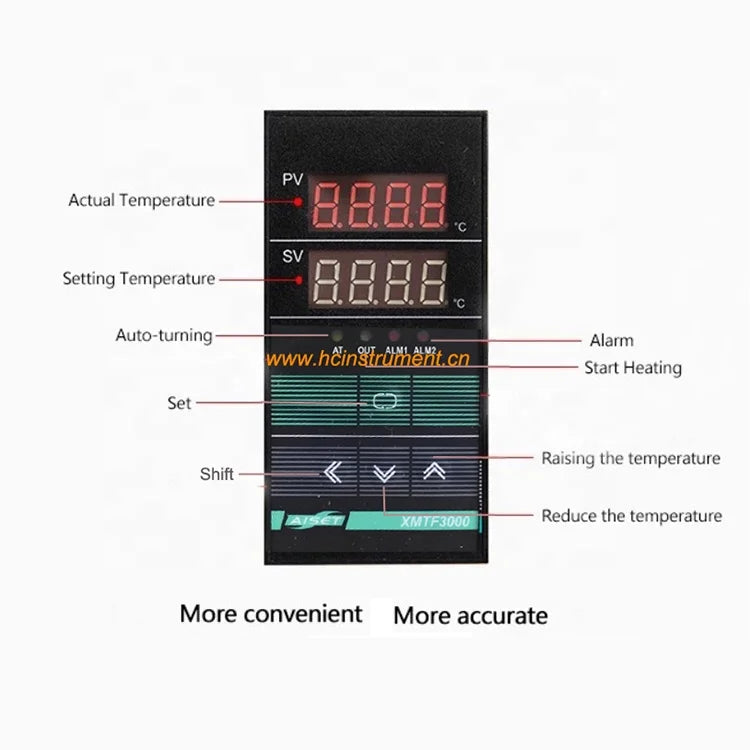

Heat Control | PID |
Heat control accuracy | ±1 Degree |
Ultimate Vacuum | 0.098 Mpa |
Dimensions (W x H x D) | 950×520×550 mm |
Weight | 85 kg |
Remark: Heating Temperature Range can be extened to 199 Degree

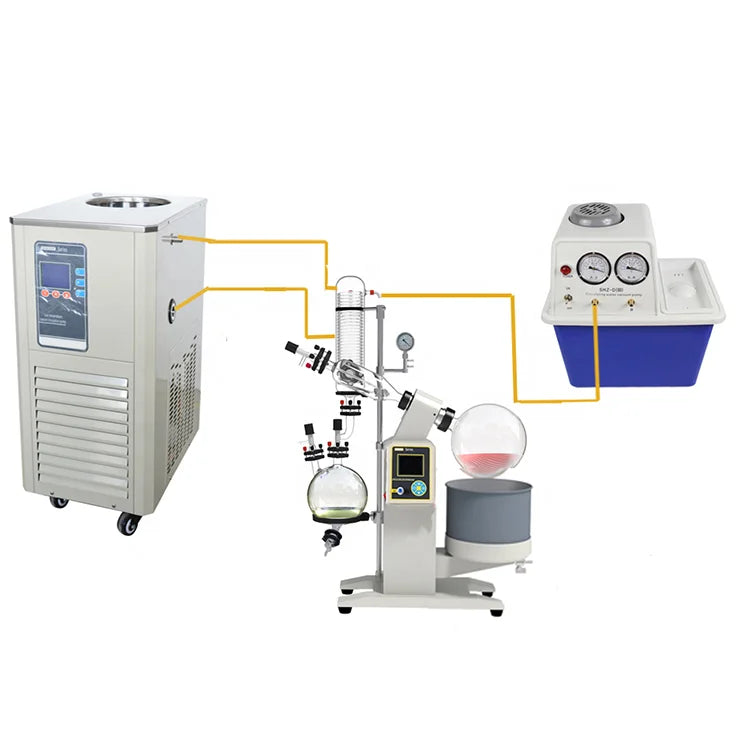

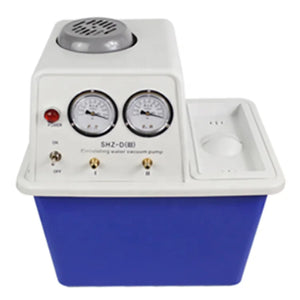

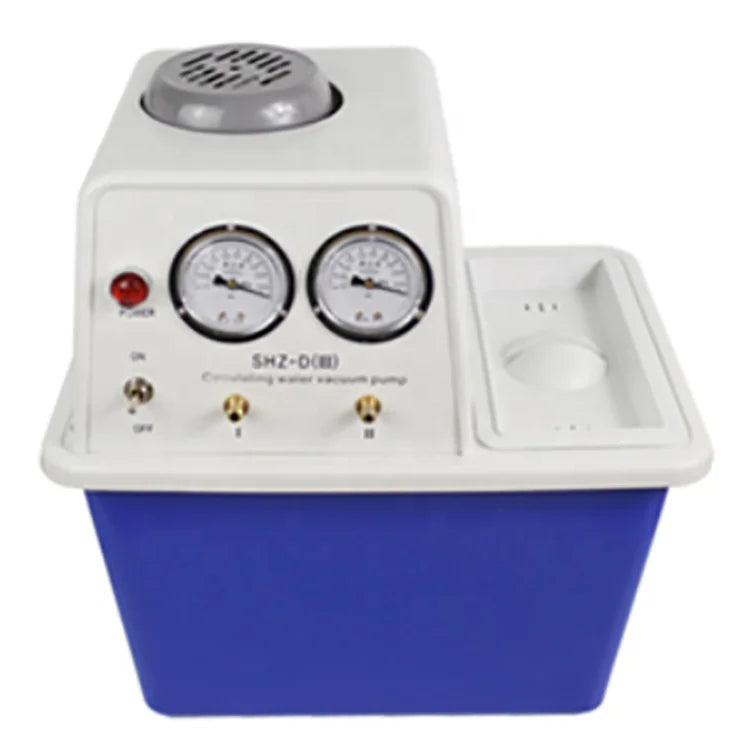

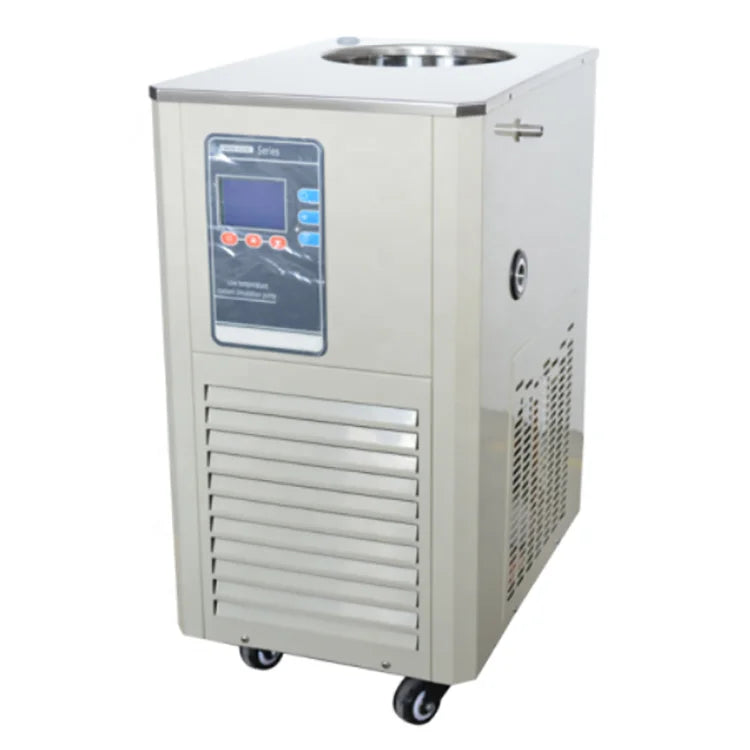

Product details &Matching machine
