Industrial Bulk Mechanical water counter meter price water meter iot With pulse Good Feedback class c water meters

Name: Industrial Bulk Mechanical water counter meter price water meter iot With pulse Good Feedback class c water meters
Brand: KUYKTHTR
Price: 143.87 USD
Availability: InStock

KUYKTHTR

$143.87 USD$243.62 USDYou Save 41% ($99.75 USD)

Payment Methods

Feature：

1 . Dry magnetic transmission stucture,make sure the counters are clean,clear showing. 2 . Six digit of digital word wheel showing reading, read more clearly. 3 . Detachable measuring core, convenient to maintance. 4 . The measured flow direction is axial flow, the flow capacity is strong, pressure loss is small and the measuring range is wide. Large water consumption, suitable for use in relatively stable flow. 5 . High abrasion proof bearing system,make sure standly work and dependly,increase mix flow of products 6 . Use stainless steel fastener,use epoxy powder coating and inside,hight limit antirust,increase of service life.

Product Information

Main technical parameters
Model NO	DN(mm)	Flow range			Common flow(Q3)	Over flow(Q4)	Boundary	Mini flow(Q1)	Mini Reading	Max Reading
Model NO	DN(mm)			Q3/Q1	Q2/Q1	m³/h					M3
LXLC-40	40	80	6.3	40	50	3.15	0.5	0.0005	999999
LXLC-50	50	80	6.3	40	50	3.15	0.5	0.0005	999999
LXLC-65	65	80	6.3	63	78.75	5.00	0.79	0.0005	999999
LXLC-80	80	80	6.3	100	125	7.88	1.25	0.0005	999999
LXLC-100	100	80	6.3	160	200	12.6	2.00	0.0005	999999
LXLC-150	150	80	6.3	400	500	31.5	5.00	0.0005	999999
LXLC-200	200	80	6.3	630	800	49.64	7.88	0.0005	999999

DN(mm)	Length	High					Flange			Bolt	Weight
DN(mm)		L	H	h	G	Outside diameter D(mm)	Bolt holes center diameter	Quantity and size	KG
LXLC-40	200	198	69	228	150	110	4*M16	8.3
LXLC-50	200	205	75	228	165	125	4*M16	10
LXLC-65	200	218	85	228	185	145	4*M16	12.5
LXLC-80	225	280	96	338	200	160	8*M16	13.6
LXLC-100	250	290	105	338	220	180	8*M16	18.3
LXLC-150	300	320	135	338	285	240	8*M20	28
LXLC-200	350	365	162	356	340	295	8*M20	44.8

performance curves

1. Low area(Q1≤Q＜Q2) maximum allowable error is ±5%. 2. High area(Q2≤Q≤Q4). 3. When water temperature ≤30℃,maximum allowable error is ±2%. 4. When water temperature ＞30℃,maximum allowable error is ±3%.

Installation

1 . Horizontal installation 2 . Need additional filter

3 . Need straight pipe at inlet and outlet

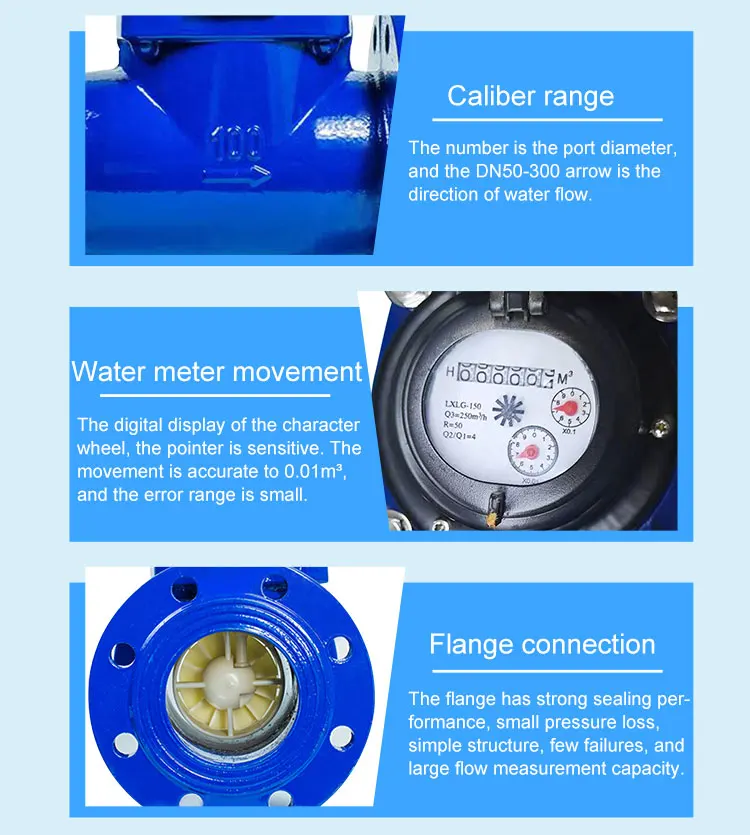

Product Details

Application Field
