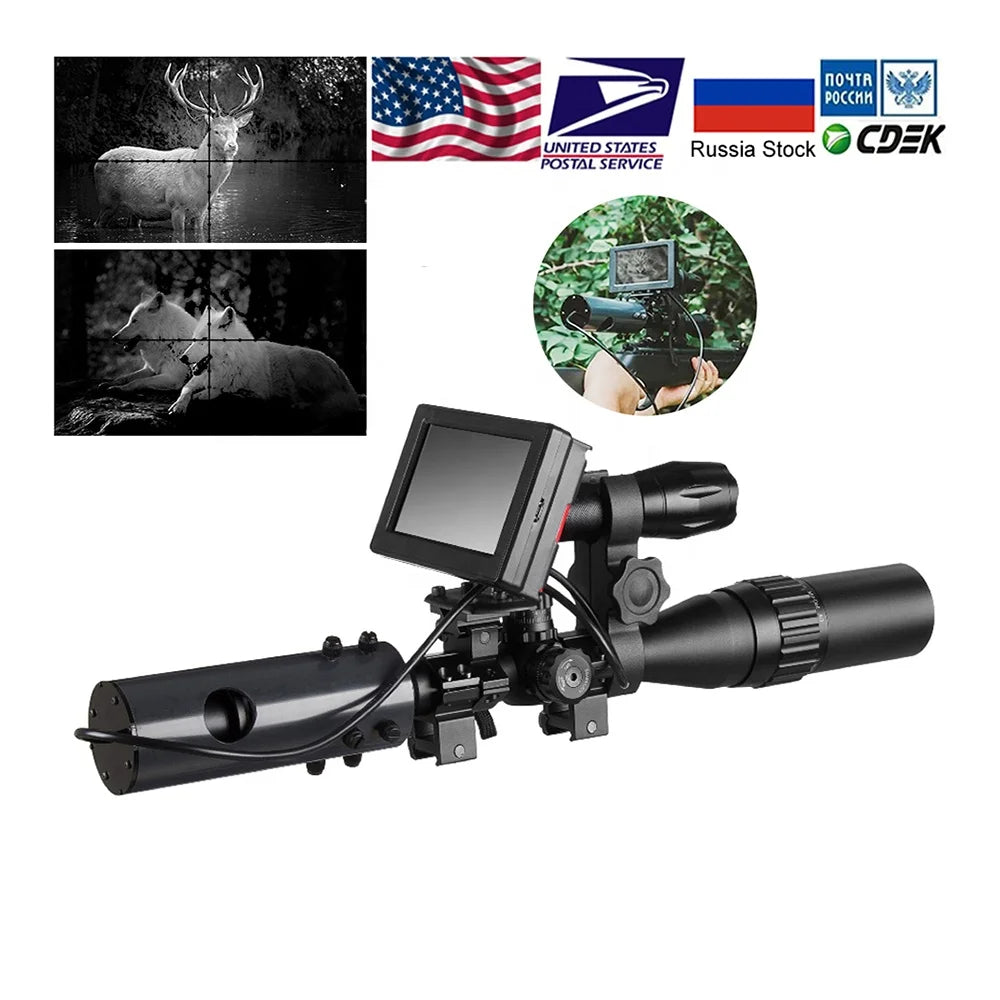

FIRE WOLF 850nm Infrared Scope Sight outdoor sports weights scopes & accessories Scopes Night Vision Device
$120.53$414.49
Payment Methods
Product introduction
Display size
4.3 inch
Resolution
480*272
Scanning frequency
60Hz
Minimum illumination
0.0001 LUX/F1.2
Signal to noise ratio
＞46dB
Operating temperature
-20℃-50℃
Adapter battery
18650 Lithium battery（No battery in the package）
Infrared light
850mm
Infrared lamp power
3W
Maximum clamping range
45mm

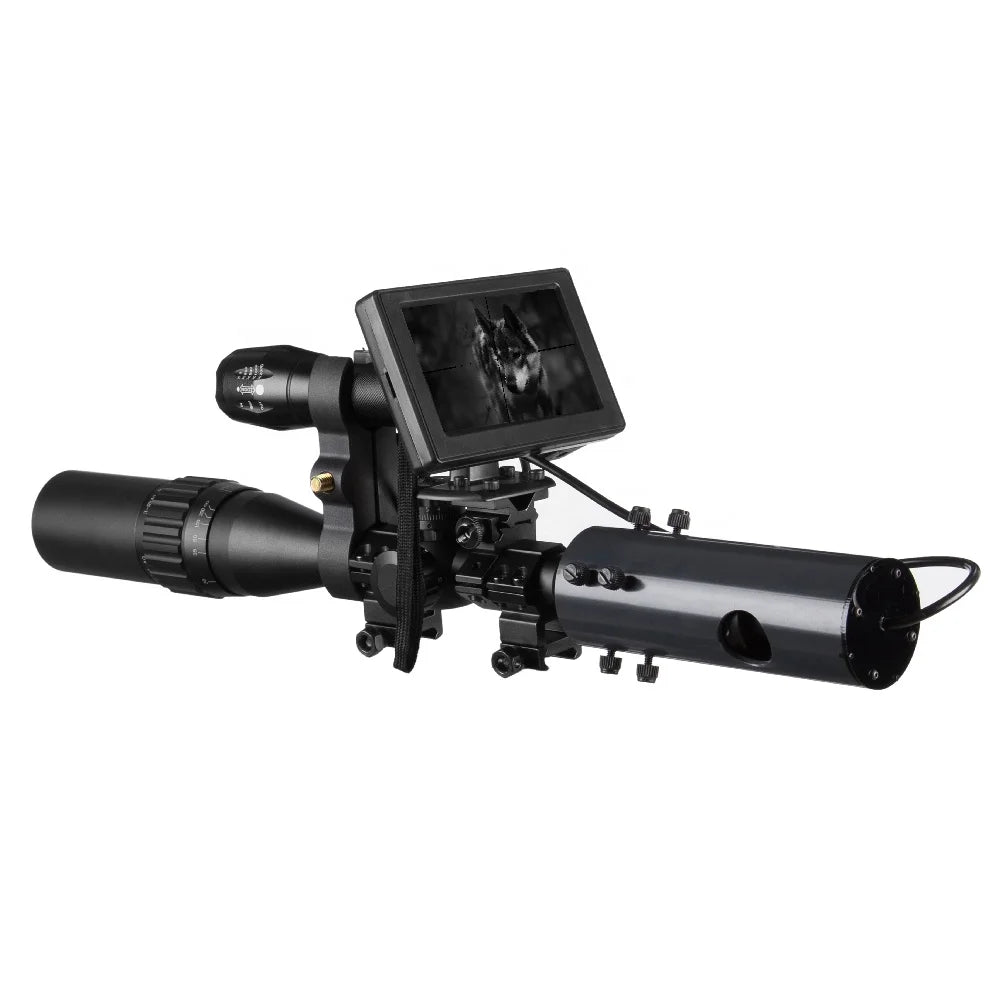

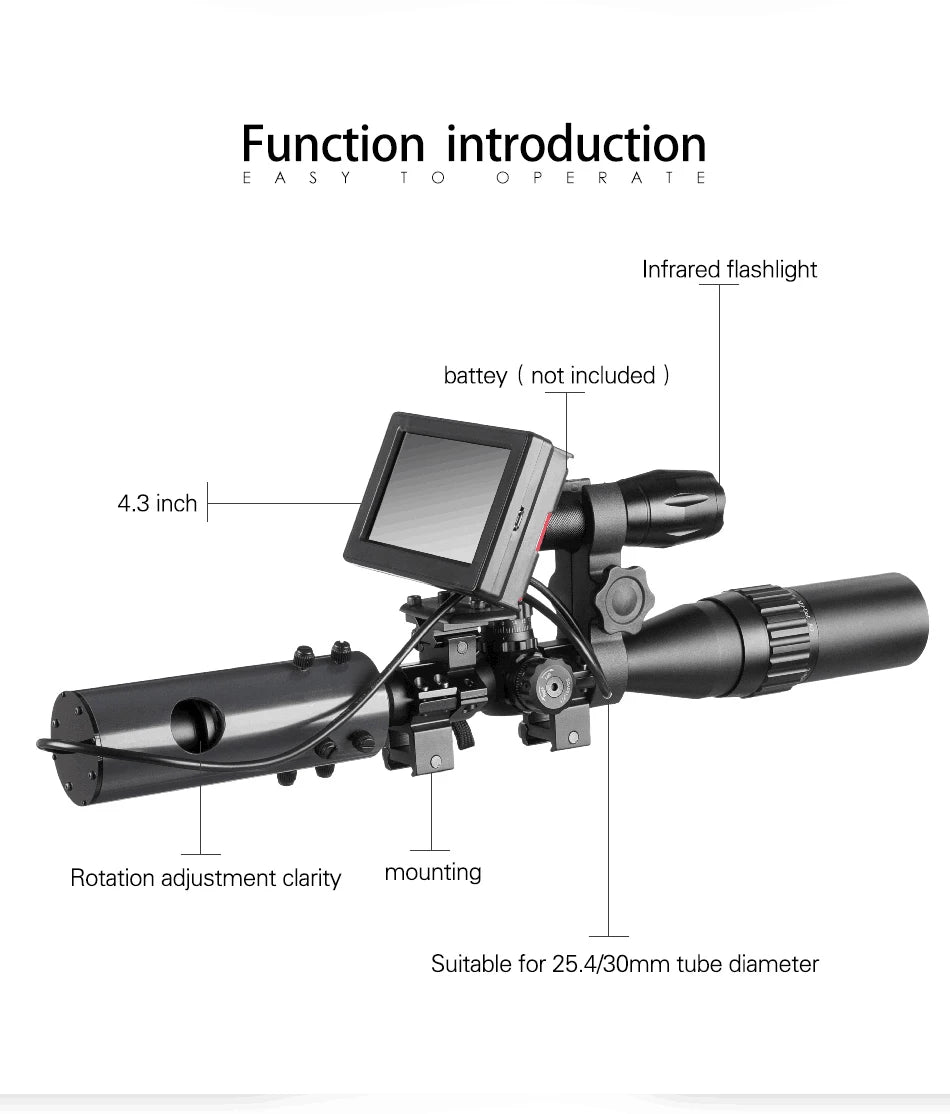

Commissioning of the Machine:
1. Secure the display and IR light on the optical sight with the pipe clamp.
2. Loosen the plastic screws (totally eight), and centrally fix the connecting tube in the rear of the eyepiece of the optical
sight.
3. Turn on the machine and rotate the lens of the machine (inside the tube) to adjust the focus, and adjust the cross line of
optical sight to be clear.
4. Adjust the position of the connecting tube, and tighten the screws till the cross line in the center of the display. And the
commissioning of the machine is complete till now.
5. In the future application, if the image is blurred caused by the different distances of the objects, the image clarity shall be
adjusted by side focus roller (and the parallax adjustment roller) attached with the optical sight. Do not move the machine lens,
otherwise the cross line will be blurry.
4.3 inch
Resolution
480*272
Scanning frequency
60Hz
Minimum illumination
0.0001 LUX/F1.2
Signal to noise ratio
＞46dB
Operating temperature
-20℃-50℃
Adapter battery
18650 Lithium battery（No battery in the package）
Infrared light
850mm
Infrared lamp power
3W
Maximum clamping range
45mm
Commissioning of the Machine:
1. Secure the display and IR light on the optical sight with the pipe clamp.
2. Loosen the plastic screws (totally eight), and centrally fix the connecting tube in the rear of the eyepiece of the optical
sight.
3. Turn on the machine and rotate the lens of the machine (inside the tube) to adjust the focus, and adjust the cross line of
optical sight to be clear.
4. Adjust the position of the connecting tube, and tighten the screws till the cross line in the center of the display. And the
commissioning of the machine is complete till now.
5. In the future application, if the image is blurred caused by the different distances of the objects, the image clarity shall be
adjusted by side focus roller (and the parallax adjustment roller) attached with the optical sight. Do not move the machine lens,
otherwise the cross line will be blurry.
